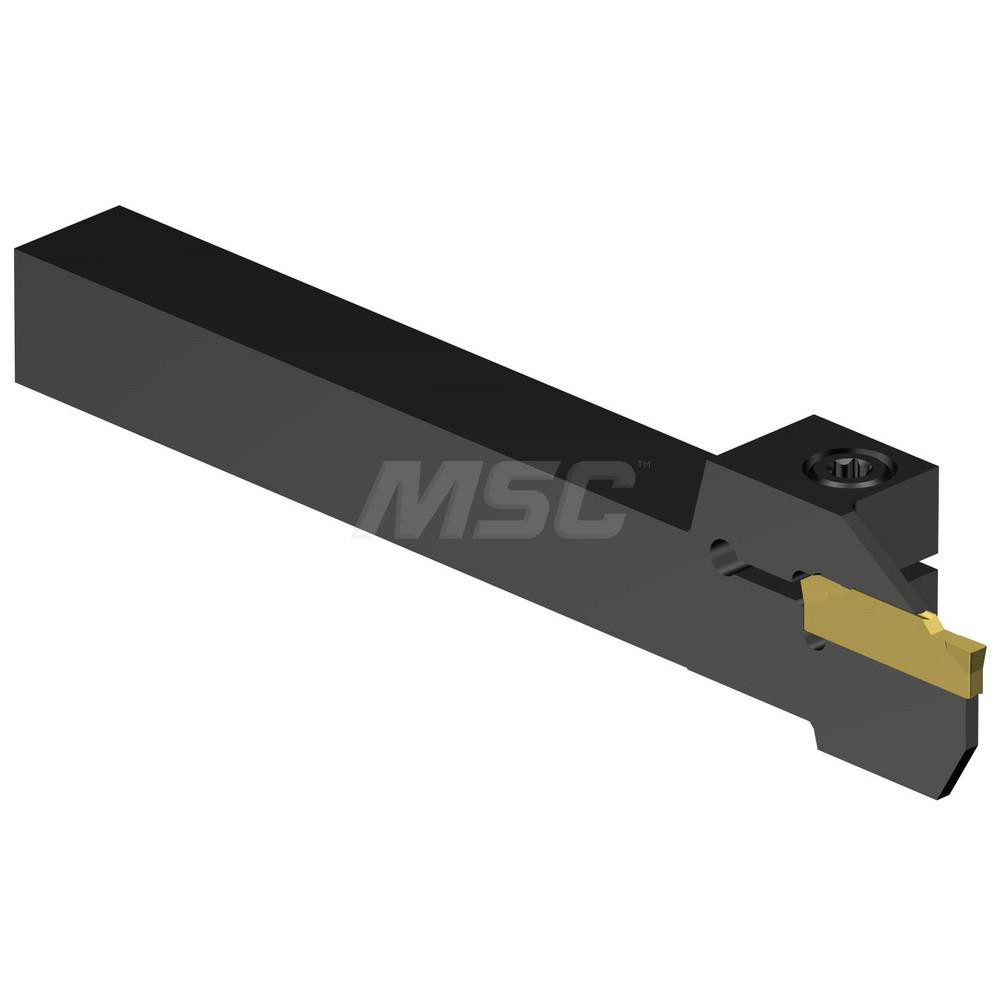

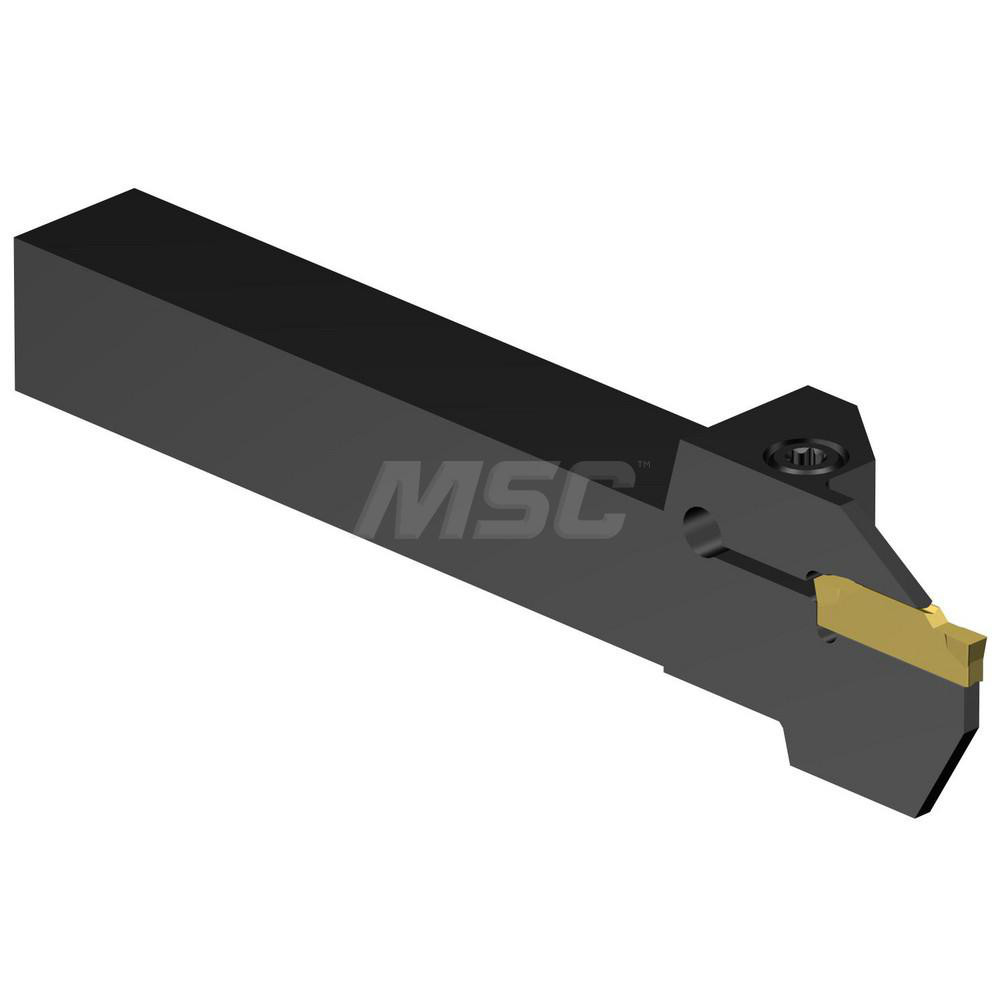

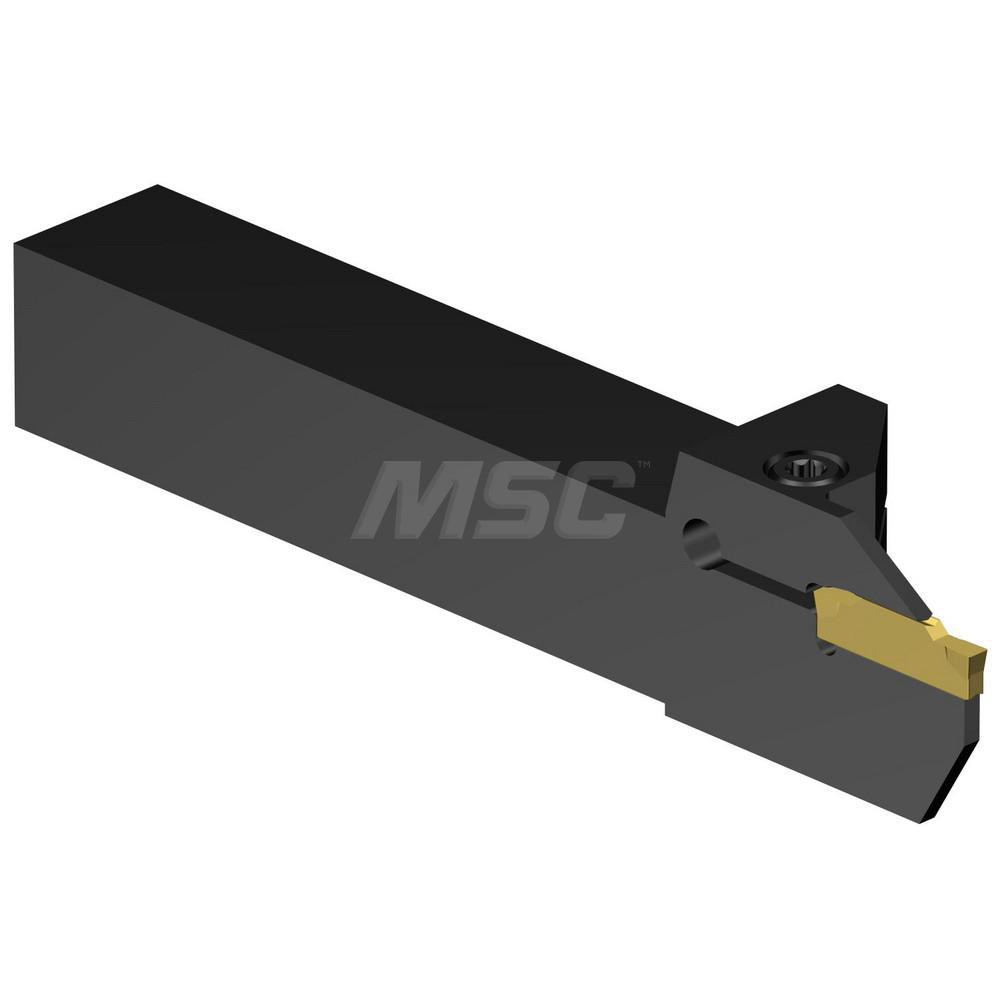

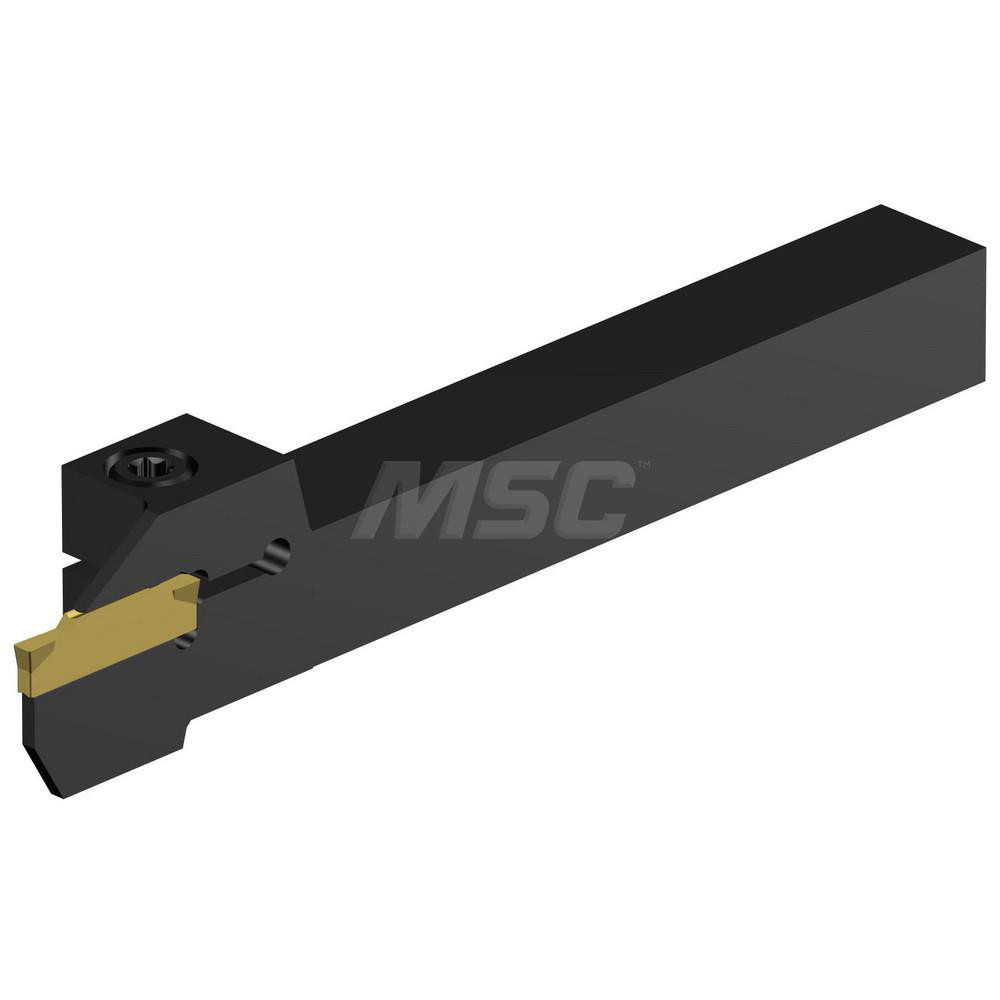

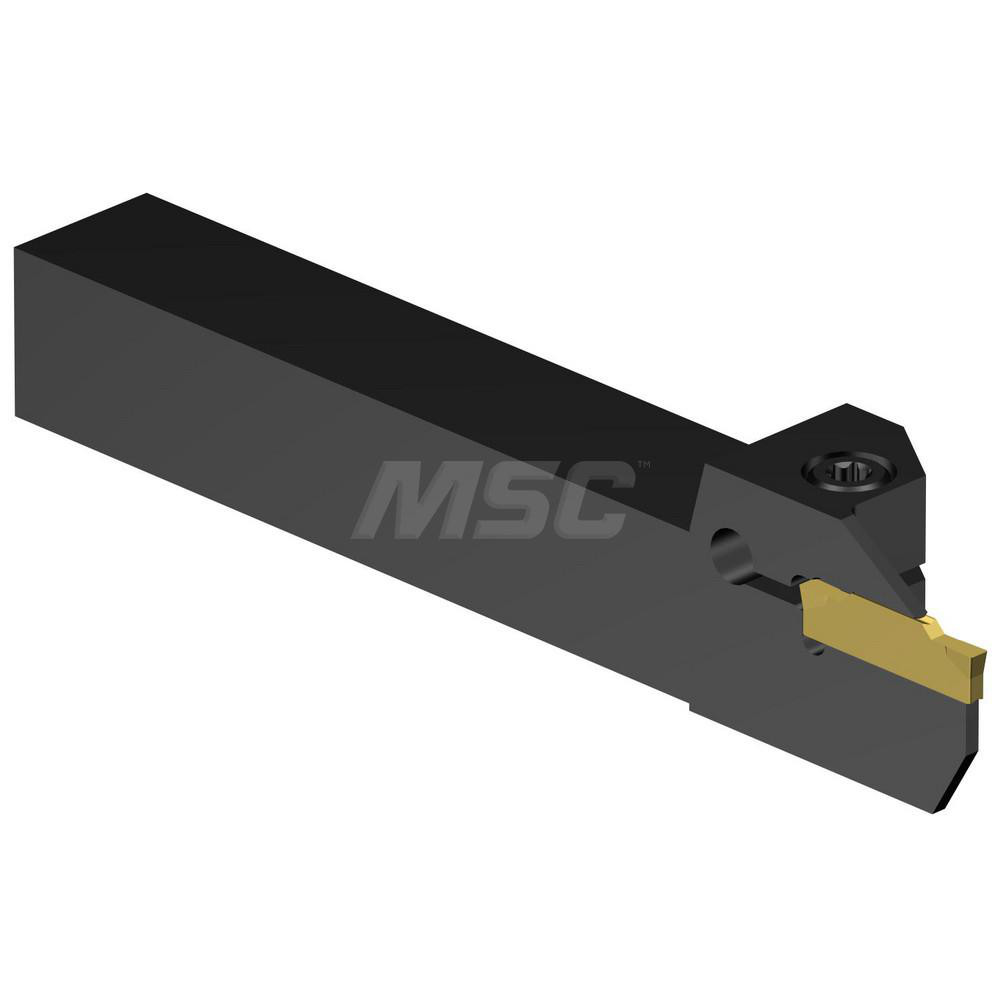

28 mm Max Depth of Cut, Uses N123L2 Inserts

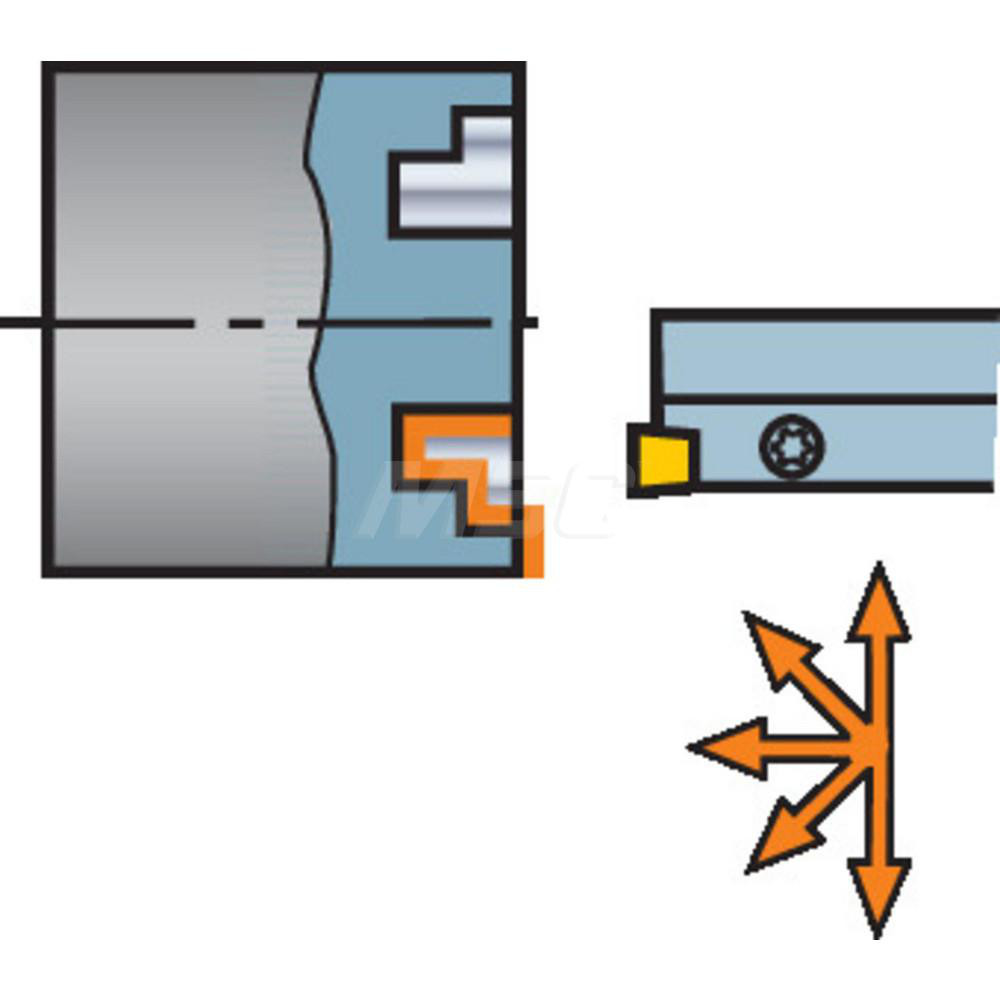

| Toolholder Type | Face Grooving |
|---|---|
| Insert Seat Size | L |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.1024 |
| Maximum Depth of Cut (mm) | 28.00 |
| Toolholder Style | F123 |

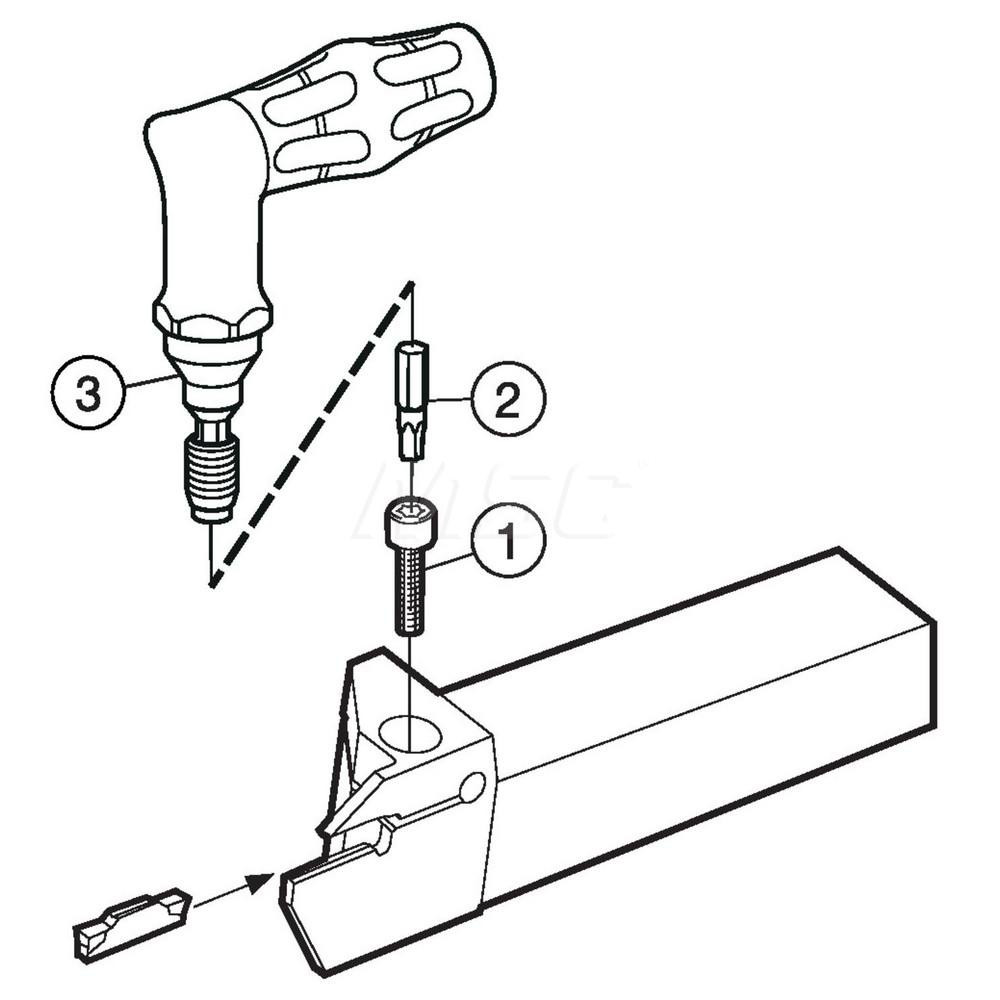

| Insert Holding Method | Clamp |
| Insert Compatibility | N123L2-0800-0008-TF |
| Compatible Insert Size Code | N123L2 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Series | Coro Cut 1-2 |

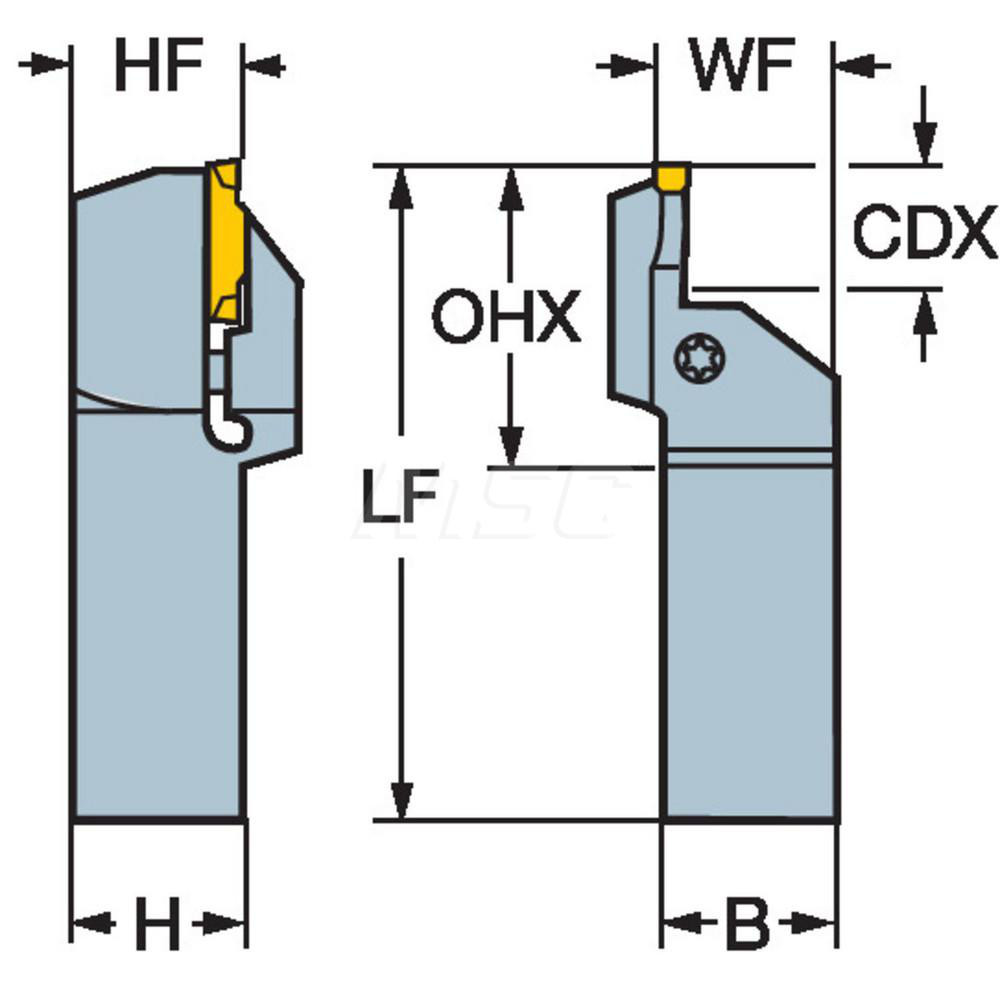

| Overall Length (mm) | 150 |
| Overall Length (Decimal Inch) | 5.9055 |
| Multi-use Tool | No |
| Maximum Overhang (Inch) | 2.2047 |
| Back of Bar to Cutting Edge (mm) | 26.00 |
| Minimum Hole Diameter (mm) | 75.00 |
| Minimum Hole Diameter (Decimal Inch) | 2.9528 |
| Head Length (Decimal Inch) | 1.1024 |
| Head Length (mm) | 28.00 |
| UNSPSC Code | 27112809 |
| Maximum Bore Depth (Decimal Inch) | 2.2047 |

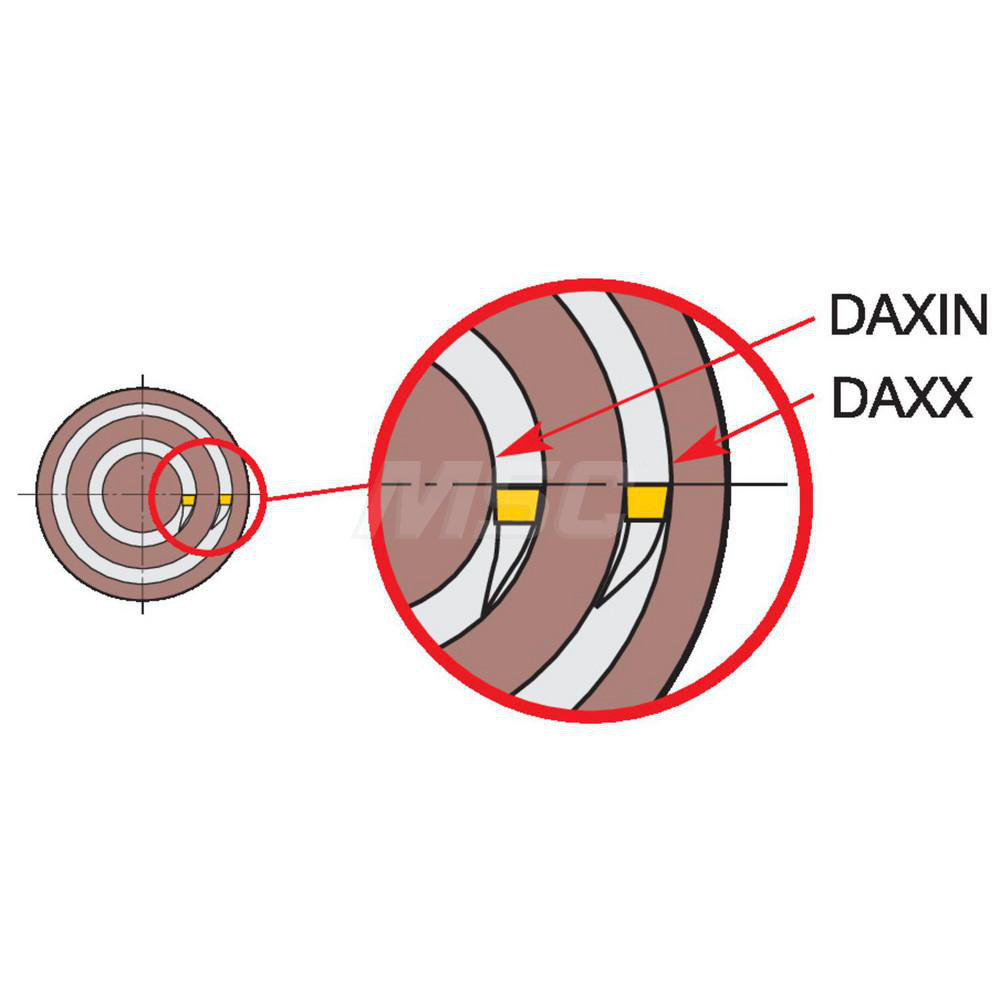

| Maximum Groove Outside Diameter (mm) | 150.00 |
| Minimum Axial Groove Inside Diameter(mm) | 75.00 |
| Manufacturers Catalog Number | 5740885 |
| Toolholder Material | Steel |
| Coolant Through | No |
| Country of Origin | Sweden |
| MSC Number | MSC# 54934195 |
