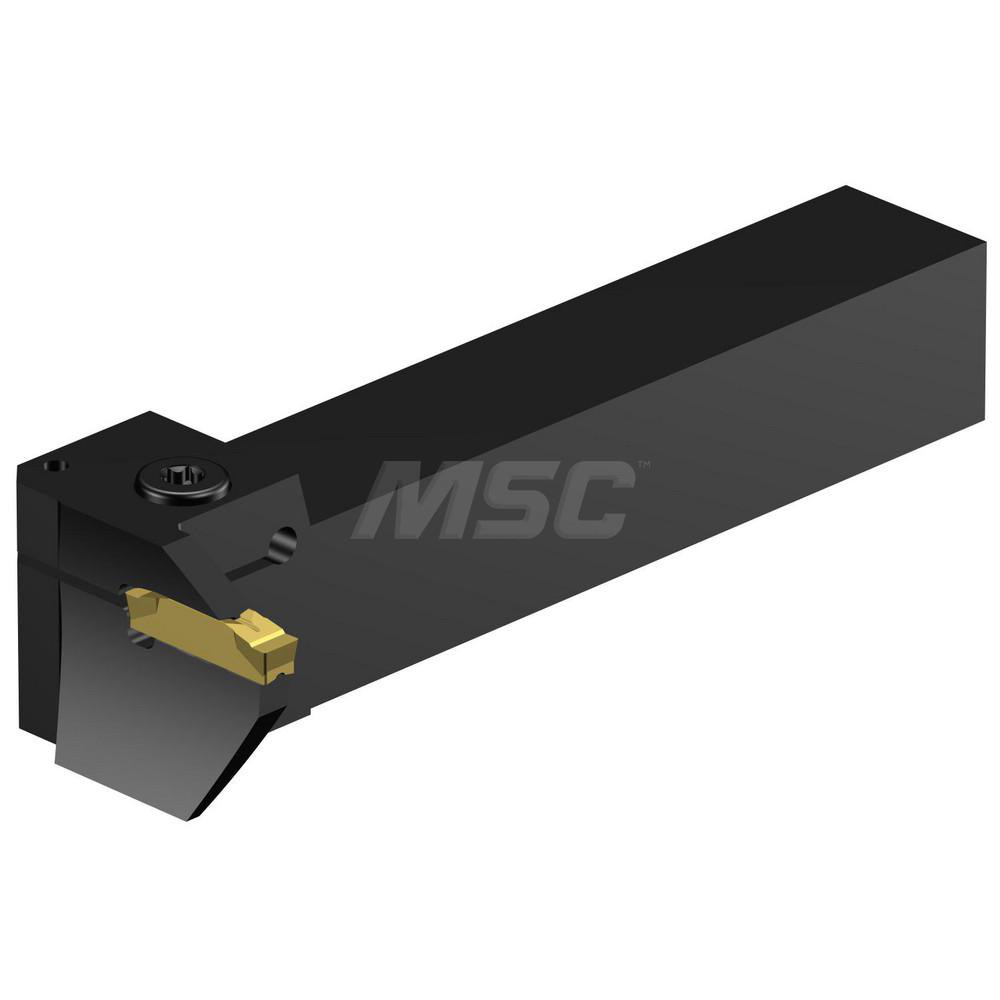

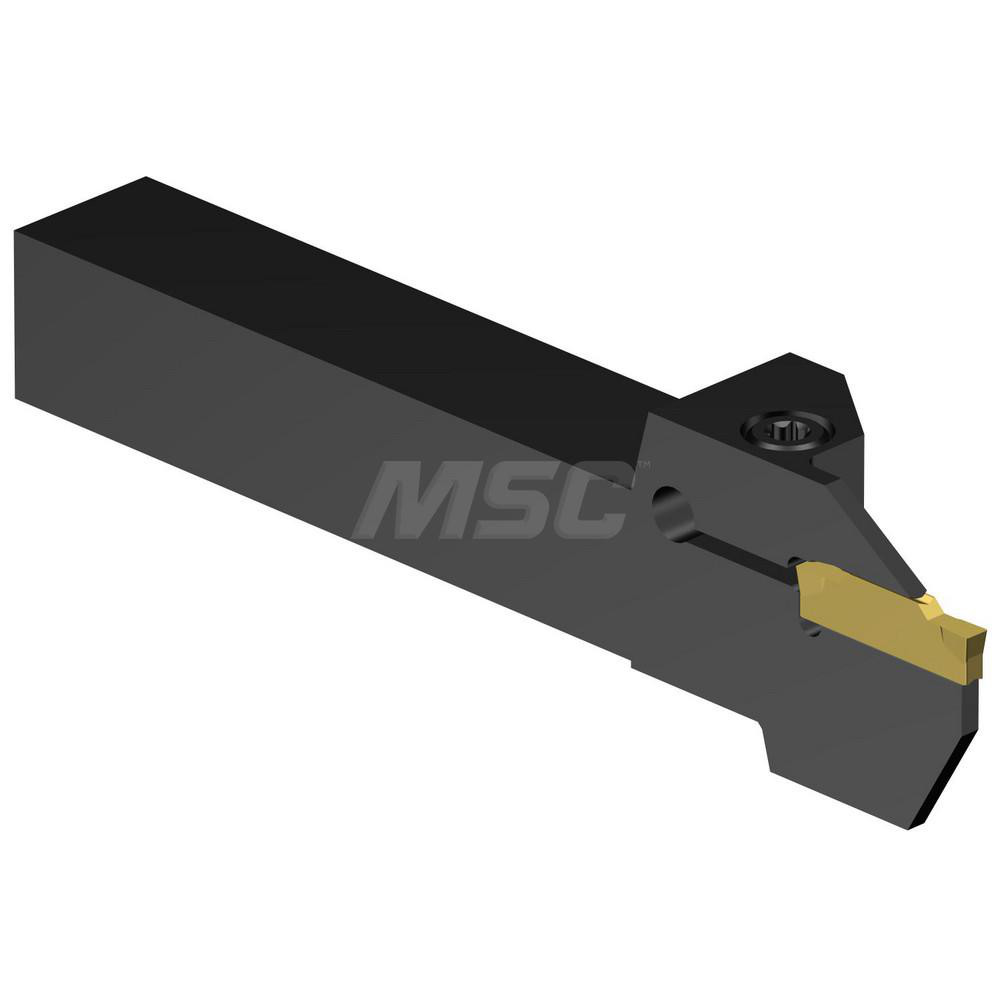

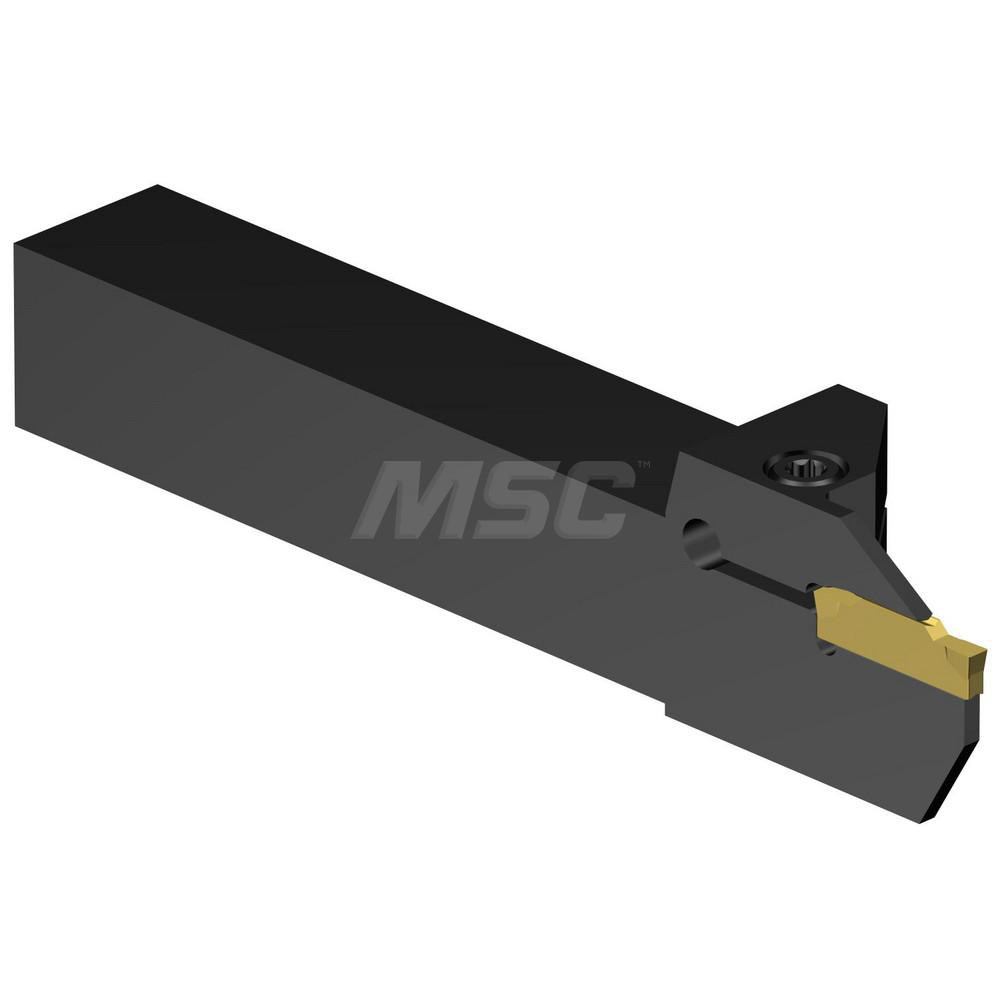

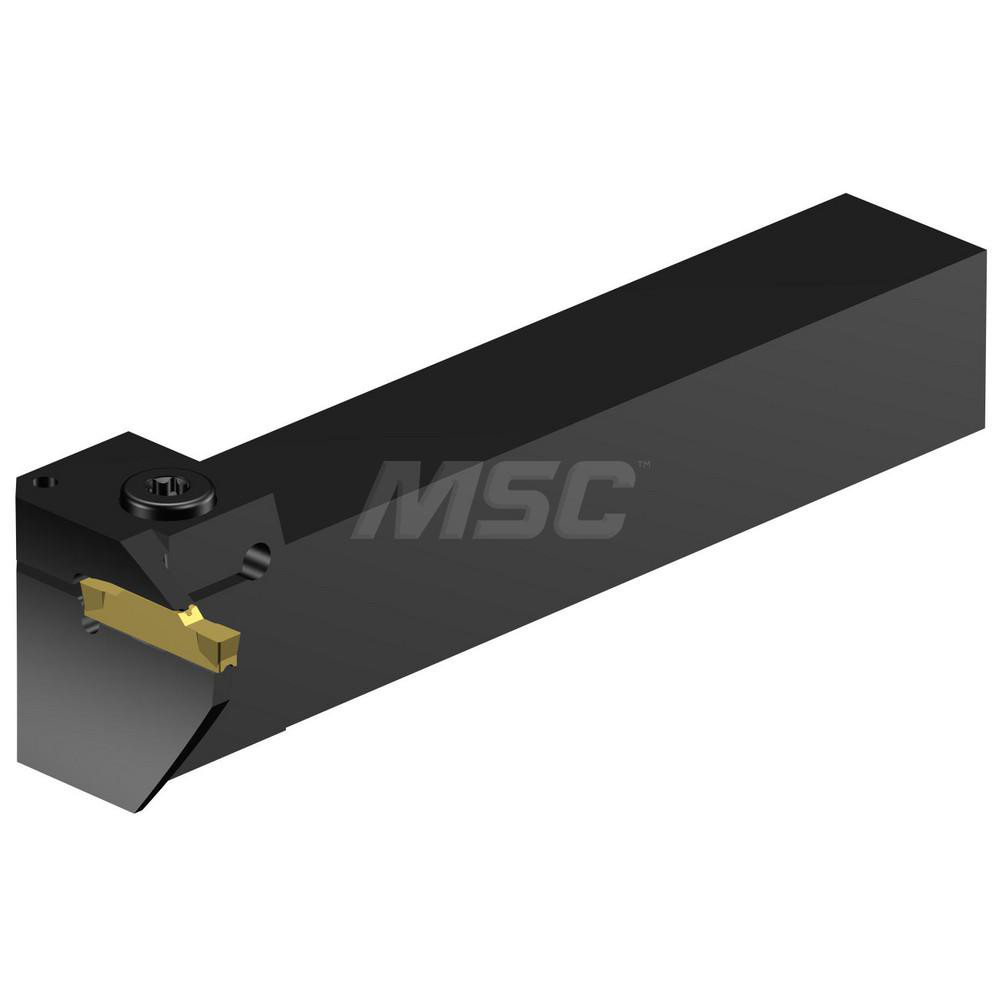

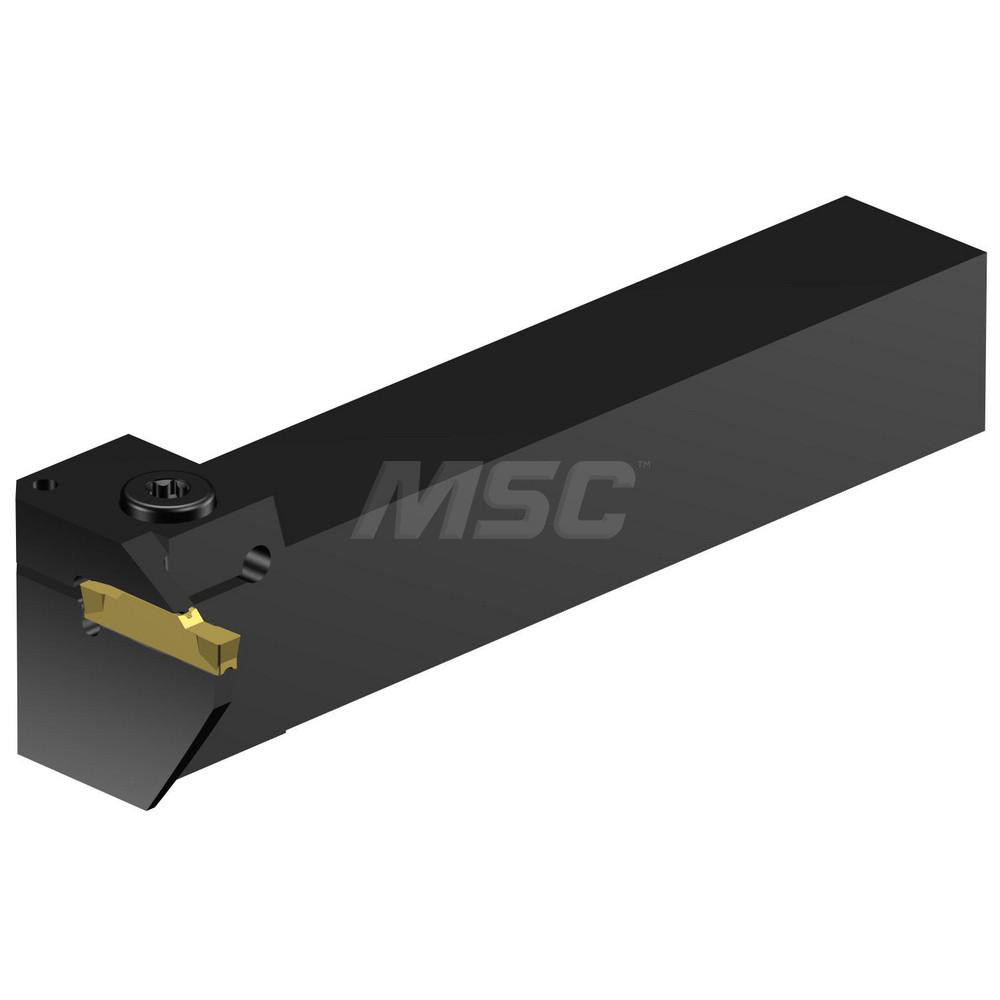

0.79" Max Depth of Cut, Uses N123K2 Inserts

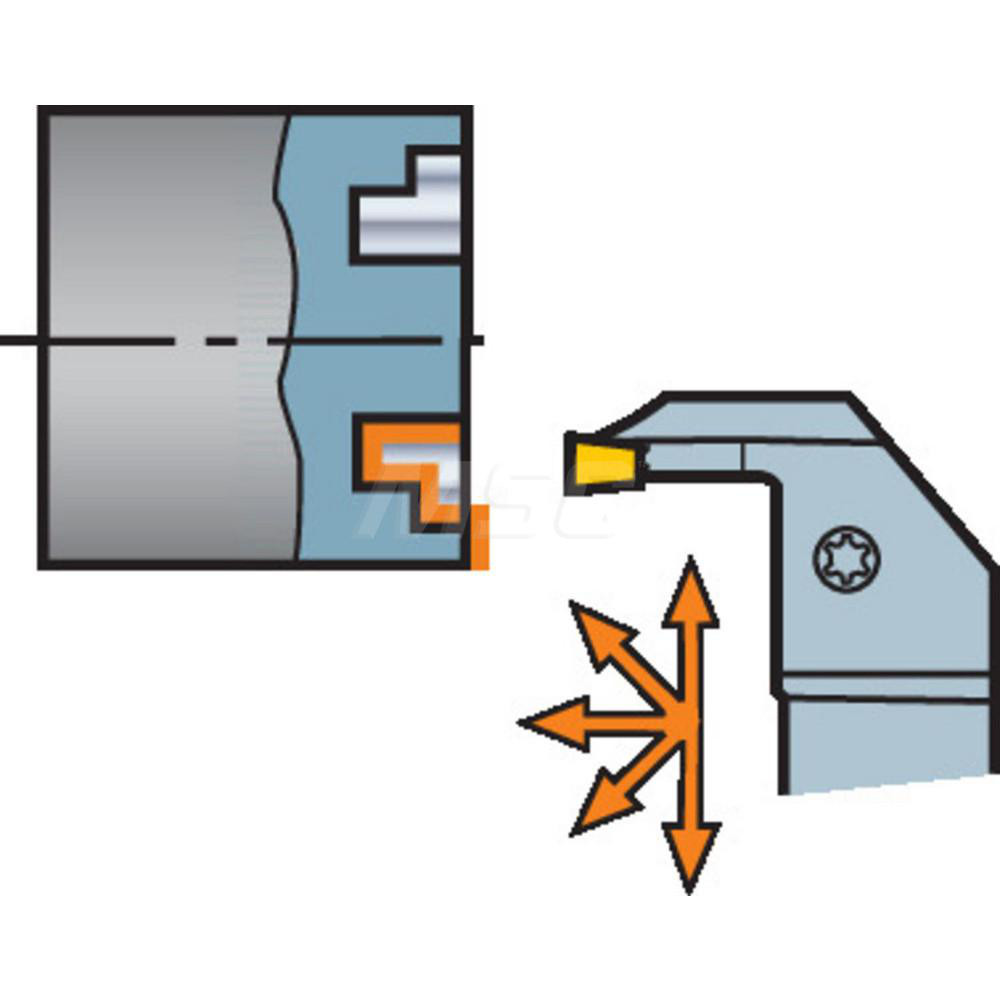

| Toolholder Type | Face Grooving |
|---|---|
| Insert Seat Size | K |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7900 |
| Toolholder Style | G123 |

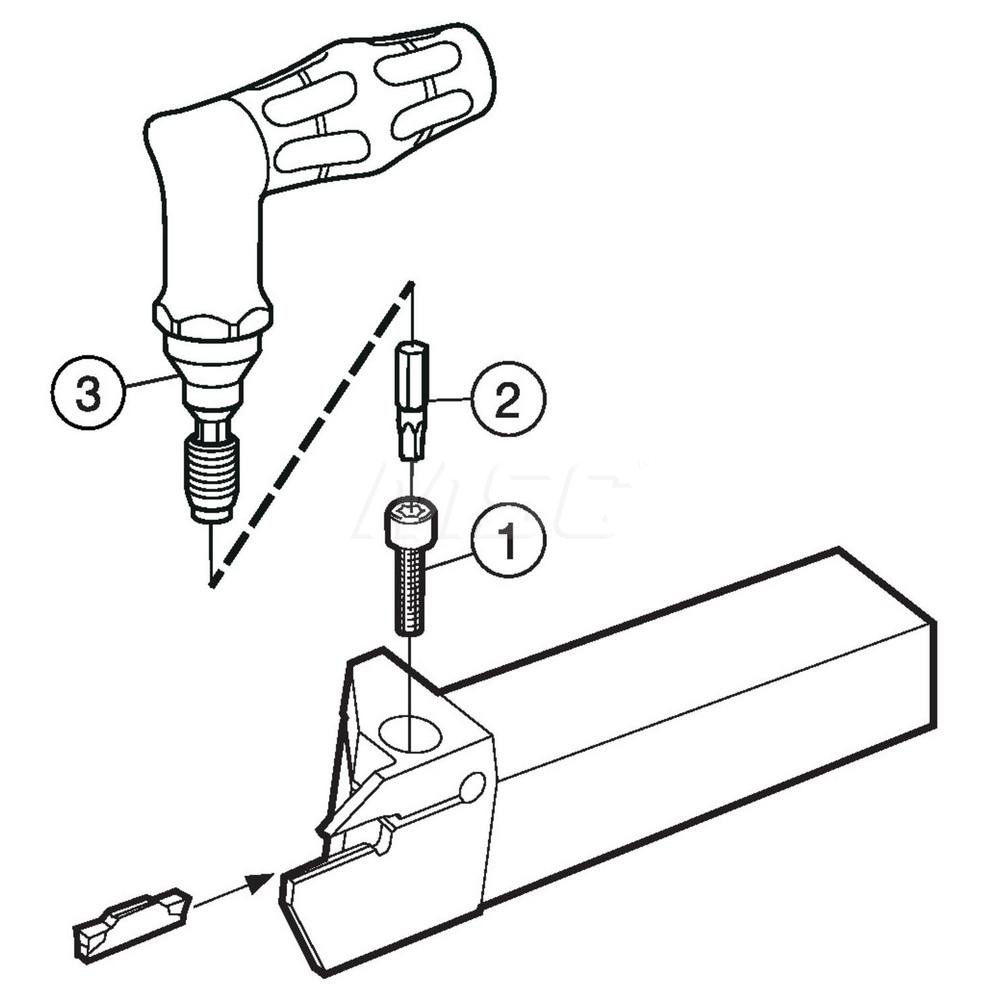

| Insert Holding Method | Clamp |
| Insert Compatibility | N123K2-0600-0004-TF |
| Compatible Insert Size Code | N123K2 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | Coro Cut 1-2 |

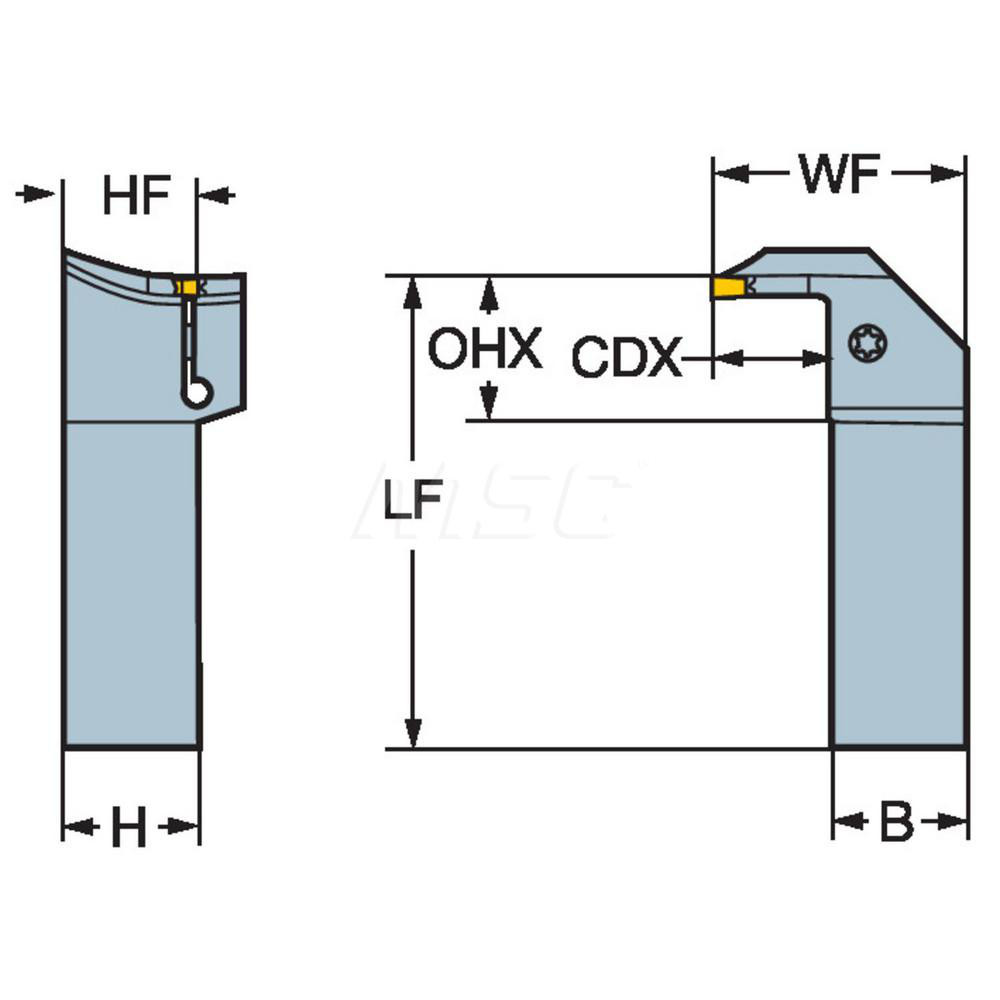

| Overall Length (Decimal Inch) | 6.2244 |
| Multi-use Tool | No |
| Maximum Overhang (Inch) | 1.0818 |
| Minimum Hole Diameter (Decimal Inch) | 3.4646 |
| Head Length (Decimal Inch) | 0.79 |
| UNSPSC Code | 27112809 |
| Maximum Bore Depth (Decimal Inch) | 1.0819 |

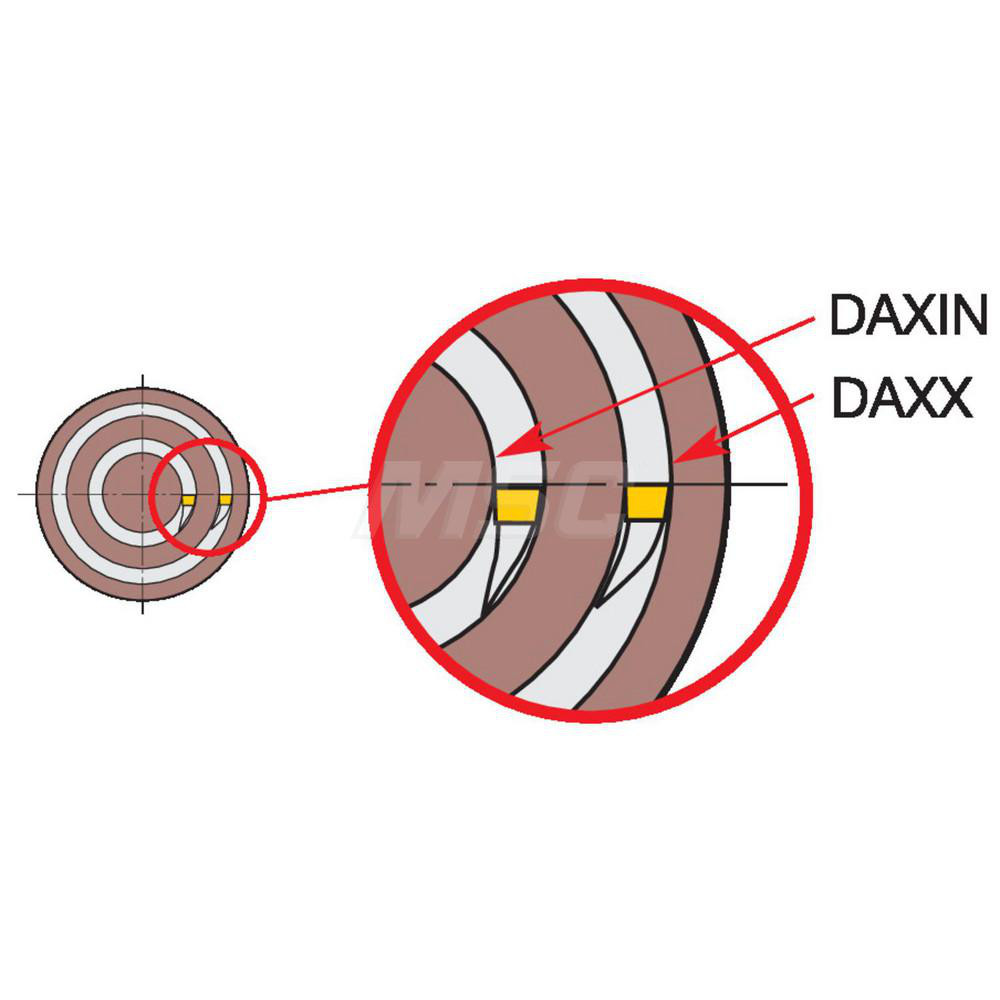

| Maximum Groove Outside Diameter (mm) | 180.00 |
| Minimum Axial Groove Inside Diameter(mm) | 88.00 |
| Manufacturers Catalog Number | 5741192 |
| Toolholder Material | Steel |
| Coolant Through | No |
| Country of Origin | India |
| undefined | undefined |
| MSC Number | MSC# 48397061 |
