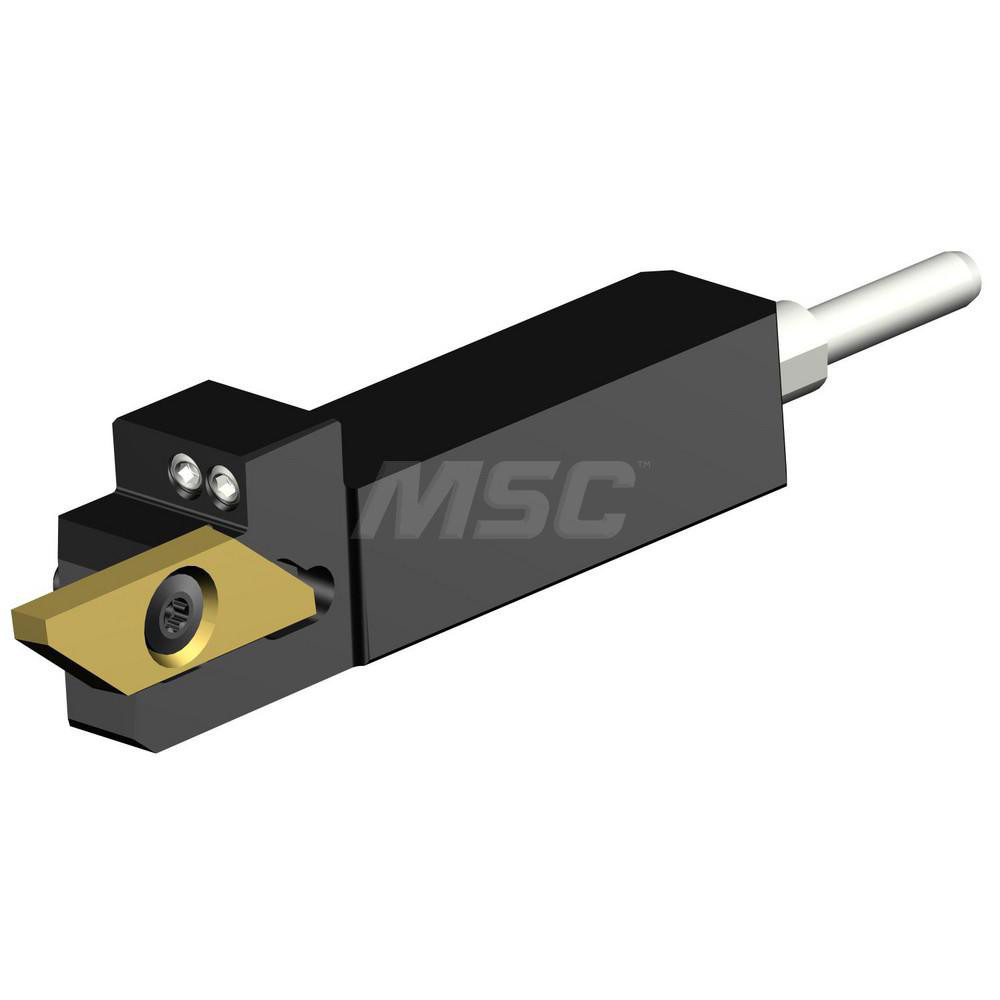

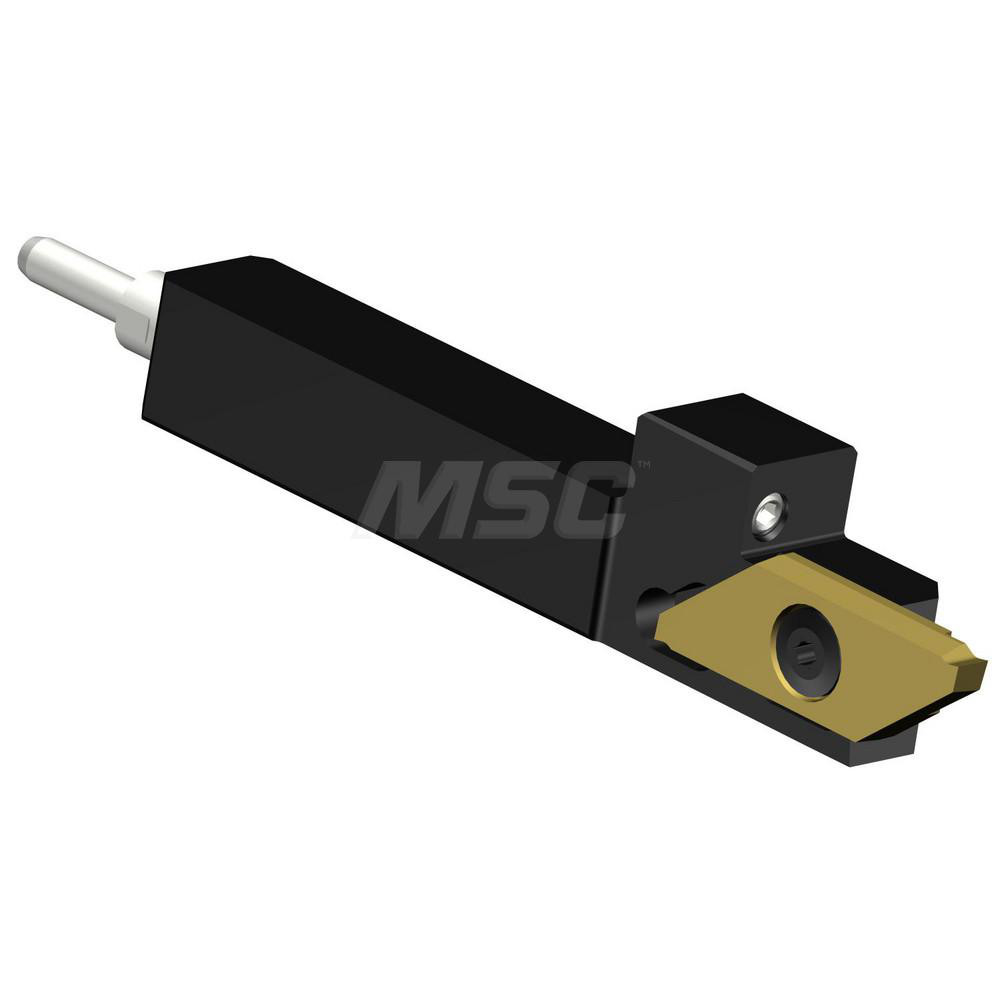

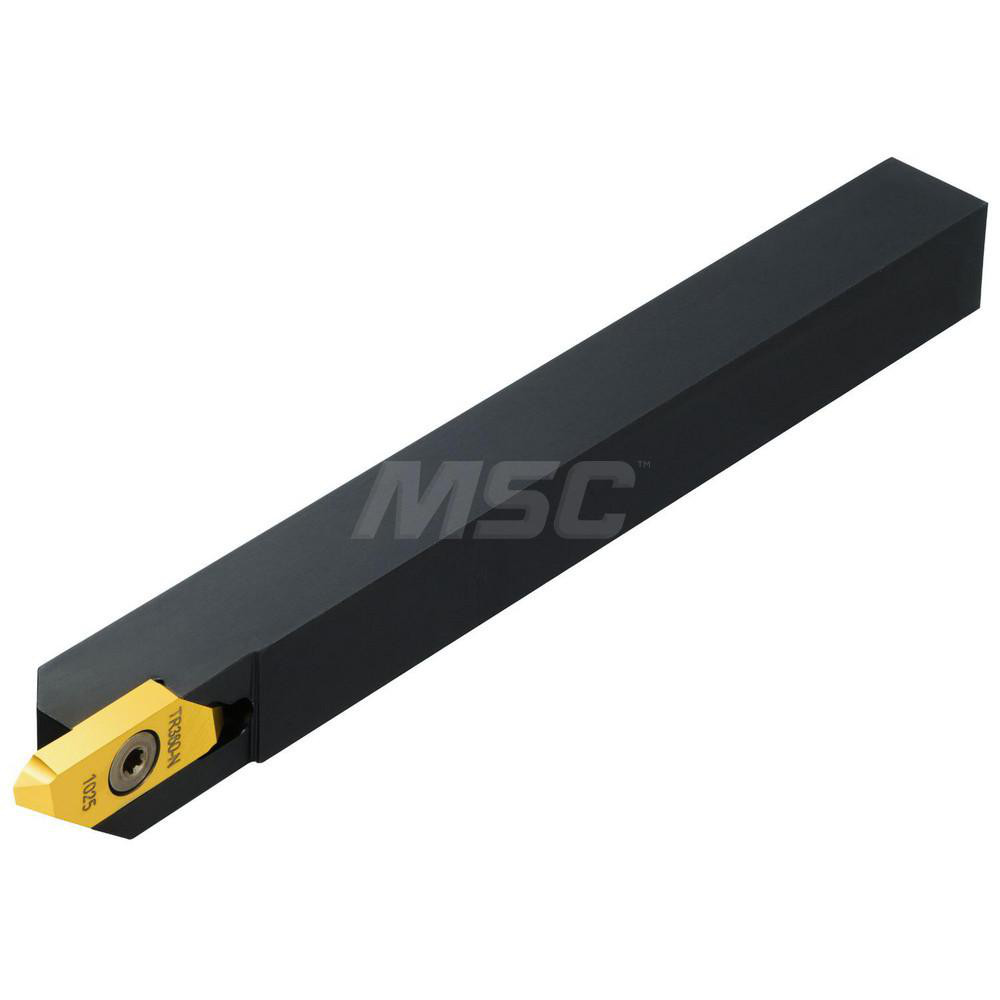

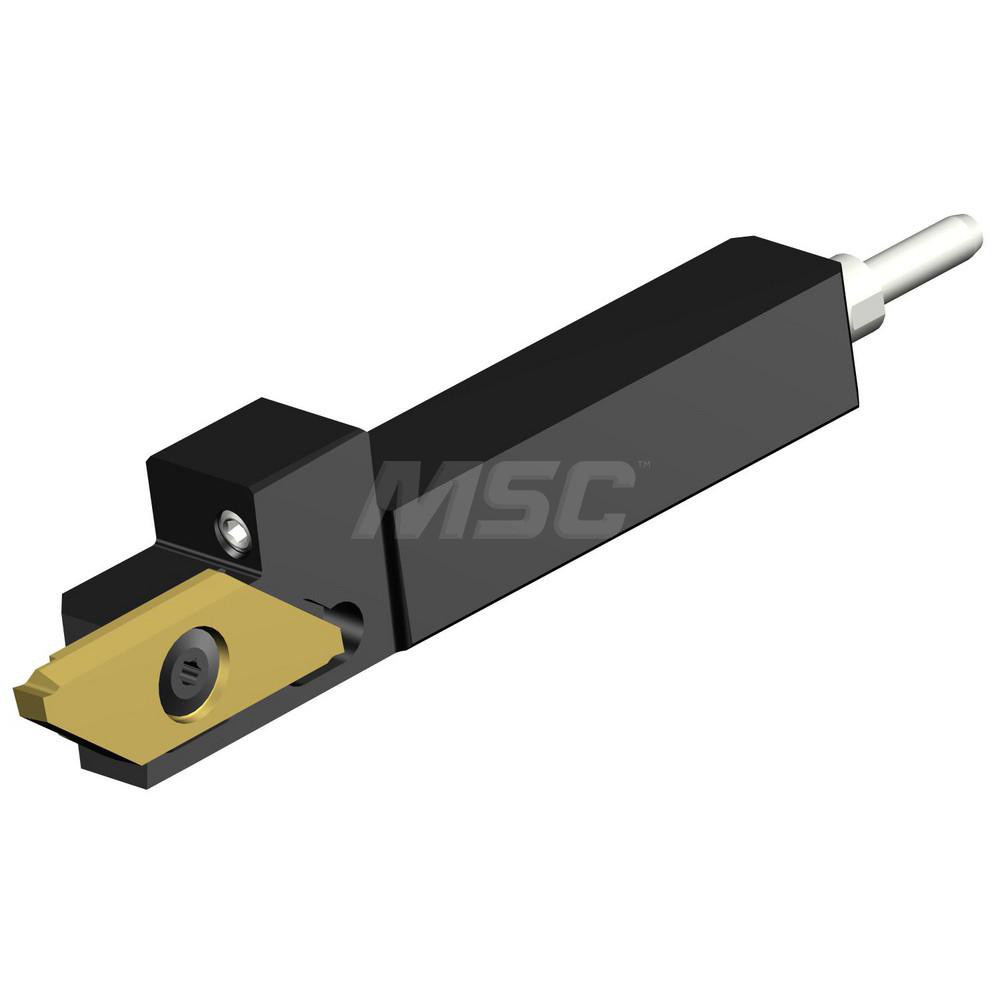

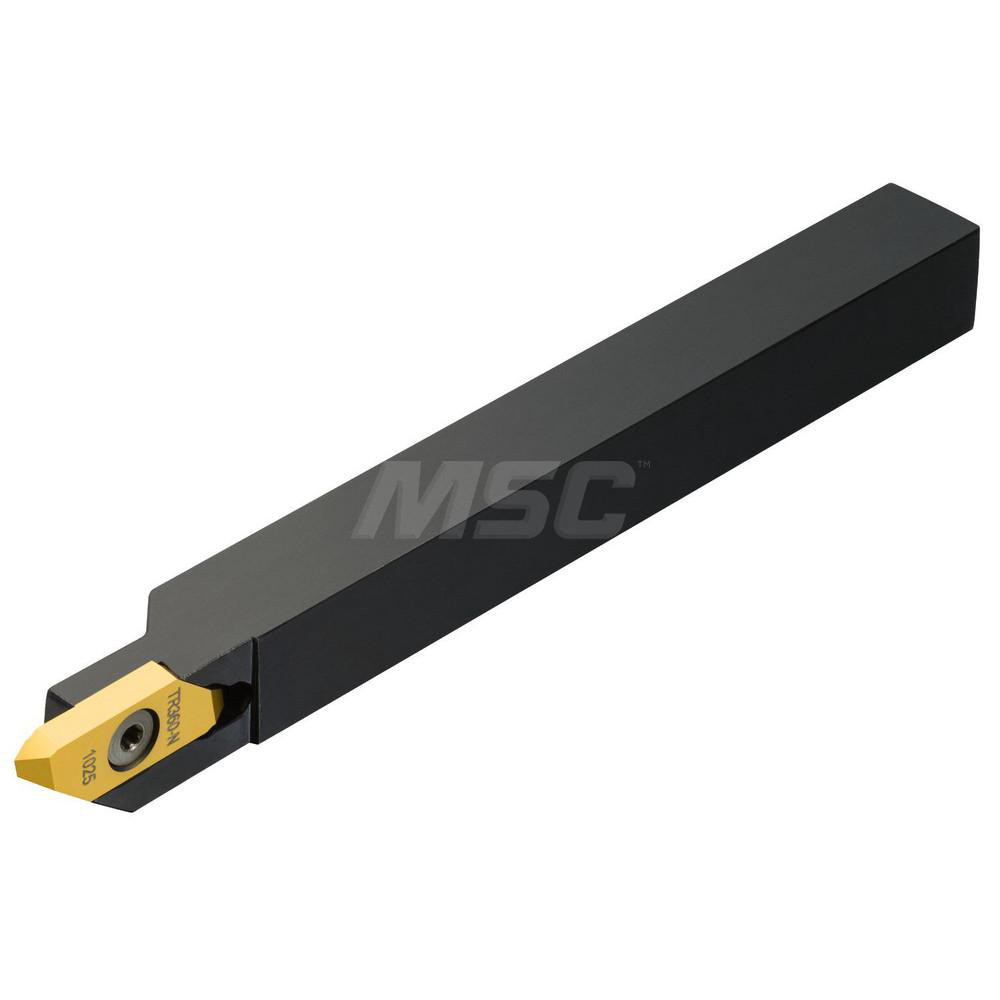

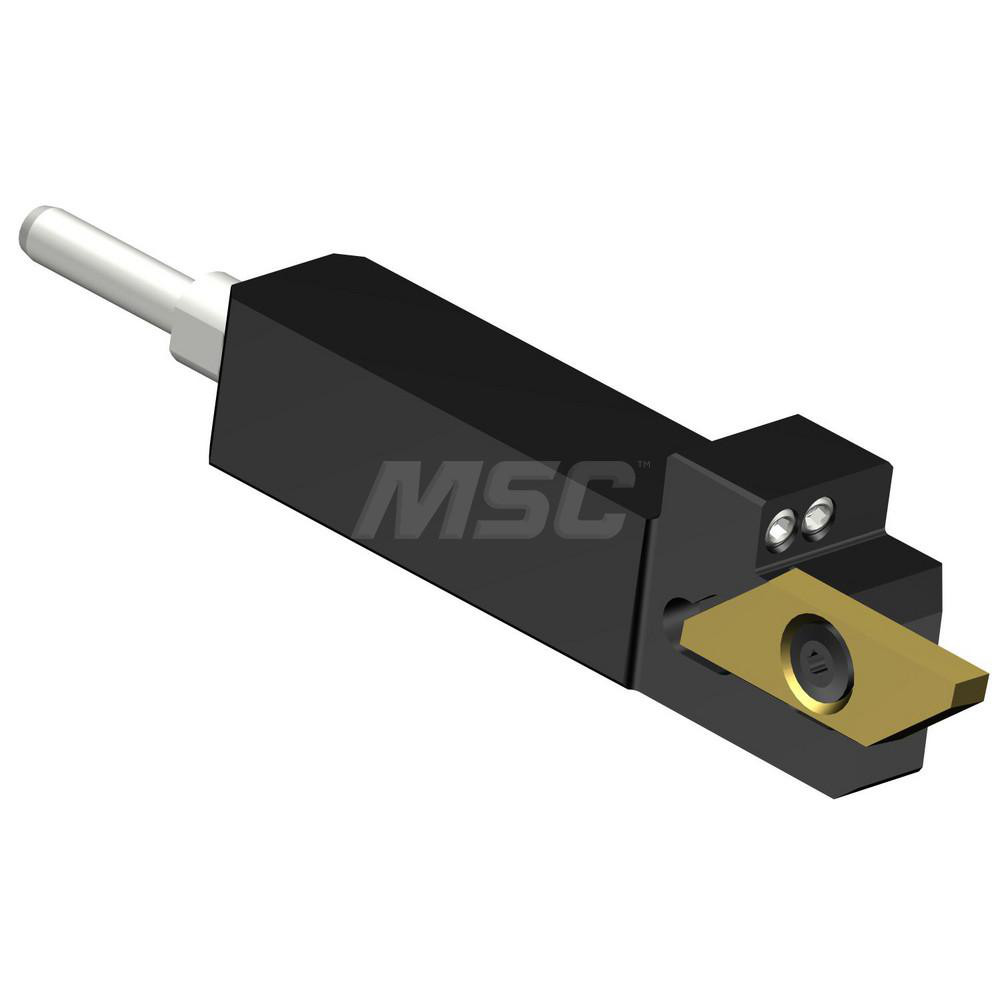

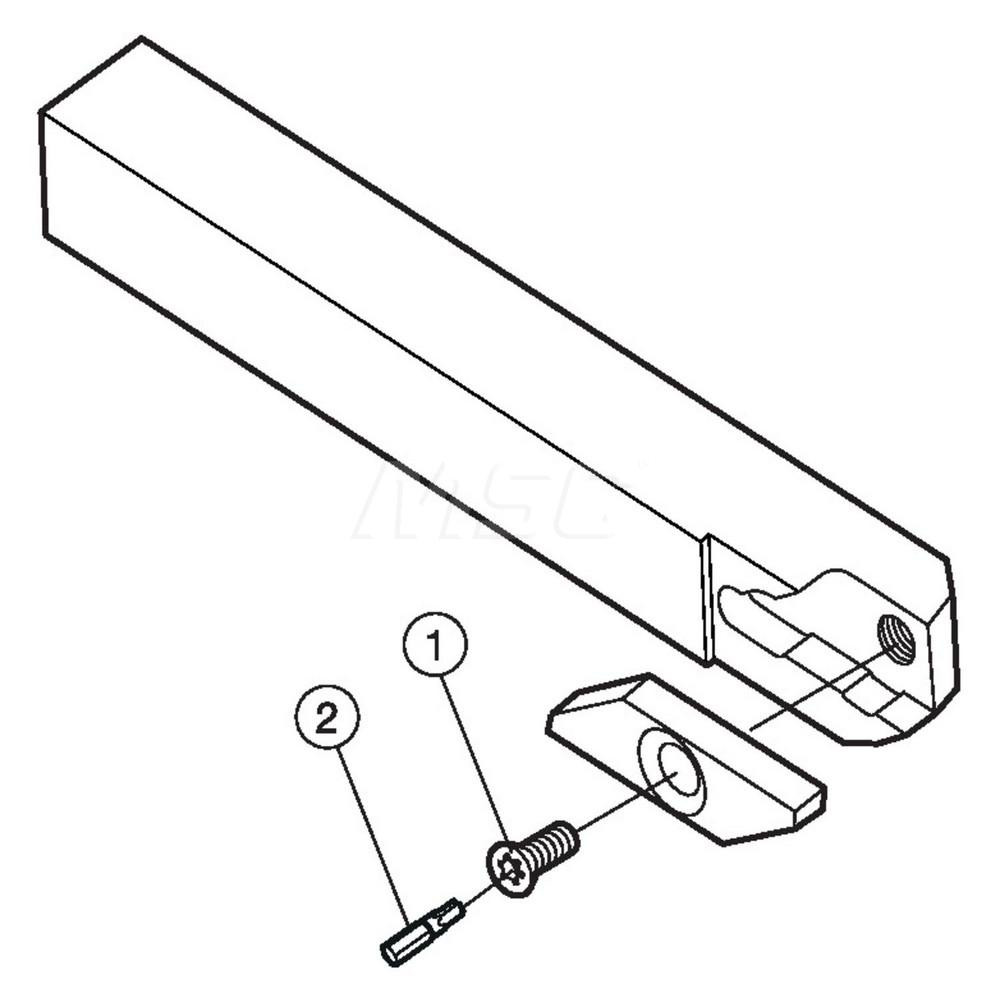

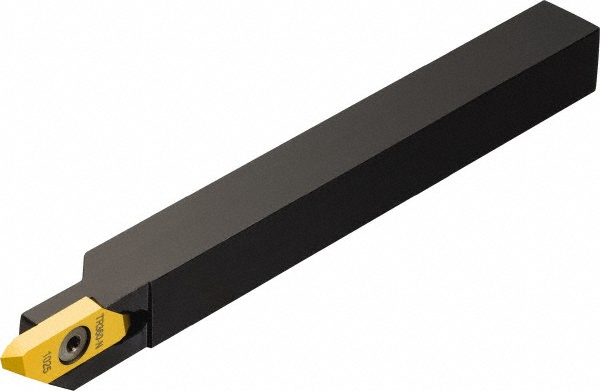

8.5 mm Max Depth of Cut, 16 x 16 mm Shank, Uses MACL 3 200 Inserts
| Toolholder Type | External Grooving |
|---|---|
| Insert Seat Size | 3 |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3346 |
| Maximum Depth of Cut (mm) | 8.50 |
| Toolholder Style | SMAL |
| Insert Holding Method | Screw; Clamp |
| Insert Compatibility | MACL 3 200-N |
| Compatible Insert Size Code | MACL 3 200 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Series | Coro Cut XS |
| Overall Length (mm) | 125 |
| Overall Length (Decimal Inch) | 4.9213 |
| Multi-use Tool | Yes |
| Maximum Overhang (Inch) | 1.0629 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.9212 |
| UNSPSC Code | 27112809 |
| Manufacturers Catalog Number | 5750021 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | MACL 3 200-N |
| Coolant Through | No |
| Country of Origin | India |
| MSC Number | MSC# 40378416 |
