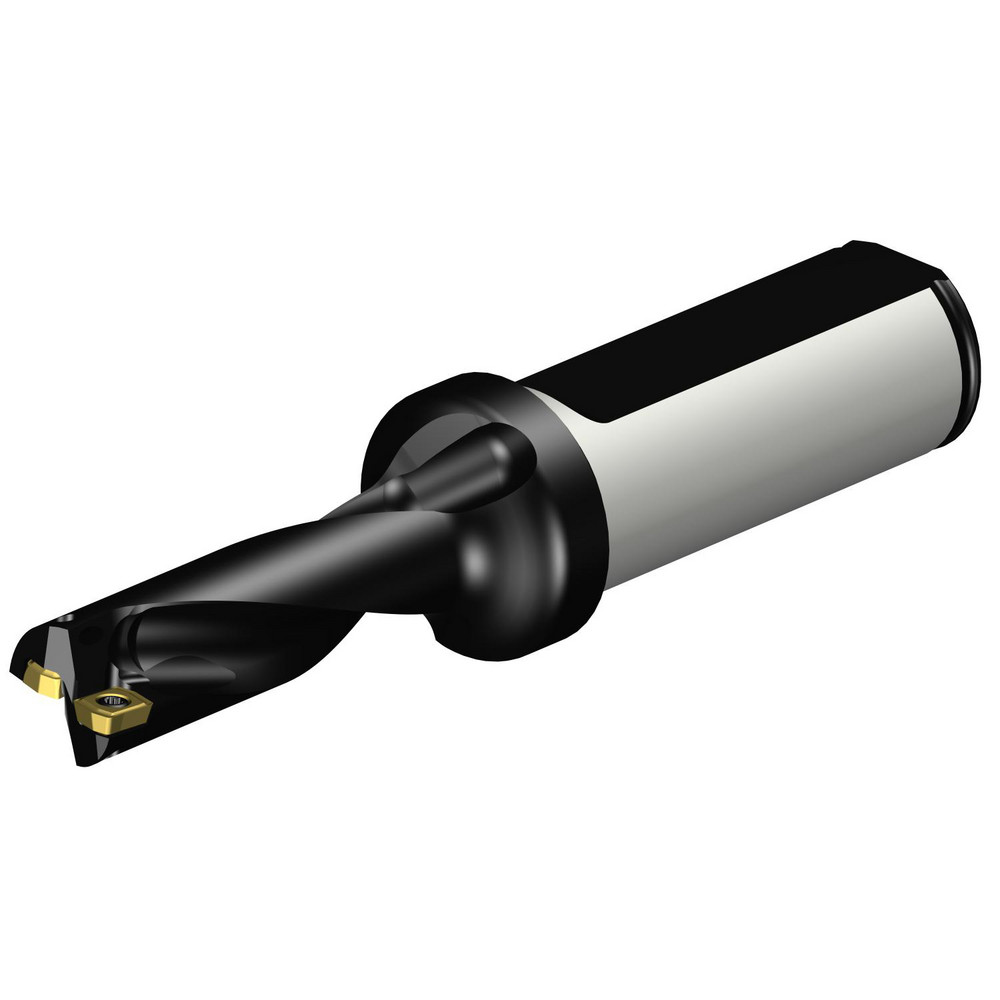

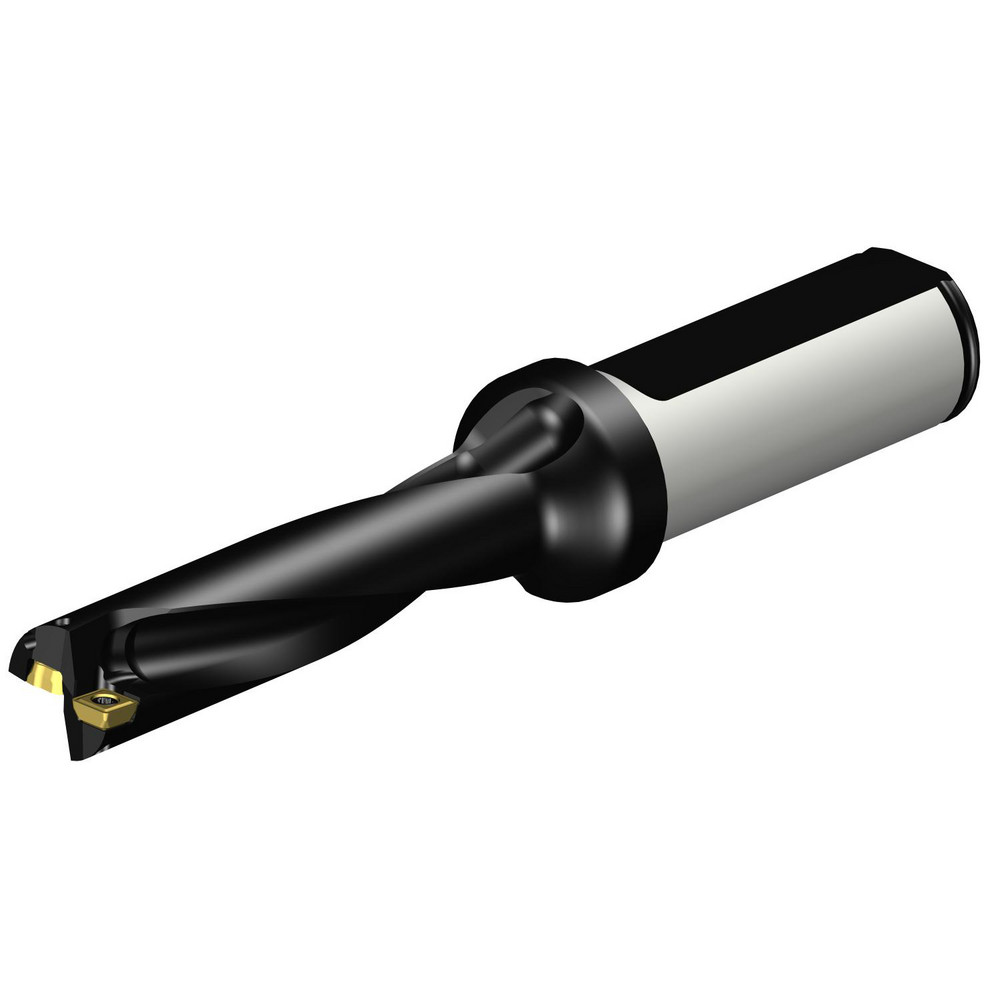

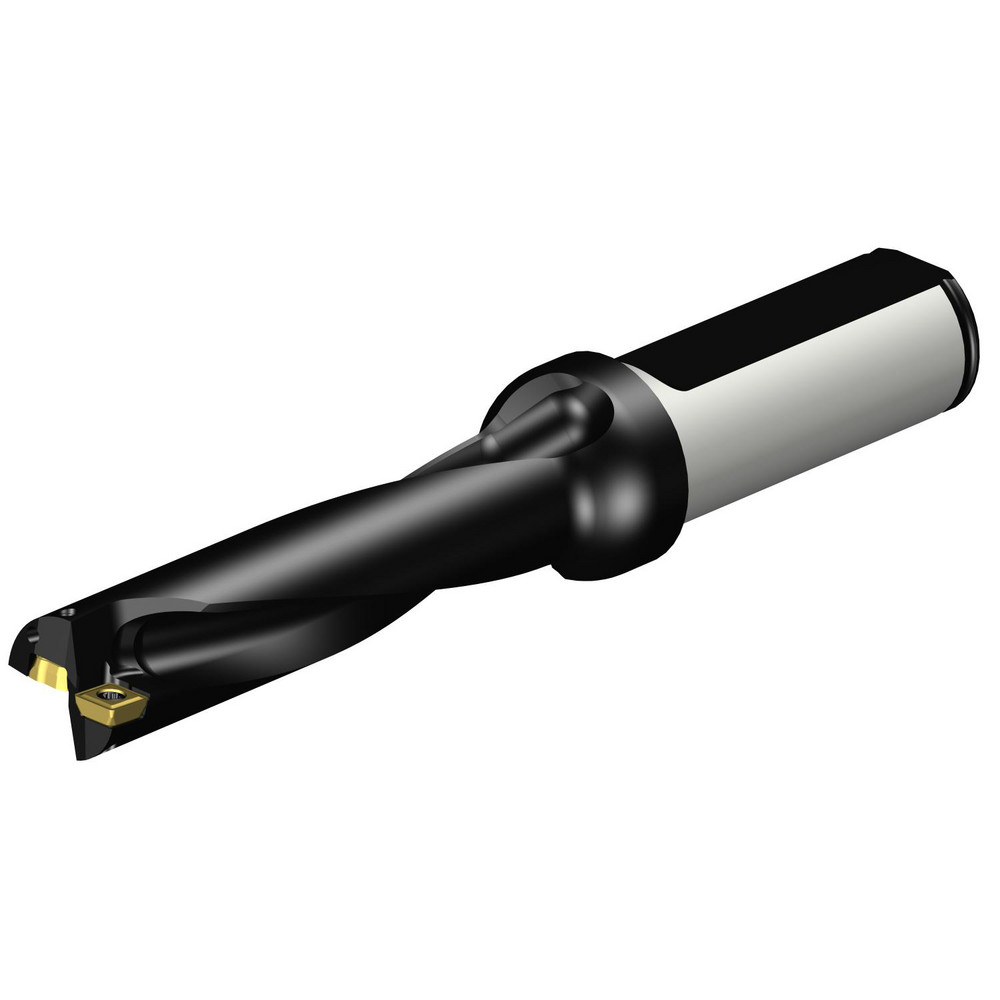

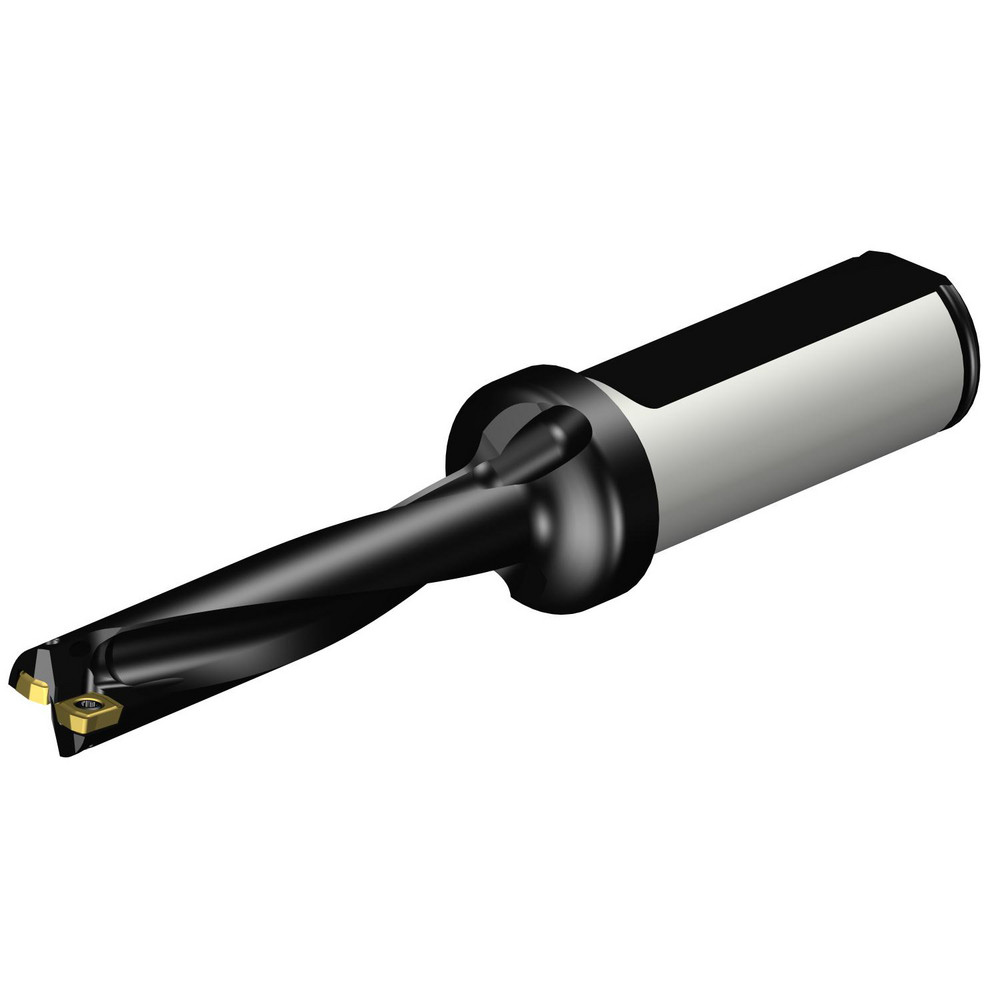

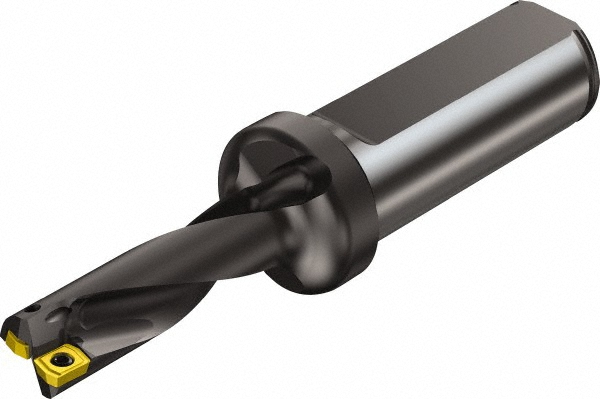

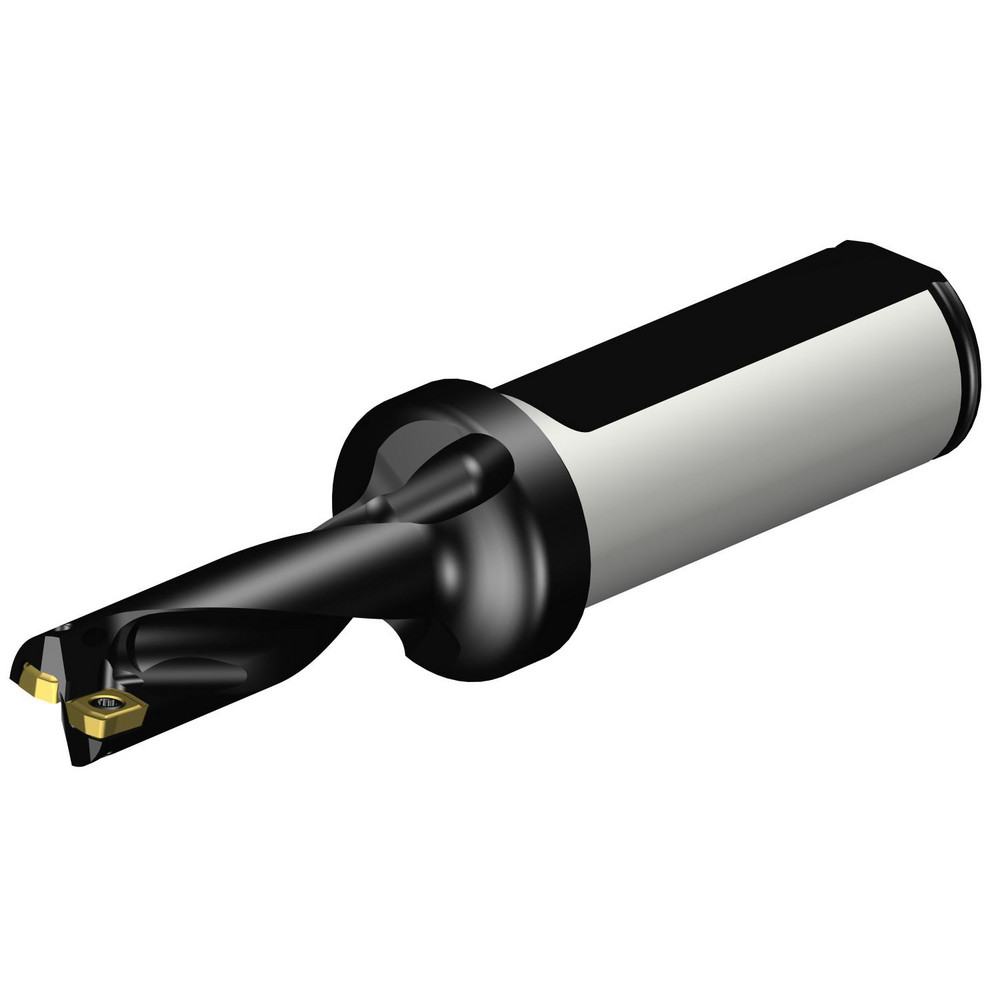

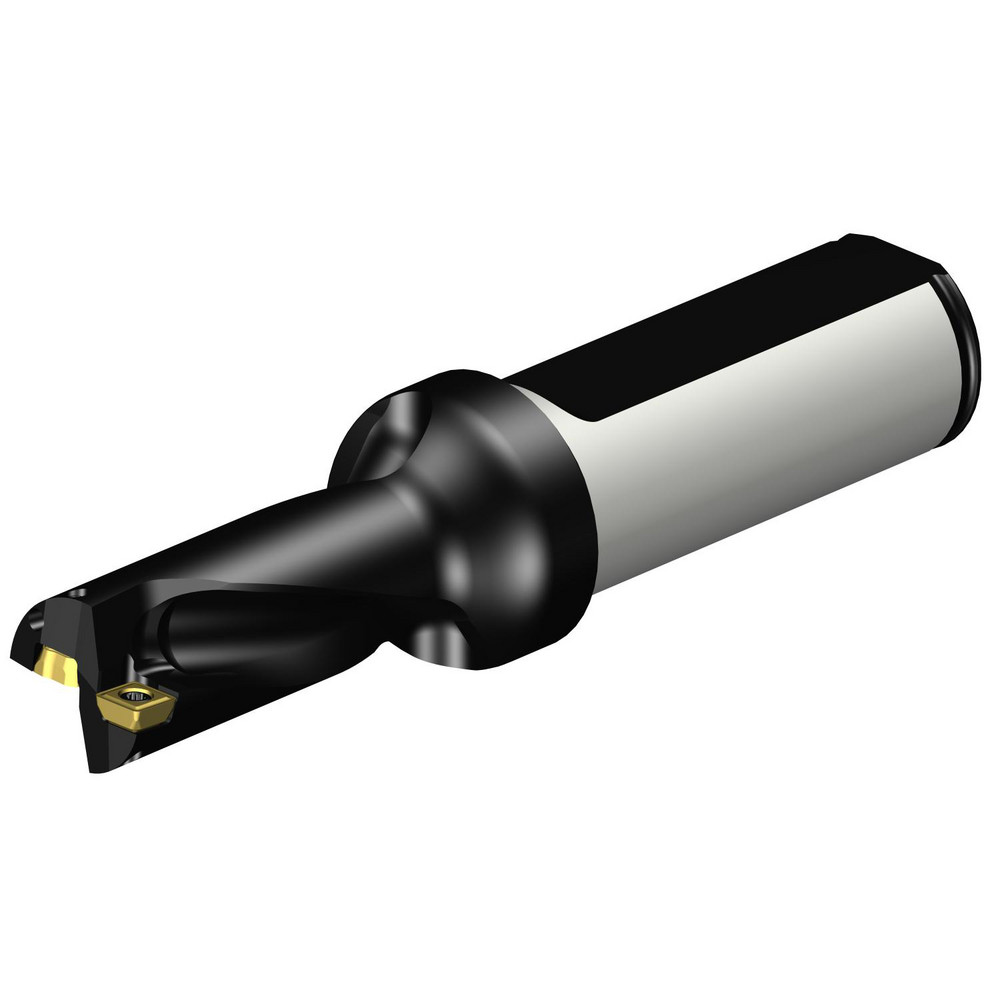

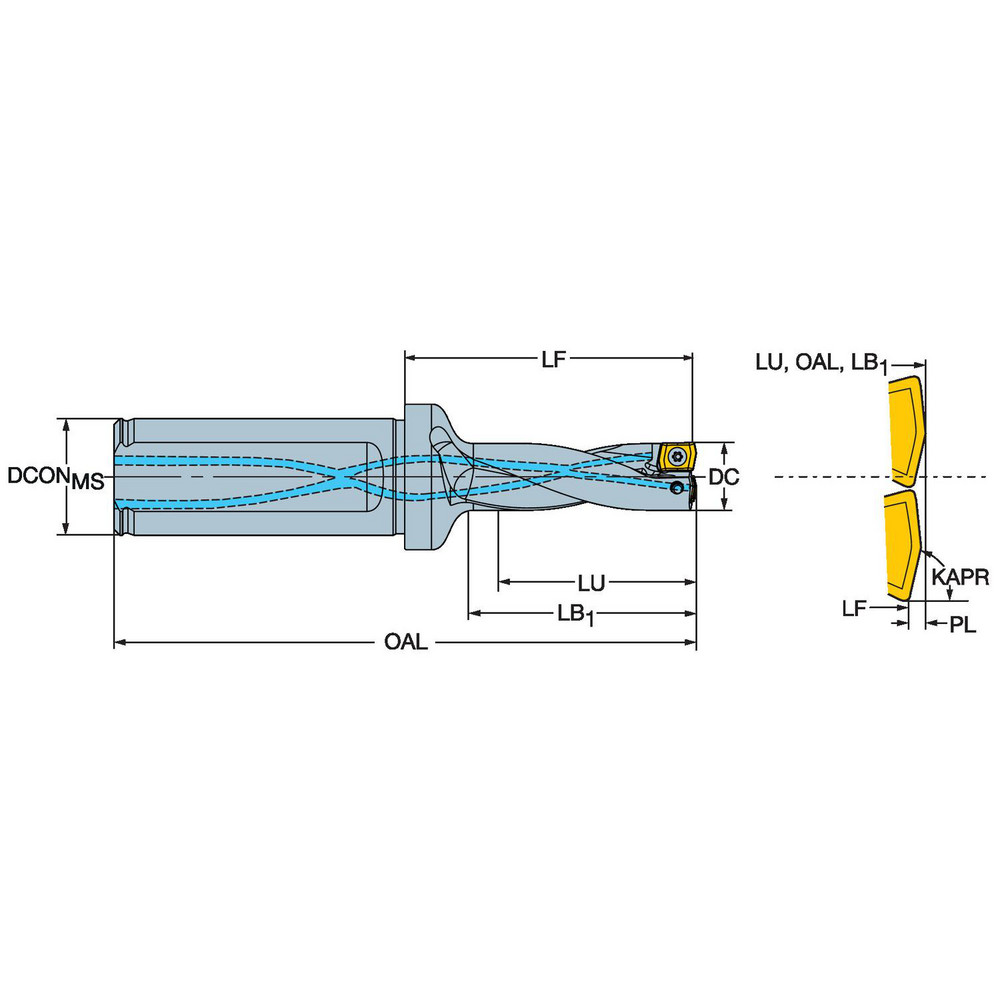

Weldon Flat & Flange Shank, Uses 880 010203 & 0102W04 Inserts, Series CoroDrill 880
| Compatible Drill Style | 880 |
|---|---|
| Maximum Drill Diameter (mm) | 12.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.7874 |
| Maximum Drill Depth (Decimal Inch) | 1.5354 |
| Maximum Drill Depth (mm) | 36.39 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Shank Diameter (mm) | 20.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 1.0000 to 2.0000 |
| Maximum Drill Depth Range (mm) | 0.00 to 50.00 |
| Tool Material | Steel |
| Compatible Insert Style | 880 |
| Compatible Insert Size Code | 010203; 0102W04 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | CoroDrill 880 |
| Flute Length (Decimal Inch) | 1.4173 |
| Flute Length (mm) | 39.00 |
| Body Length (mm) | 50.61 |
| Body Length (Decimal Inch) | 1.9929 |
| Shank Length (Decimal Inch) | 1.9685 |
| Shank Length (mm) | 50.39 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 4.80 |
| UNSPSC Code | 23291503 |

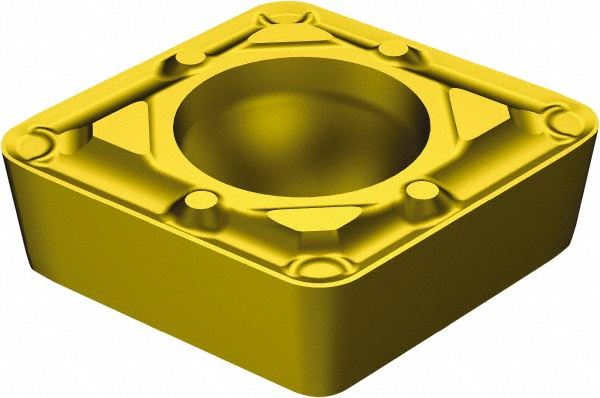

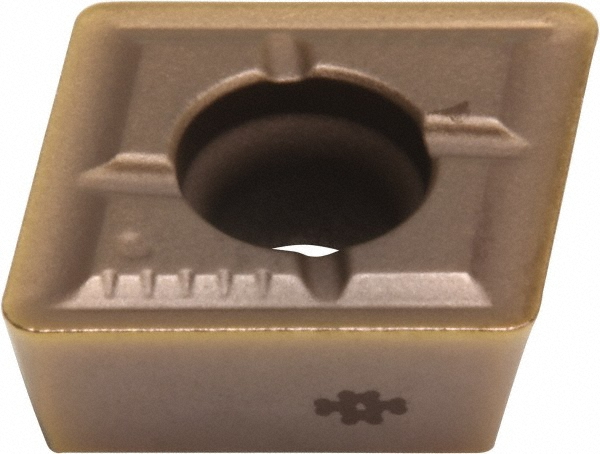

| Insert Compatibility | 880-0102W04-P-GR; 880-010203H-C-GR |
| Insert Lock Screw | 5513 020-87 |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| MSC Number | MSC# 81652703 |
