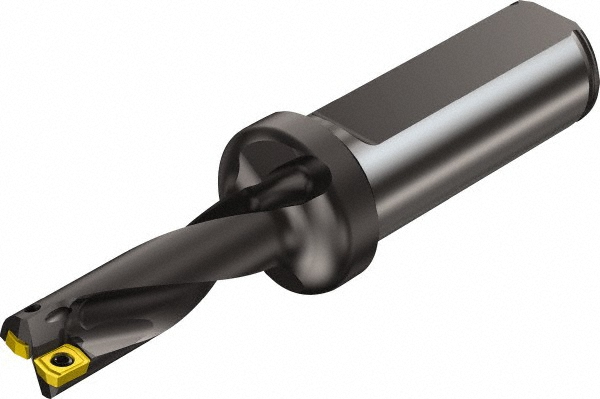

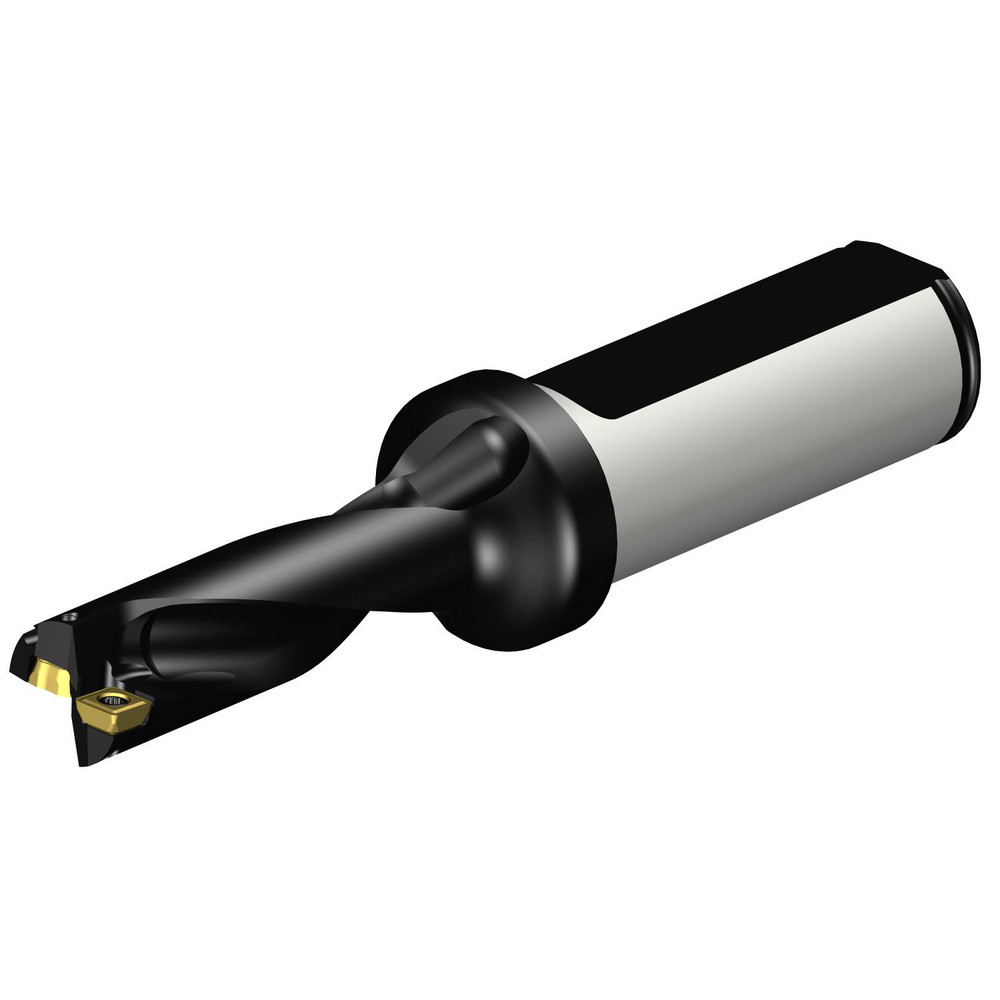

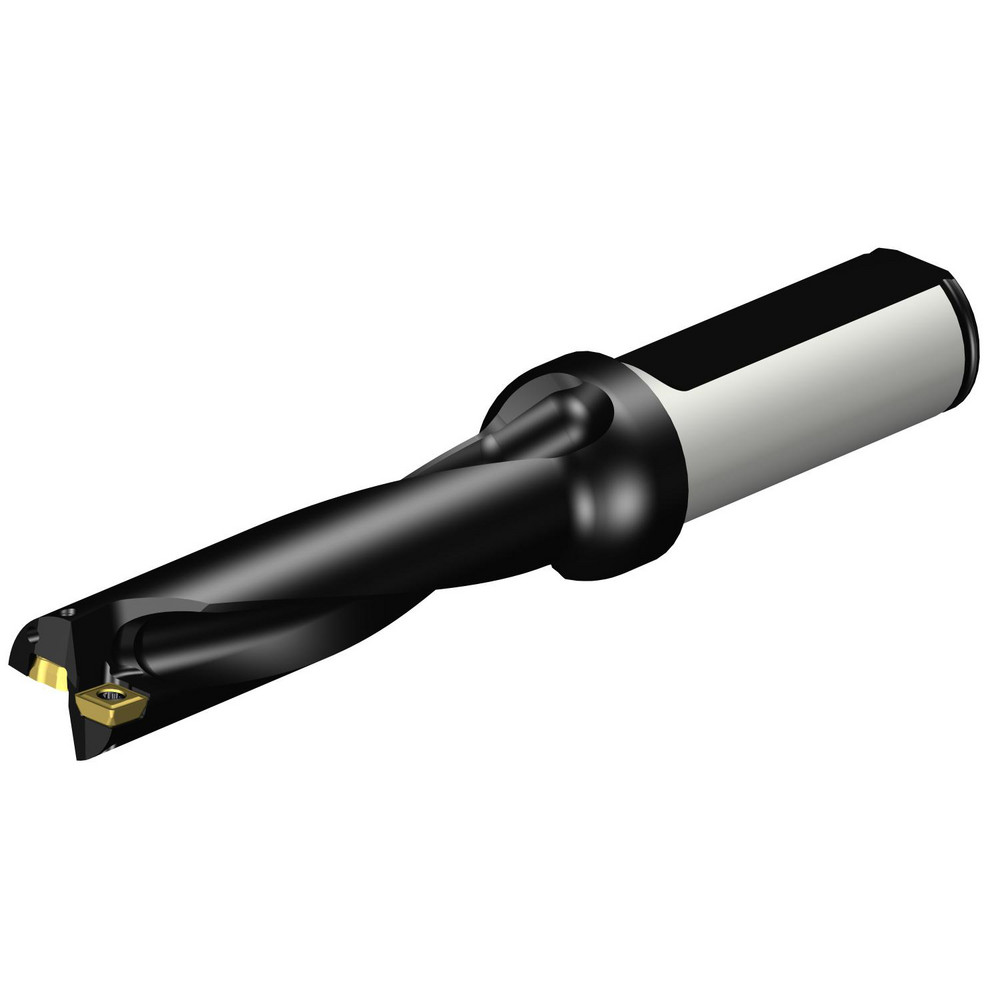

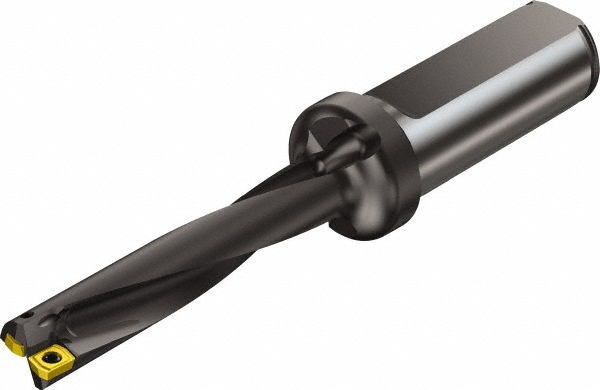

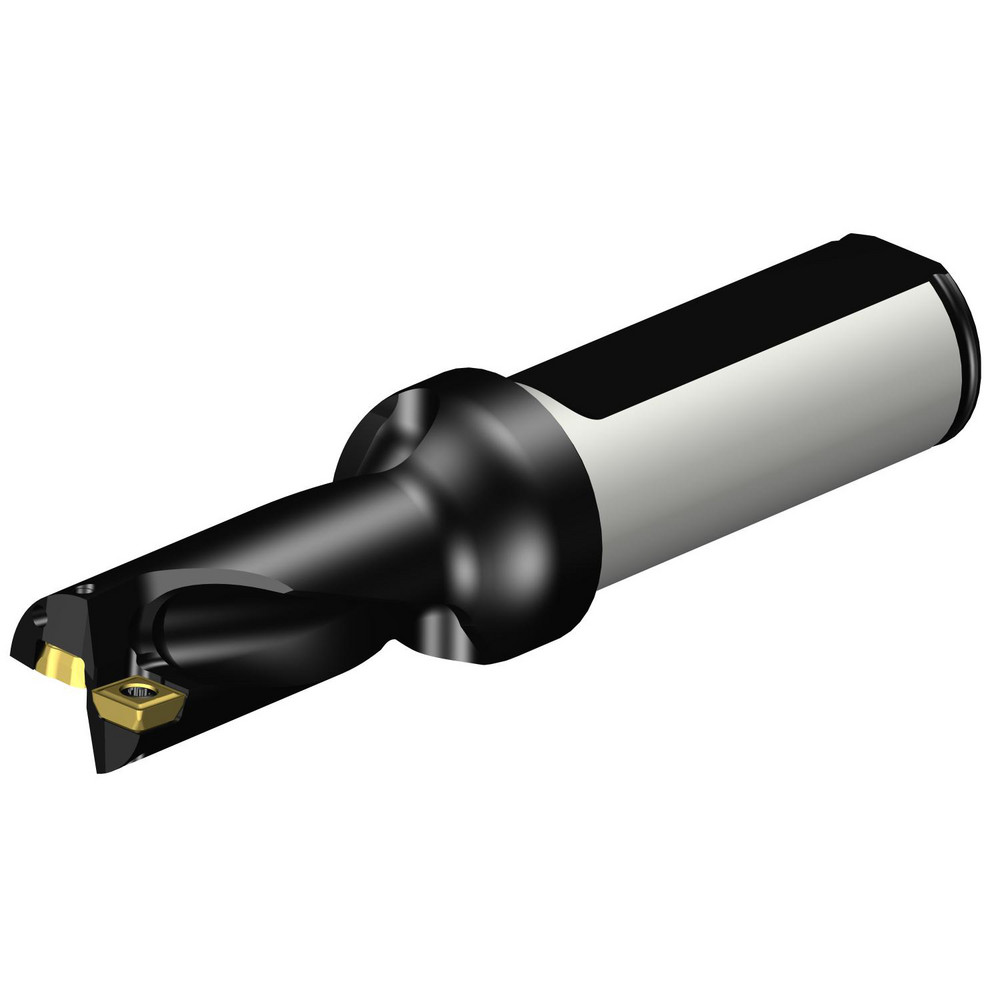

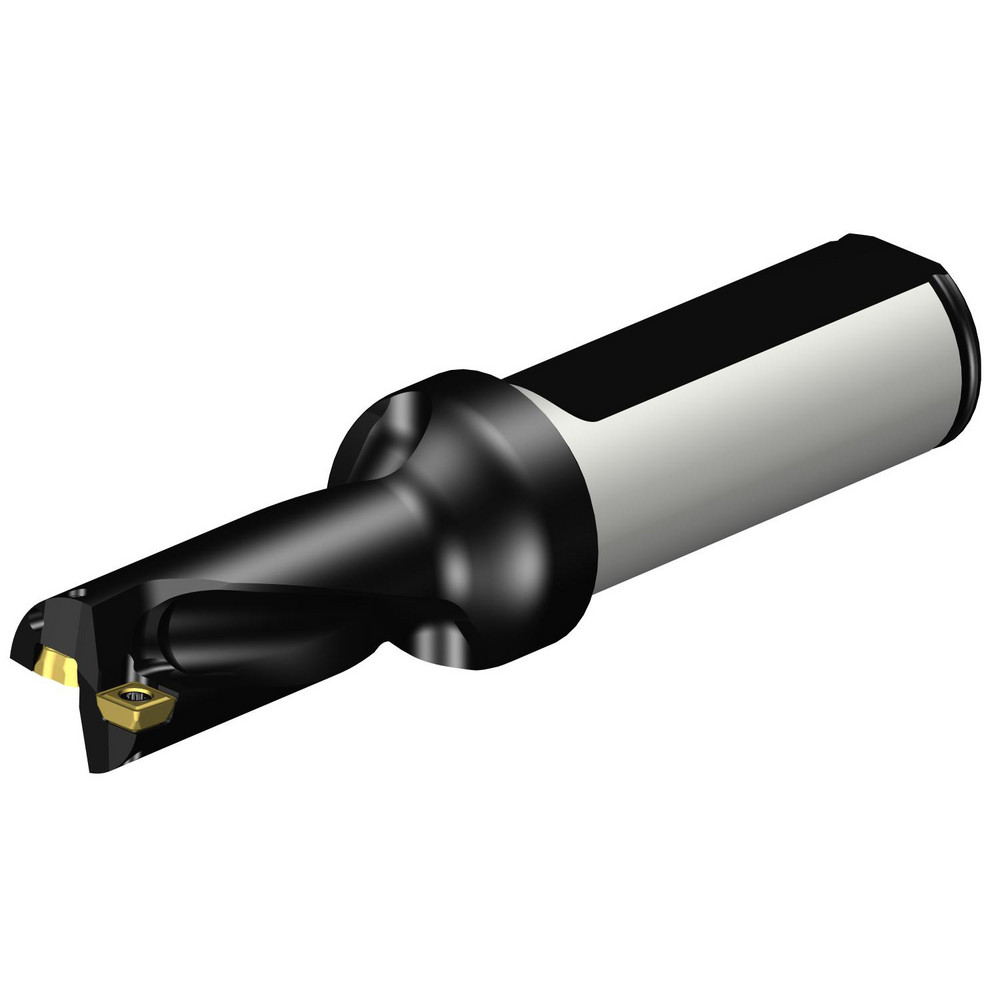

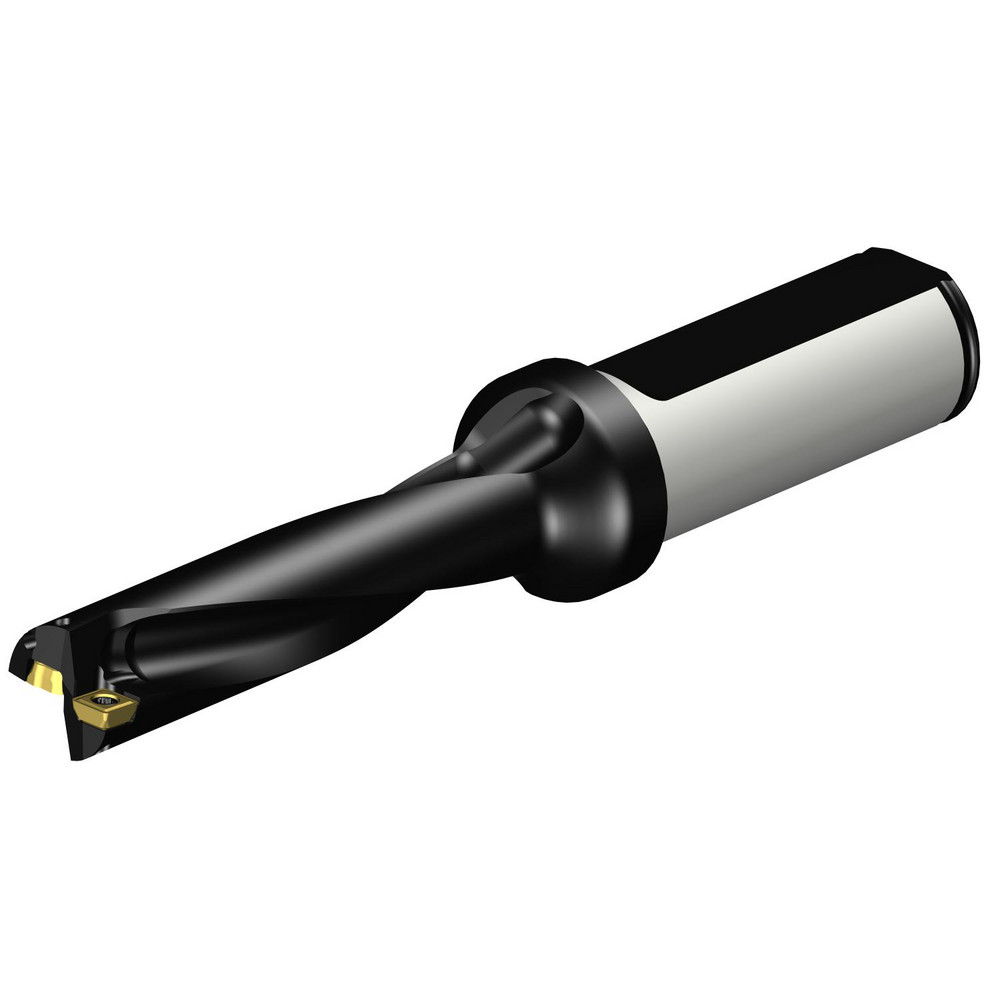

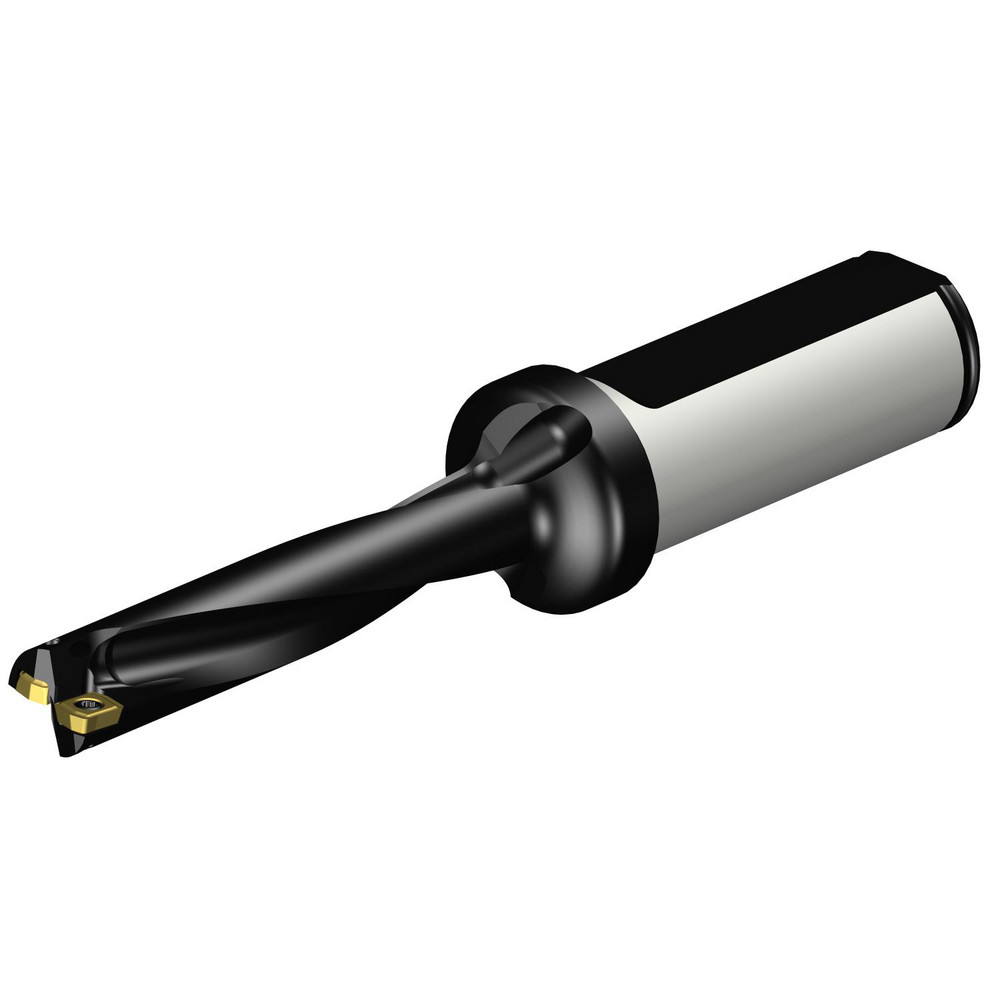

Weldon Flat & Flange Shank, Uses 880 030305 & 0303W05 Inserts, Series CoroDrill 880
| Compatible Drill Style | 880 |
|---|---|
| Maximum Drill Diameter (mm) | 16.50 |
| Maximum Drill Diameter (Decimal Inch) | 0.7874 |
| Maximum Drill Depth (Decimal Inch) | 1.4567 |
| Maximum Drill Depth (mm) | 33.36 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Shank Diameter (mm) | 20.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 1.0000 to 2.0000 |
| Maximum Drill Depth Range (mm) | 0.00 to 50.00 |
| Tool Material | Steel |
| Compatible Insert Style | 880 |
| Compatible Insert Size Code | 030305; 0303W05 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | CoroDrill 880 |
| Flute Length (Decimal Inch) | 1.2992 |
| Flute Length (mm) | 37.00 |
| Body Length (mm) | 51.64 |
| Body Length (Decimal Inch) | 2.0331 |
| Shank Length (Decimal Inch) | 1.9685 |
| Shank Length (mm) | 50.36 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 6.00; 5.70 |
| UNSPSC Code | 23291503 |

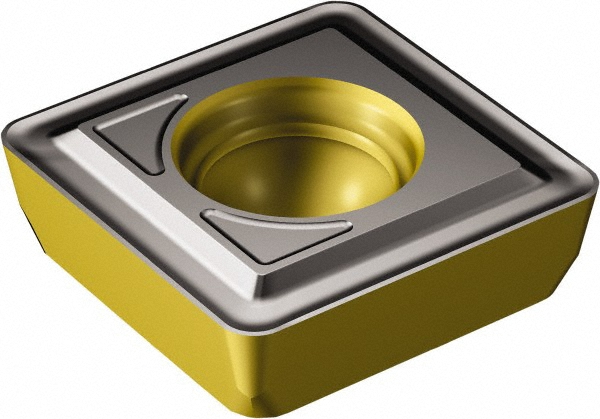

| Insert Compatibility | 880-030305H-C-GM; 880-0303W05H-P-GM |
| Insert Lock Screw | 5513 020-33 |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| MSC Number | MSC# 61131603 |
