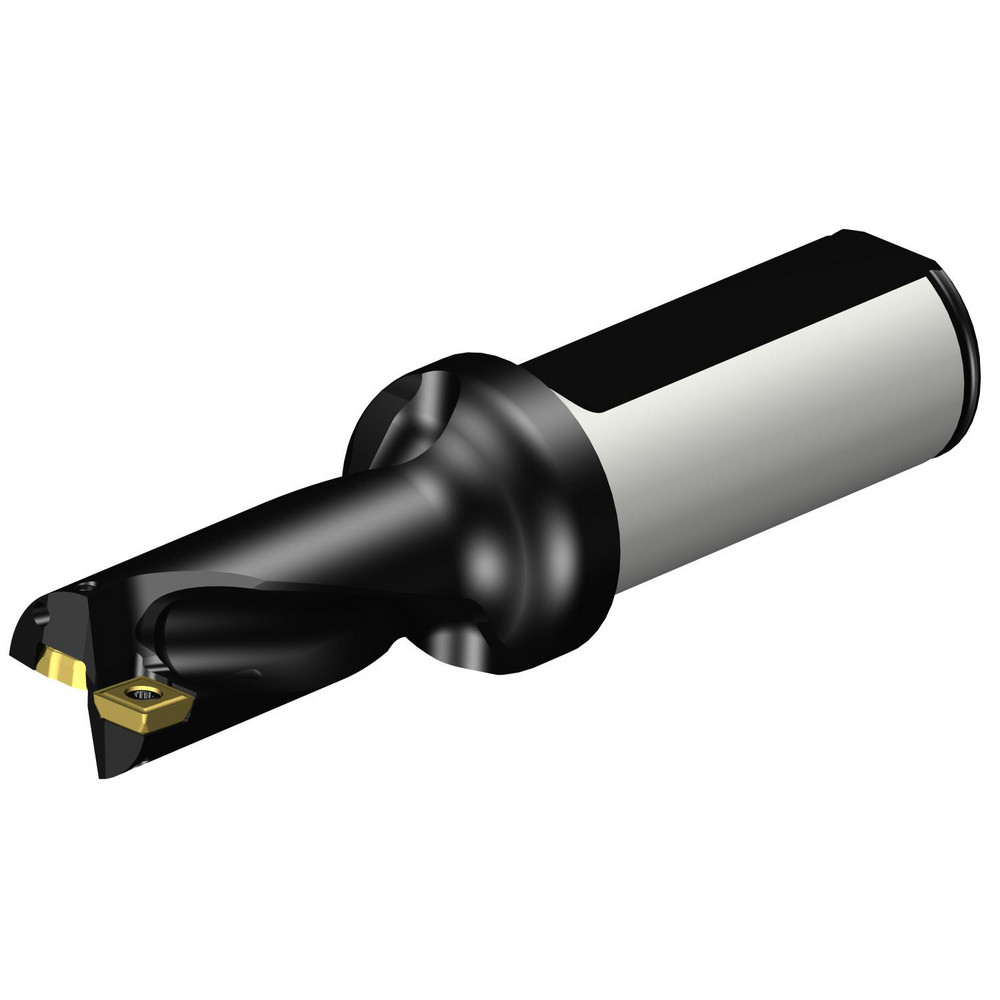

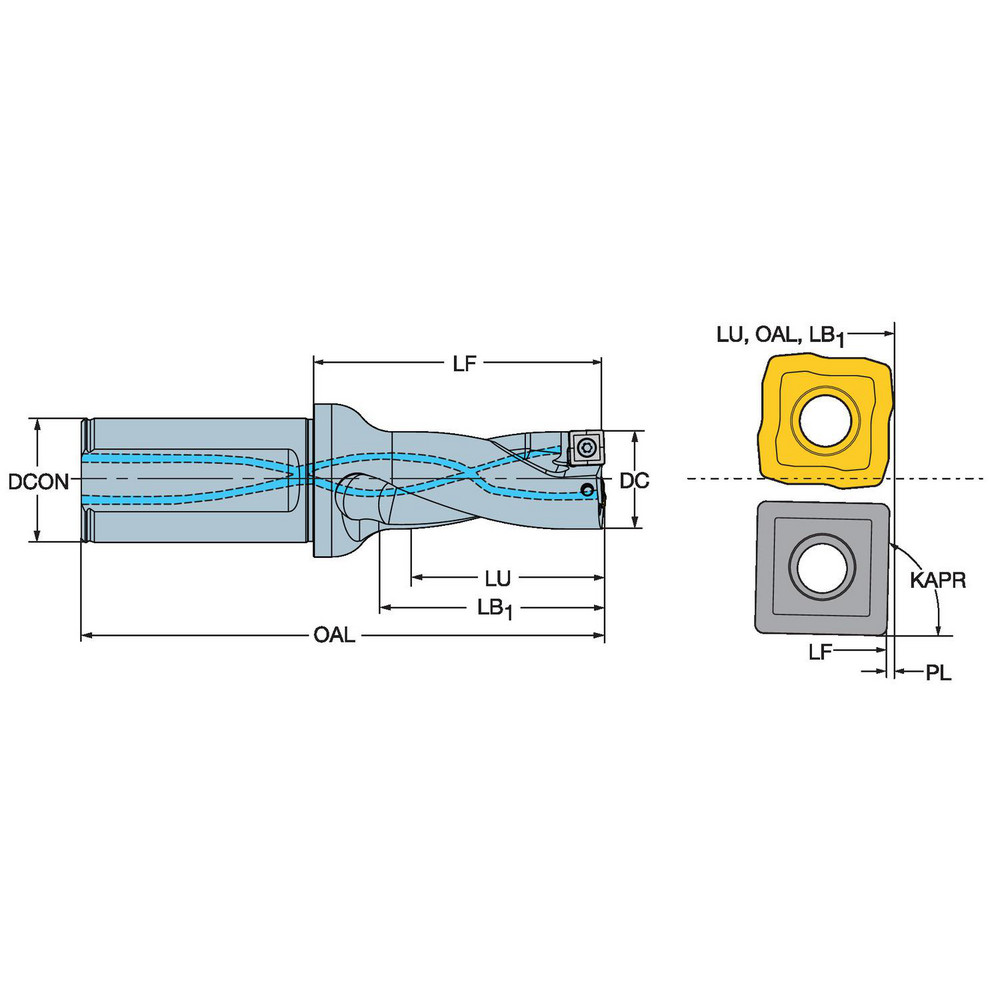

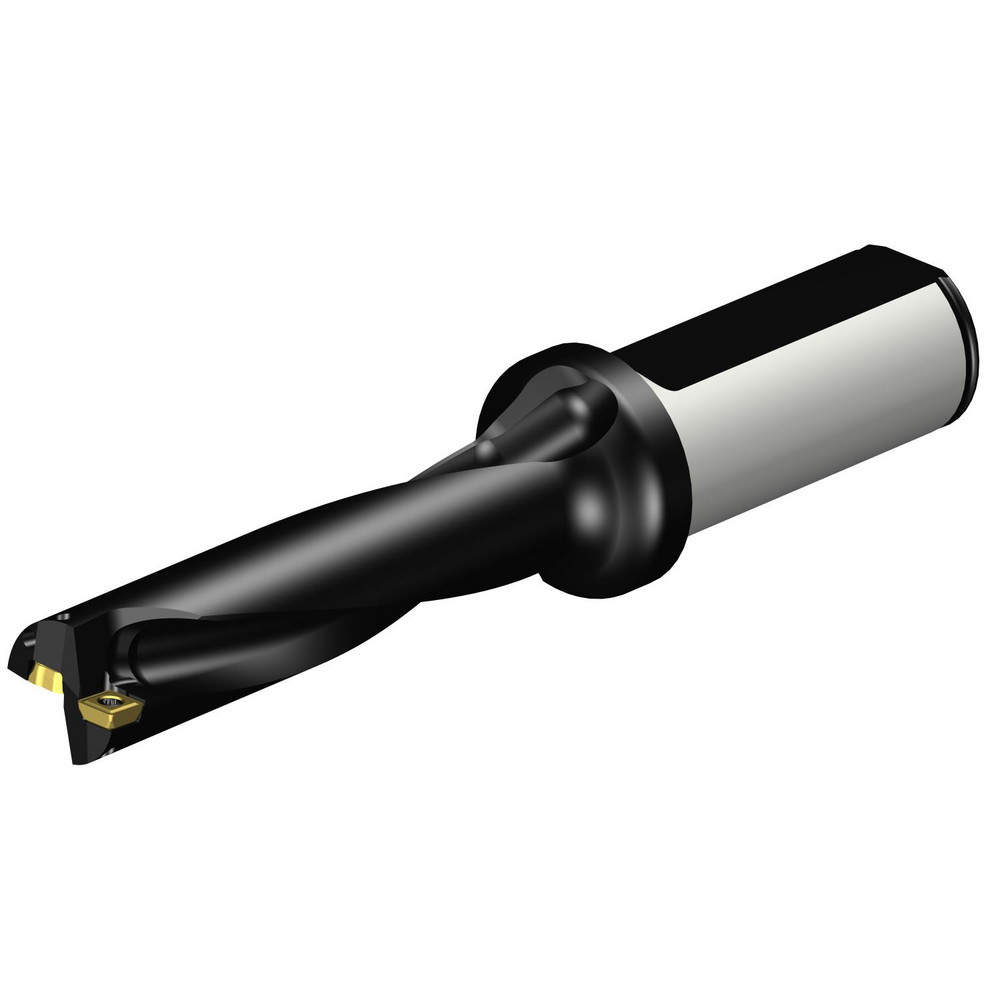

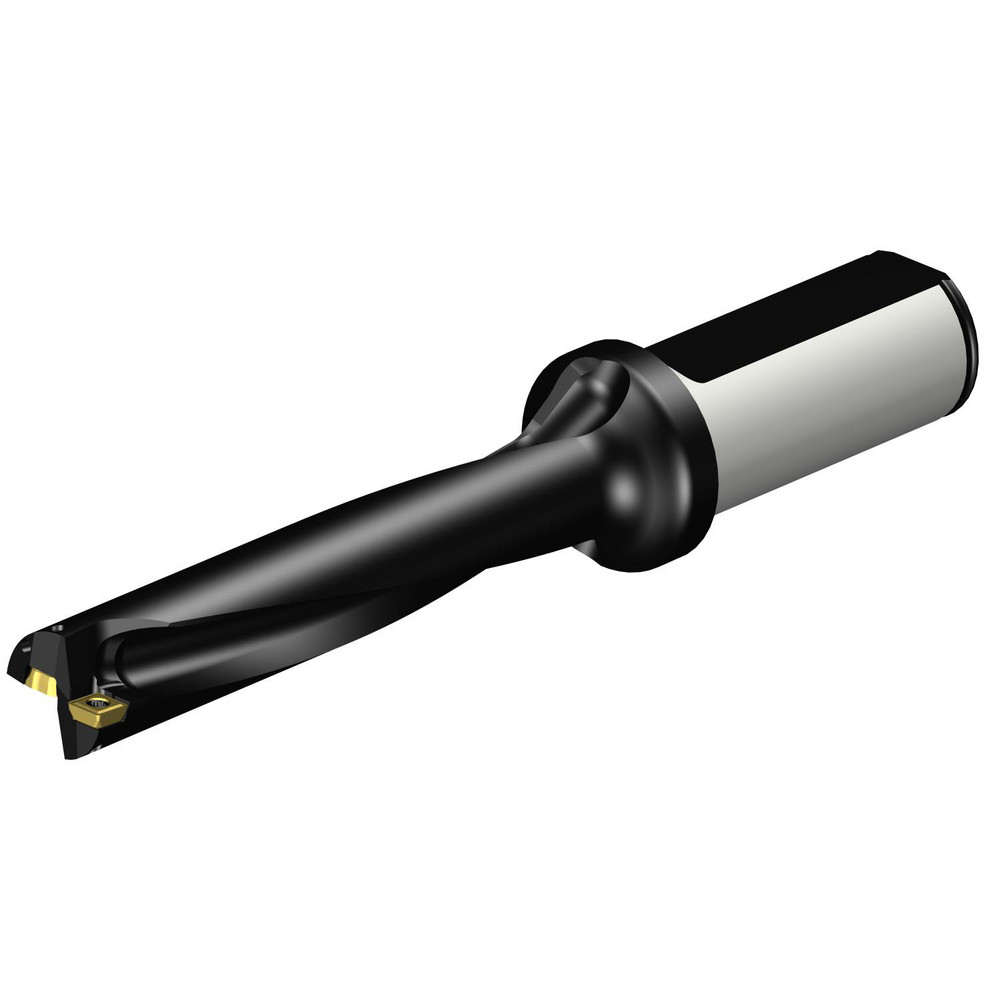

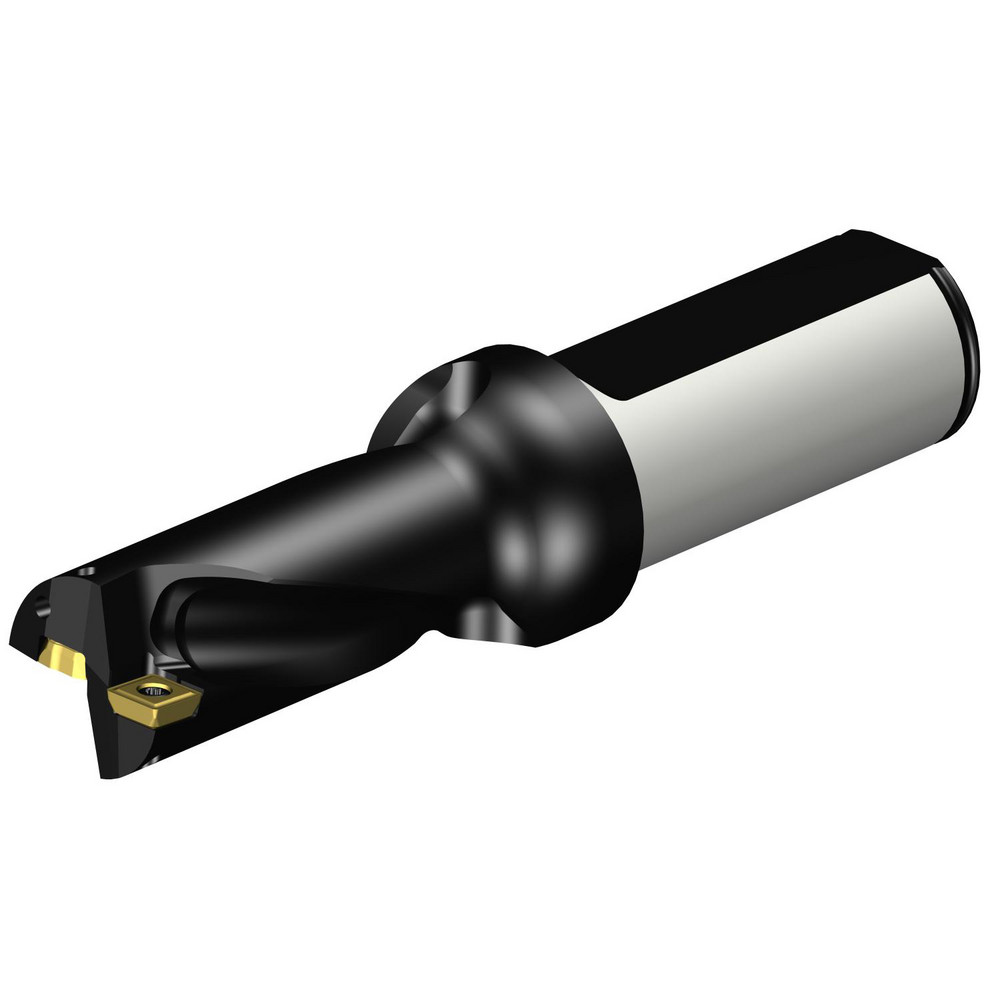

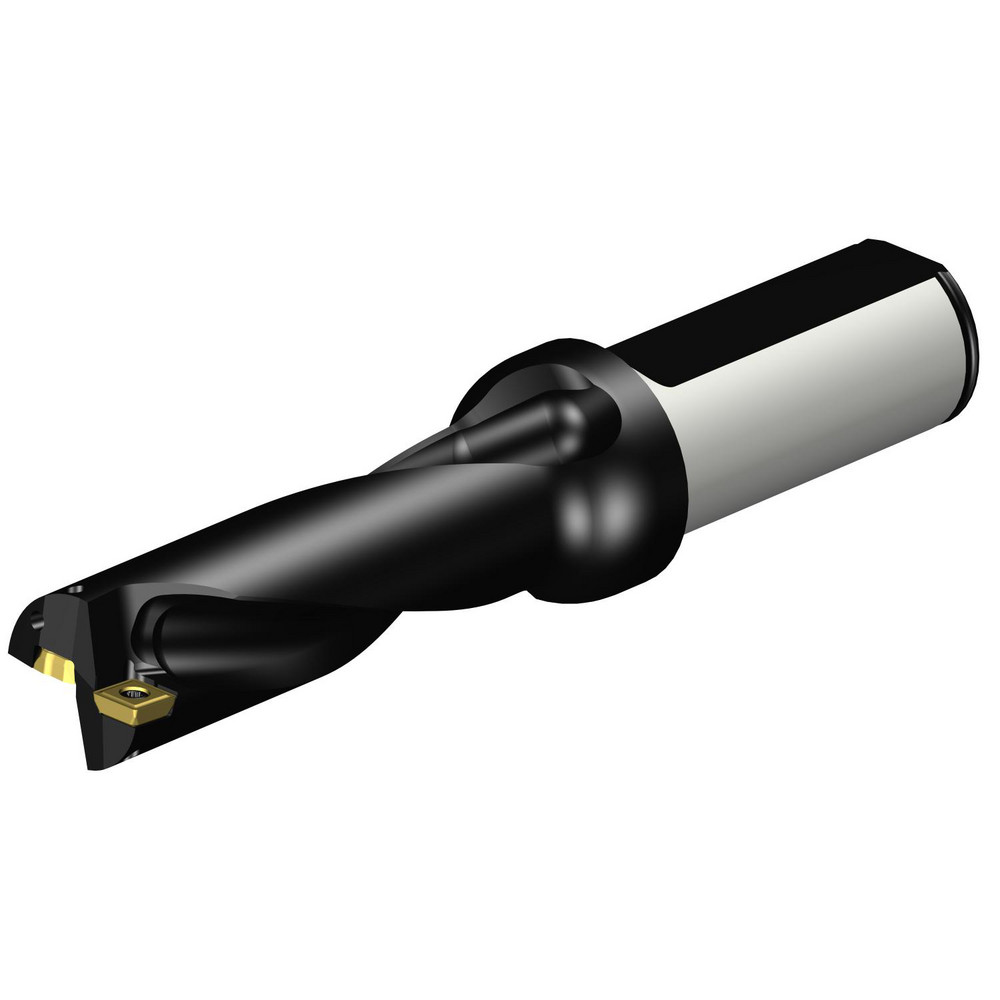

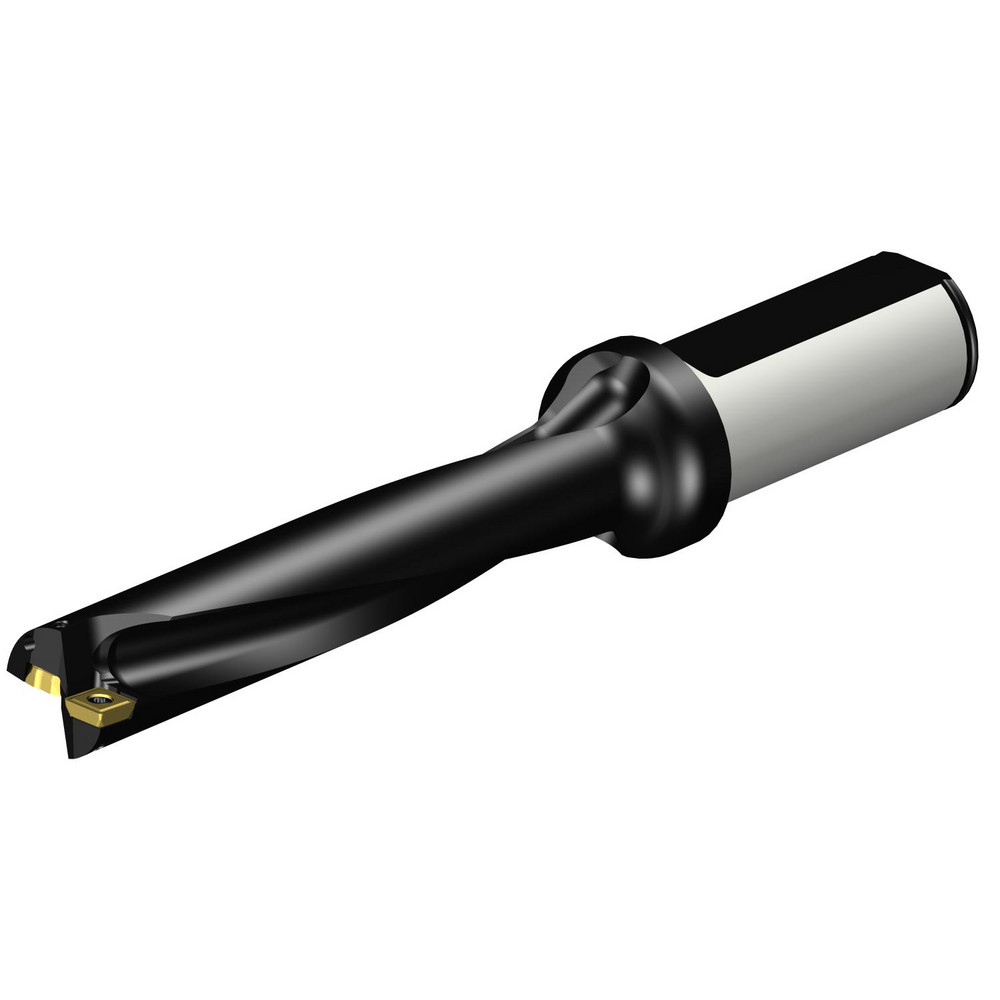

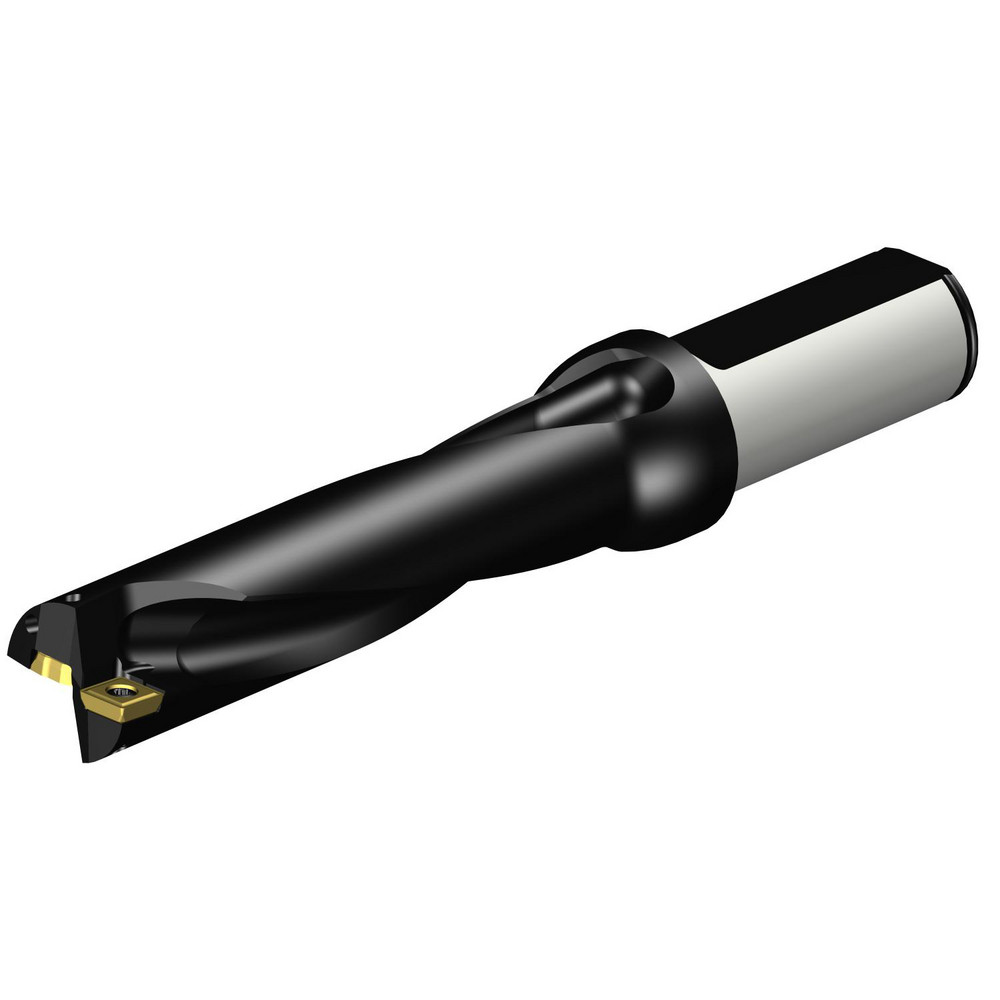

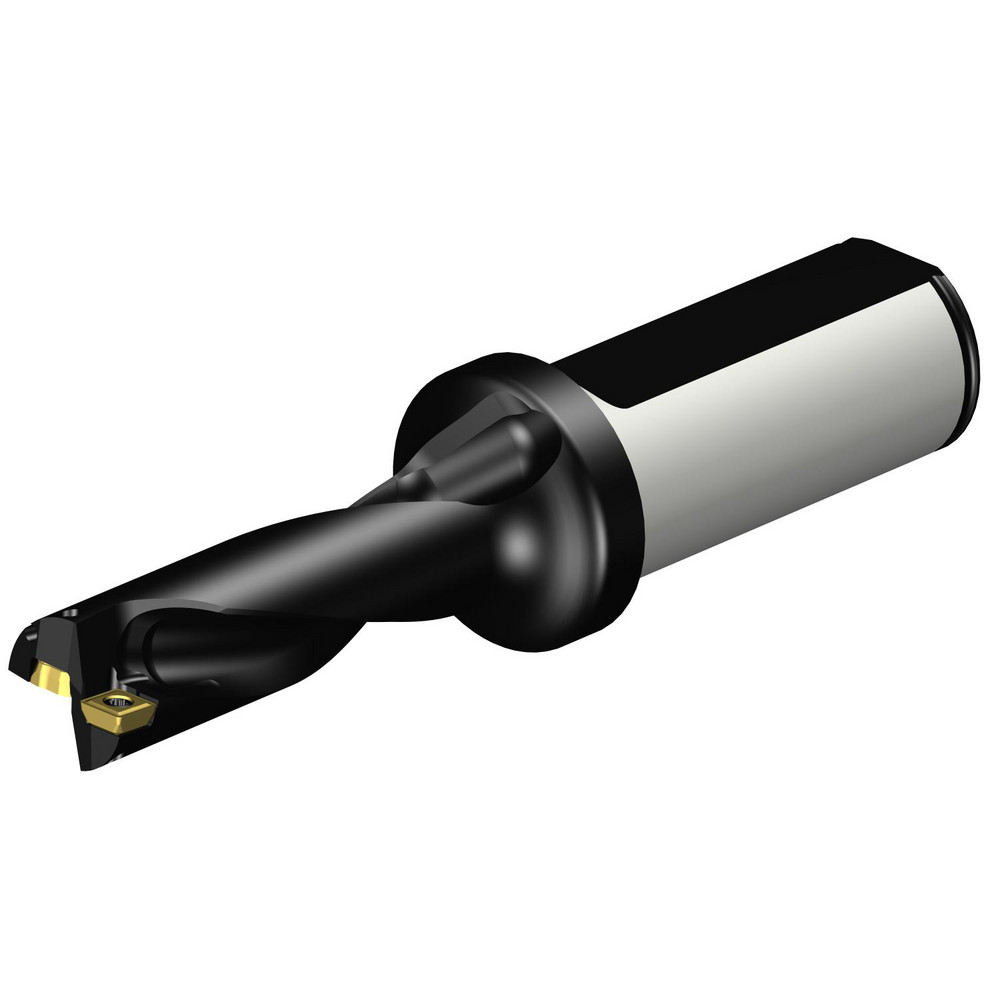

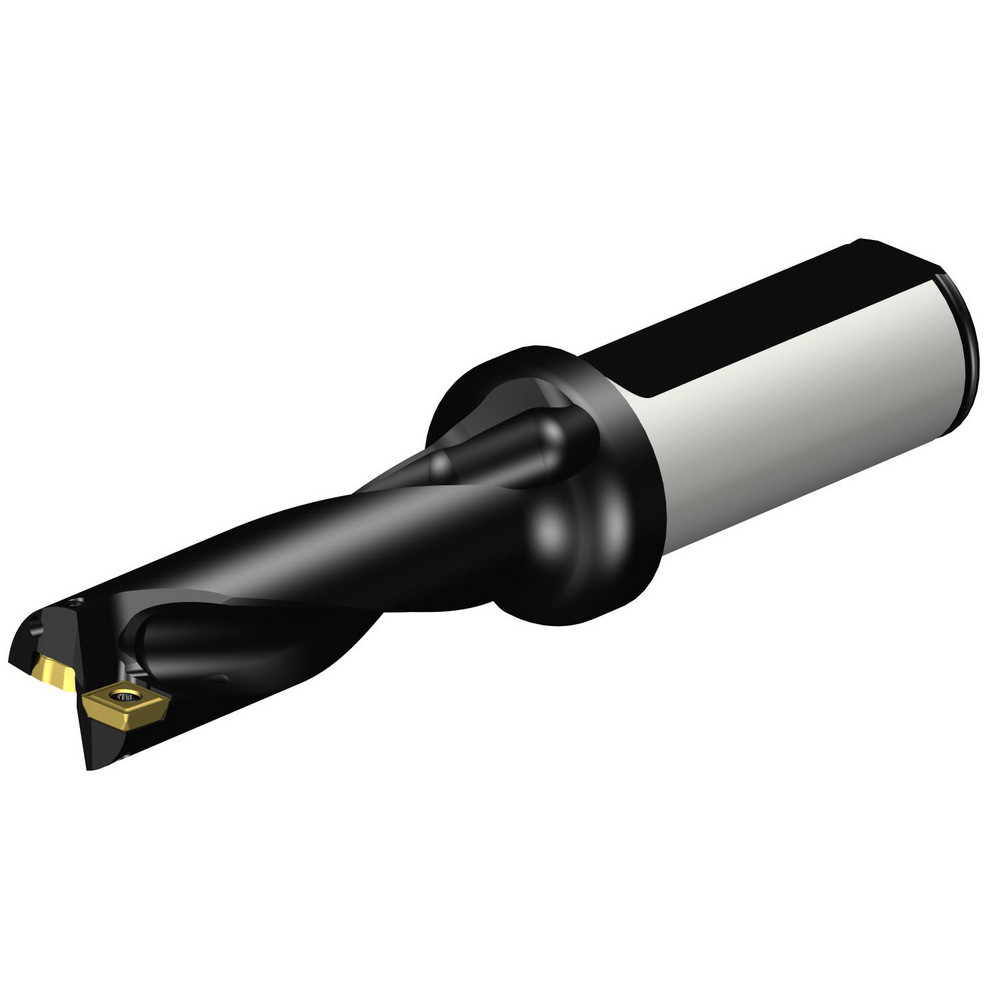

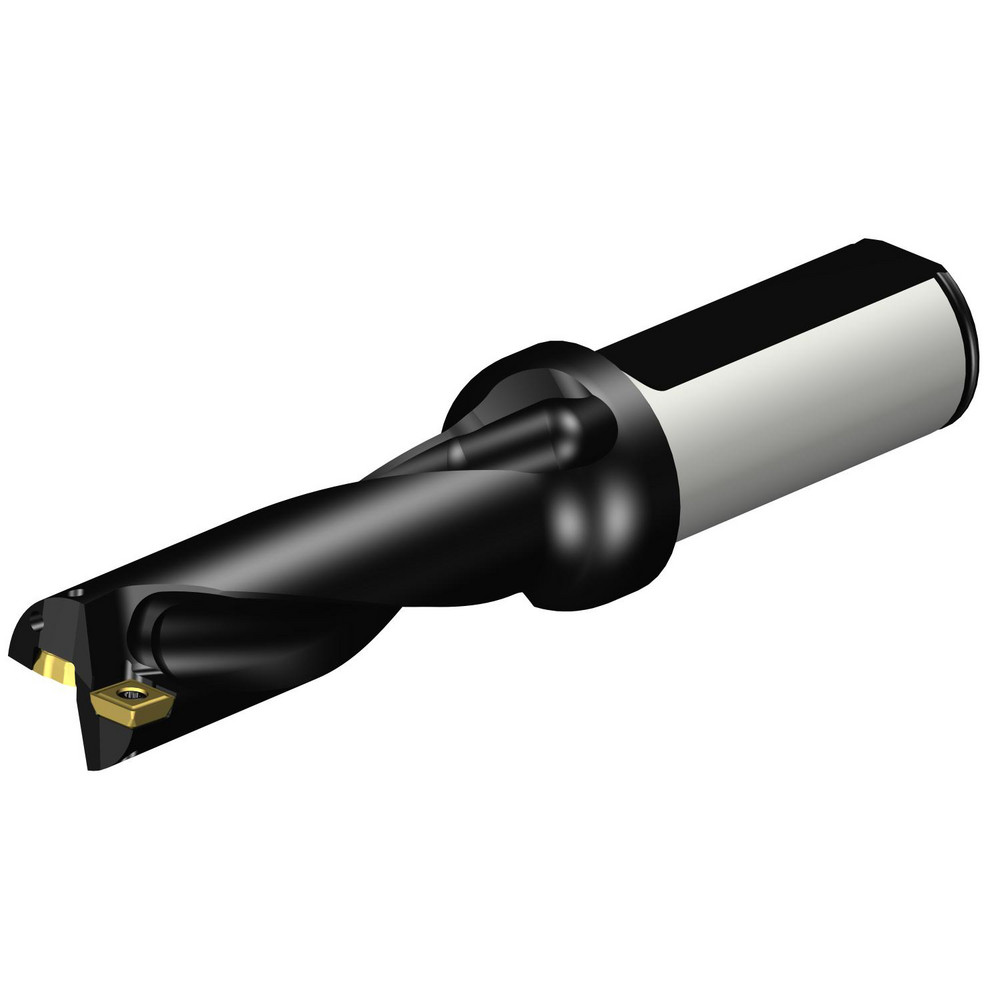

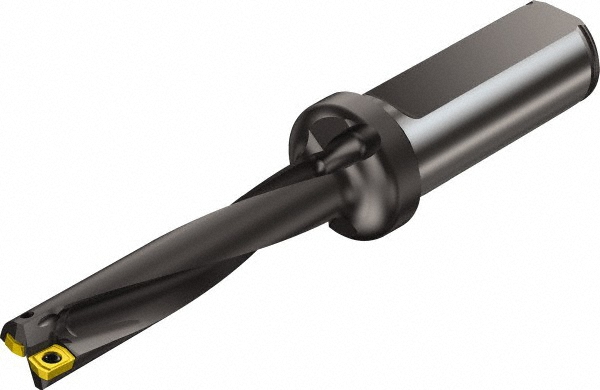

Weldon Flat & Flange Shank, Uses 880 040305 & 0403W05 Inserts, Series CoroDrill 880
| Compatible Drill Style | 880 |
|---|---|
| Maximum Drill Diameter (mm) | 20.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.9843 |
| Maximum Drill Depth (Decimal Inch) | 1.7323 |
| Maximum Drill Depth (mm) | 40.43 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Shank Diameter (mm) | 25.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 1.0000 to 2.0000 |
| Maximum Drill Depth Range (mm) | 0.00 to 50.00 |
| Tool Material | Steel |
| Compatible Insert Style | 880 |
| Compatible Insert Size Code | 0403W05; 040305 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | CoroDrill 880 |
| Flute Length (Decimal Inch) | 1.5748 |
| Flute Length (mm) | 44.00 |
| Body Length (mm) | 60.57 |
| Body Length (Decimal Inch) | 2.3847 |
| Shank Length (Decimal Inch) | 2.2047 |
| Shank Length (mm) | 56.43 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 6.80; 7.40 |
| UNSPSC Code | 23291503 |

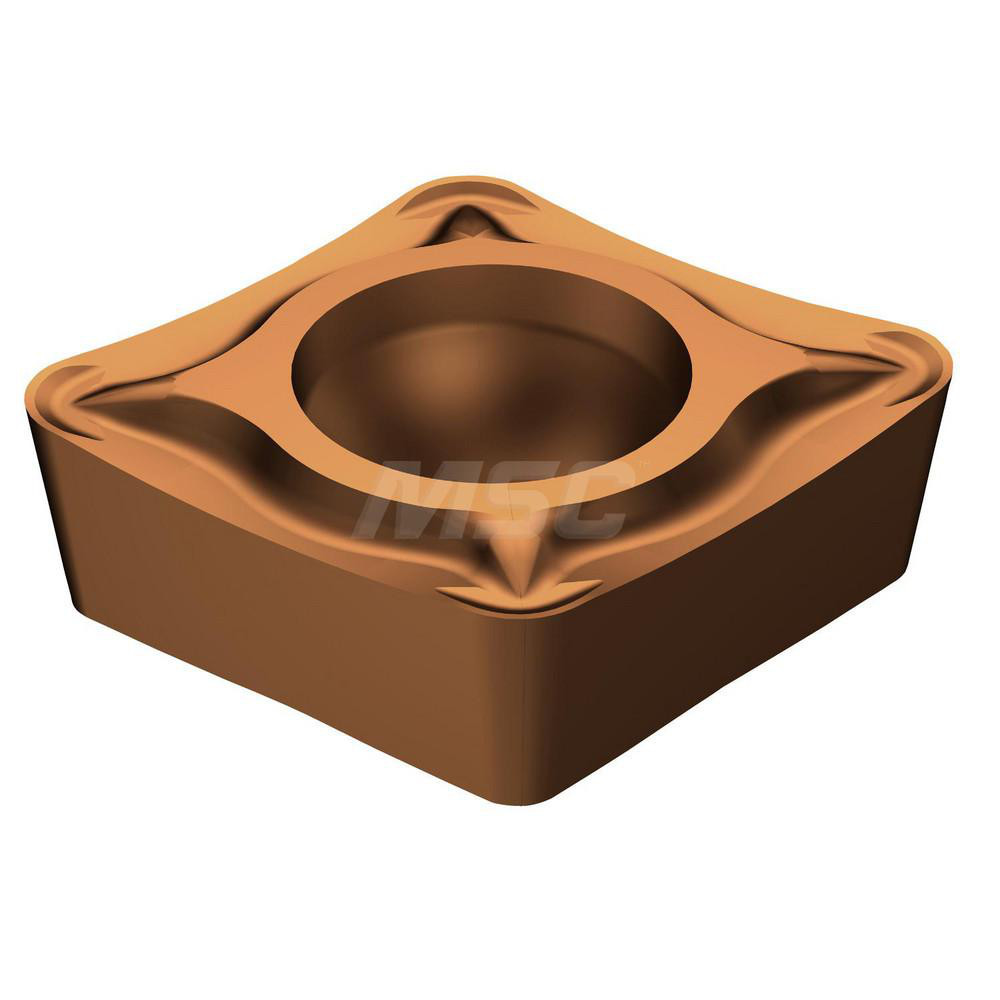

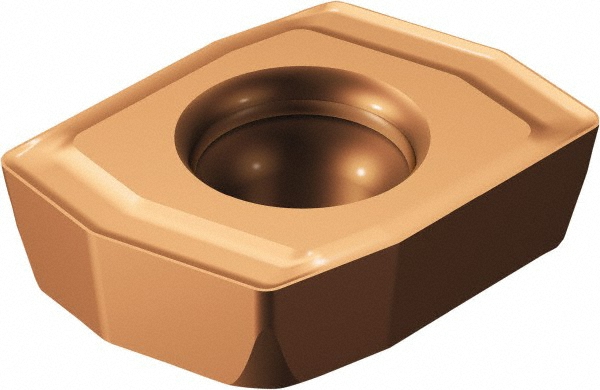

| Insert Compatibility | 880-040305H-C-GM; 880-0403W05H-P-GM |
| Insert Lock Screw | 5513 020-58 |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| MSC Number | MSC# 57766685 |
