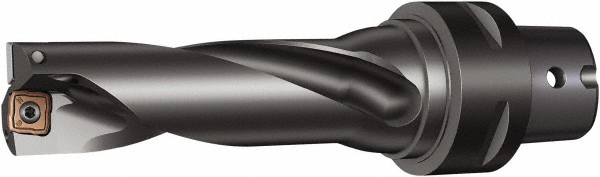

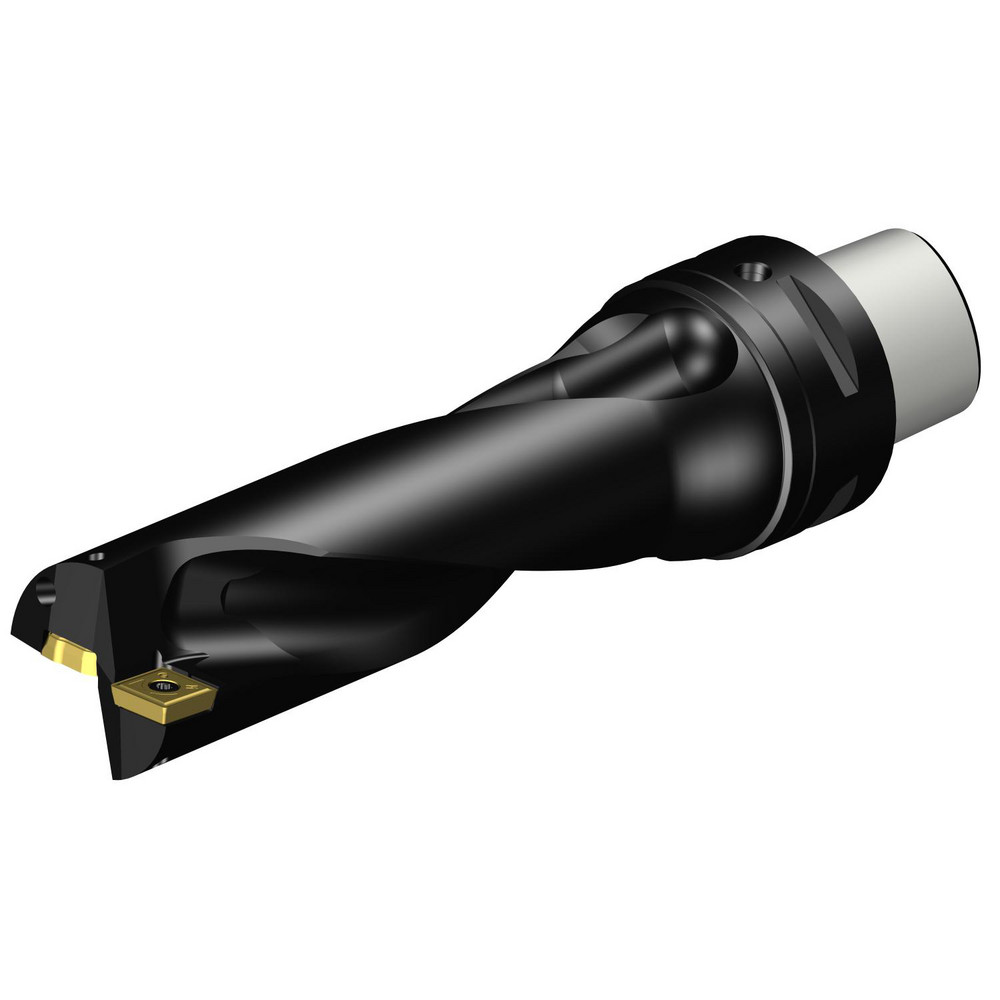

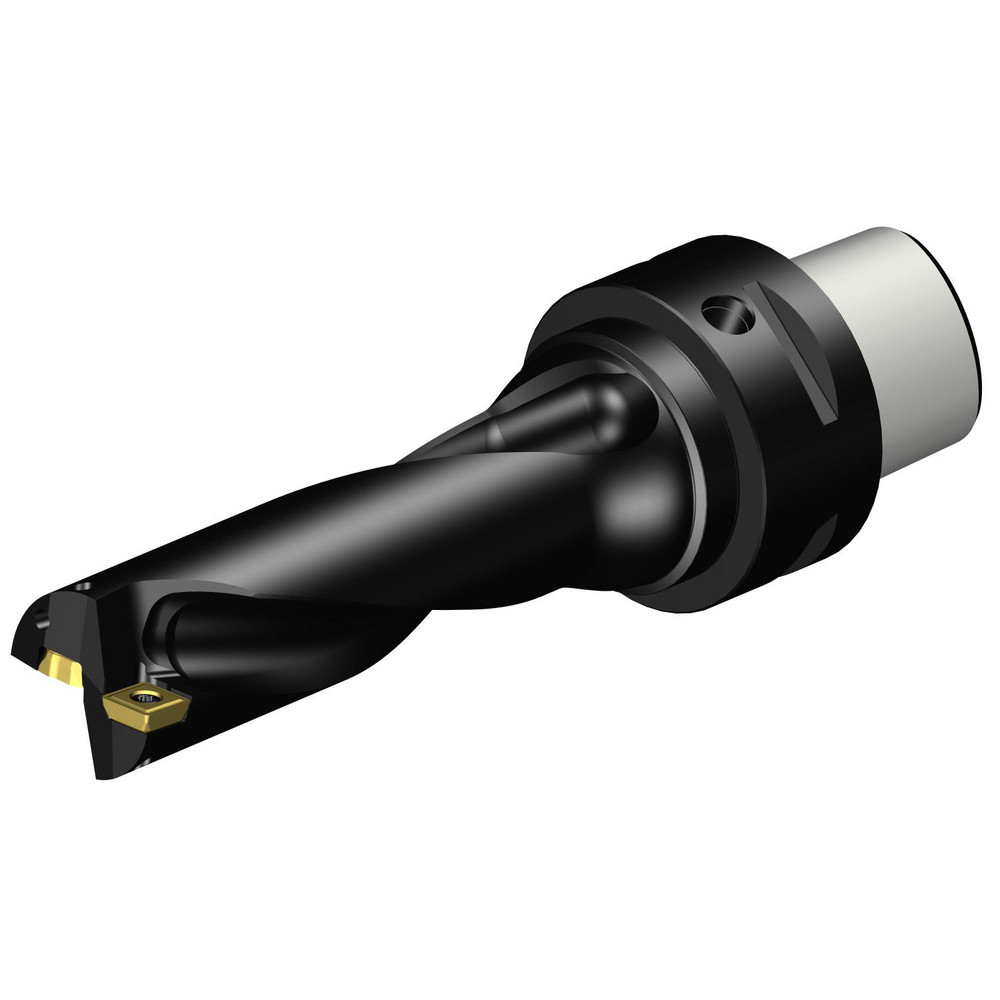

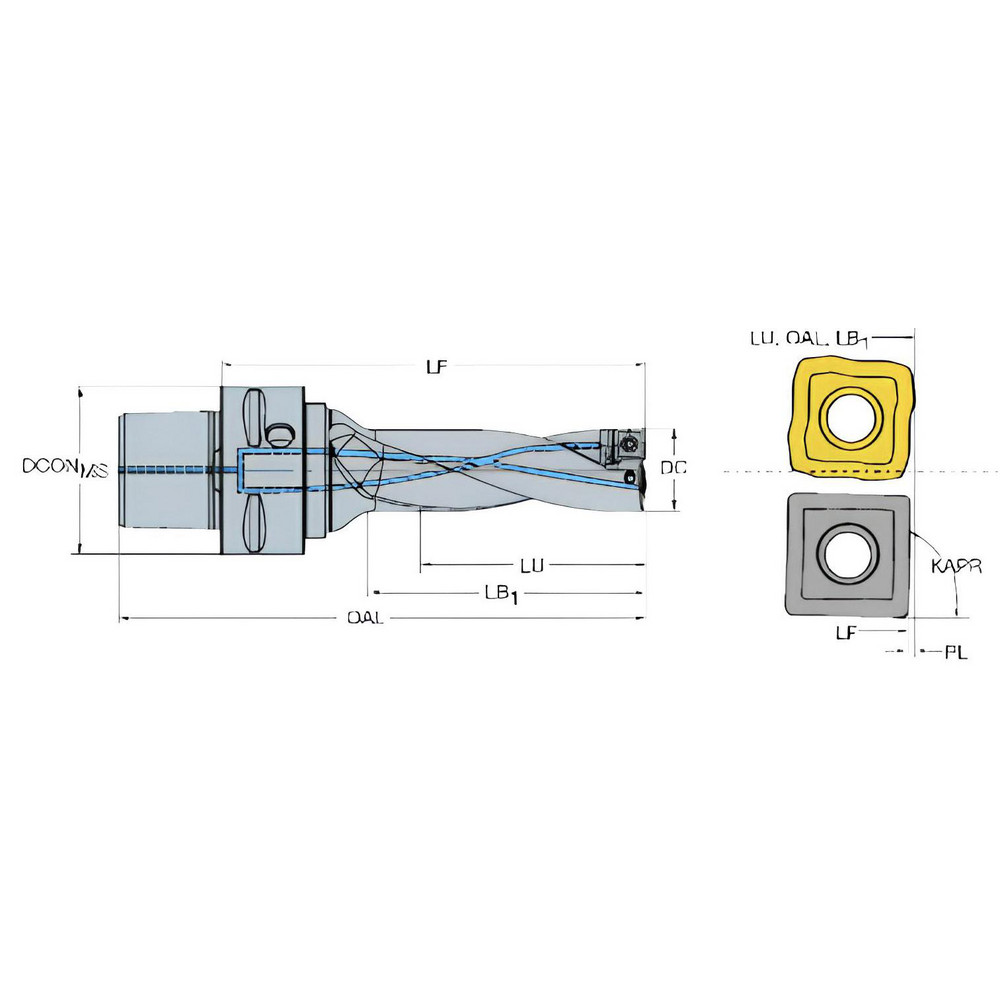

Modular Connection Shank, Uses 880 050305 & 0503W05 Inserts, Series CoroDrill 880
| Compatible Drill Style | 880 |
|---|---|
| Maximum Drill Diameter (mm) | 24.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.9449 |
| Maximum Drill Depth (Decimal Inch) | 2.9921 |
| Maximum Drill Depth (mm) | 72.50 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 50.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Maximum Drill Depth Range (mm) | 50.00 to 75.00 |
| Tool Material | Steel |
| Compatible Insert Style | 880 |
| Compatible Insert Size Code | 050305; 0503W05 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 3- Axial Concentric & Radial |
| Series | CoroDrill 880 |
| Flute Length (Decimal Inch) | 2.8347 |
| Flute Length (mm) | 76.00 |
| Body Length (mm) | 114.50 |
| Body Length (Decimal Inch) | 4.5079 |
| Shank Length (Decimal Inch) | 1.2010 |
| Shank Length (mm) | 30.50 |
| Modular Connection Size | C5 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 8.90; 8.40 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | 880-050305H-C-GM; 880-0503W05H-P-GM |
| Collar Diameter (mm) | 35.00 |
| Insert Lock Screw | 5513 020-57 |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 54957964 |
