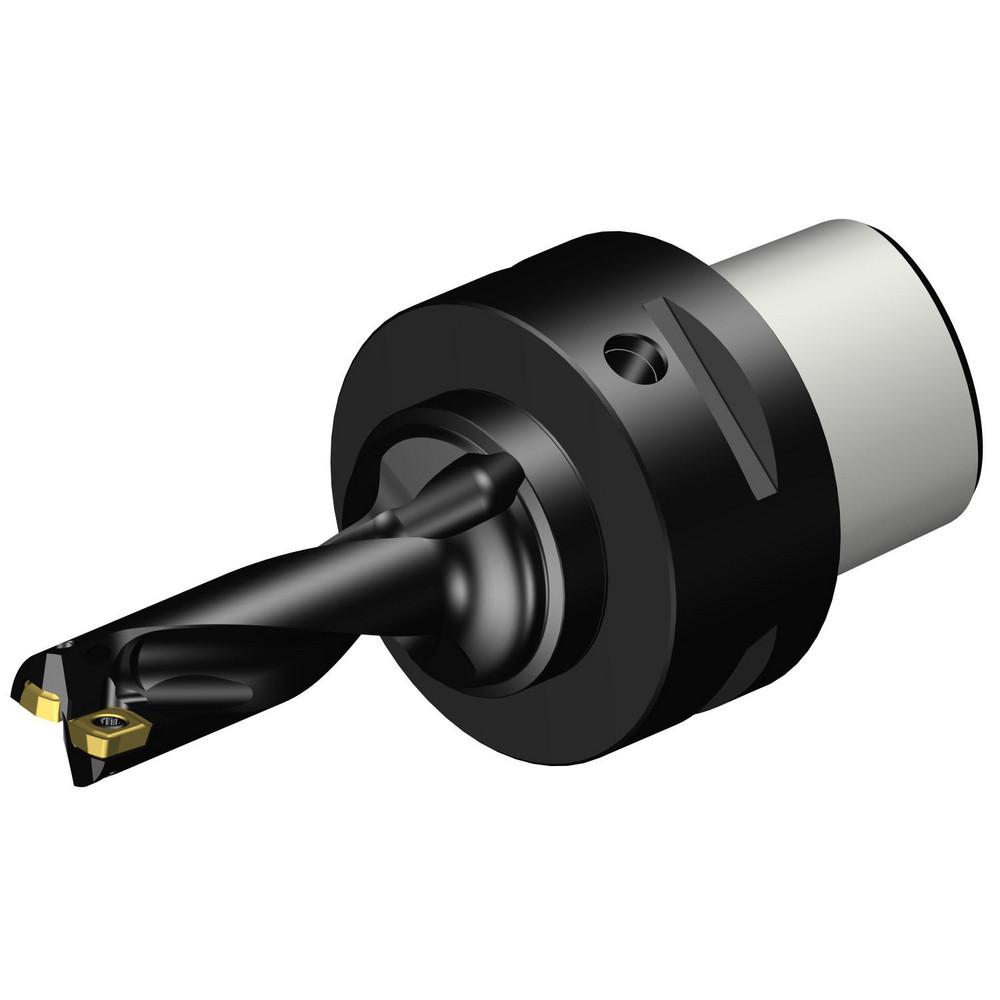

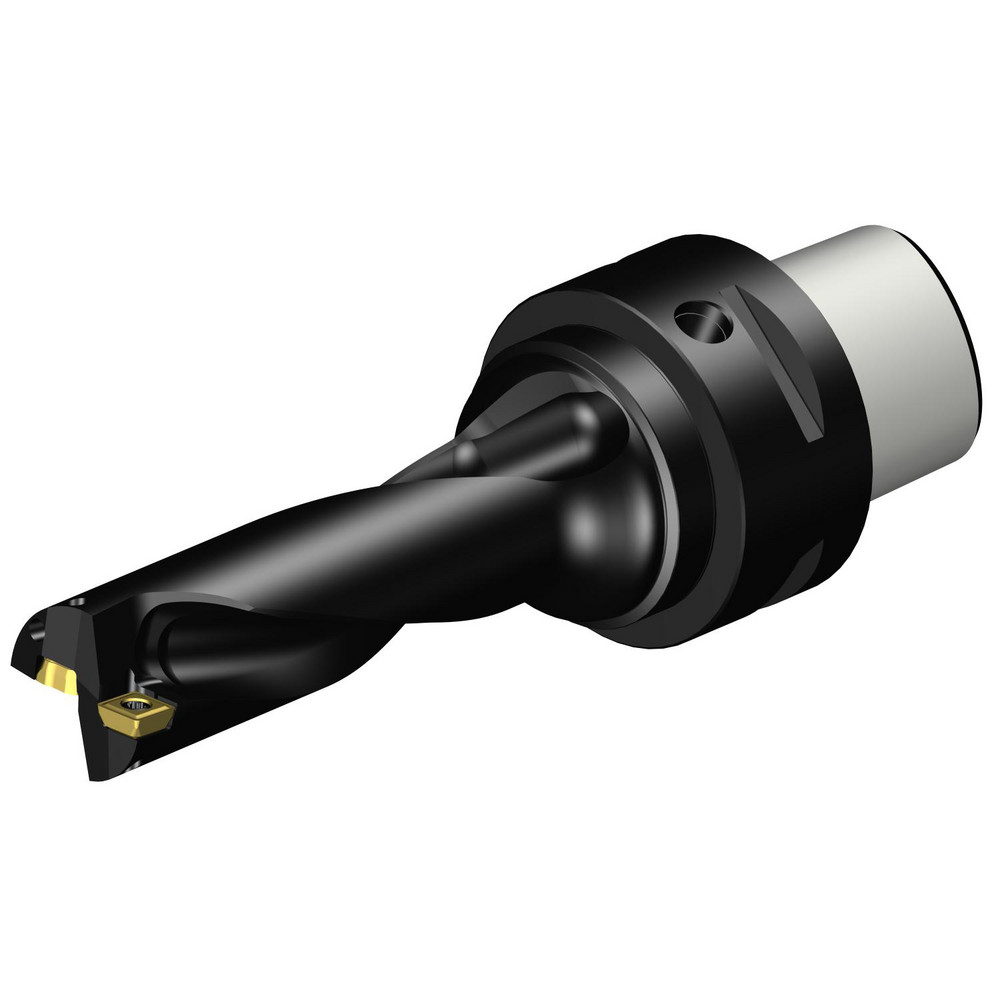

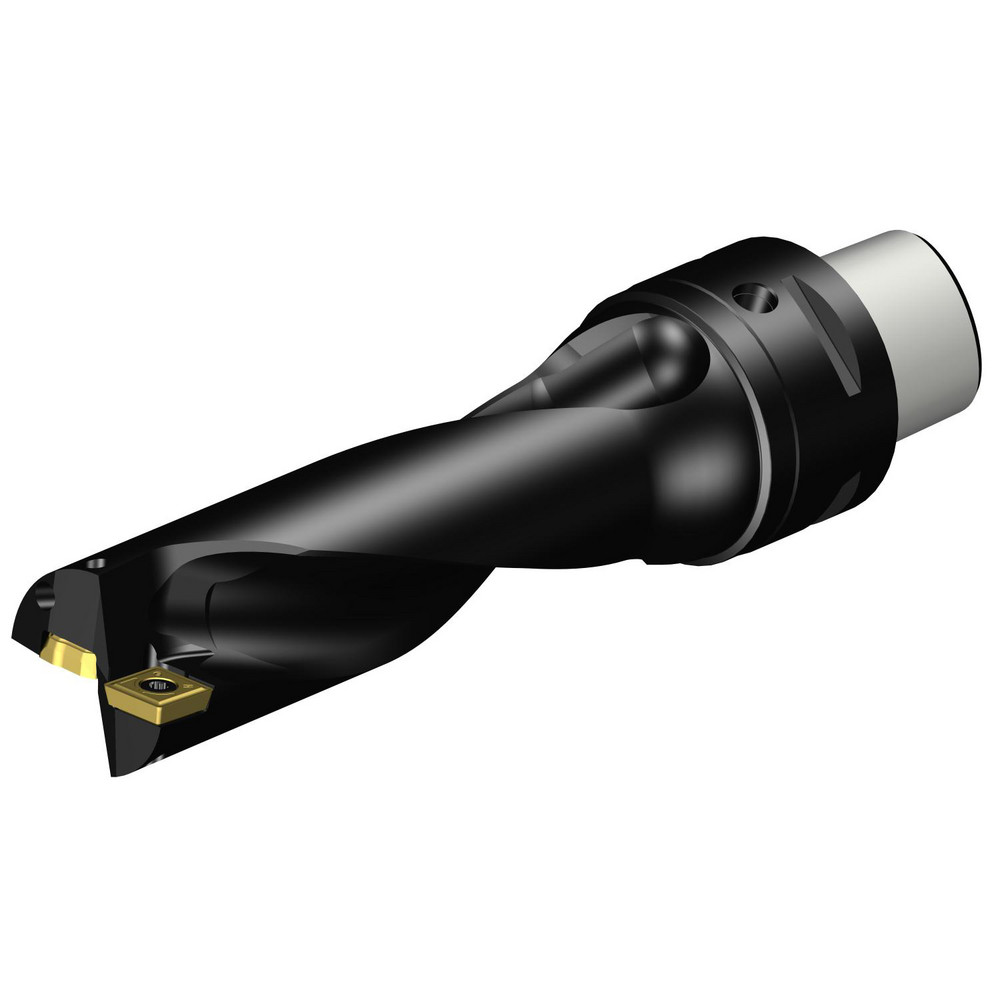

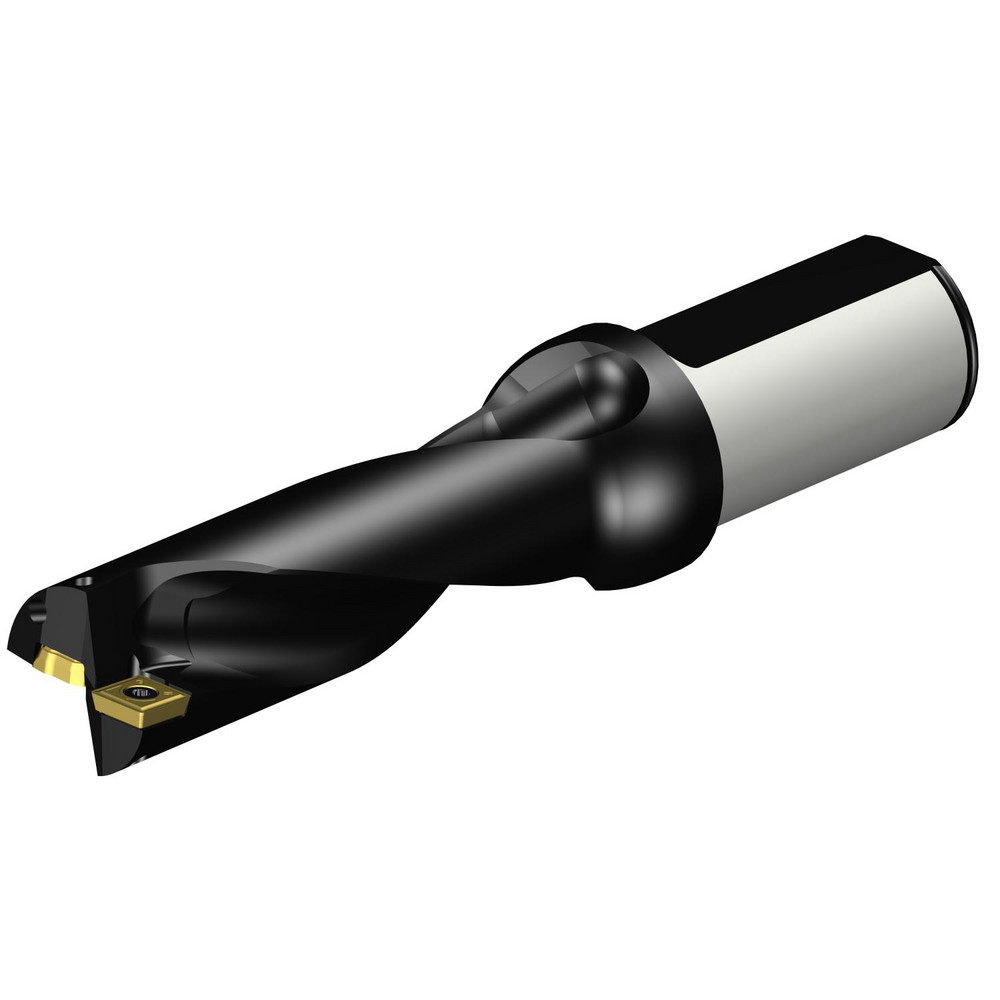

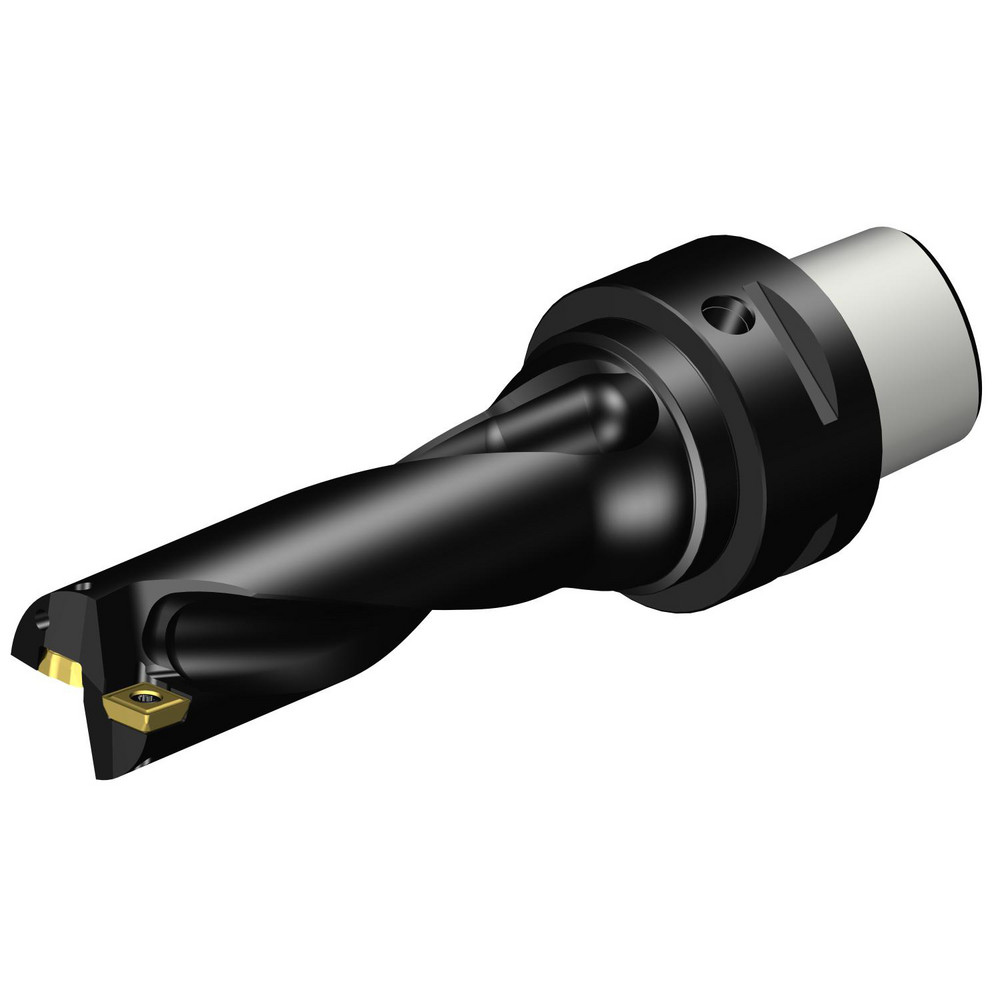

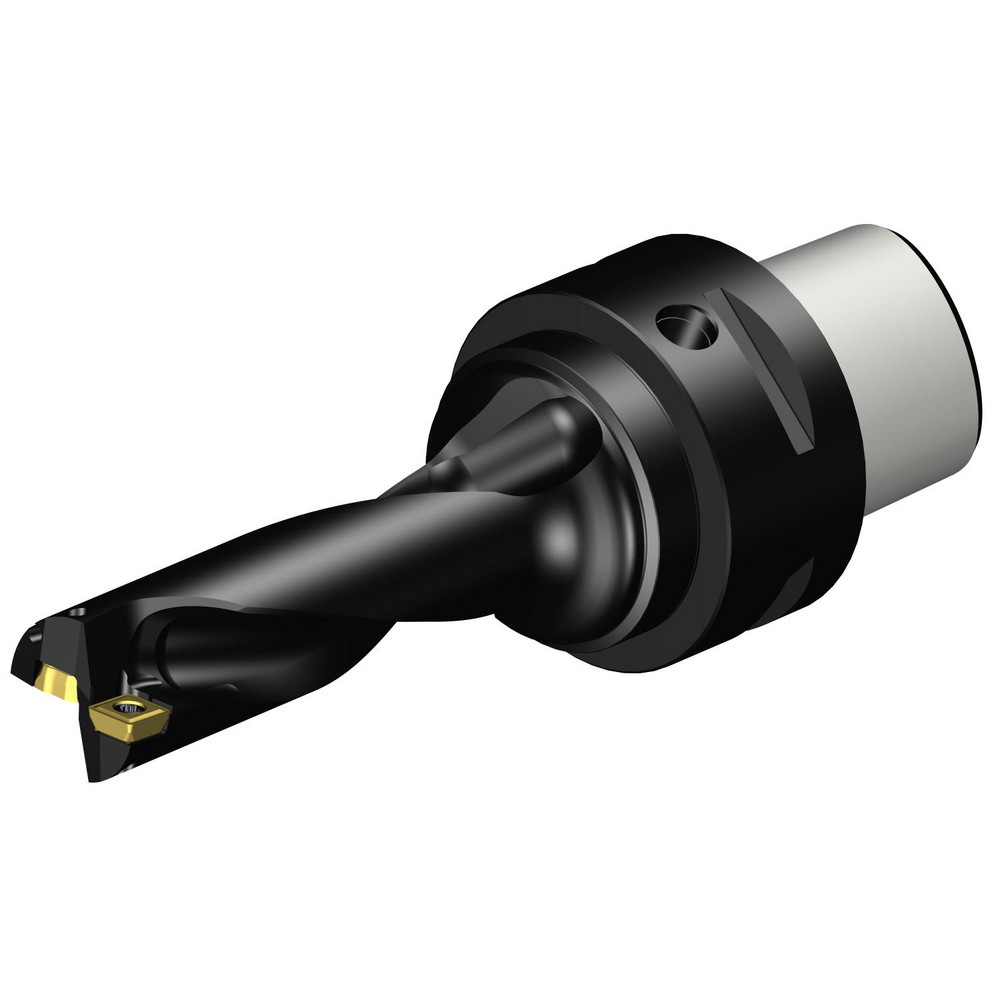

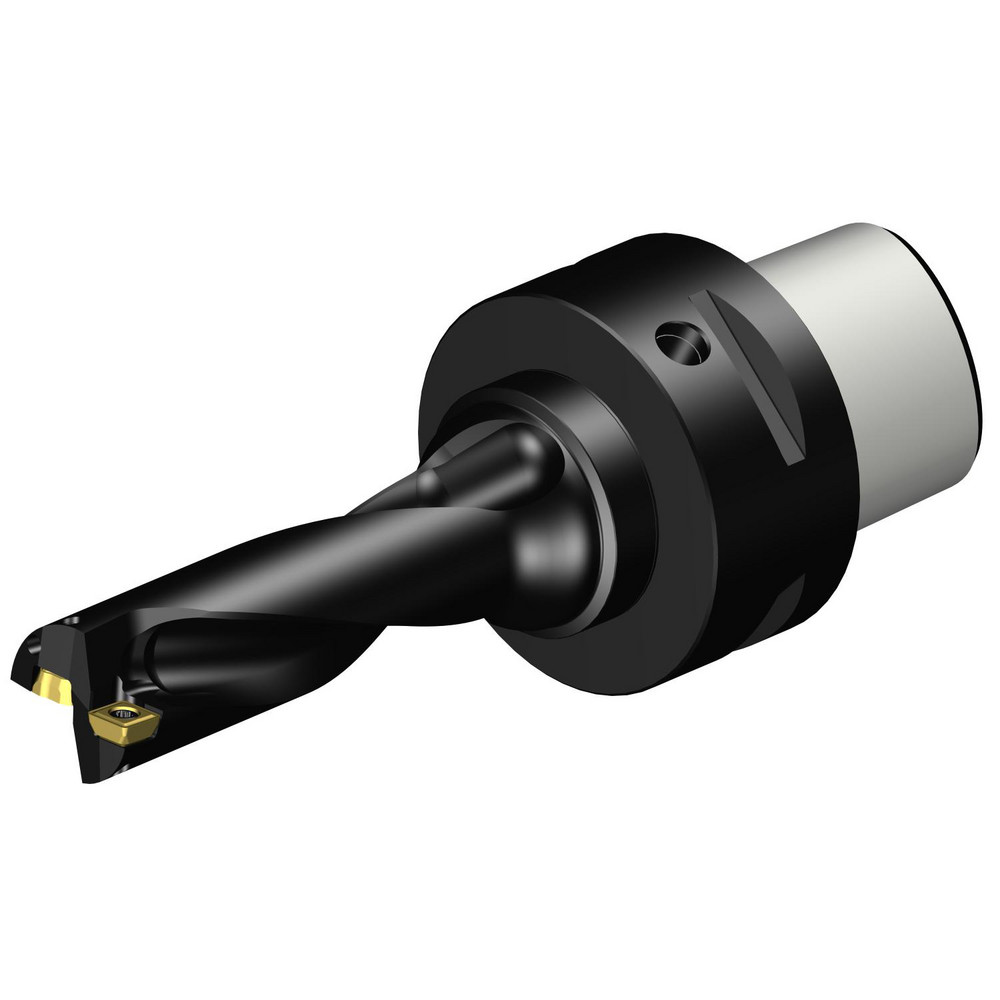

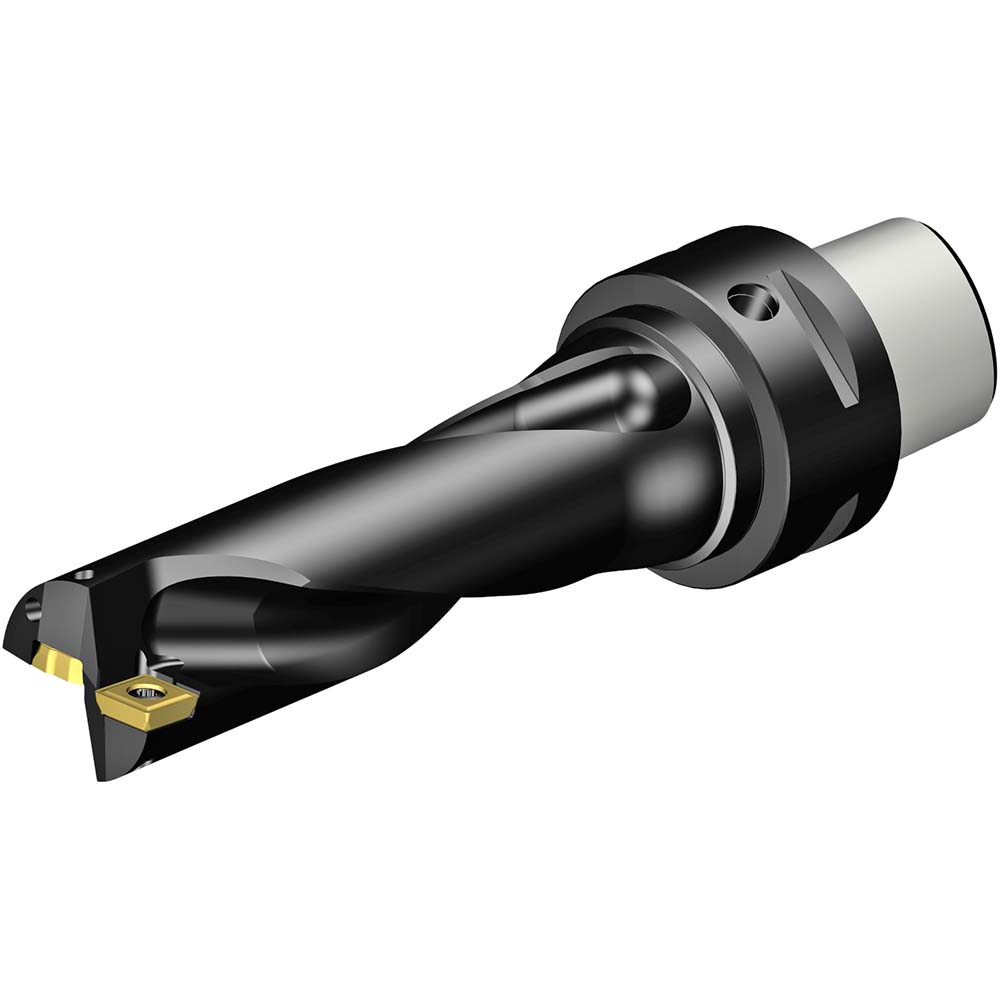

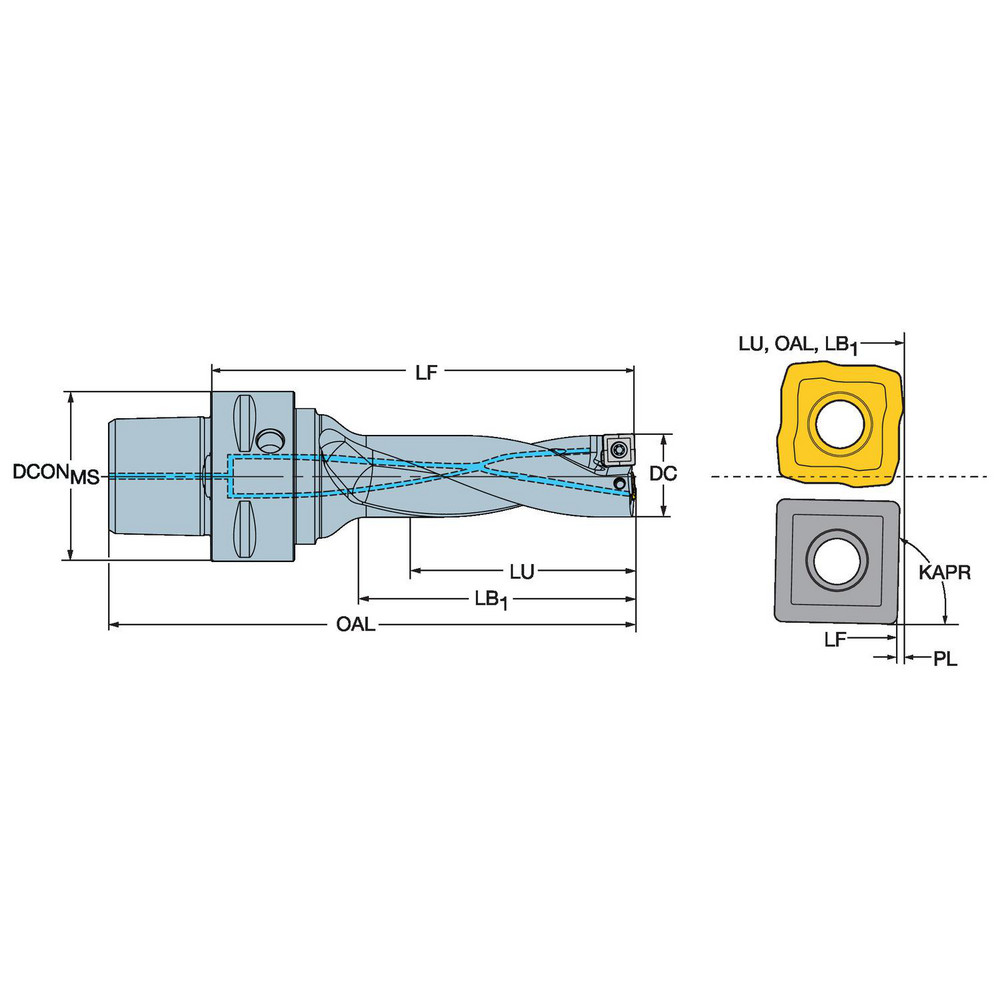

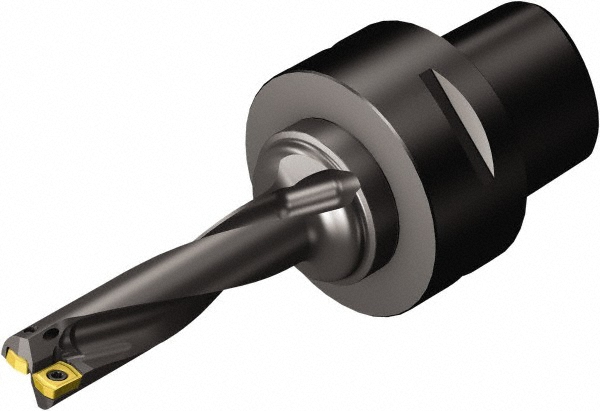

Modular Connection Shank, Uses 880 060406 & 0604W06 Inserts, Series CoroDrill 880
| Compatible Drill Style | 880 |
|---|---|
| Maximum Drill Diameter (mm) | 30.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.1811 |
| Maximum Drill Depth (Decimal Inch) | 3.7008 |
| Maximum Drill Depth (mm) | 90.59 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 40.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Maximum Drill Depth Range (mm) | 75.00 to 100.00 |
| Tool Material | Steel |
| Compatible Insert Style | 880 |
| Compatible Insert Size Code | 060406; 0604W06 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 3- Axial Concentric & Radial |
| Series | CoroDrill 880 |
| Flute Length (Decimal Inch) | 3.5433 |
| Flute Length (mm) | 94.00 |
| Body Length (mm) | 136.41 |
| Body Length (Decimal Inch) | 5.3705 |
| Shank Length (Decimal Inch) | 0.9681 |
| Shank Length (mm) | 24.59 |
| Modular Connection Size | C4 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 10.70; 10.20 |
| UNSPSC Code | 23291503 |

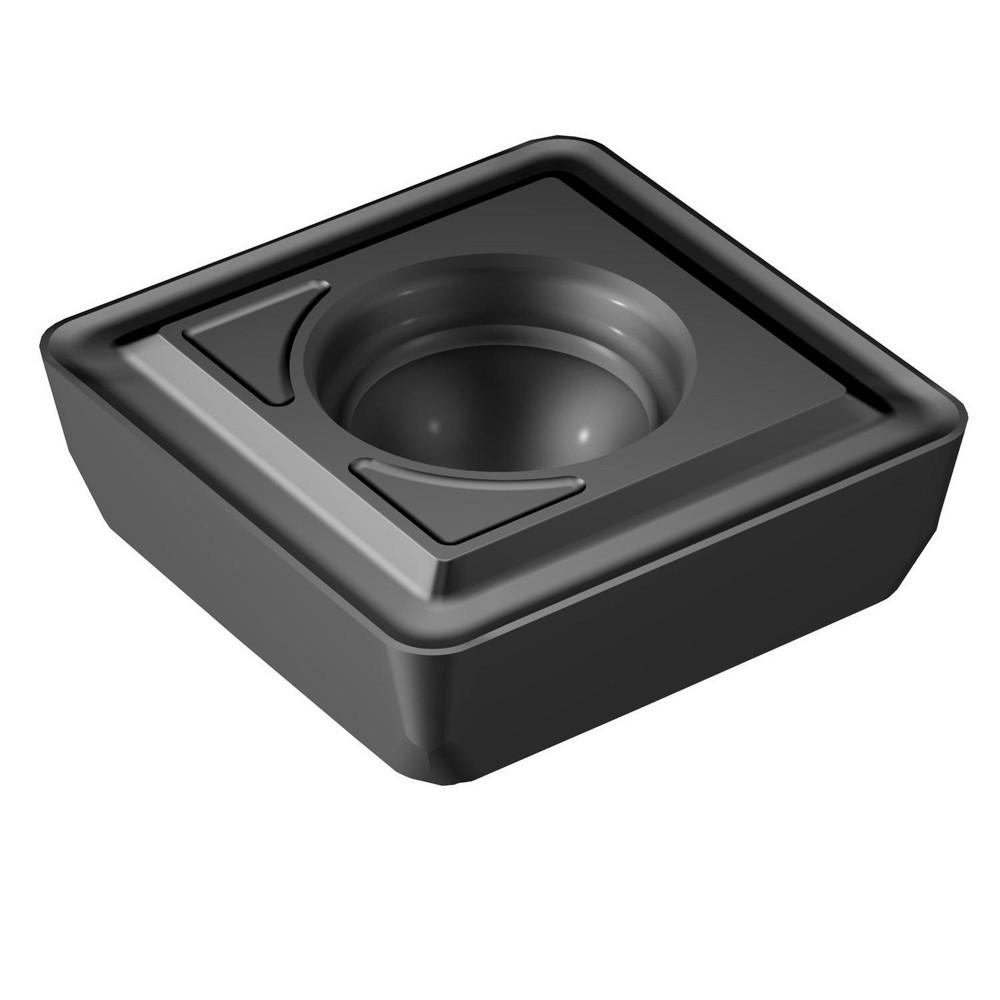

| Insert Compatibility | 880-0604W06H-P-GM; 880-060406H-C-GM |
| Collar Diameter (mm) | 28.00 |
| Insert Lock Screw | 416.1-833 |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 57872822 |
