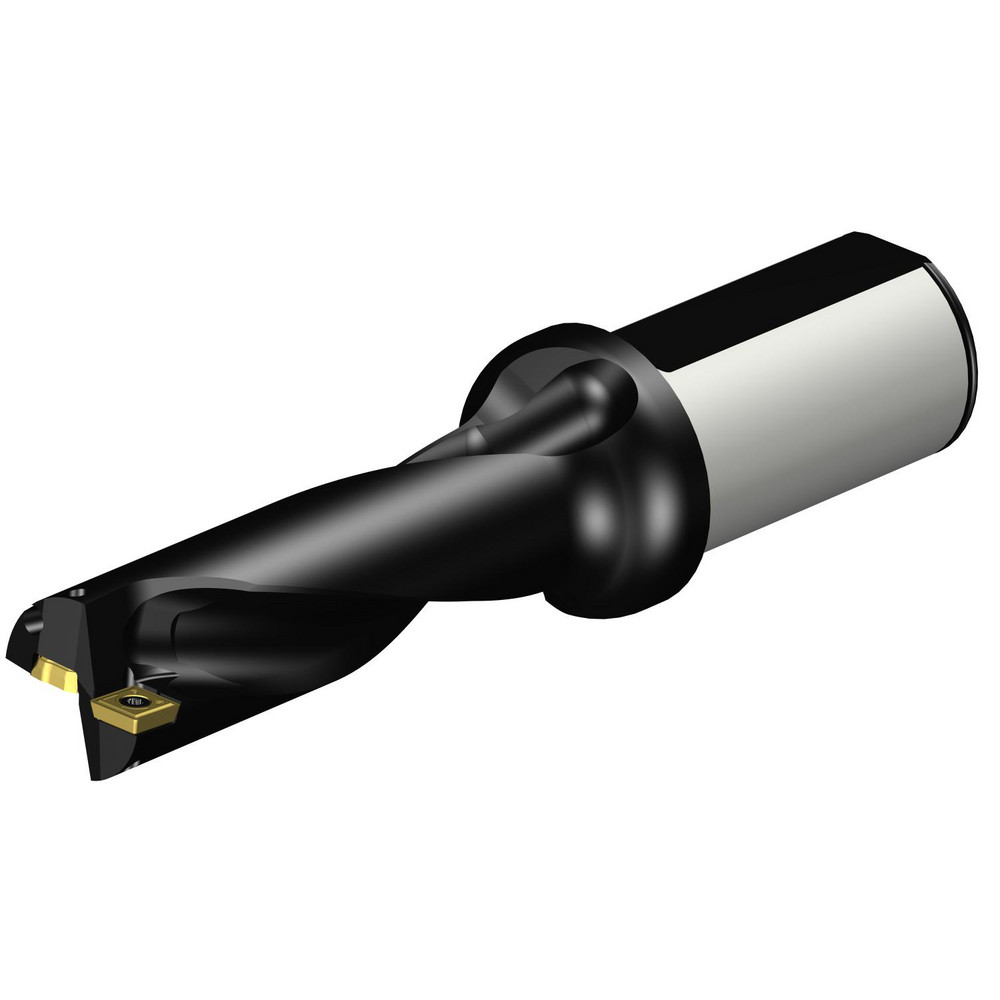

Weldon Flat & Flange Shank, Uses 880 060406 & 0604W06 Inserts, Series CoroDrill 880
| Compatible Drill Style | 880 |
|---|---|
| Maximum Drill Diameter (mm) | 33.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.5748 |
| Maximum Drill Depth (Decimal Inch) | 2.7559 |
| Maximum Drill Depth (mm) | 66.61 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Shank Diameter (mm) | 40.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Maximum Drill Depth Range (mm) | 50.00 to 75.00 |
| Tool Material | Steel |
| Compatible Insert Style | 880 |
| Compatible Insert Size Code | 060406; 0604W06 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Series | CoroDrill 880 |
| Flute Length (Decimal Inch) | 2.5984 |
| Flute Length (mm) | 70.00 |
| Body Length (mm) | 94.39 |
| Body Length (Decimal Inch) | 3.7161 |
| Shank Length (Decimal Inch) | 2.7559 |
| Shank Length (mm) | 70.61 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 10.70; 10.20 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | 880-0604W06H-P-GM; 880-060406H-C-GM |
| Insert Lock Screw | 416.1-833 |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| MSC Number | MSC# 89193460 |
