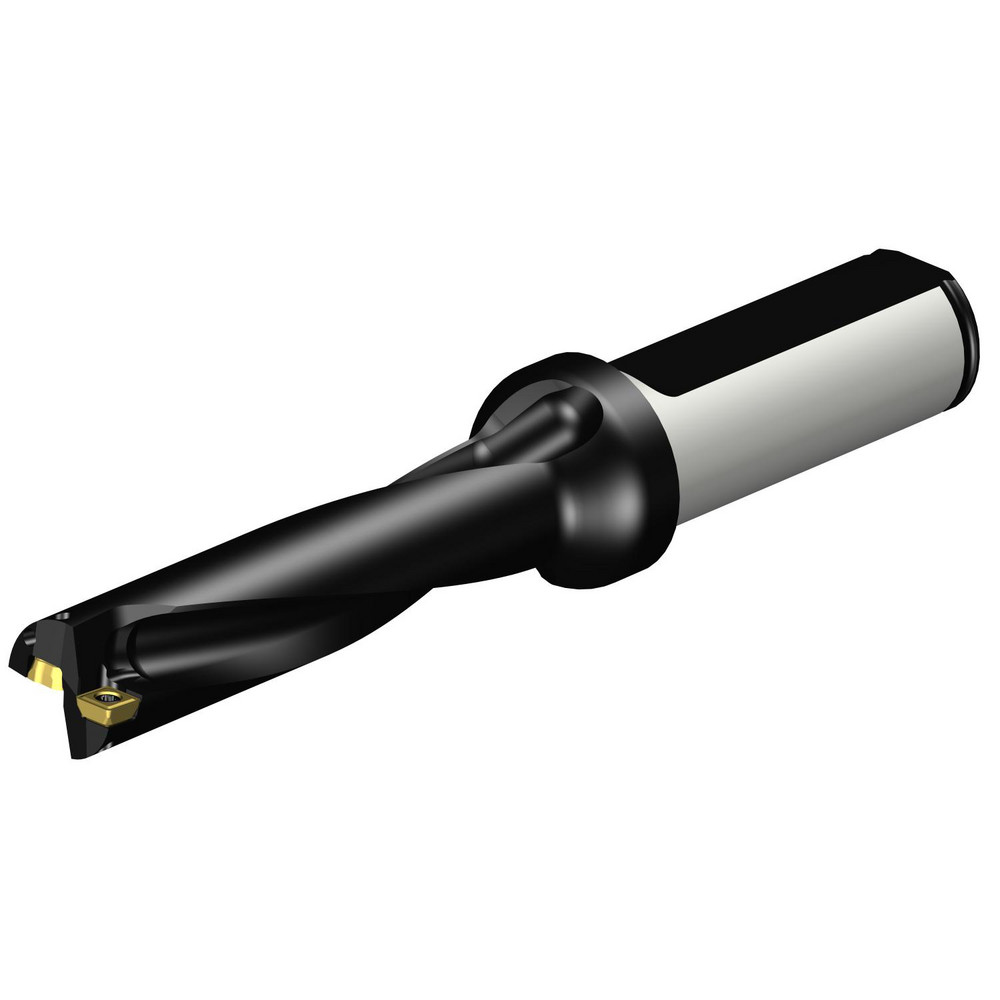

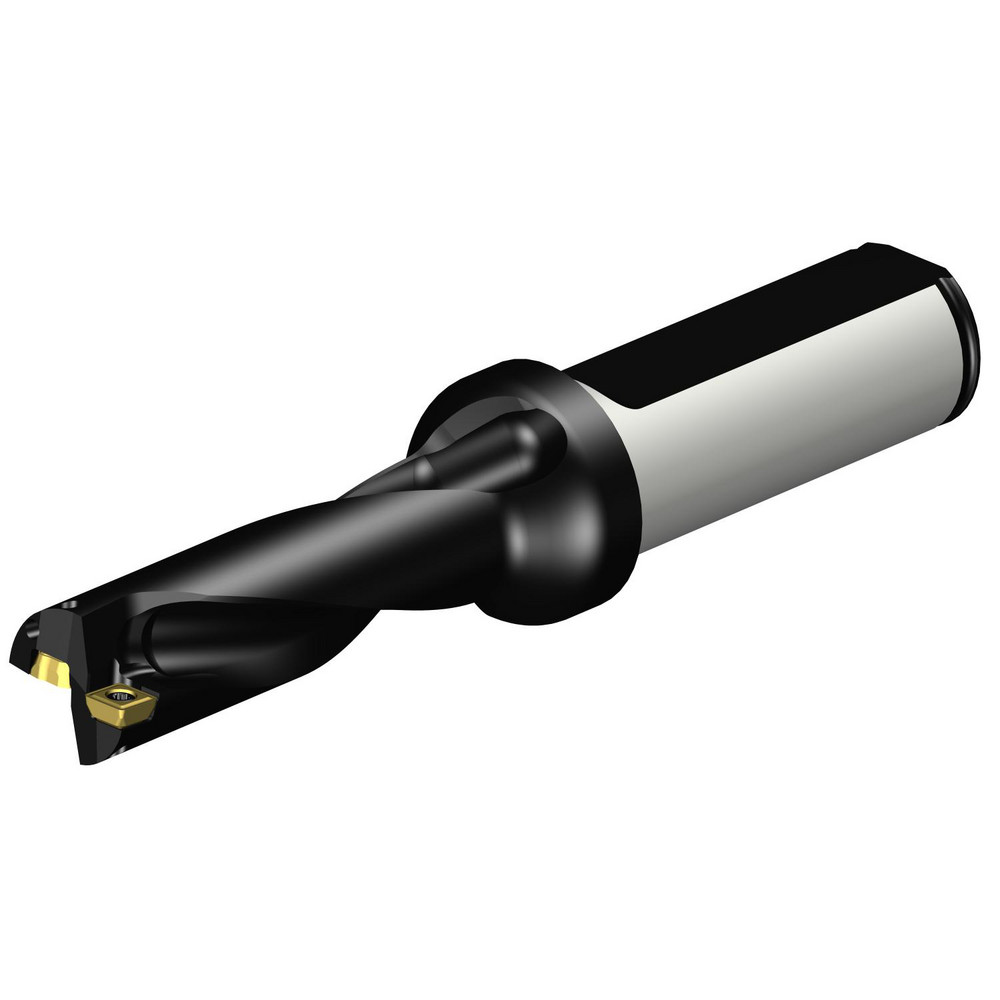

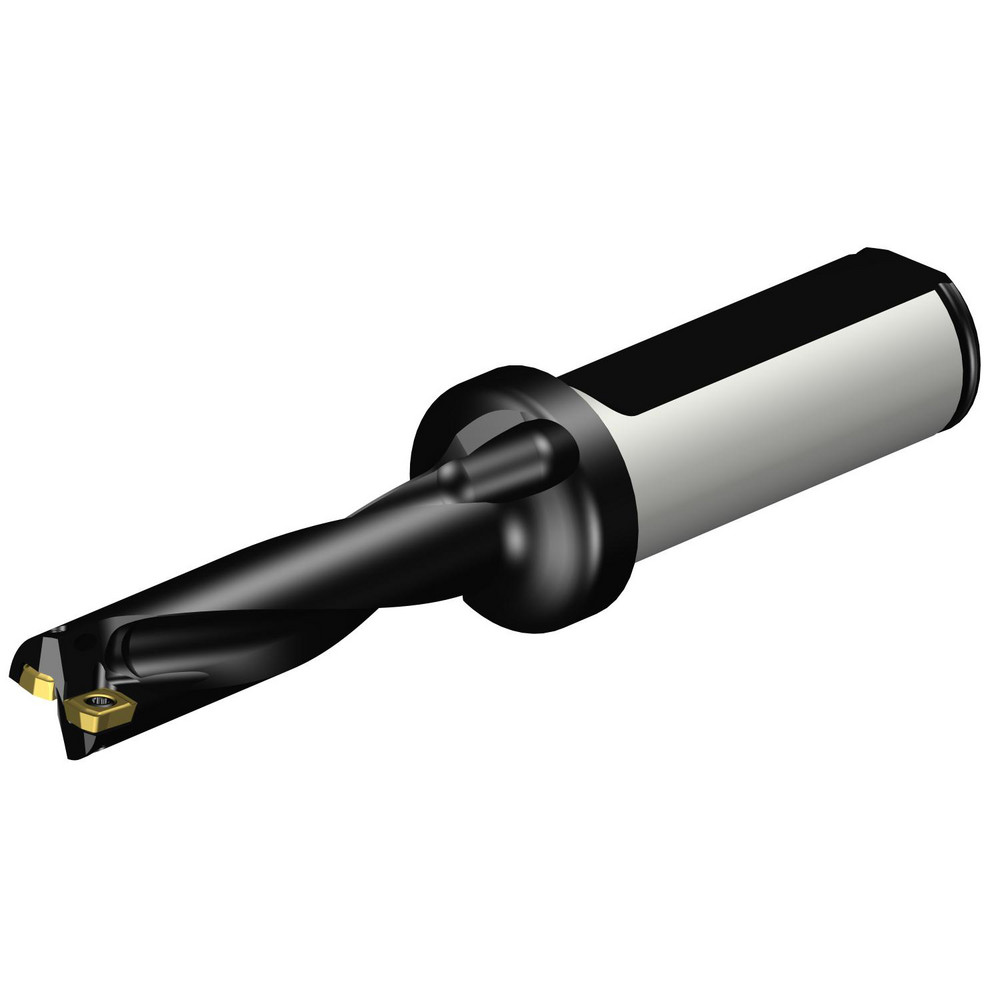

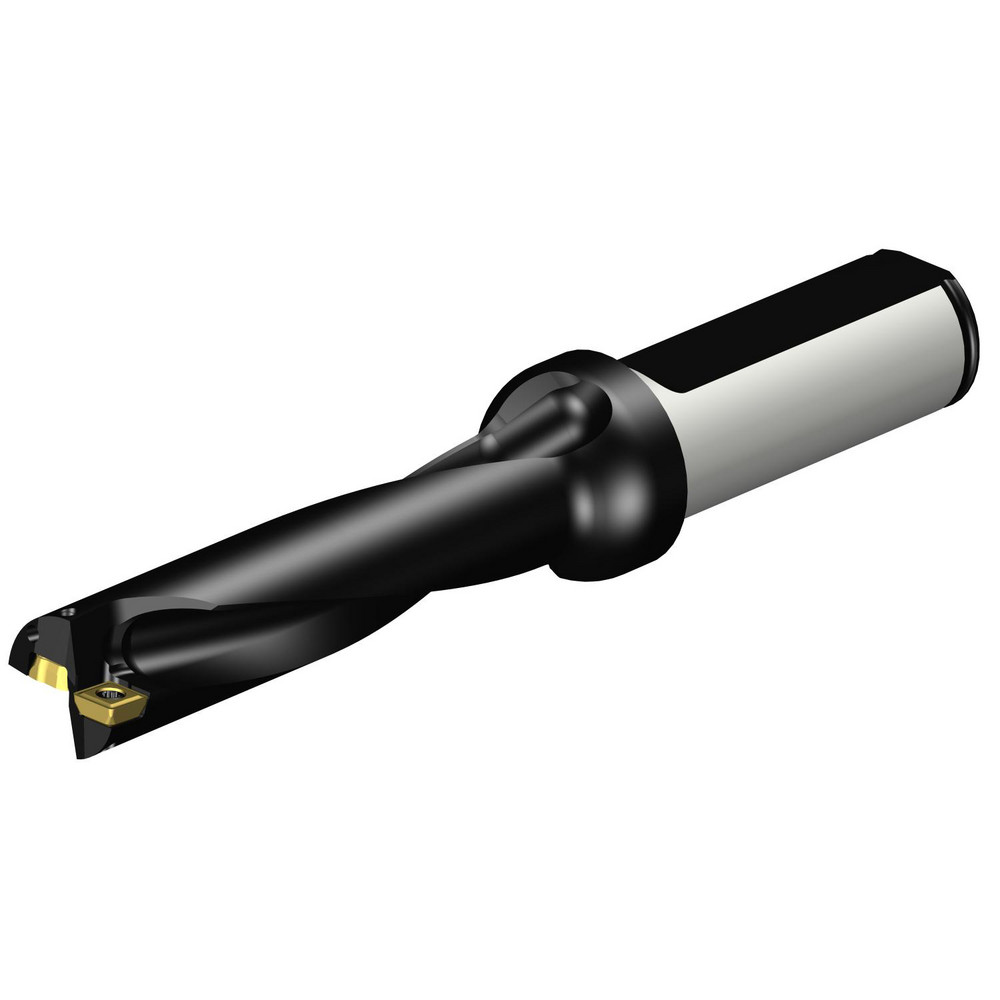

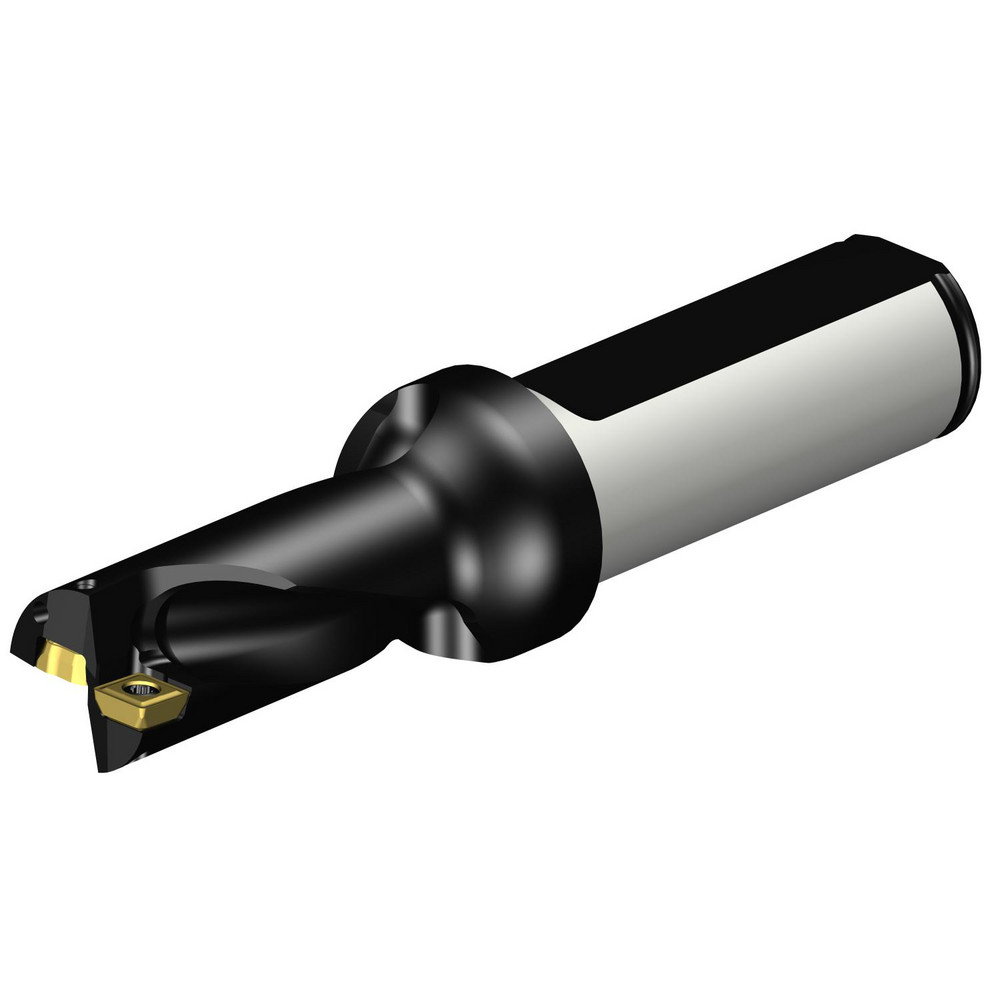

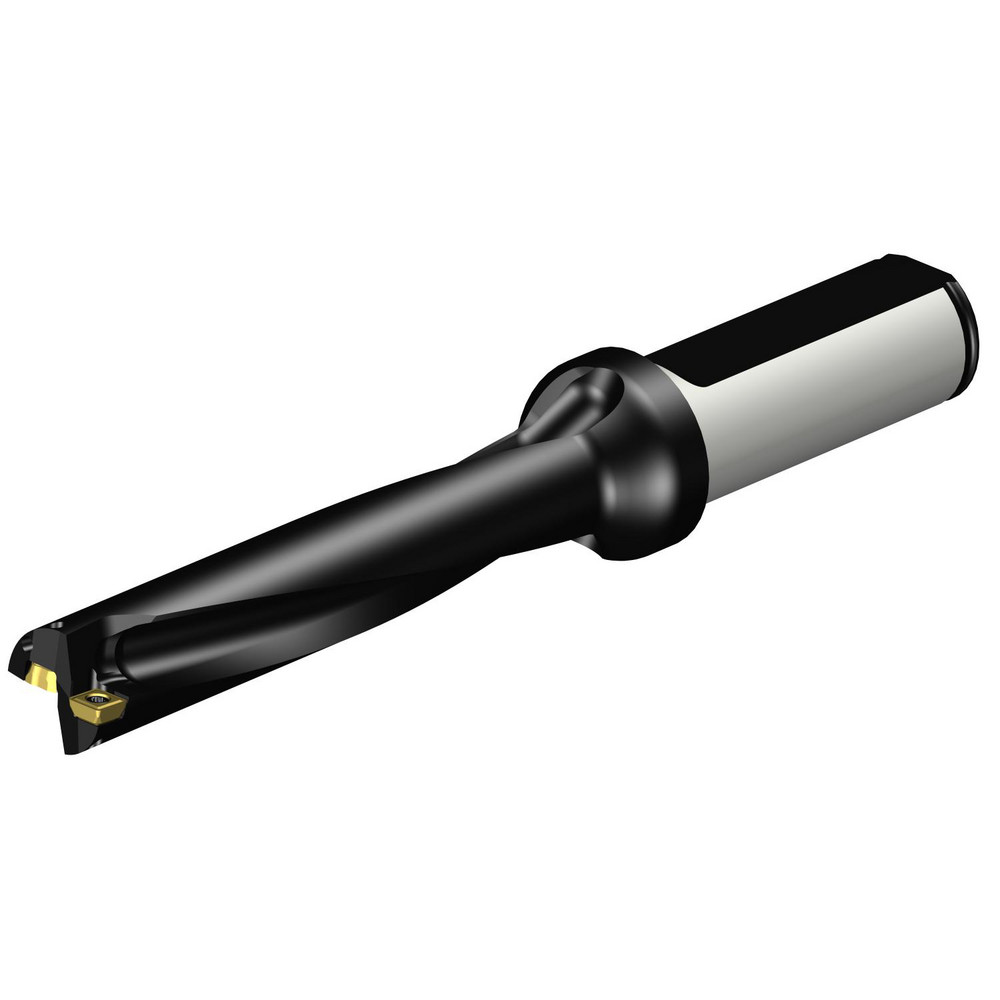

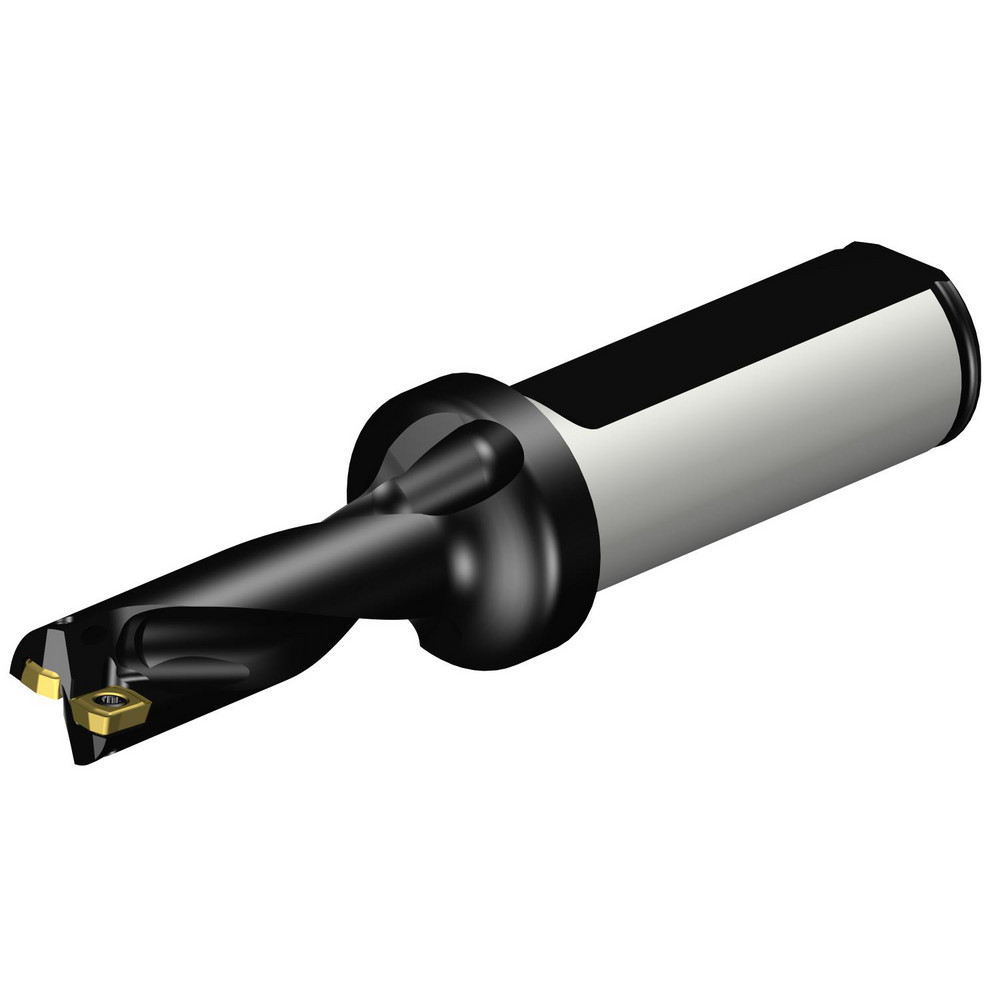

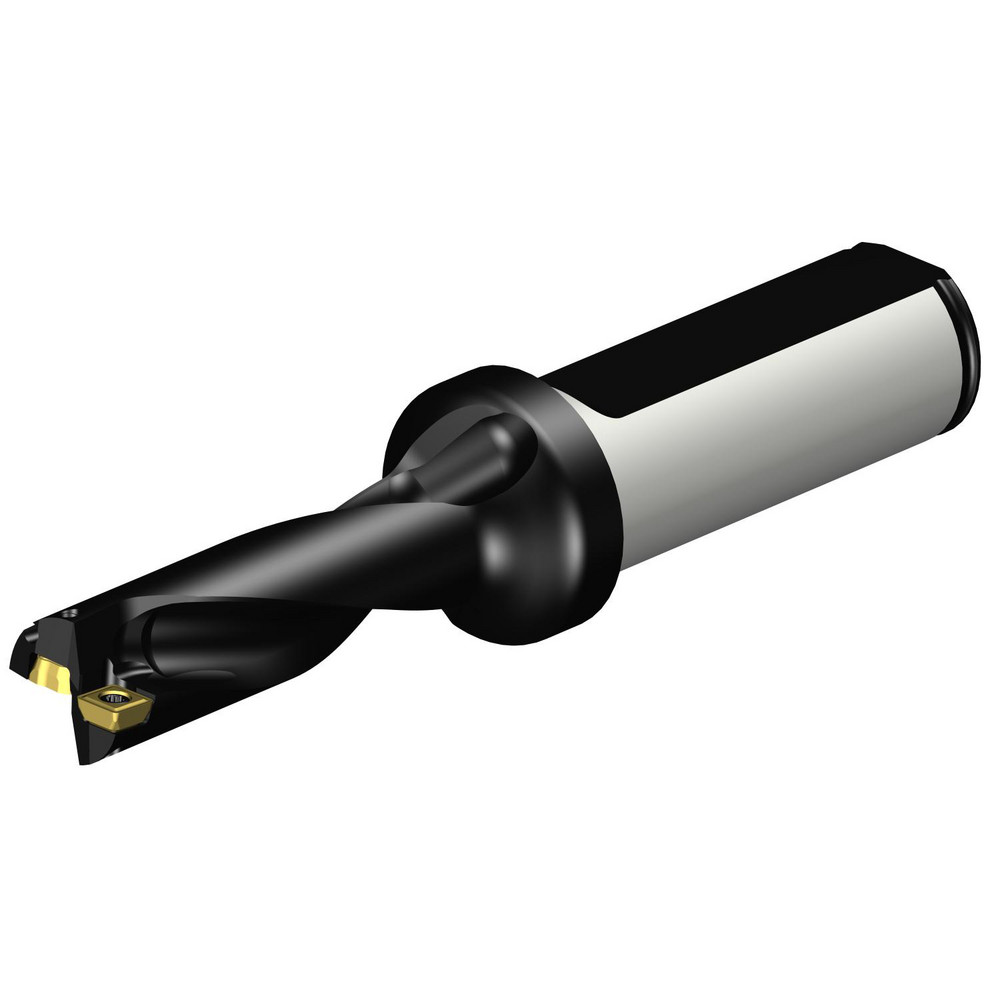

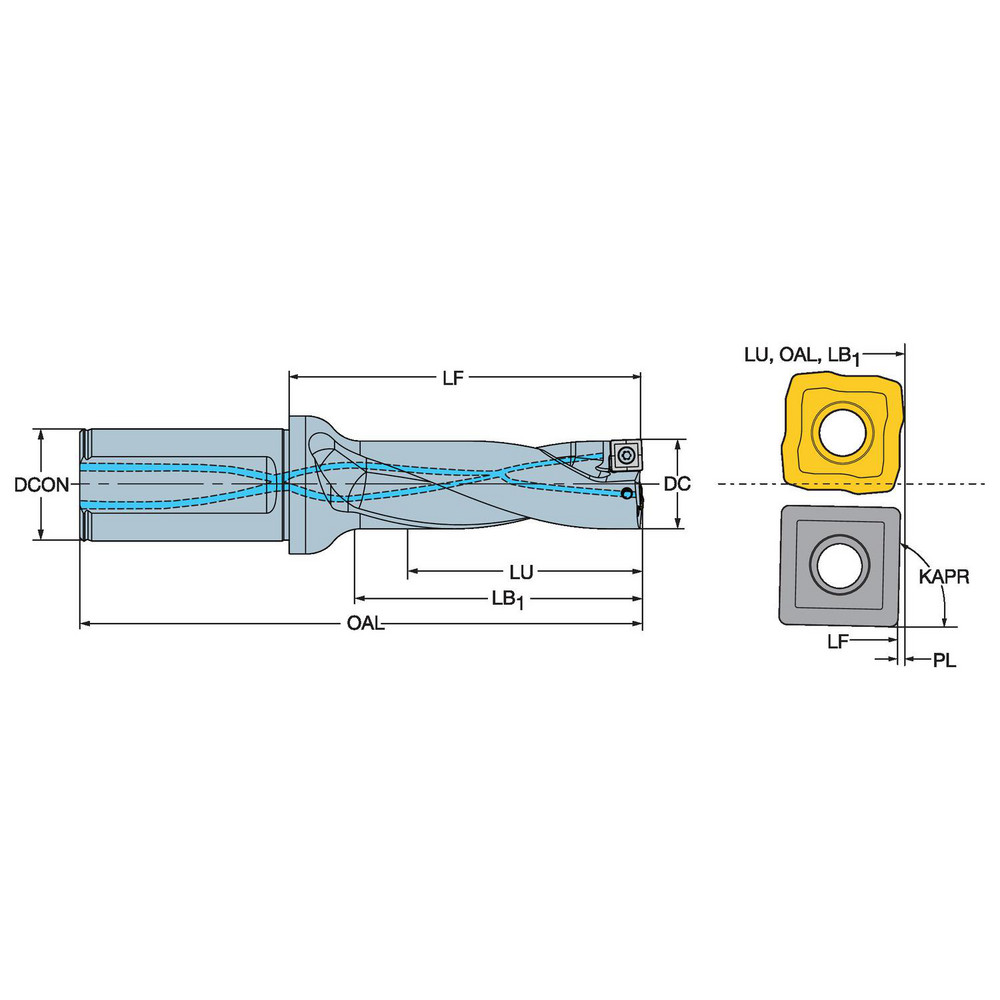

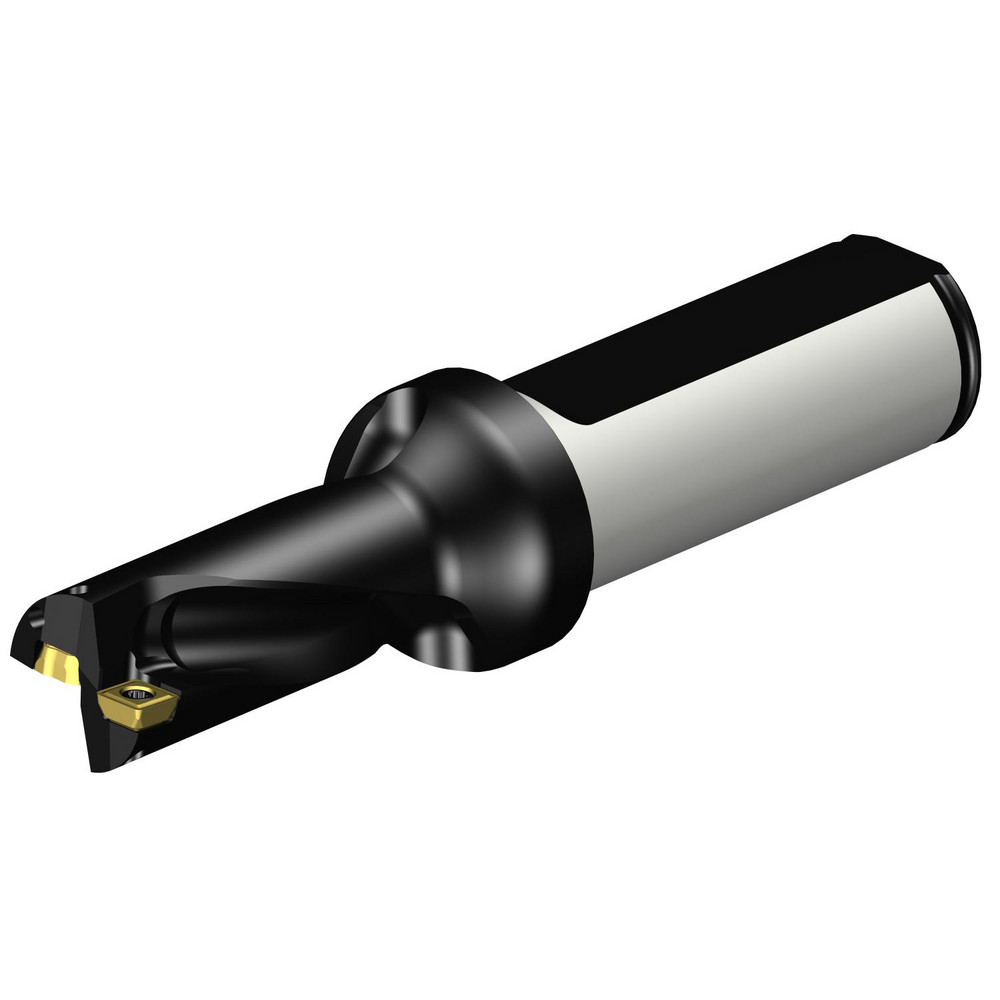

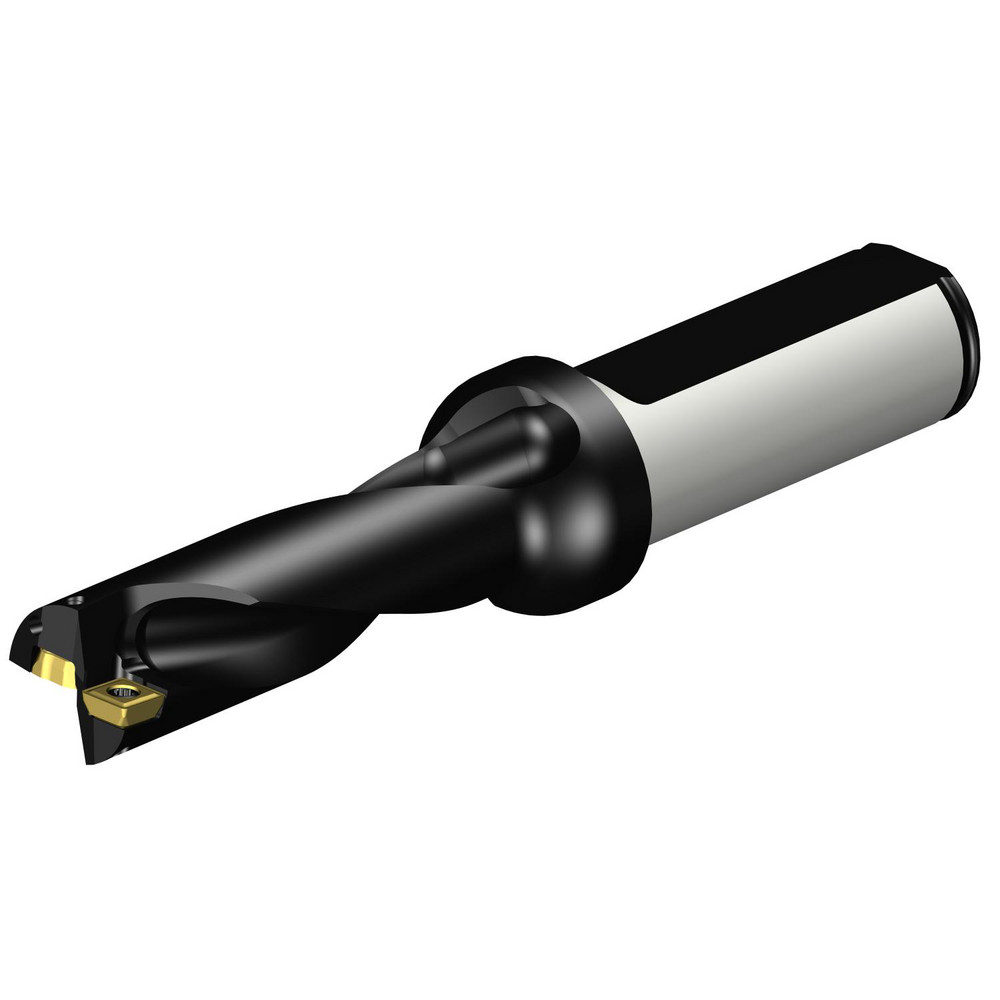

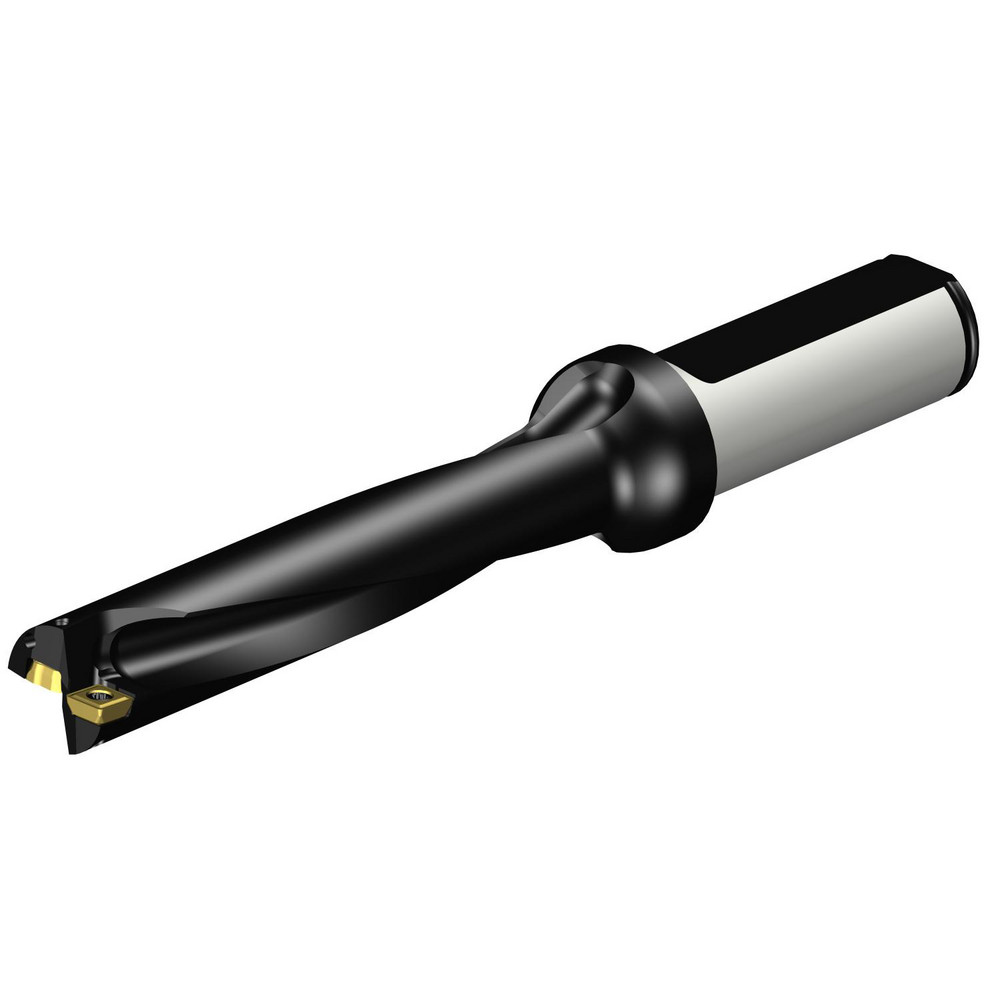

Weldon Flat & Flange Shank, Uses 880 020204 & 0202W04 Inserts, Series CoroDrill 880
| Compatible Drill Style | A880 |
|---|---|
| Maximum Drill Diameter (mm) | 15.88 |
| Maximum Drill Diameter (Decimal Inch) | 0.6454 |
| Maximum Drill Depth (Inch) | 2-5/8 |
| Maximum Drill Depth (Decimal Inch) | 2.5120 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Tool Material | Steel |
| Compatible Insert Style | 880 |
| Compatible Insert Size Code | 020204; 0202W04 |
| Drill Depth by Diameter Ratio | 4xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 5.1635 |
| Series | CoroDrill 880 |
| Flute Length (Decimal Inch) | 2.6380 |
| Flute Length (mm) | 76.13 |
| Body Length (mm) | 67.01 |
| Body Length (Decimal Inch) | 3.1830 |
| Shank Length (Decimal Inch) | 1.9805 |
| Shank Length (mm) | 50.00 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.2010; 0.1930 |
| Insert Size (mm) | 2.40 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | 880-0202W04H-P-GM; 880-020204H-C-GM |
| Insert Lock Screw | 5513 020-87 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 51211027 |
