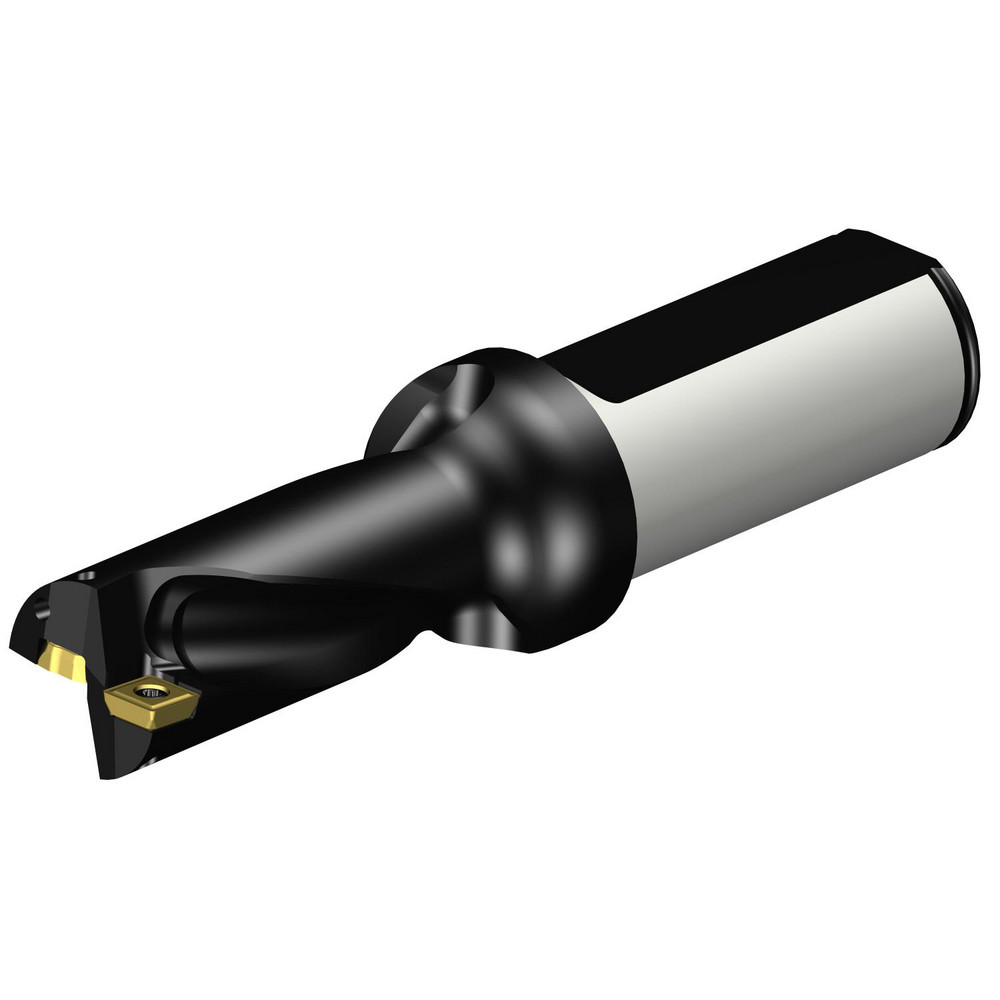

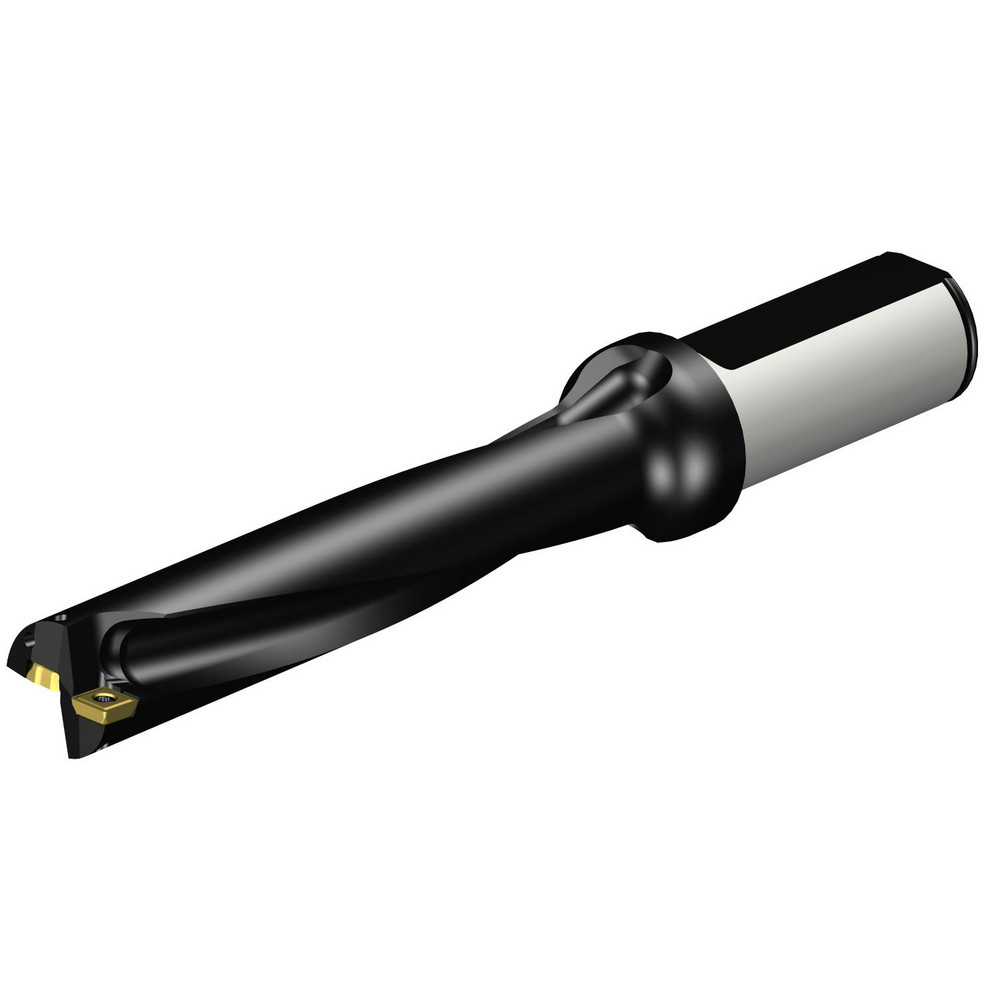

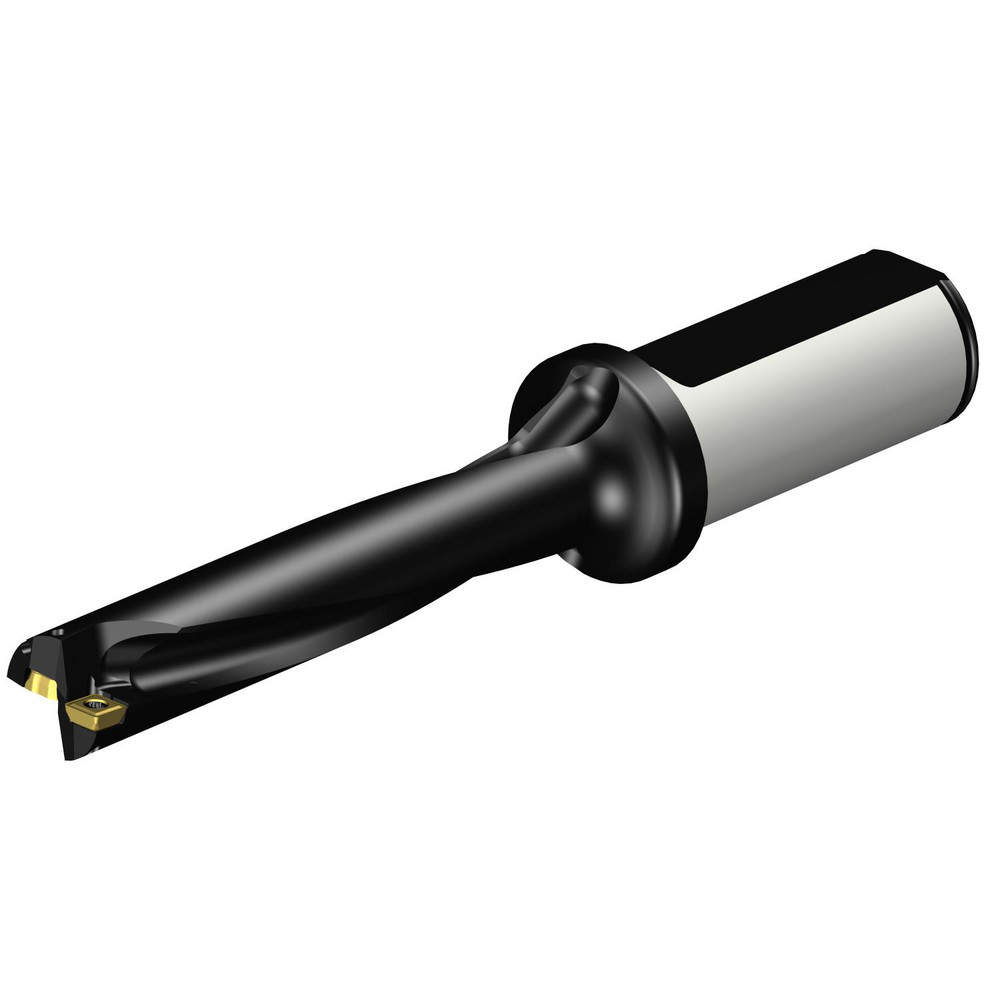

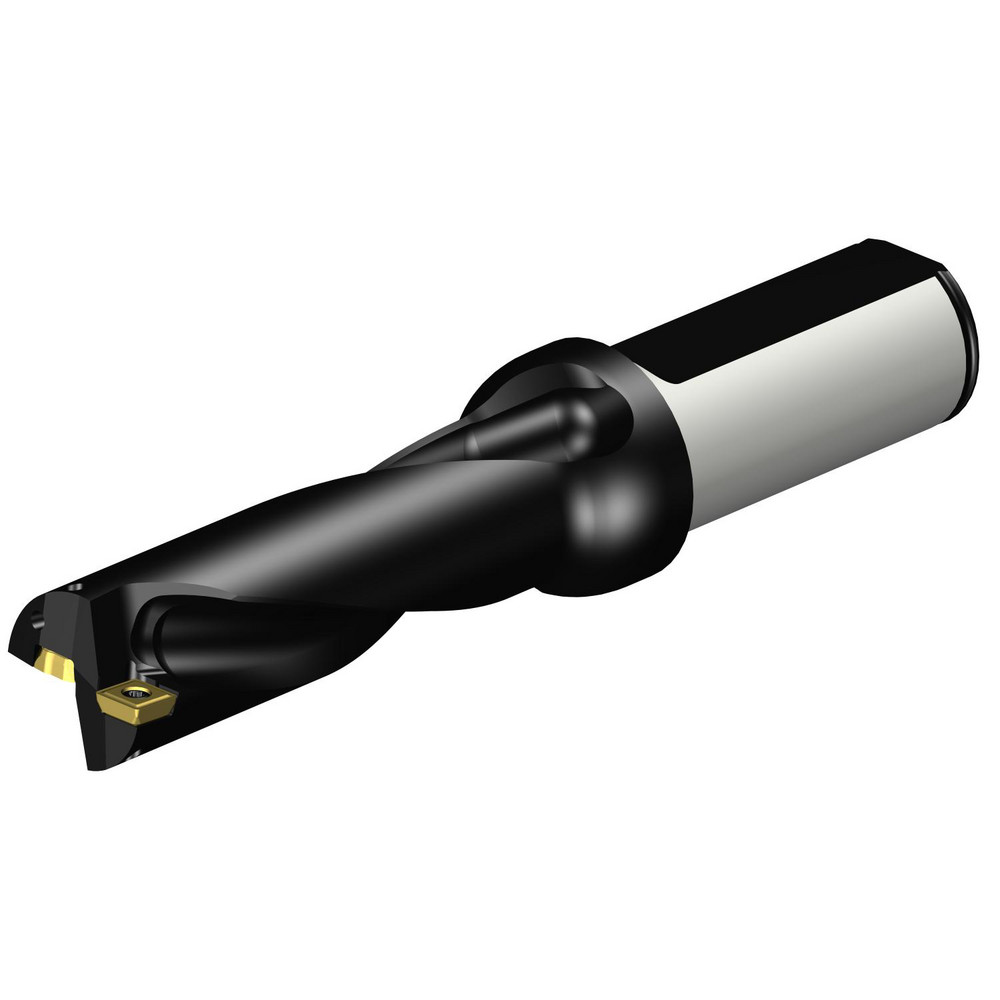

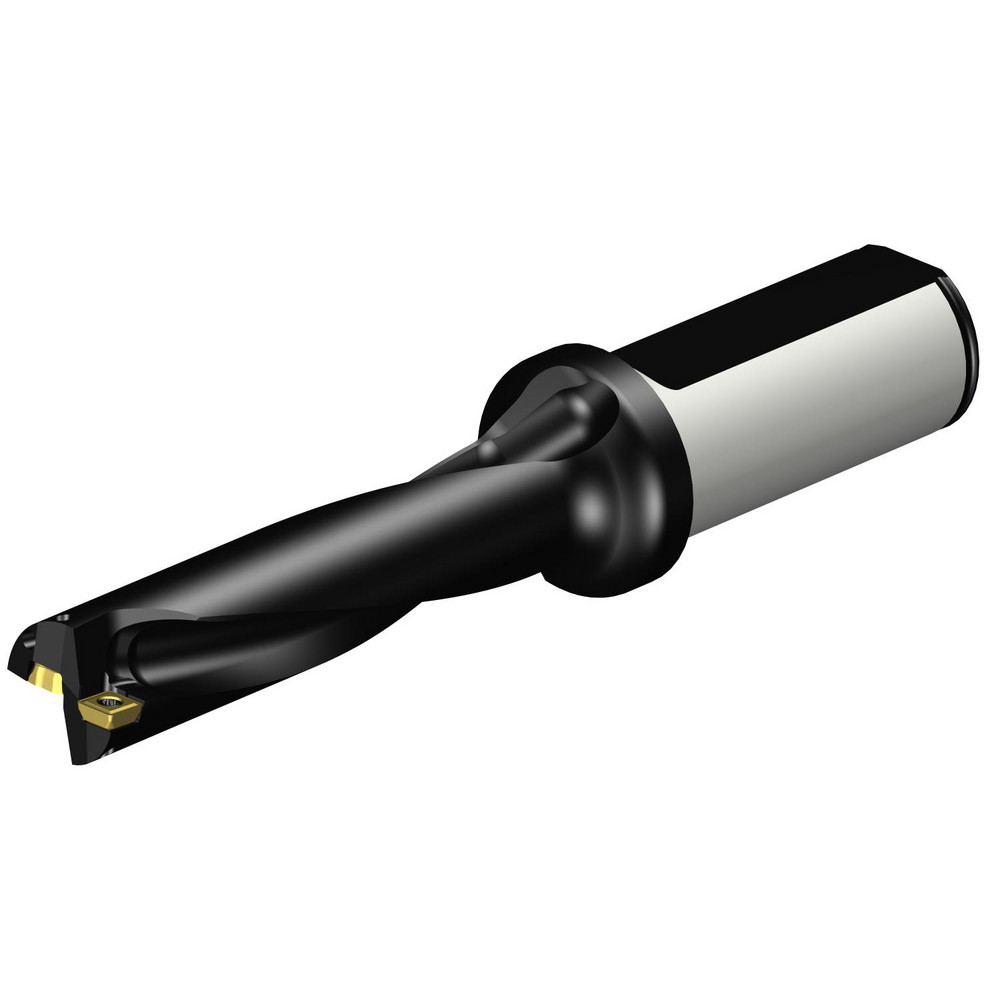

Weldon Flat & Flange Shank, Uses 880 040305 & 0403W05 Inserts, Series CoroDrill 880
| Compatible Drill Style | A880 |
|---|---|
| Maximum Drill Diameter (mm) | 22.23 |
| Maximum Drill Diameter (Decimal Inch) | 0.9206 |
| Maximum Drill Depth (Decimal Inch) | 1.7677 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 1.0000 to 2.0000 |
| Tool Material | Steel |
| Compatible Insert Style | 880 |
| Compatible Insert Size Code | 0403W05; 040305 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |

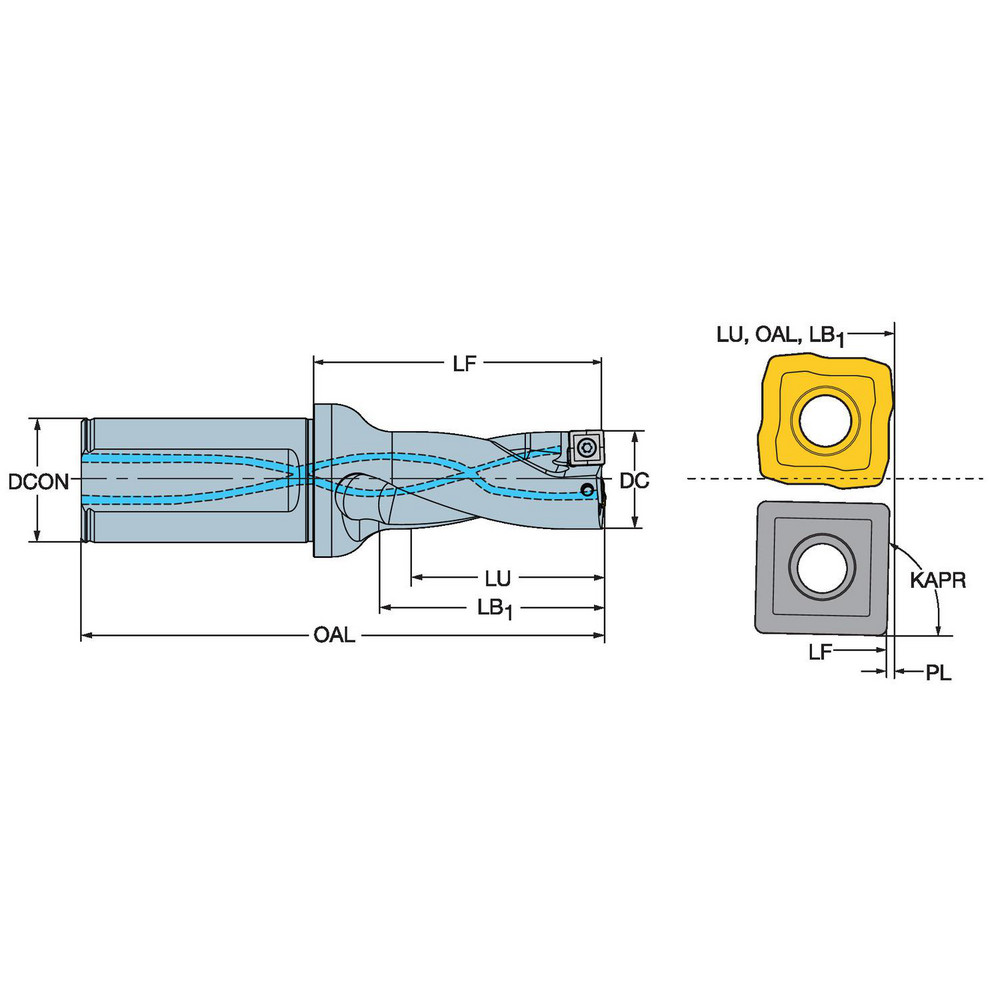

| Overall Length (Decimal Inch) | 4.8407 |
| Series | CoroDrill 880 |
| Flute Length (Decimal Inch) | 1.9290 |
| Flute Length (mm) | 61.93 |
| Body Length (mm) | 49.00 |
| Body Length (Decimal Inch) | 2.6183 |
| Shank Length (Decimal Inch) | 2.2224 |
| Shank Length (mm) | 56.00 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.2680; 0.2910 |
| Insert Size (mm) | 2.80 |
| UNSPSC Code | 23291503 |

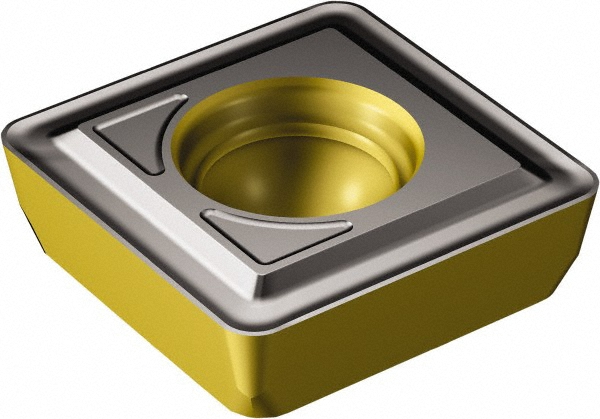

| Insert Compatibility | 880-040305H-C-GM; 880-0403W05H-P-GM |
| Insert Lock Screw | 5513 020-58 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 63145445 |
