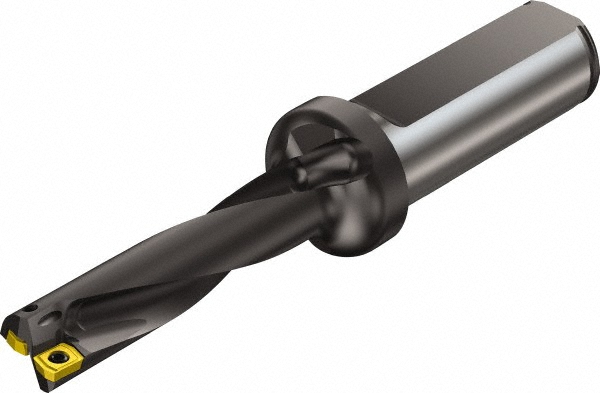

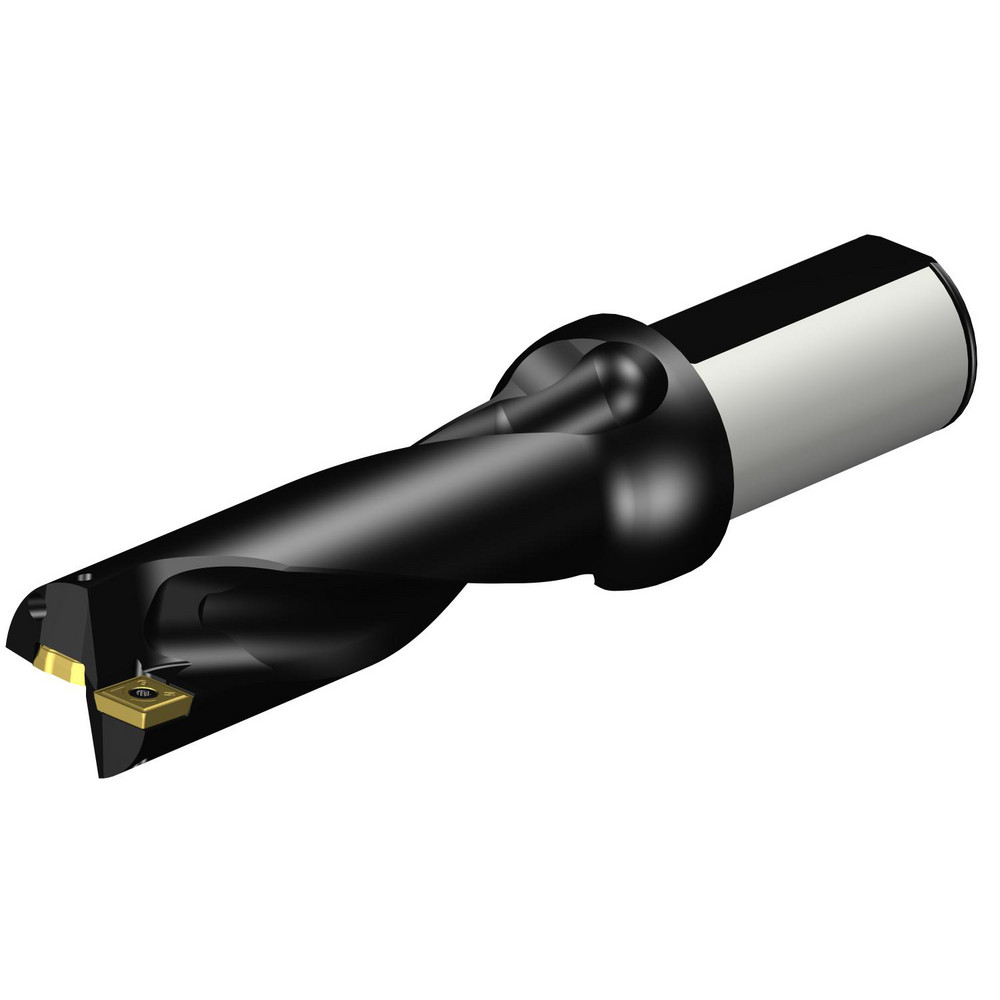

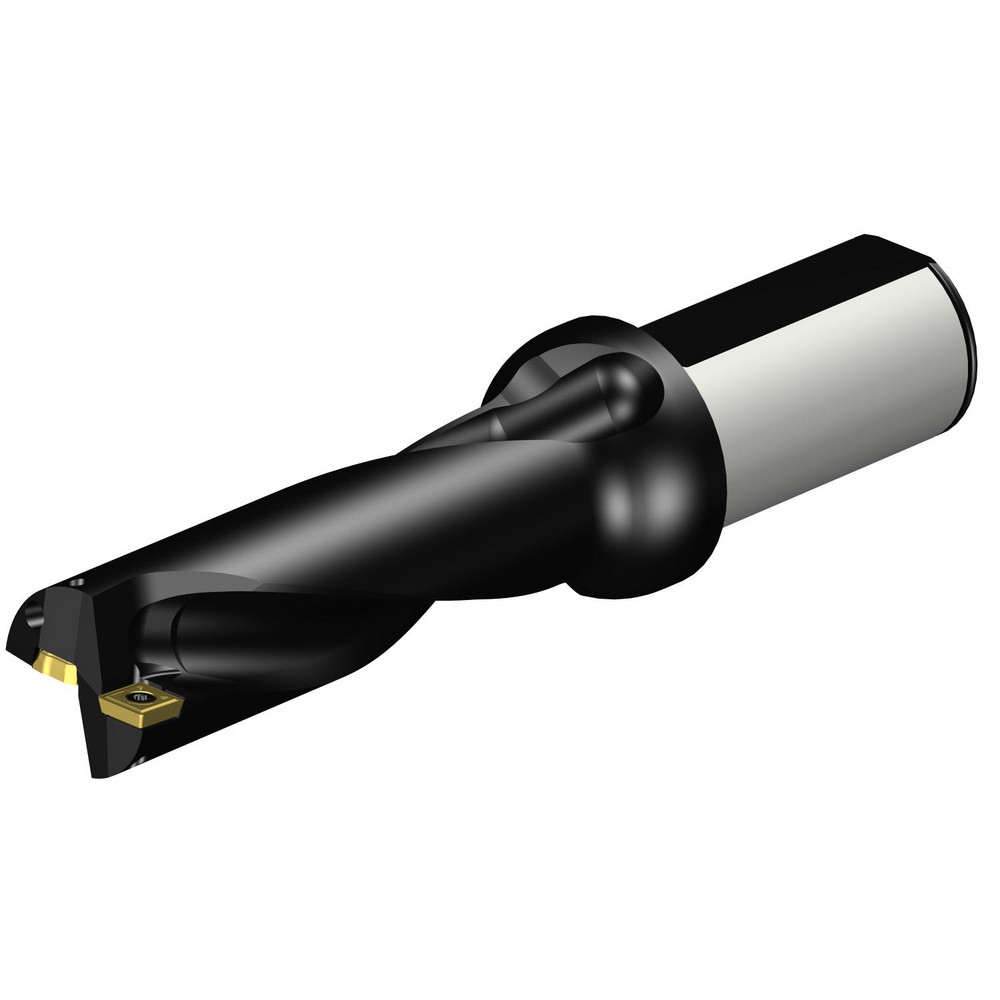

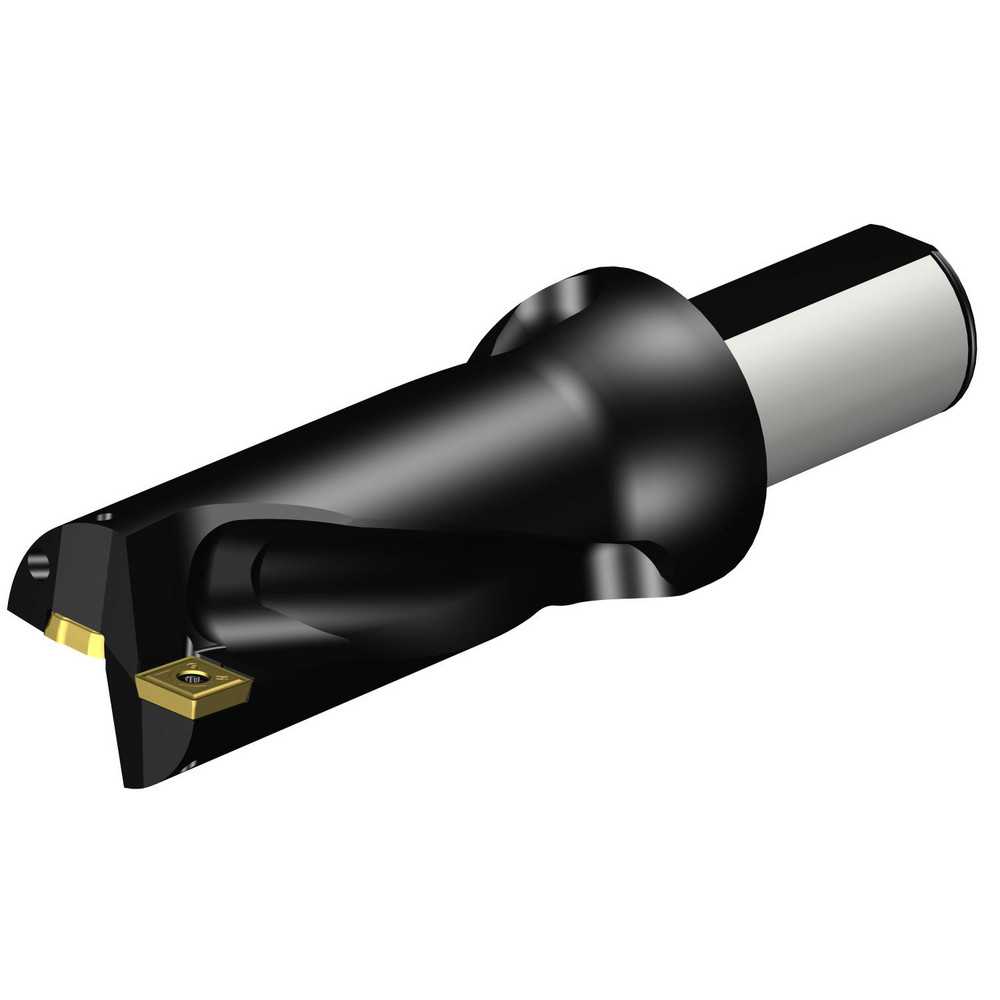

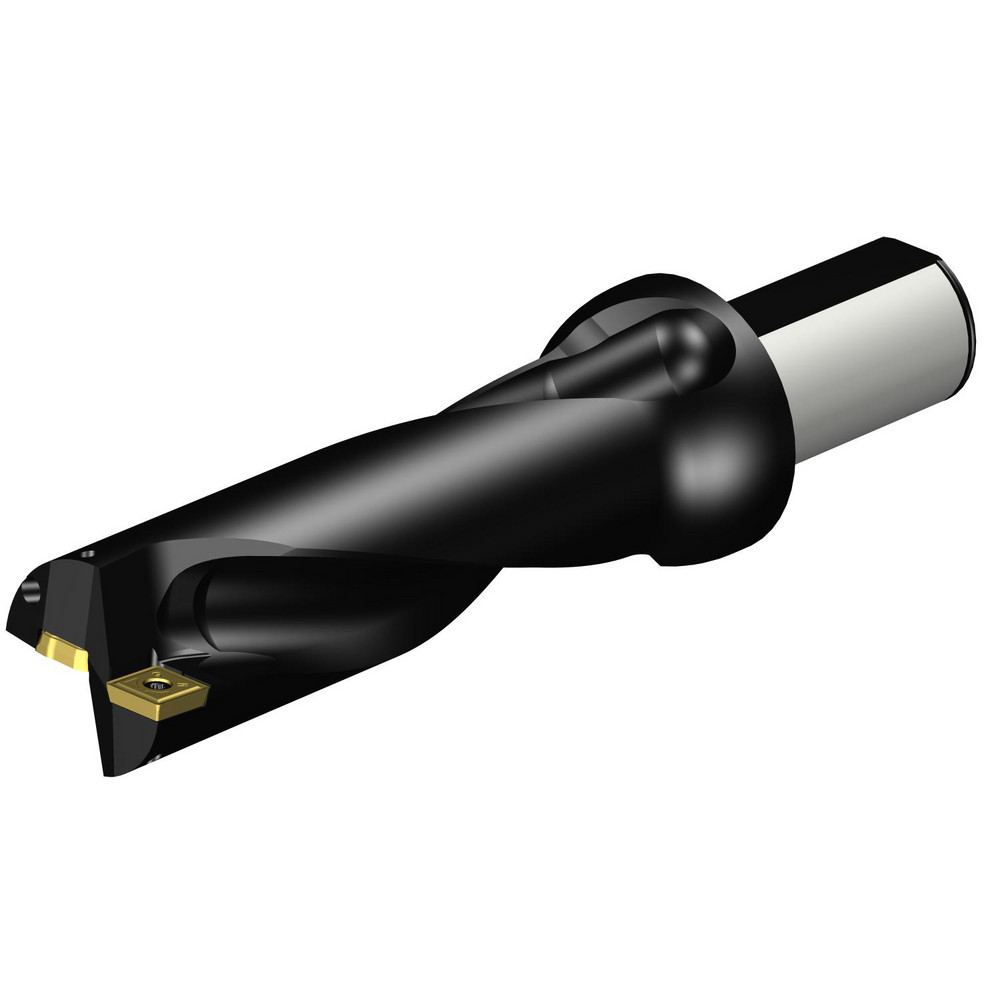

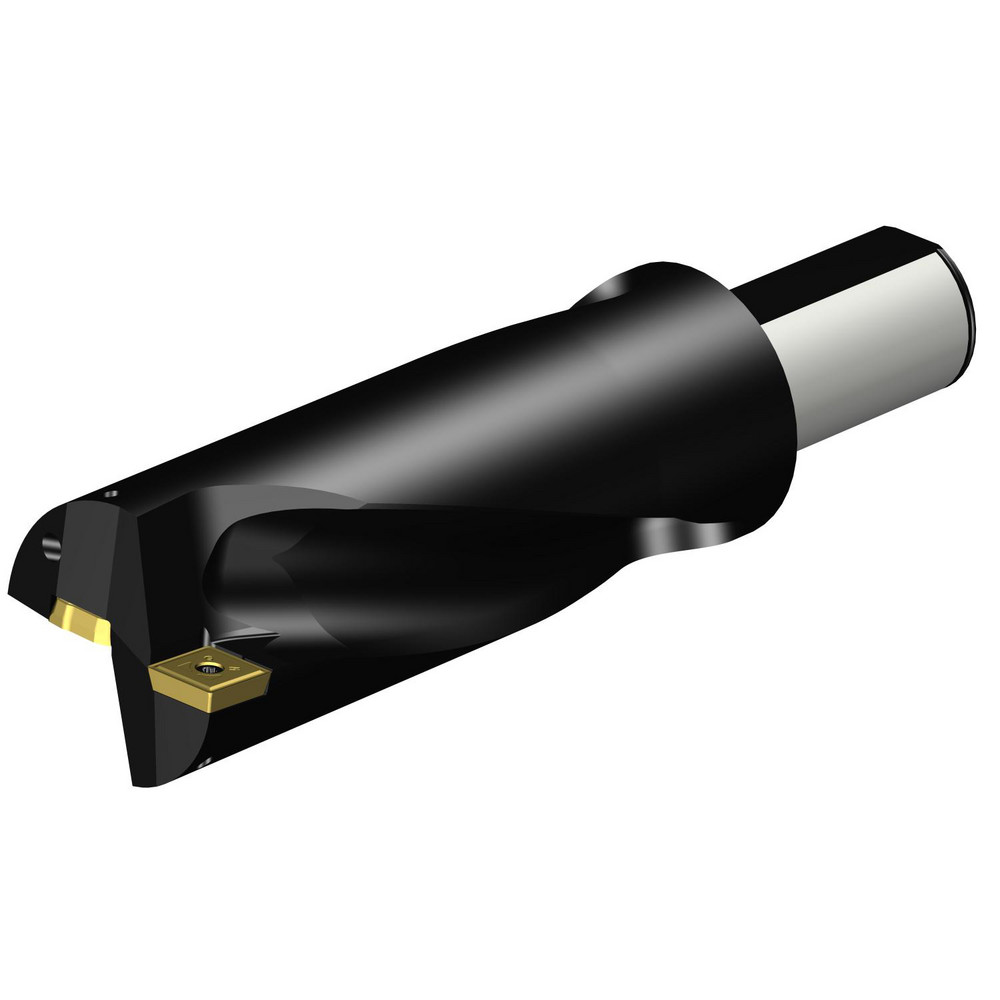

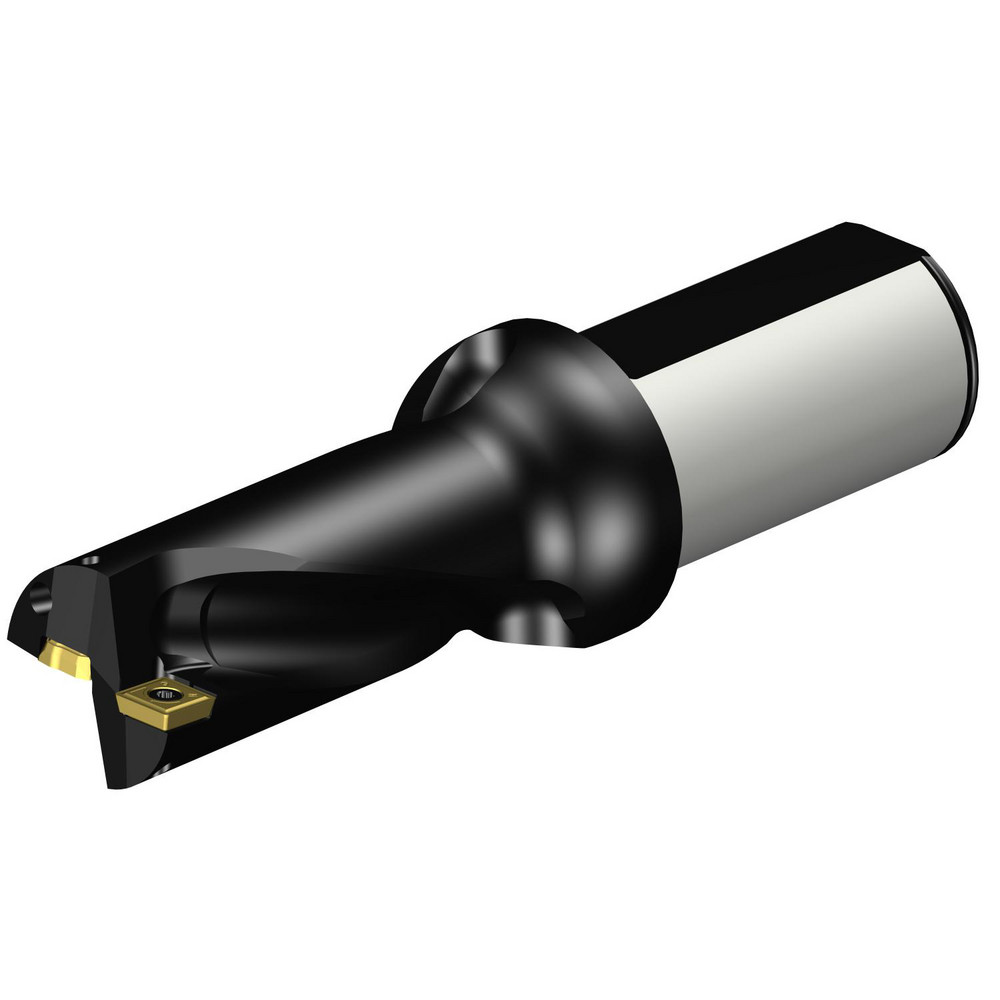

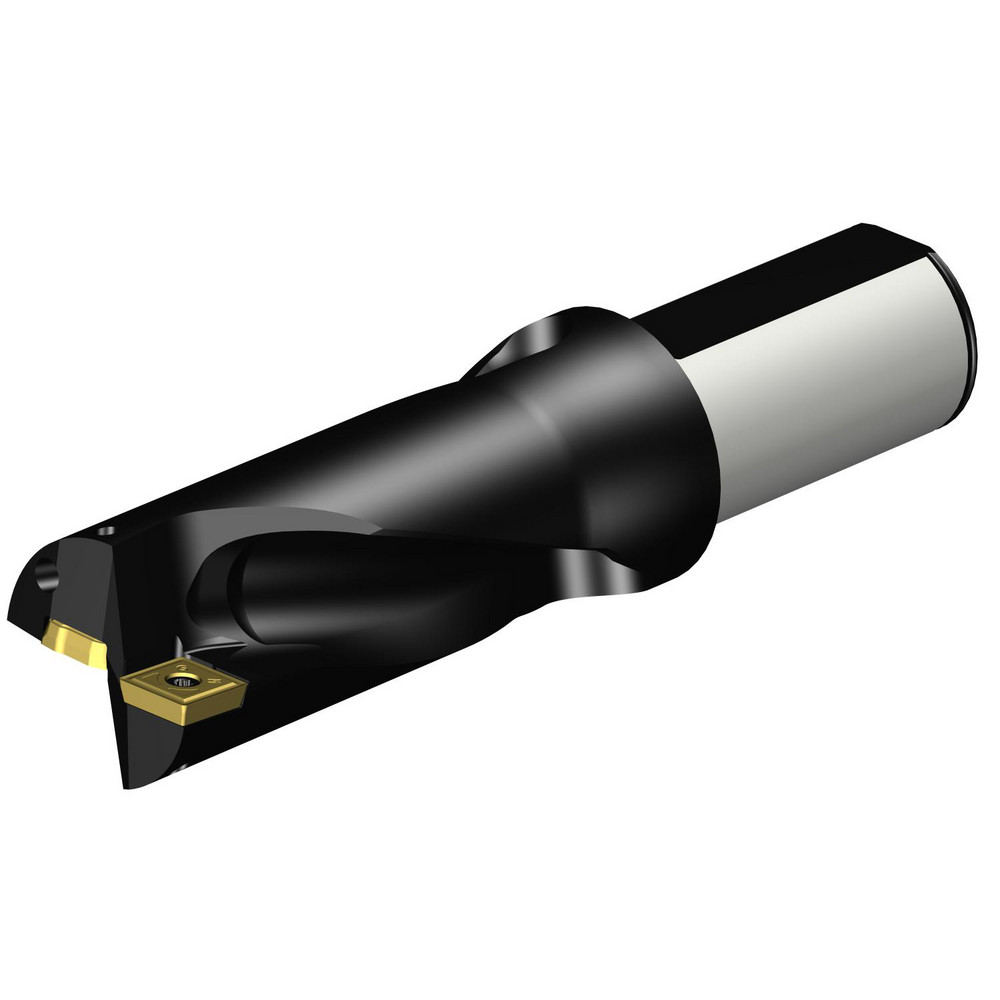

Weldon Flat & Flange Shank, Uses 880 060406 & 0604W06 Inserts, Series CoroDrill 880
| Compatible Drill Style | A880 |
|---|---|
| Maximum Drill Diameter (mm) | 34.92 |
| Maximum Drill Diameter (Decimal Inch) | 1.4152 |
| Maximum Drill Depth (Decimal Inch) | 4.1497 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 4.0000 to 5.0000 |
| Tool Material | Steel |
| Compatible Insert Style | 880 |
| Compatible Insert Size Code | 060406; 0604W06 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |

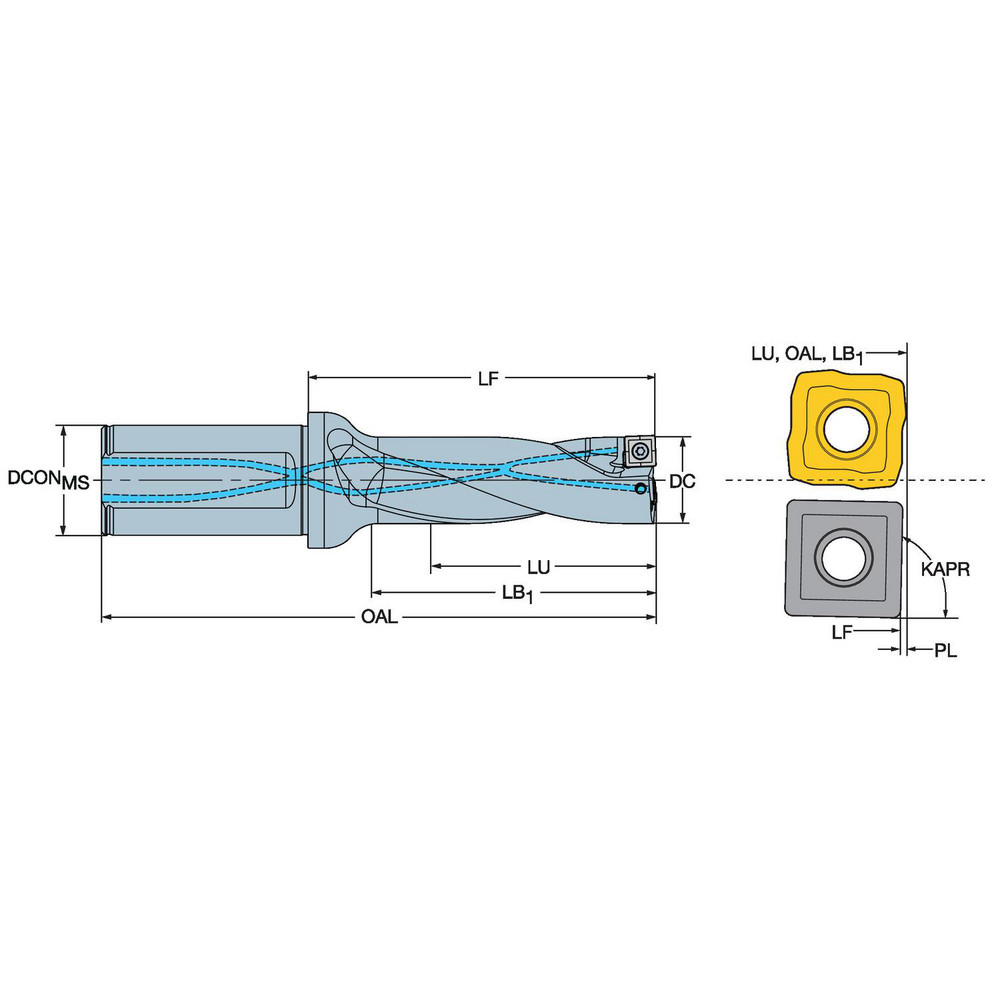

| Overall Length (Decimal Inch) | 8.0529 |
| Series | CoroDrill 880 |
| Flute Length (Decimal Inch) | 4.2900 |
| Flute Length (mm) | 129.52 |
| Body Length (mm) | 108.97 |
| Body Length (Decimal Inch) | 5.2723 |
| Shank Length (Decimal Inch) | 2.7806 |
| Shank Length (mm) | 70.00 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.4020; 0.4190 |
| Insert Size (mm) | 3.50 |
| UNSPSC Code | 23291503 |

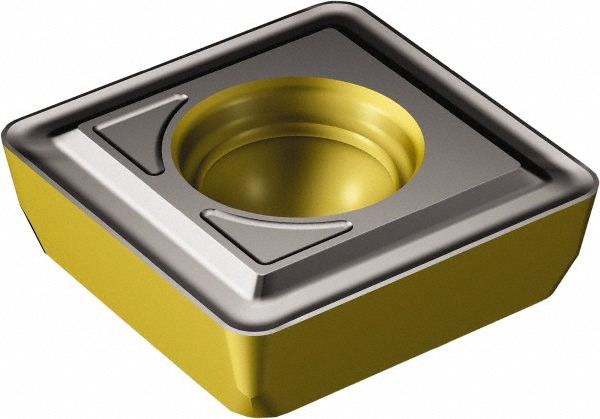

| Insert Compatibility | 880-0604W06H-P-GM; 880-060406H-C-GM |
| Insert Lock Screw | 416.1-833 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 51355949 |
