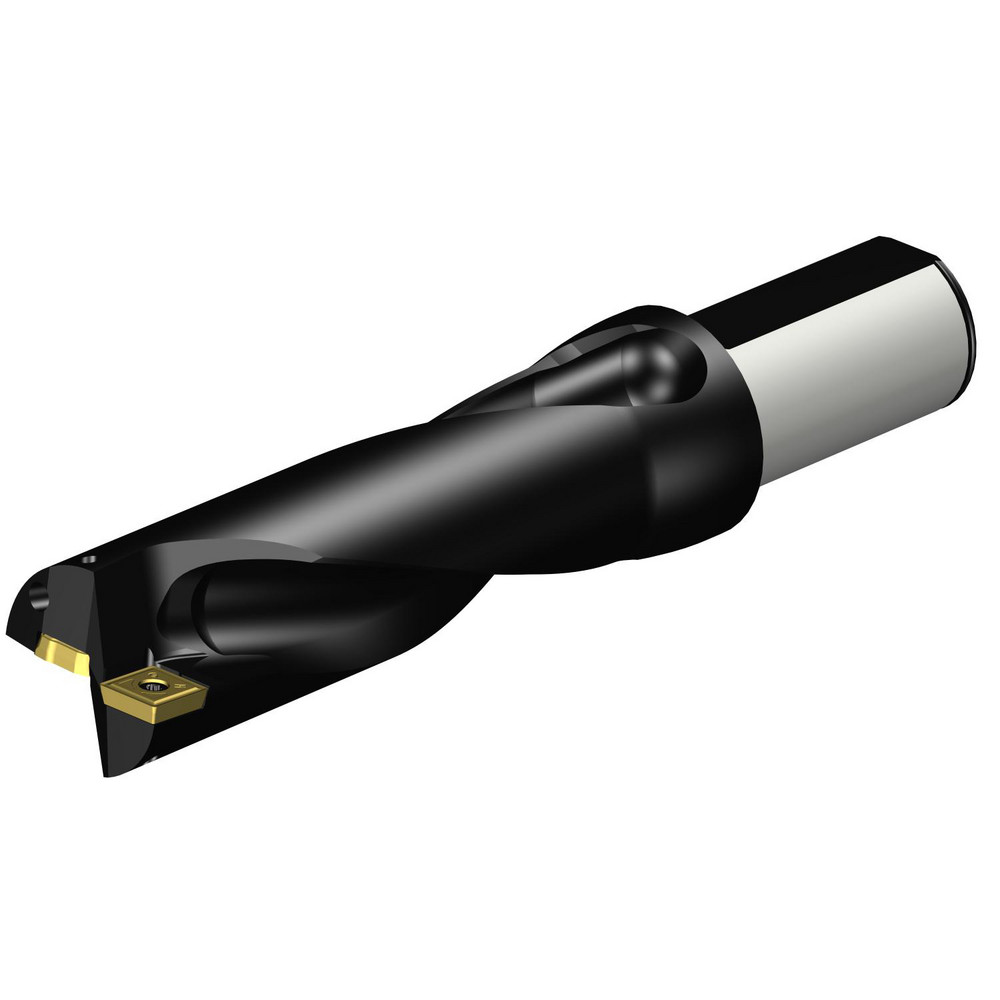

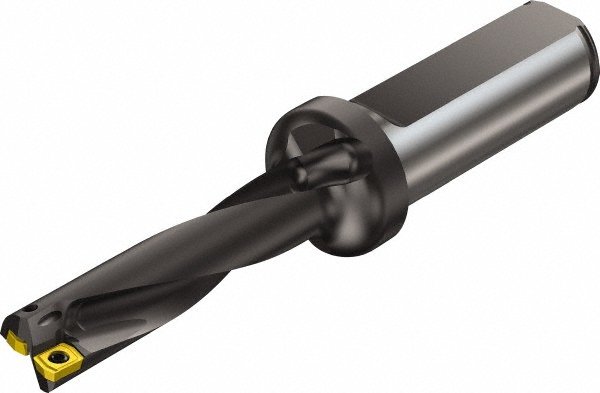

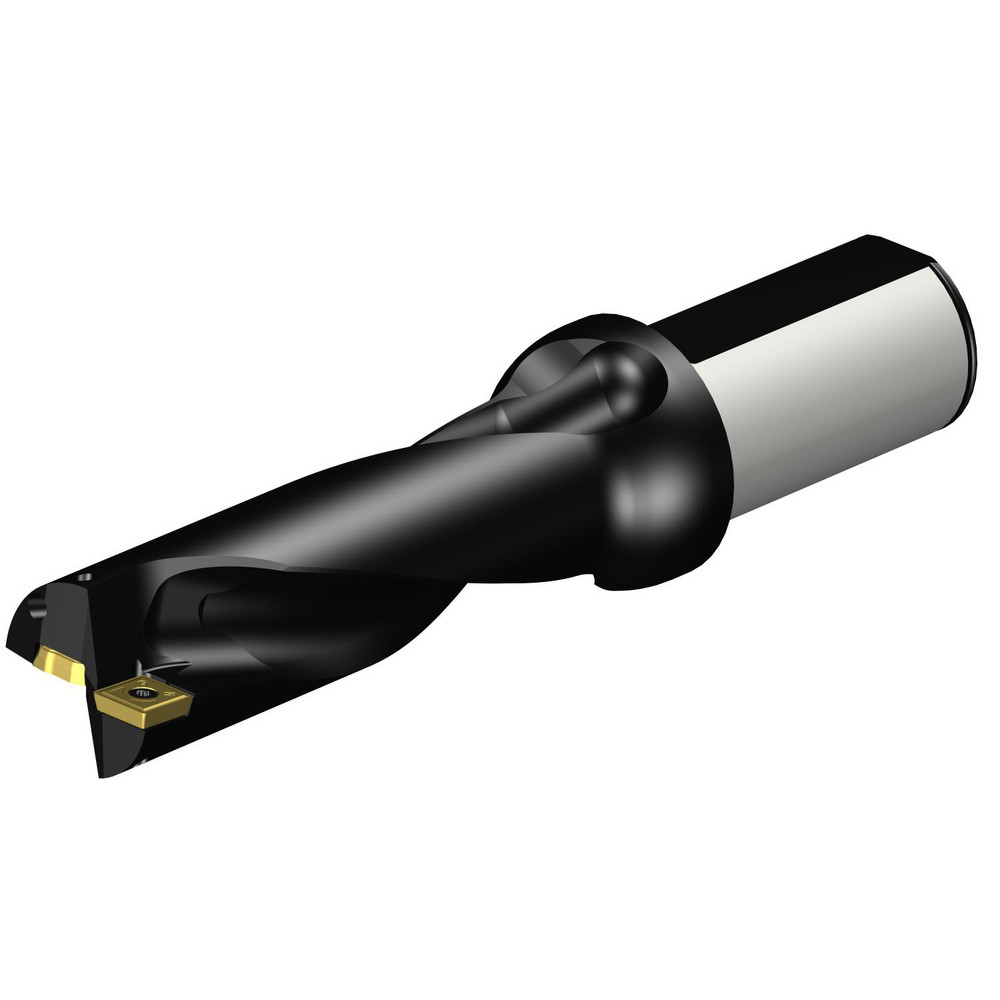

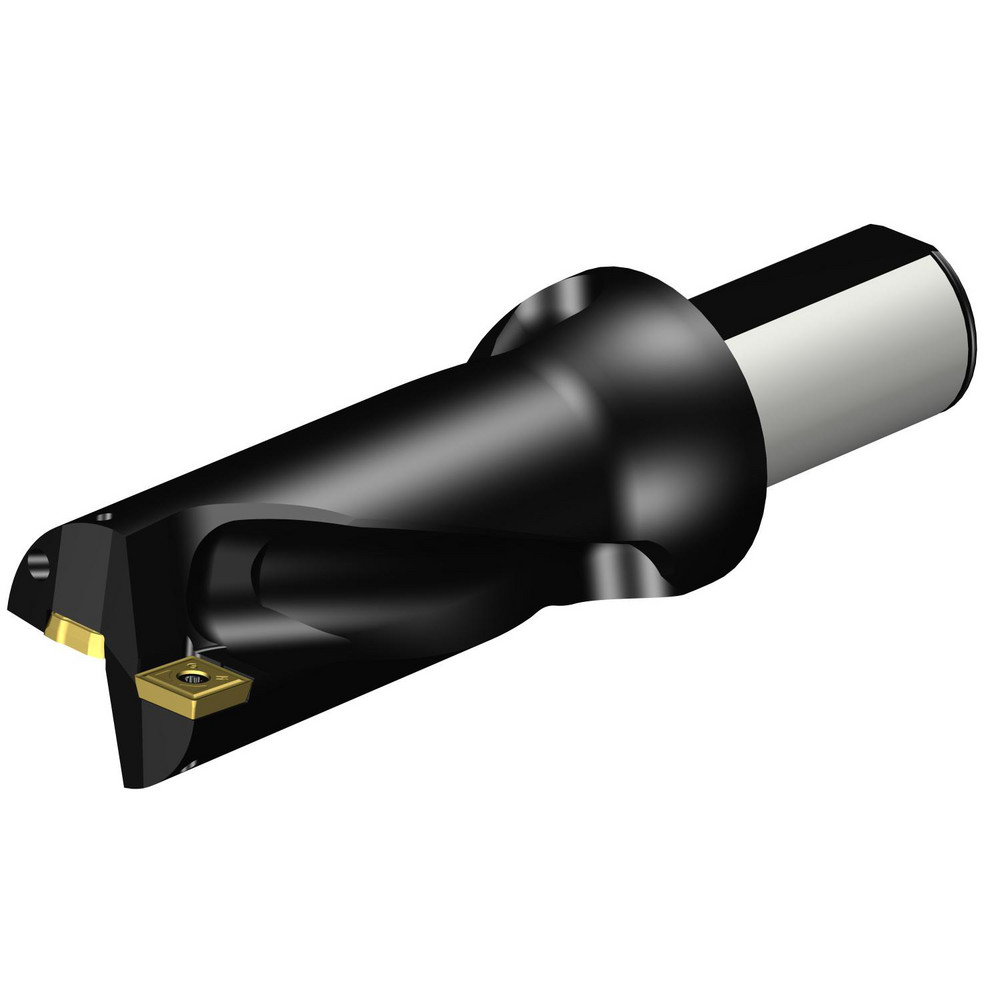

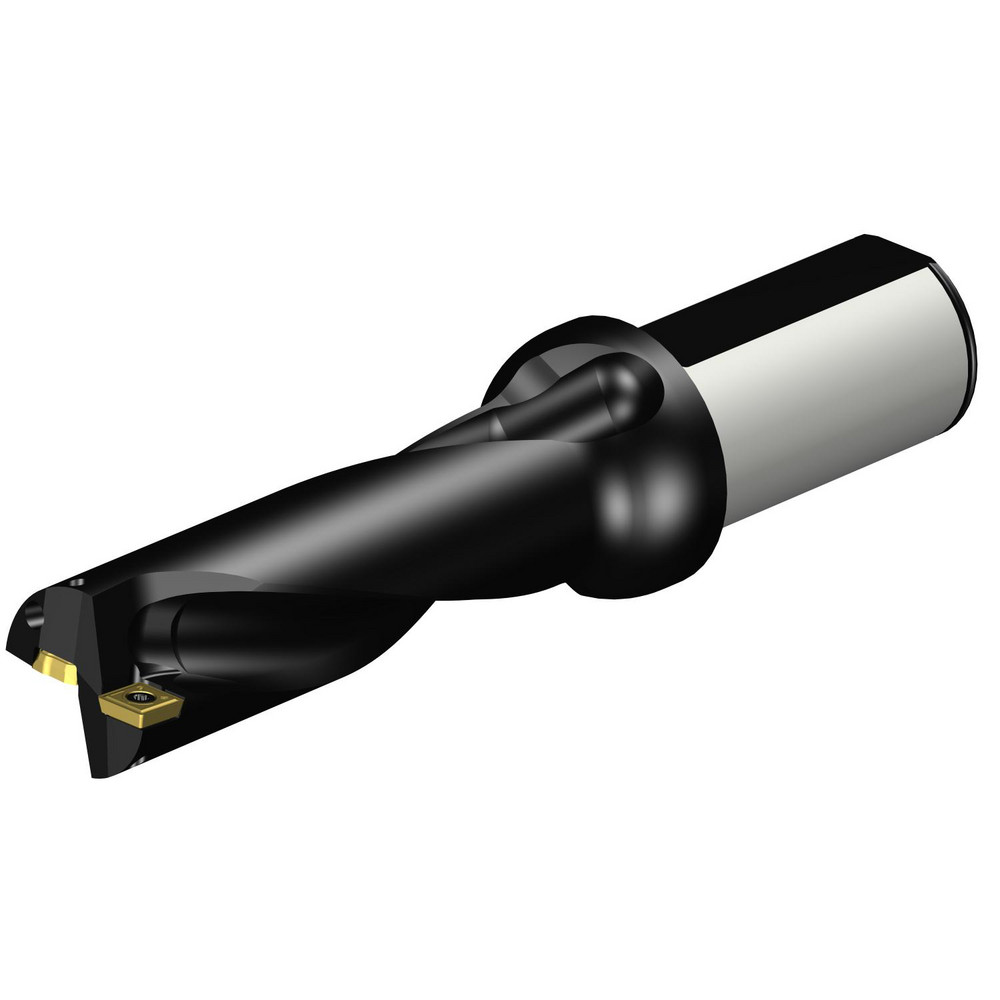

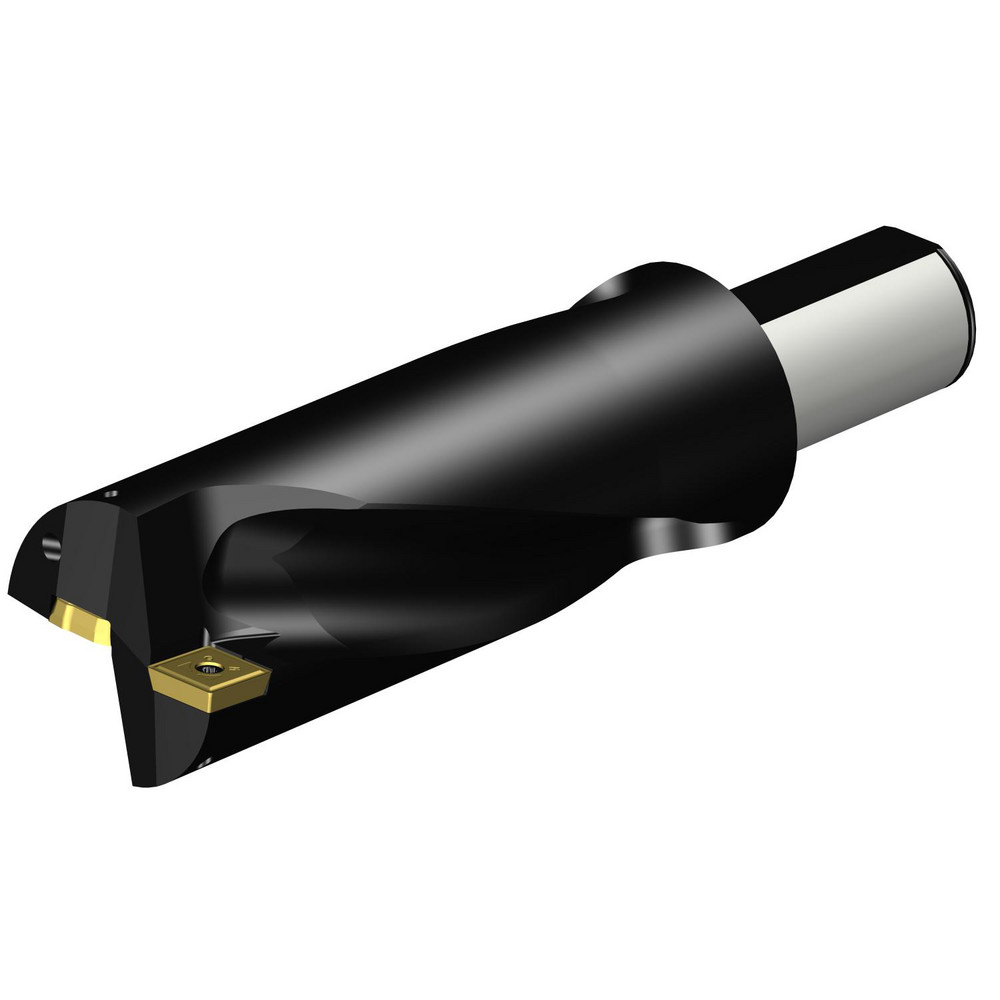

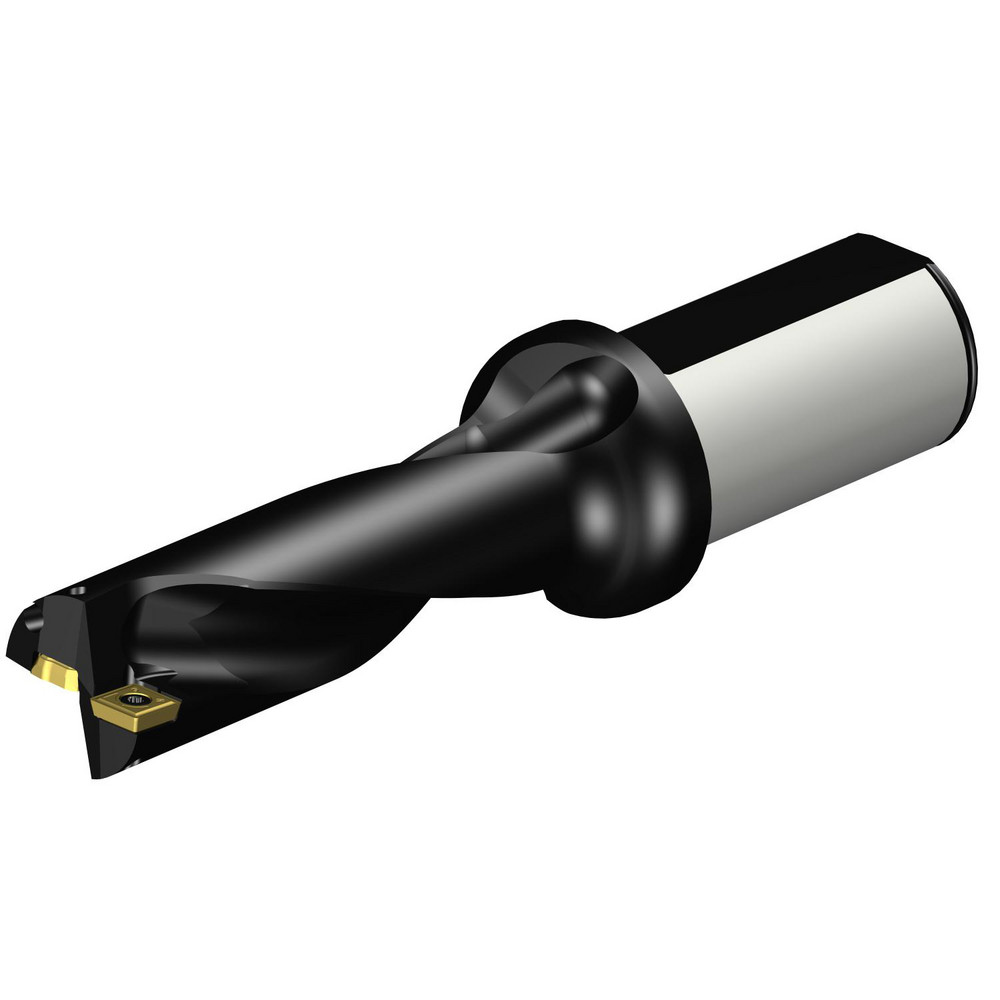

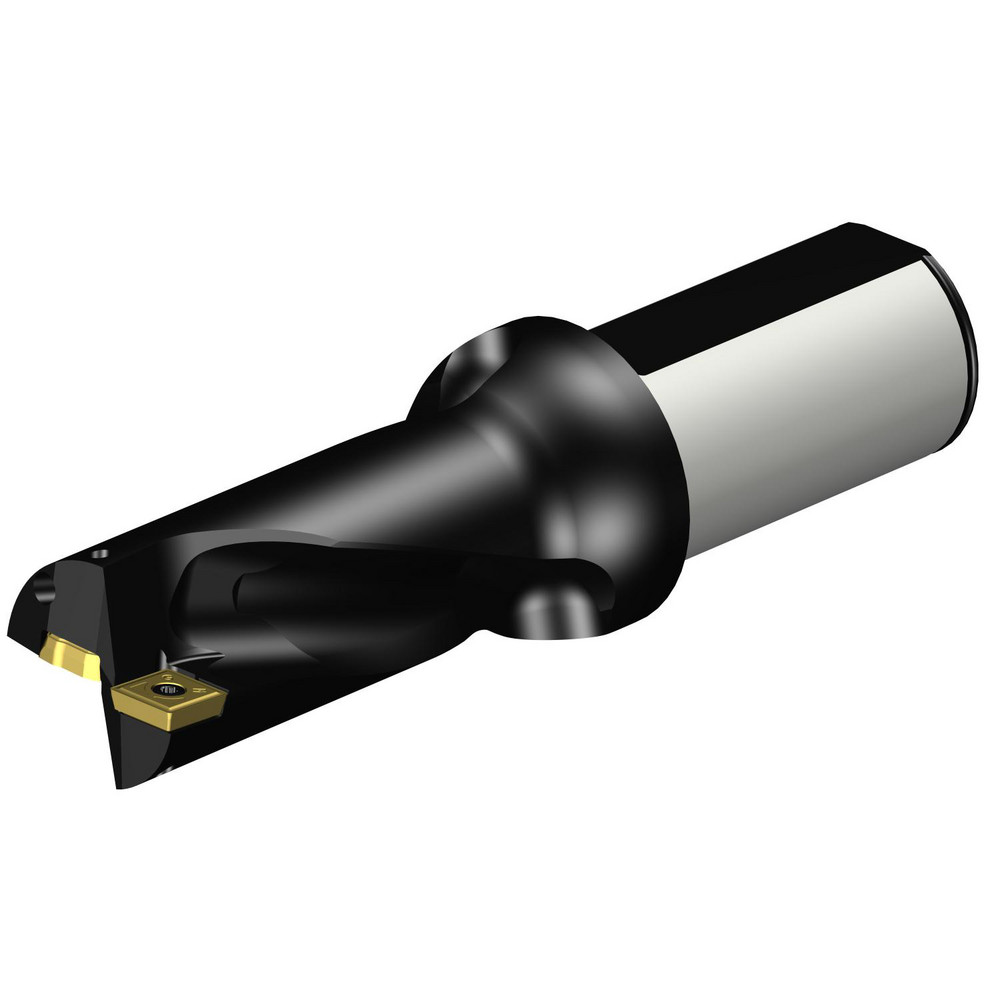

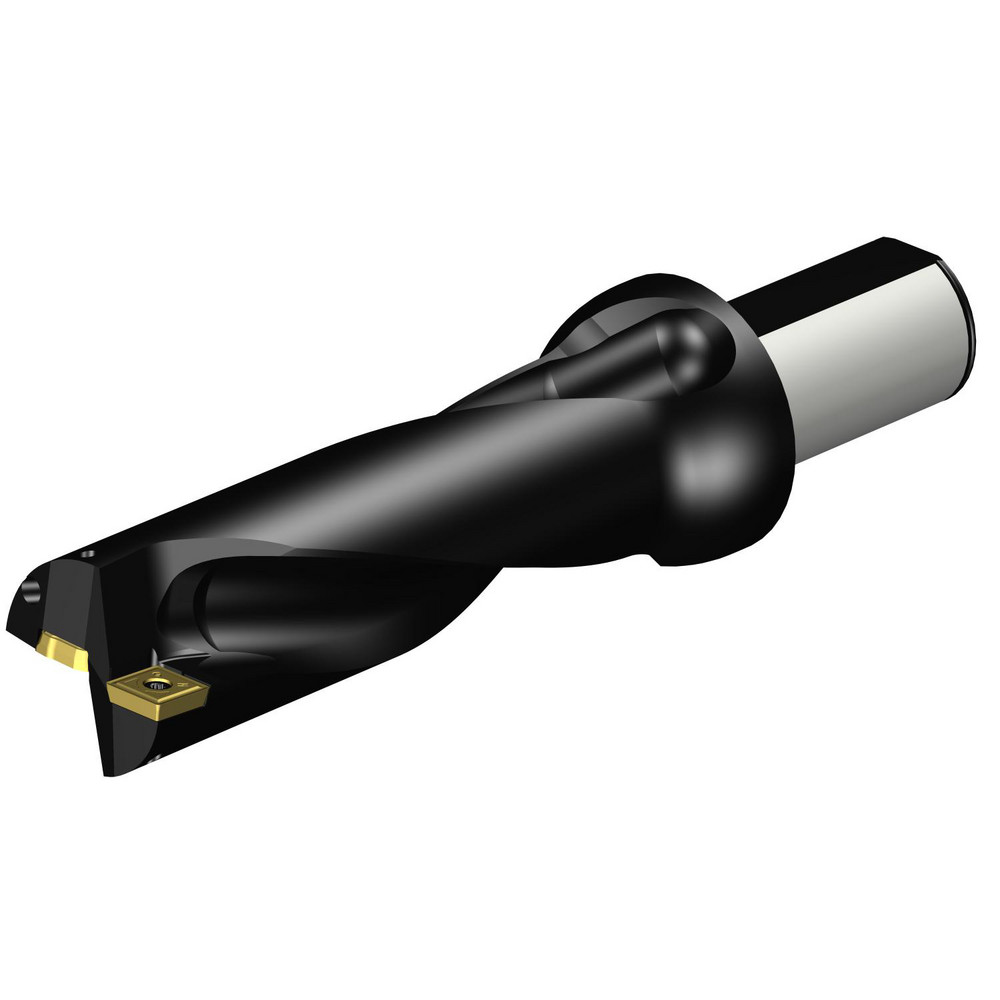

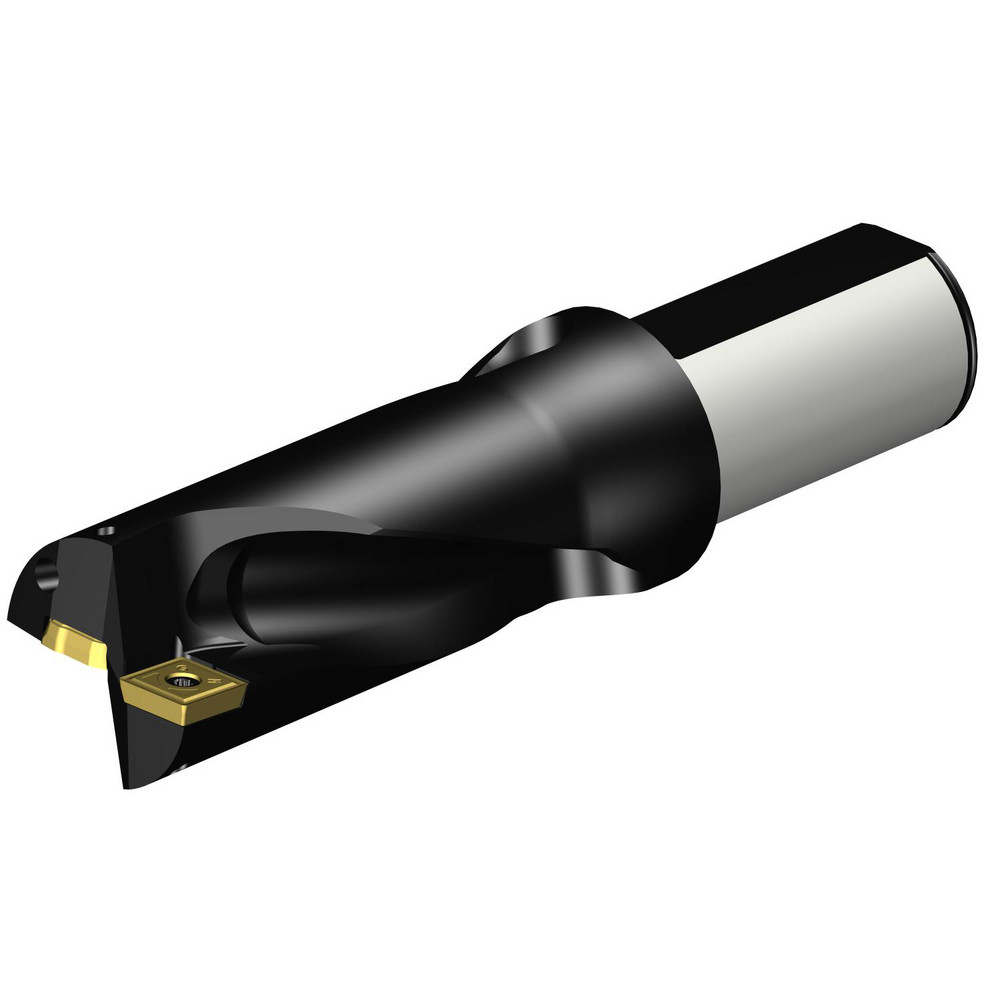

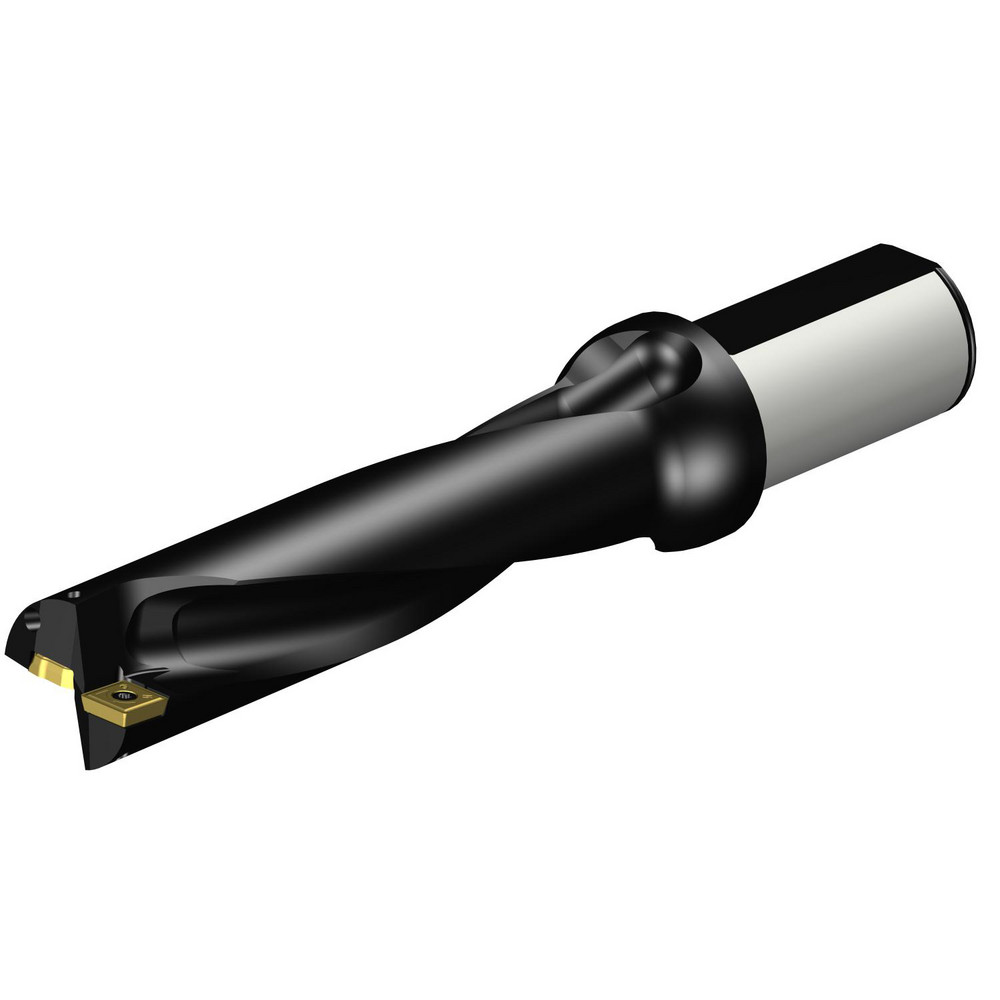

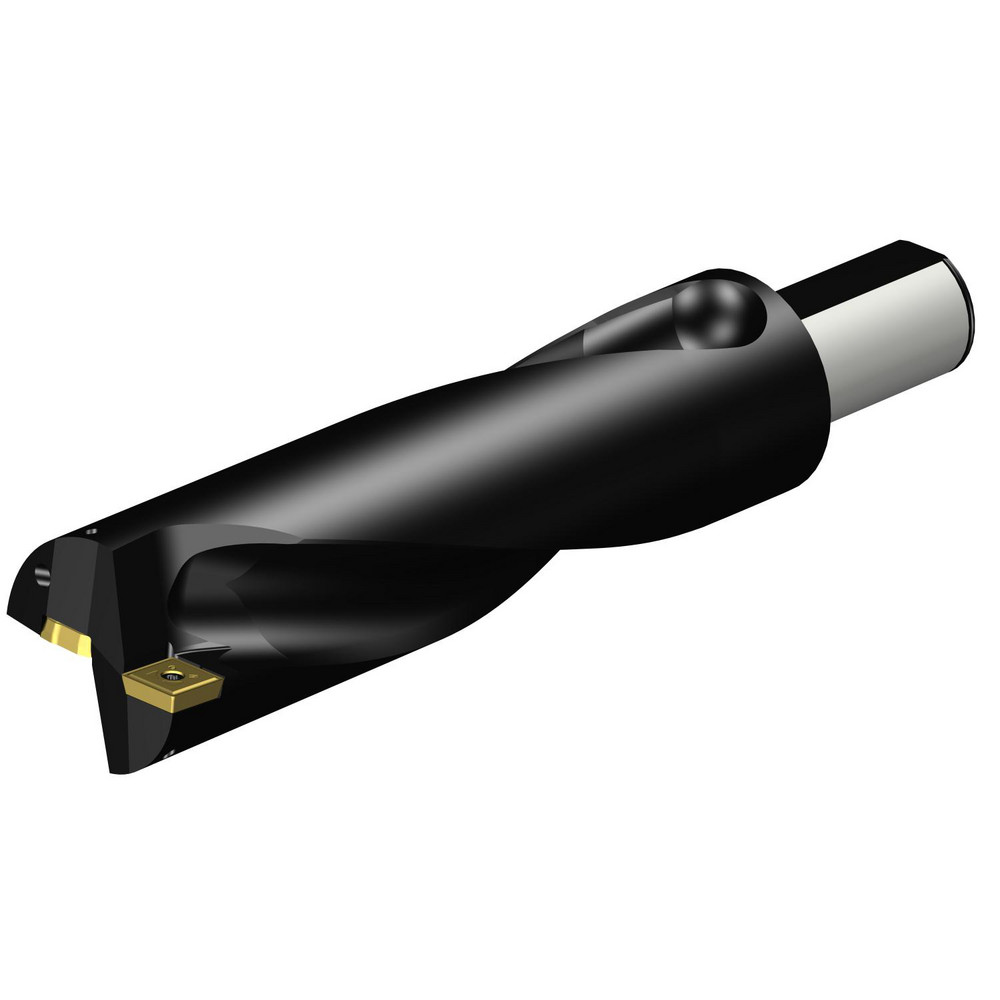

Weldon Flat & Flange Shank, Uses 880 070406 & 0704W06 Inserts, Series CoroDrill 880
| Compatible Drill Style | A880 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 1.5402 |
| Maximum Drill Depth (Decimal Inch) | 4.3376 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 4.0000 to 5.0000 |
| Tool Material | Steel |
| Compatible Insert Style | 880 |
| Compatible Insert Size Code | 0704W06; 070406 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |

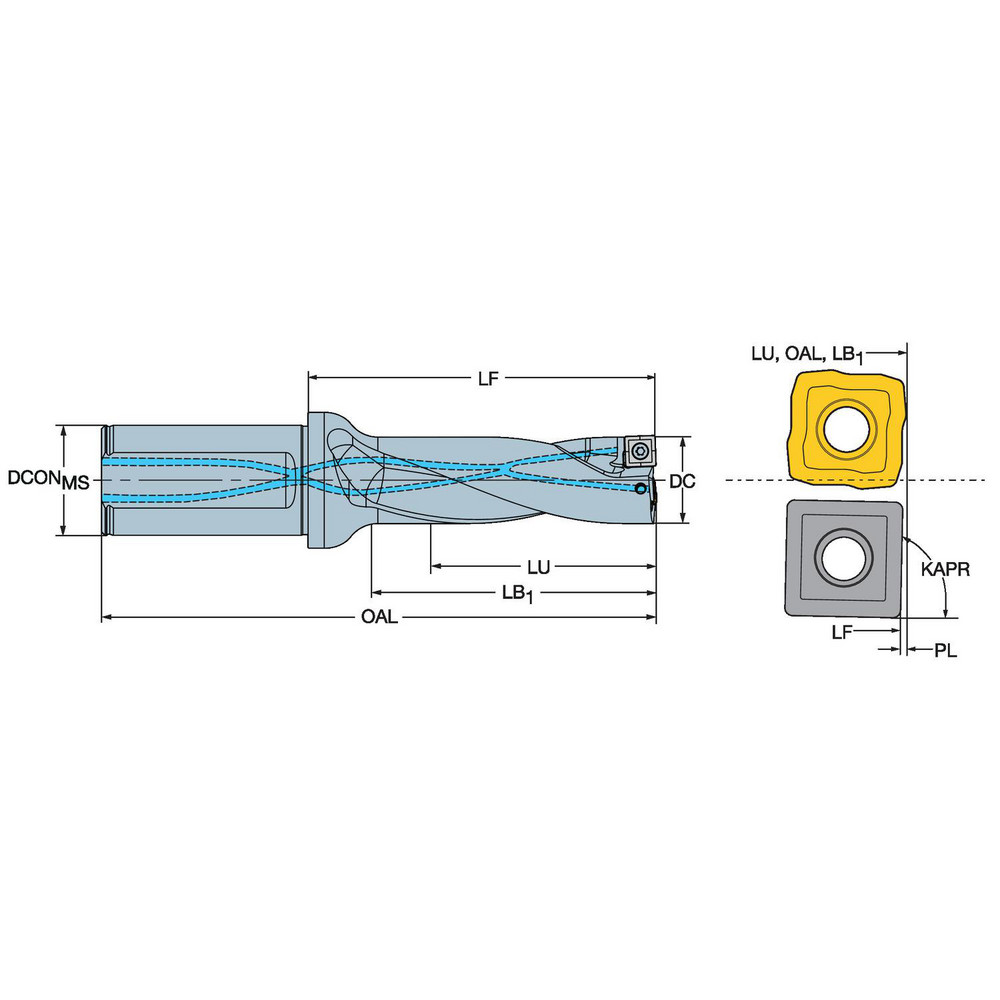

| Overall Length (Decimal Inch) | 8.2829 |
| Series | CoroDrill 880 |
| Flute Length (Decimal Inch) | 4.4830 |
| Body Length (Decimal Inch) | 5.5004 |
| Shank Length (Decimal Inch) | 2.7825 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.4980; 0.4860 |
| UNSPSC Code | 23291503 |

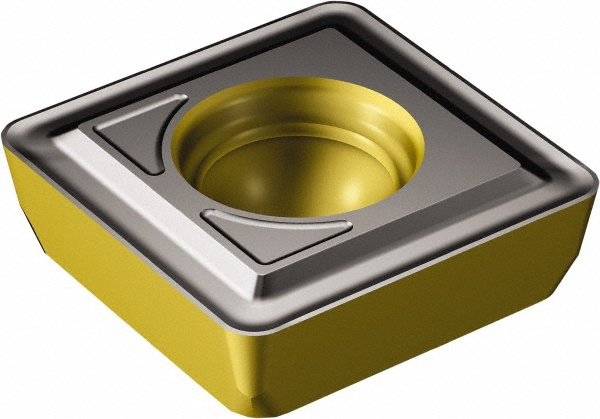

| Insert Compatibility | 880-070406H-C-GM; 880-0704W06H-P-GM |

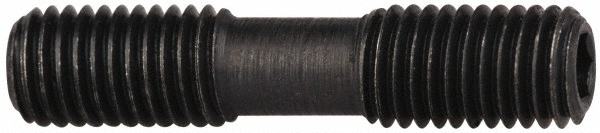

| Insert Lock Screw | 416.1-833 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 89280366 |
