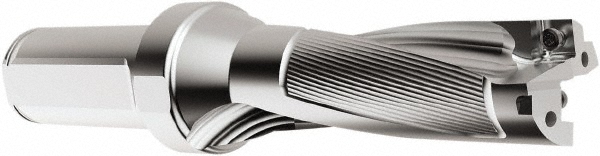

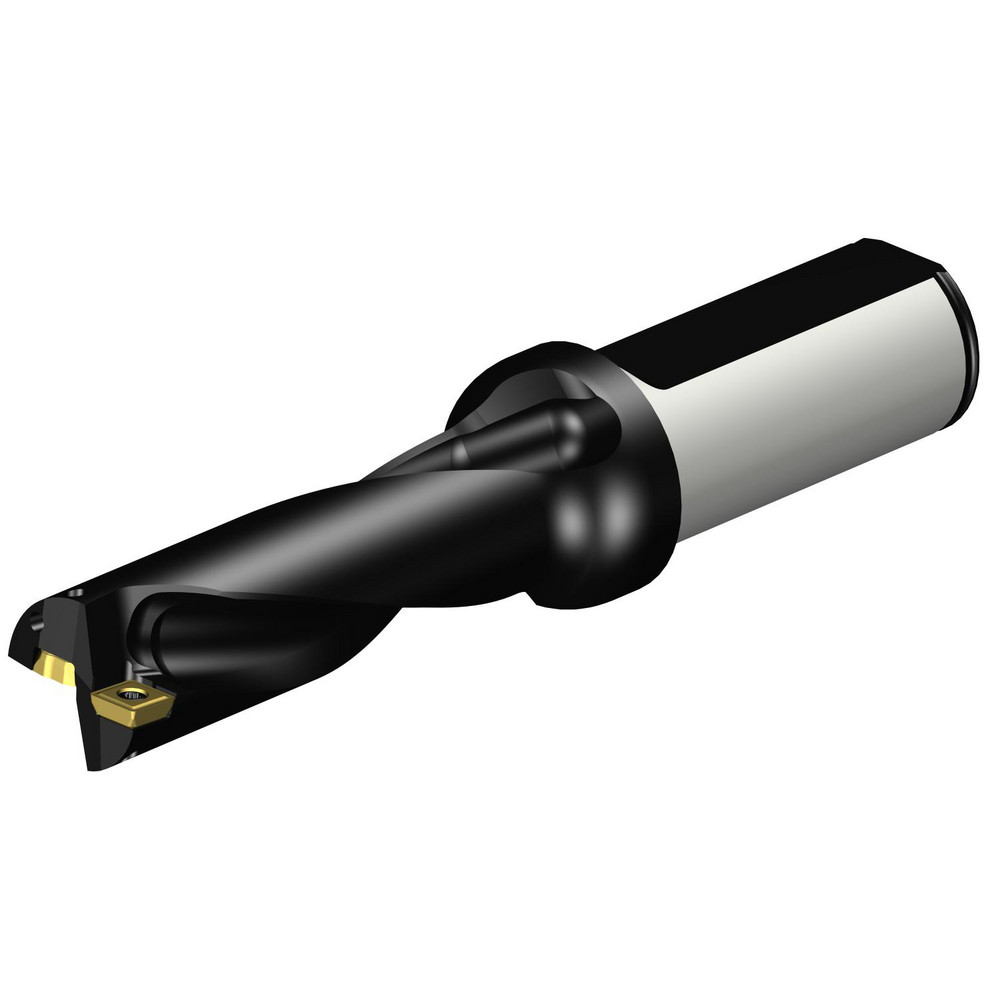

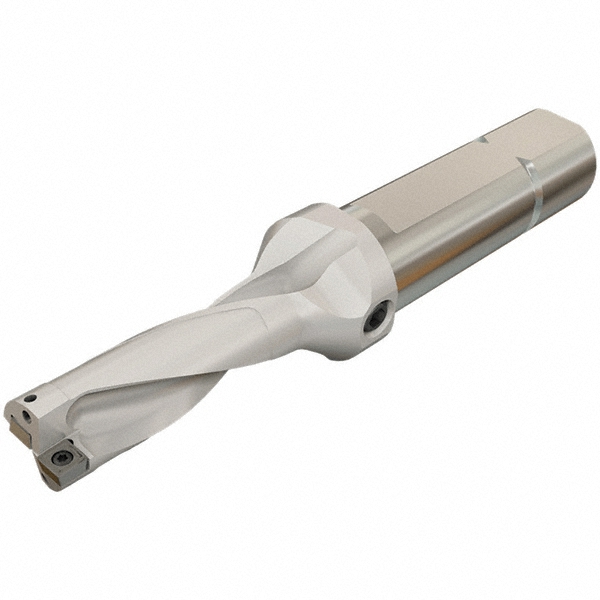

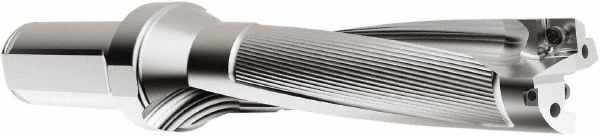

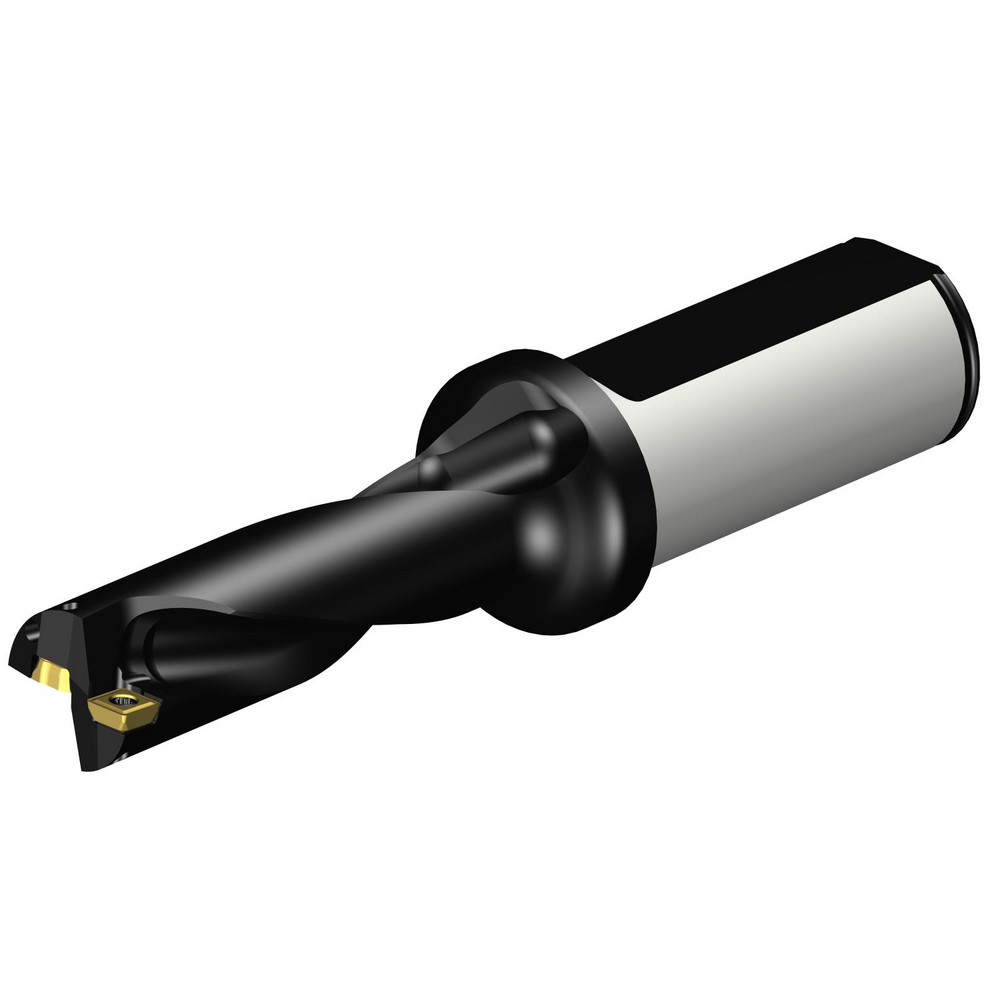

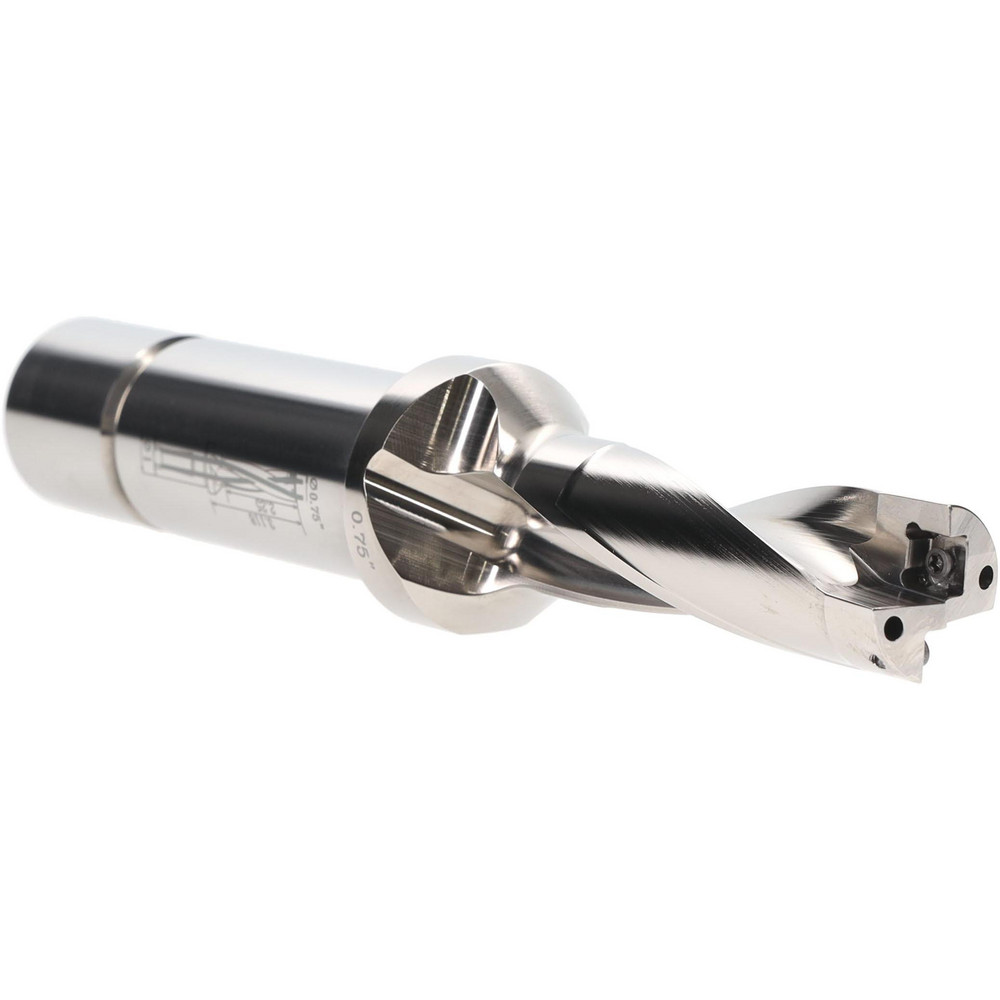

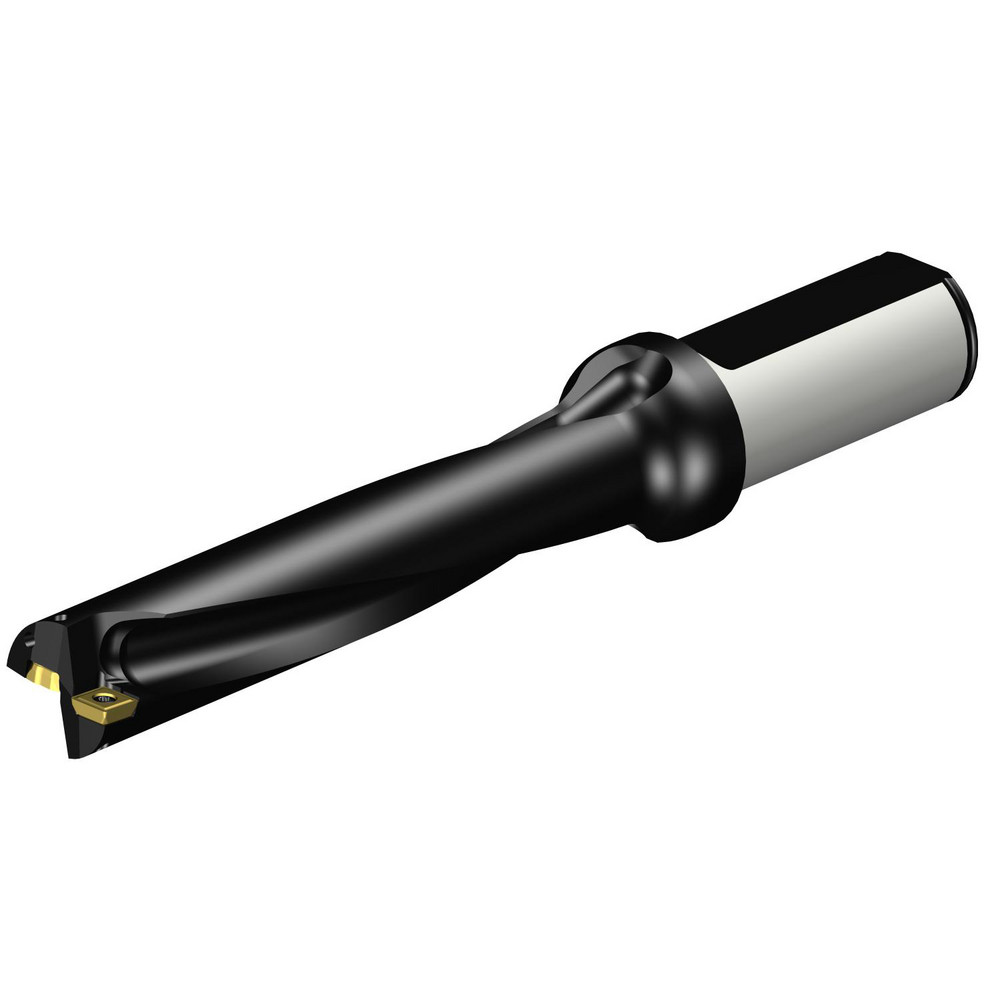

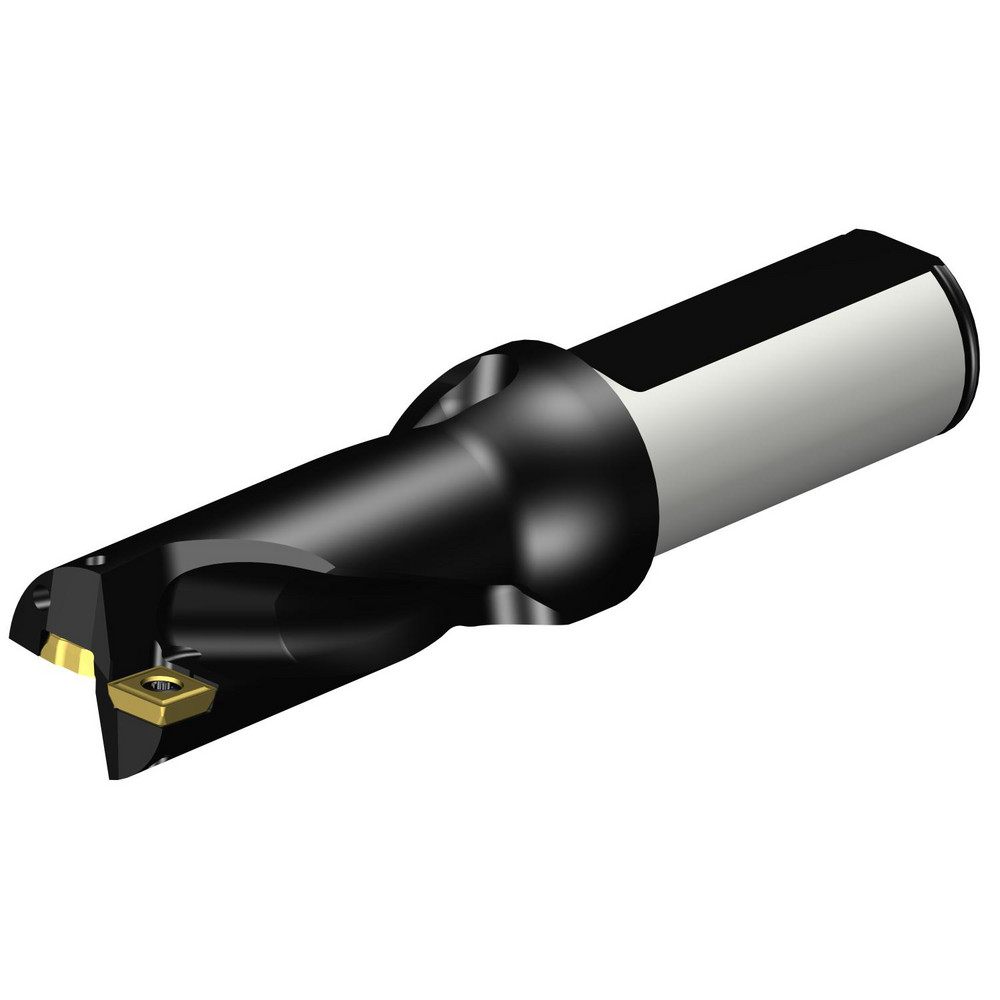

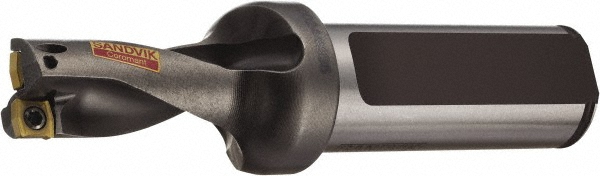

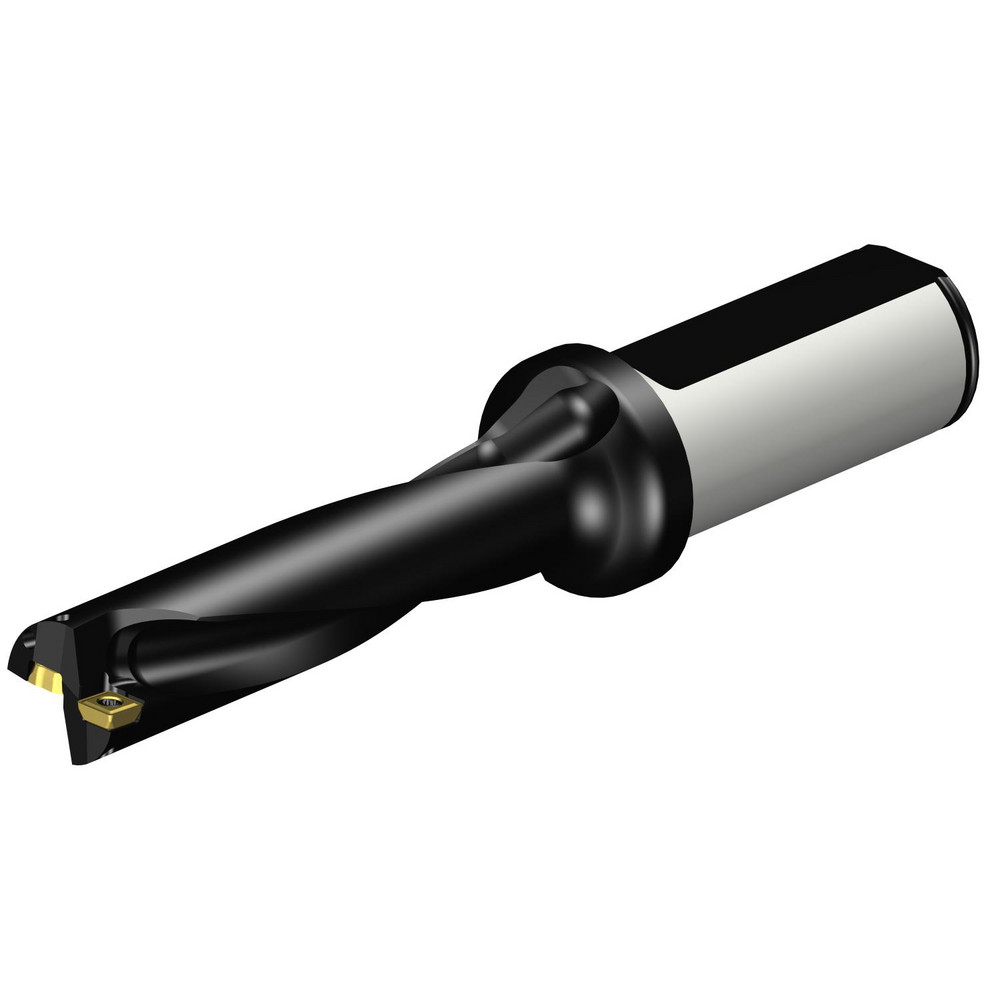

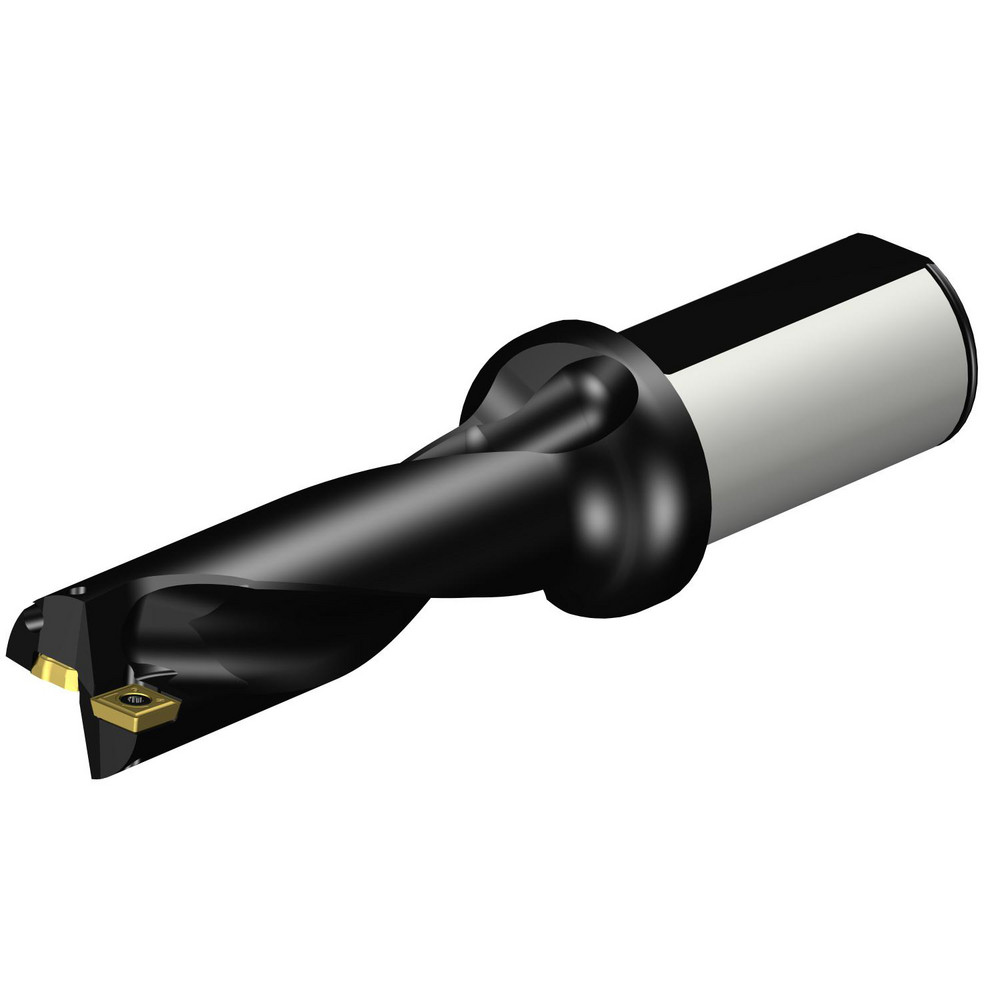

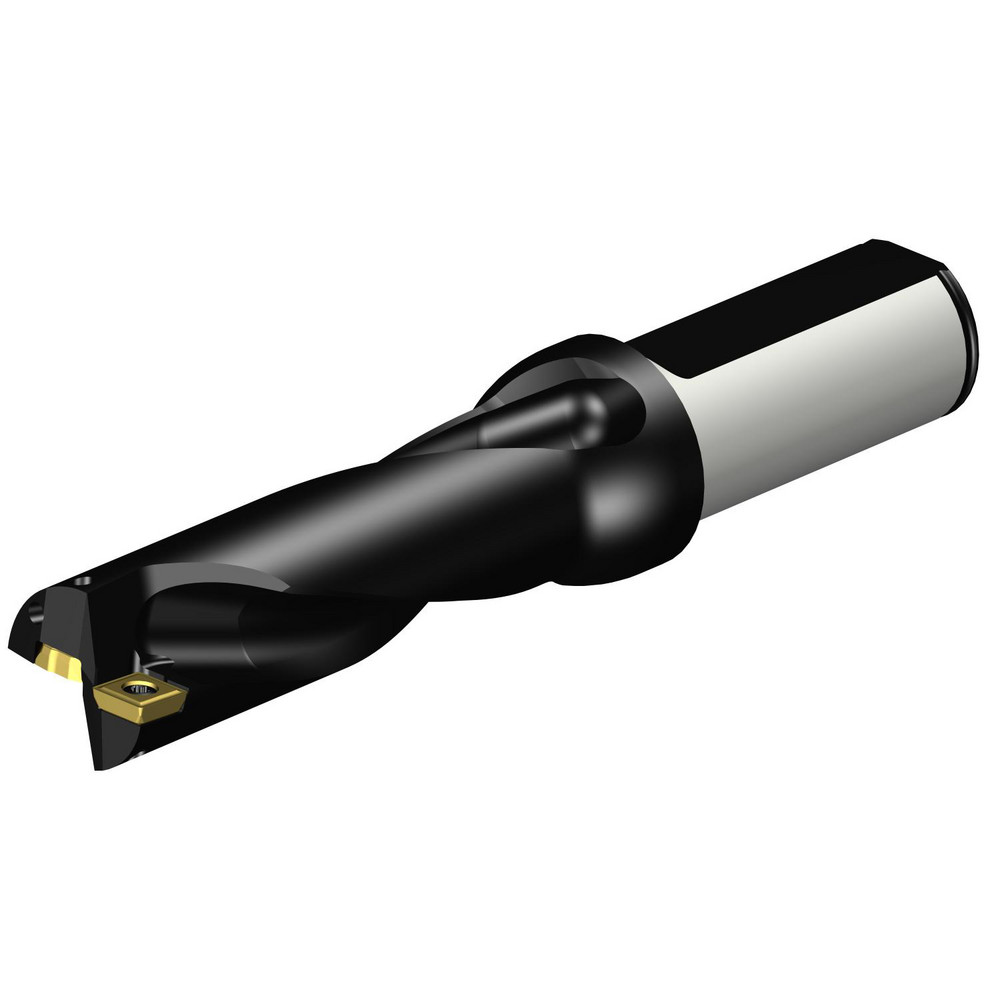

Weldon Flat & Flange Shank, Uses 881 040308 Inserts, Series CoroDrill 881
| Compatible Drill Style | A881 |
|---|---|
| Maximum Drill Diameter (Decimal Inch) | 0.9950 |
| Maximum Drill Depth (Decimal Inch) | 1.8740 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 1.0000 to 2.0000 |
| Tool Material | Steel |
| Compatible Insert Style | 881 |
| Compatible Insert Size Code | 040308 |
| Drill Depth by Diameter Ratio | 2xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |

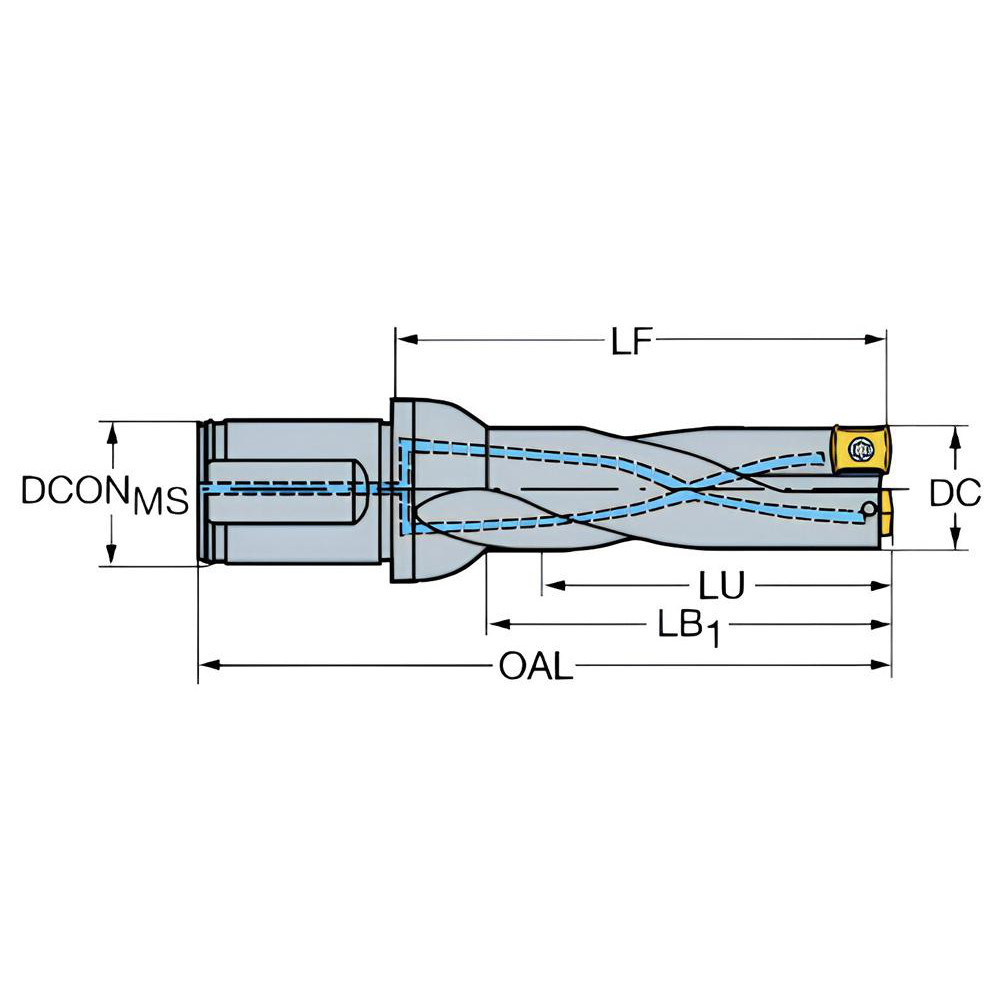

| Overall Length (Decimal Inch) | 4.9677 |
| Series | CoroDrill 881 |
| Flute Length (Decimal Inch) | 2.0150 |
| Body Length (Decimal Inch) | 2.7287 |
| Shank Length (Decimal Inch) | 2.2390 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3140 |
| UNSPSC Code | 23291503 |

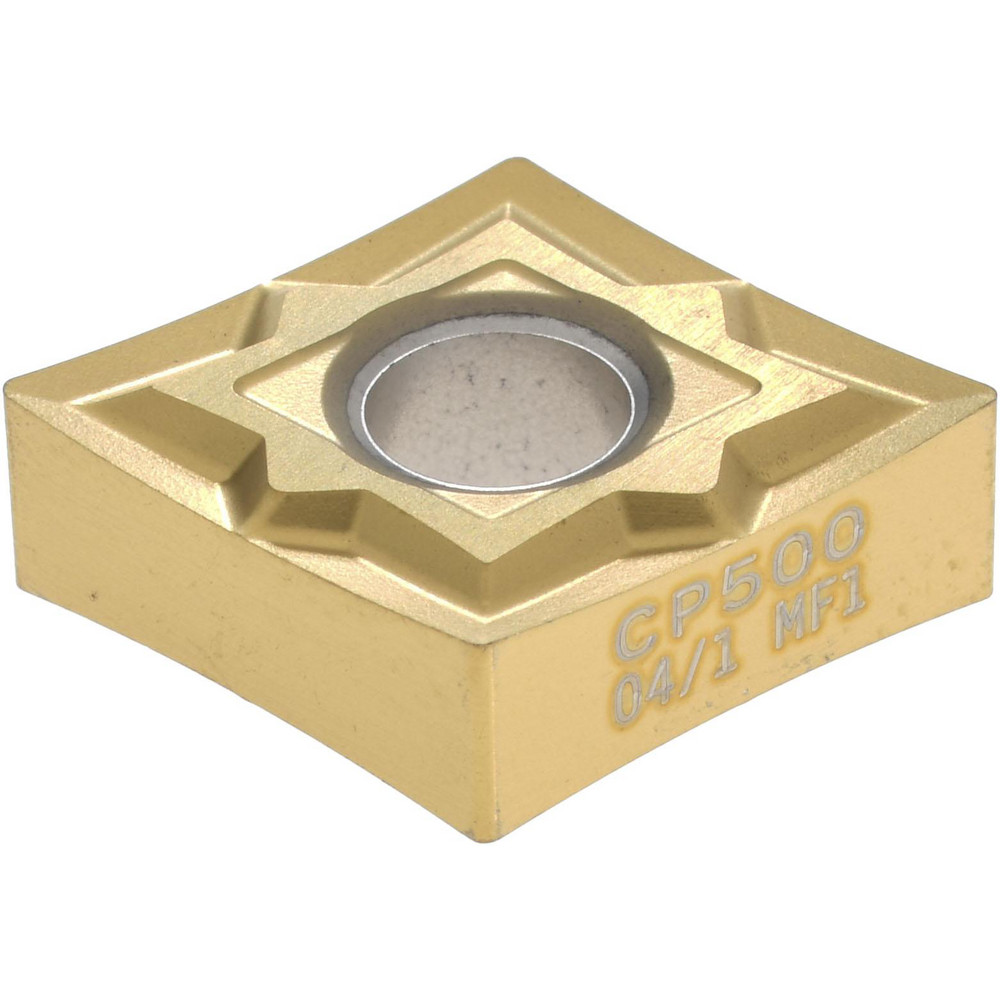

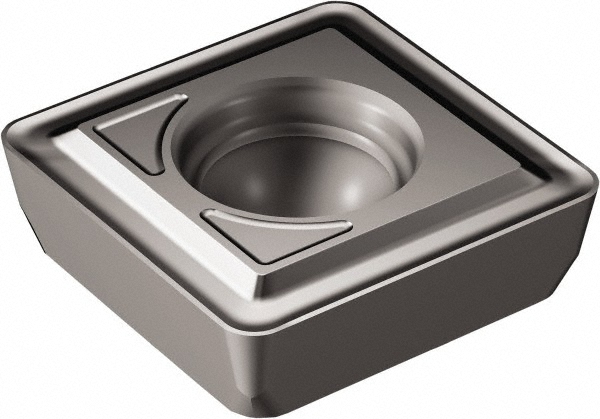

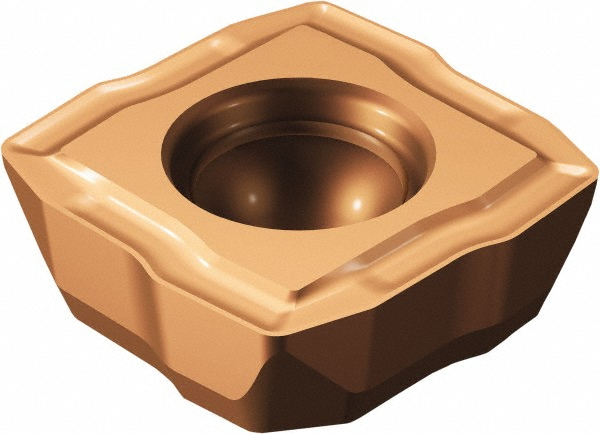

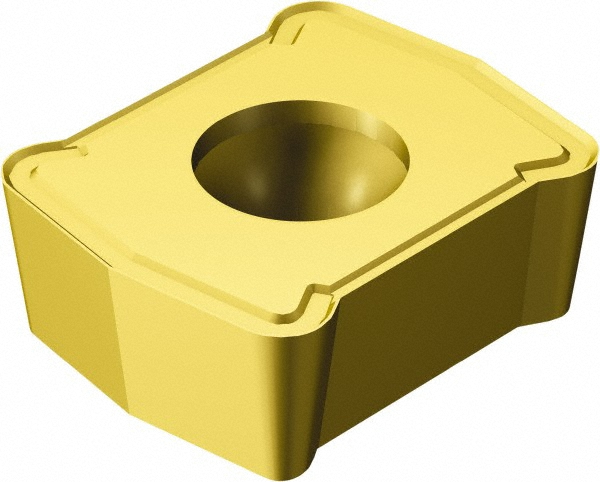

| Insert Compatibility | 881-040308M-P-GM1; 881-040308M-C-GM1 |
| Insert Lock Screw | 5513 020-20 |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 54957634 |
