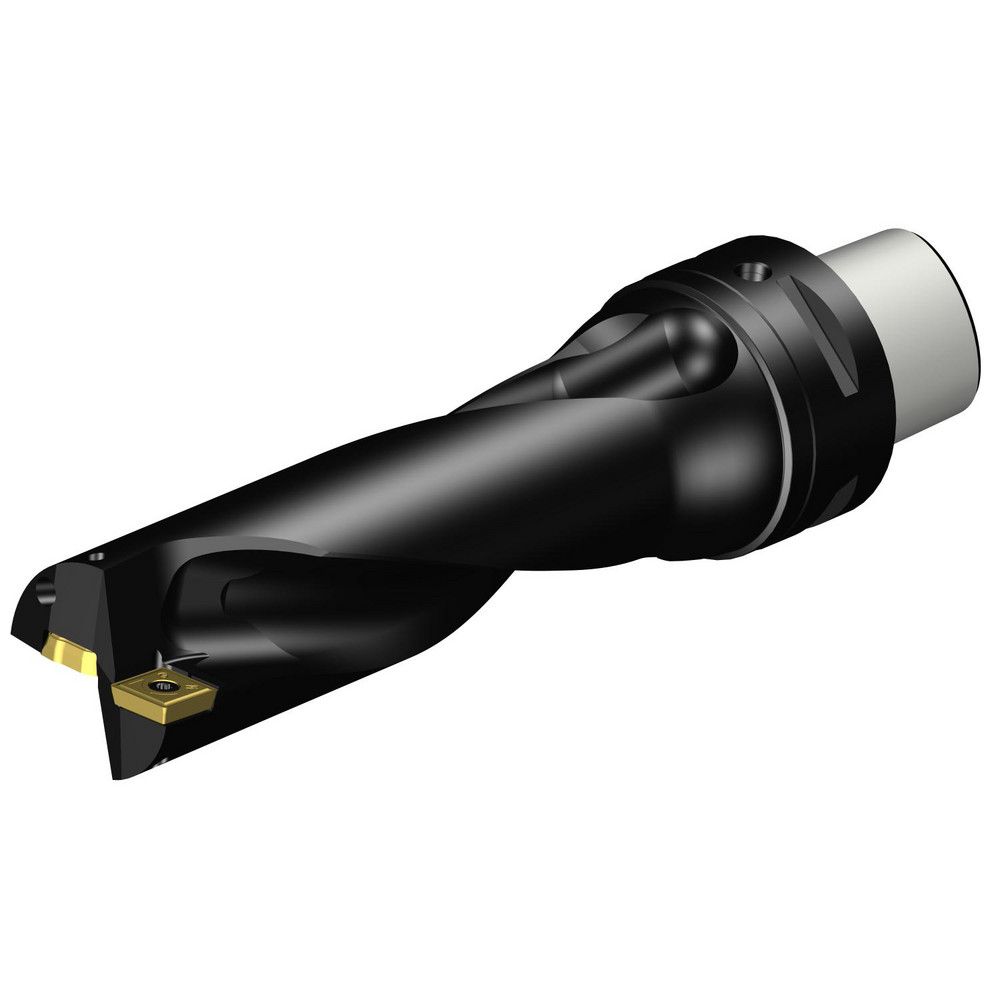

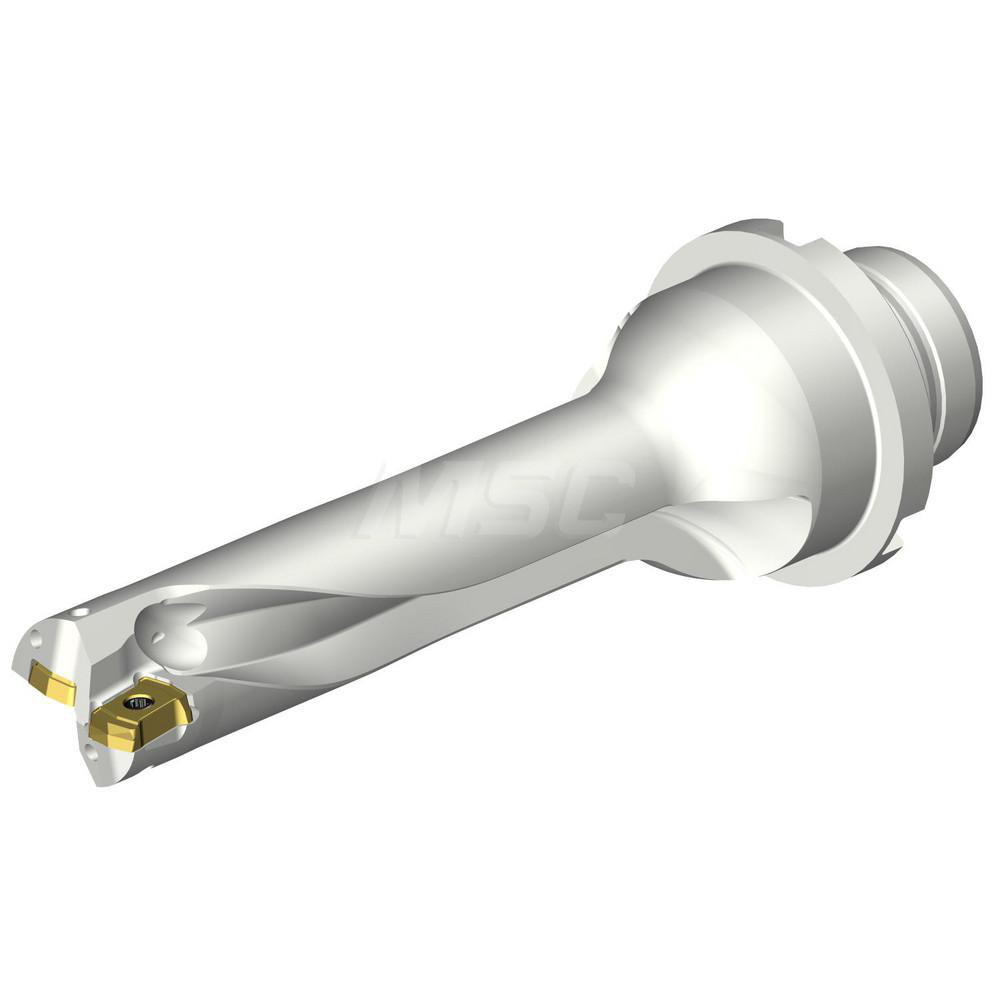

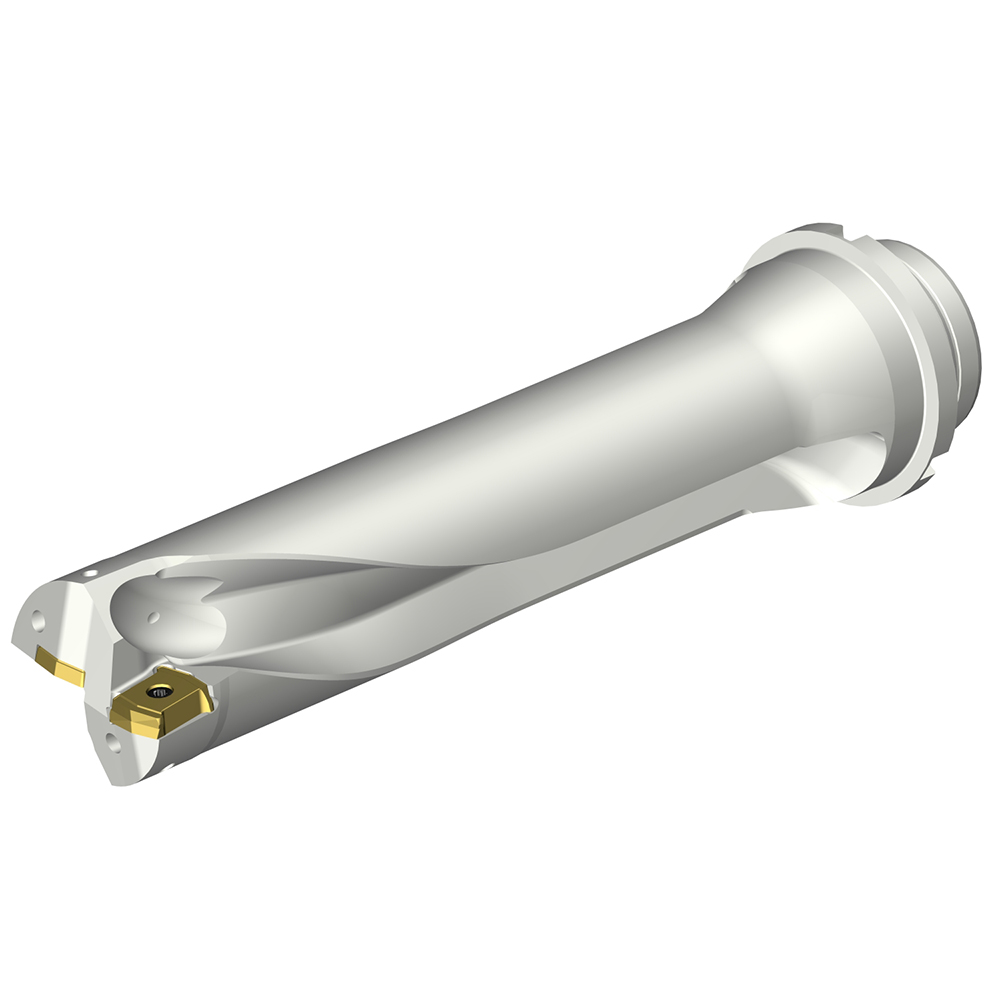

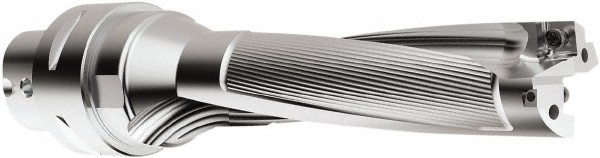

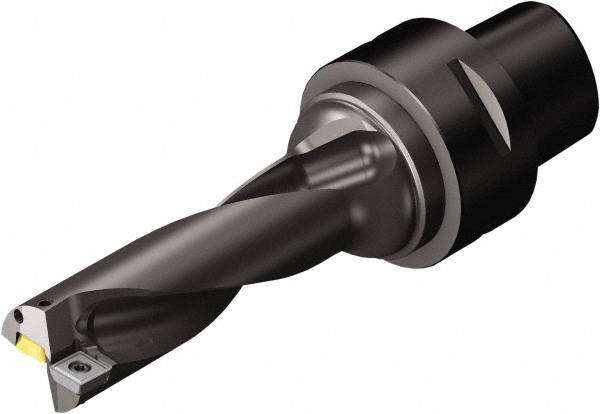

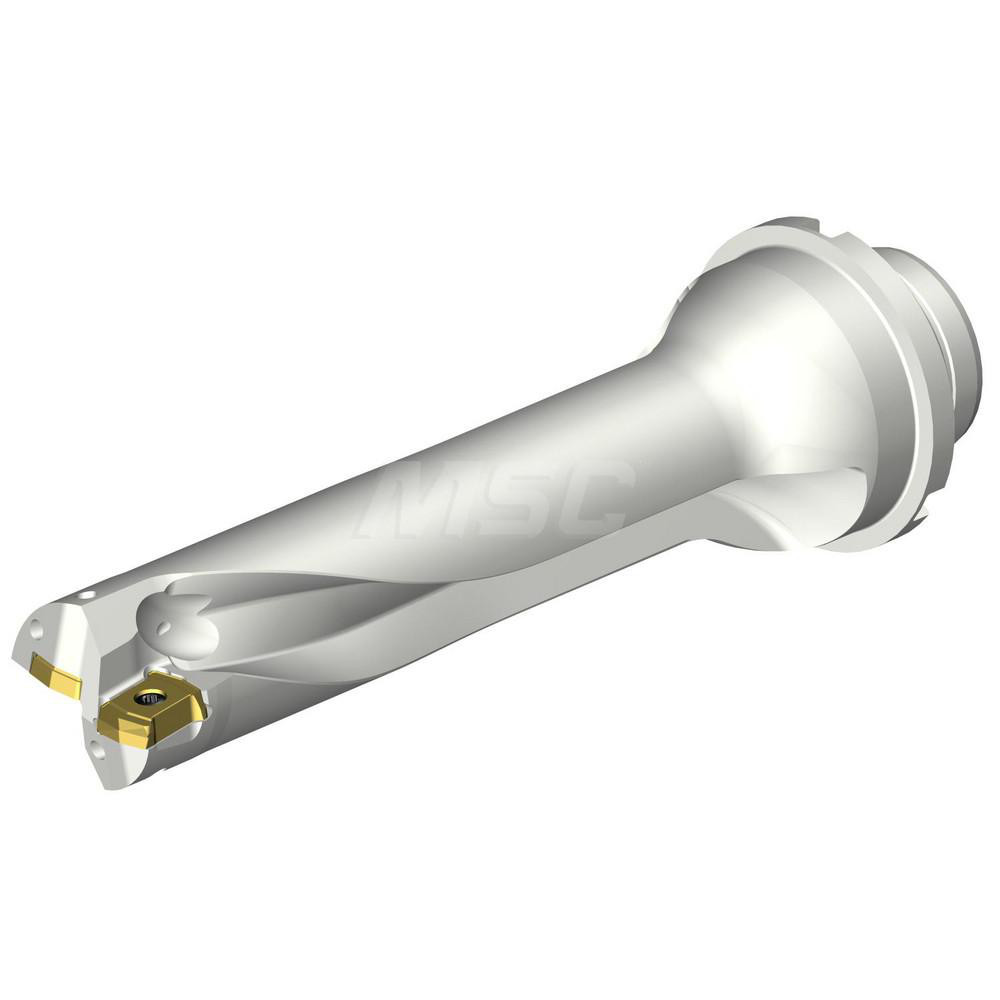

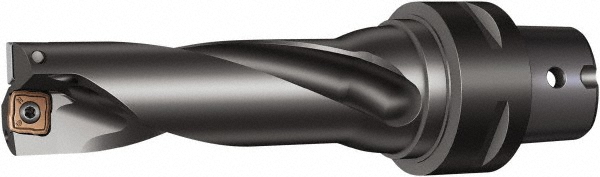

Modular Connection Shank, Uses DS20 0608 Inserts, Series CoroDrill DS20
| Compatible Drill Style | DS20 |
|---|---|
| Maximum Drill Diameter (mm) | 50.00 |
| Maximum Drill Depth (mm) | 201.28 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 50.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 200.00+ |
| Tool Material | Steel |
| Compatible Insert Style | DS20 |
| Compatible Insert Size Code | 0608 |
| Drill Depth by Diameter Ratio | 4xD |
| Coolant Entry Style Code | 4- Axial Concentric Entry on Circle |
| Series | CoroDrill DS20 |

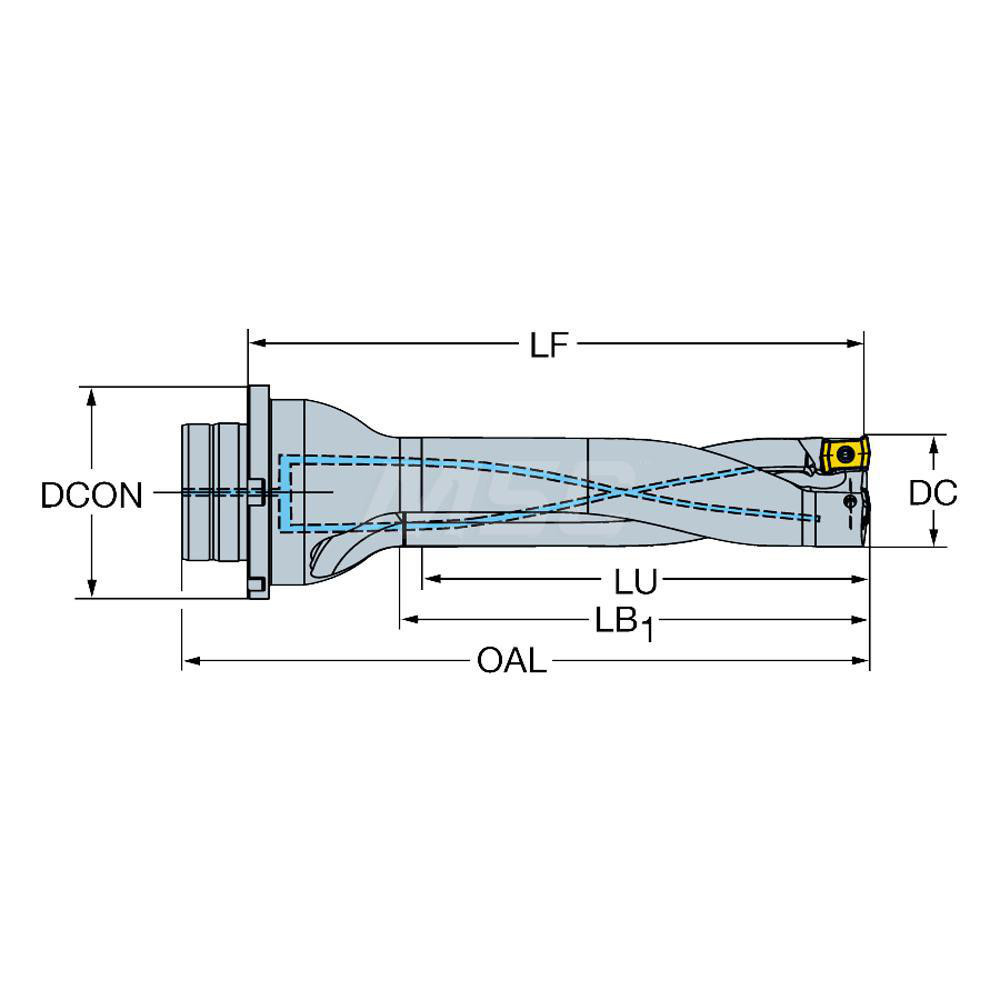

| Flute Length (mm) | 205.00 |
| Body Length (mm) | 249.72 |
| Body Length (Decimal Inch) | 8.0709 |
| Shank Length (mm) | 19.28 |
| Modular Connection Size | MDI-50 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (mm) | 14.42; 17.45 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DS20-0608-C; DS20-0608-P |

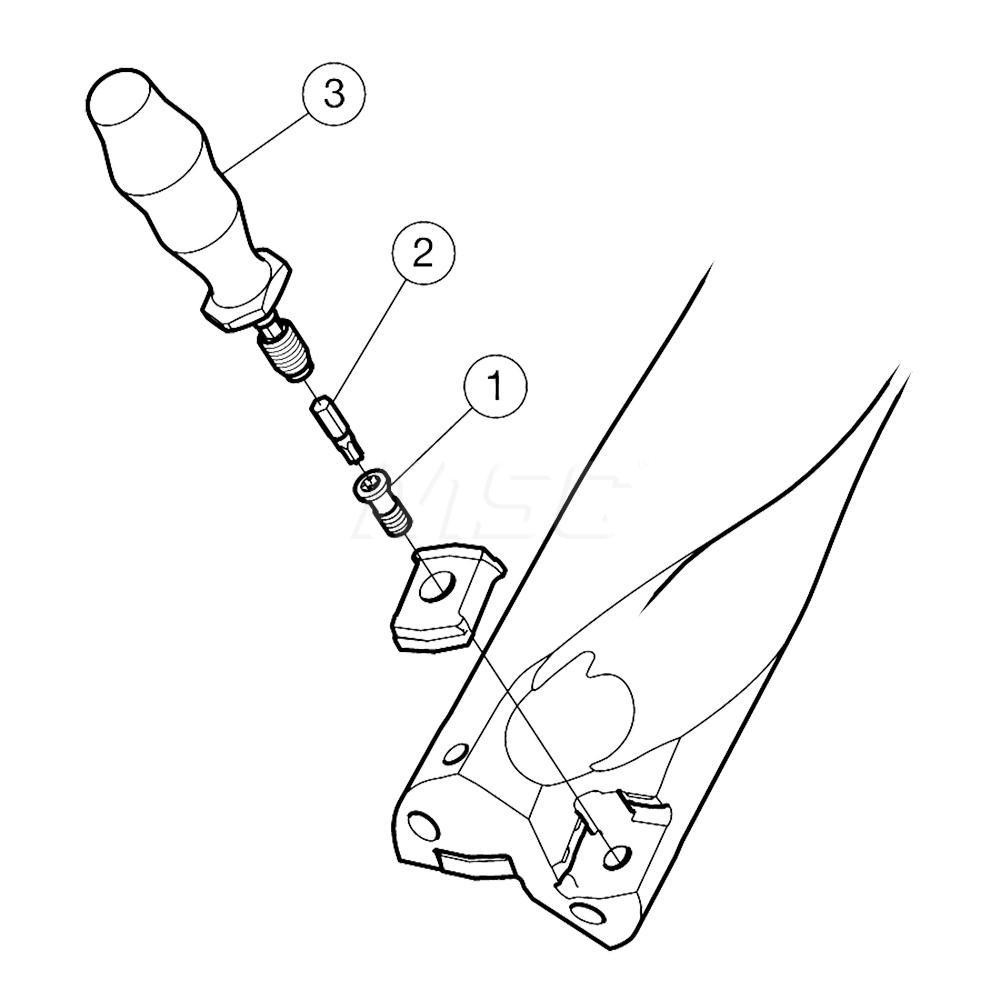

| Insert Lock Screw | 416.1-834 |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 17673484 |
