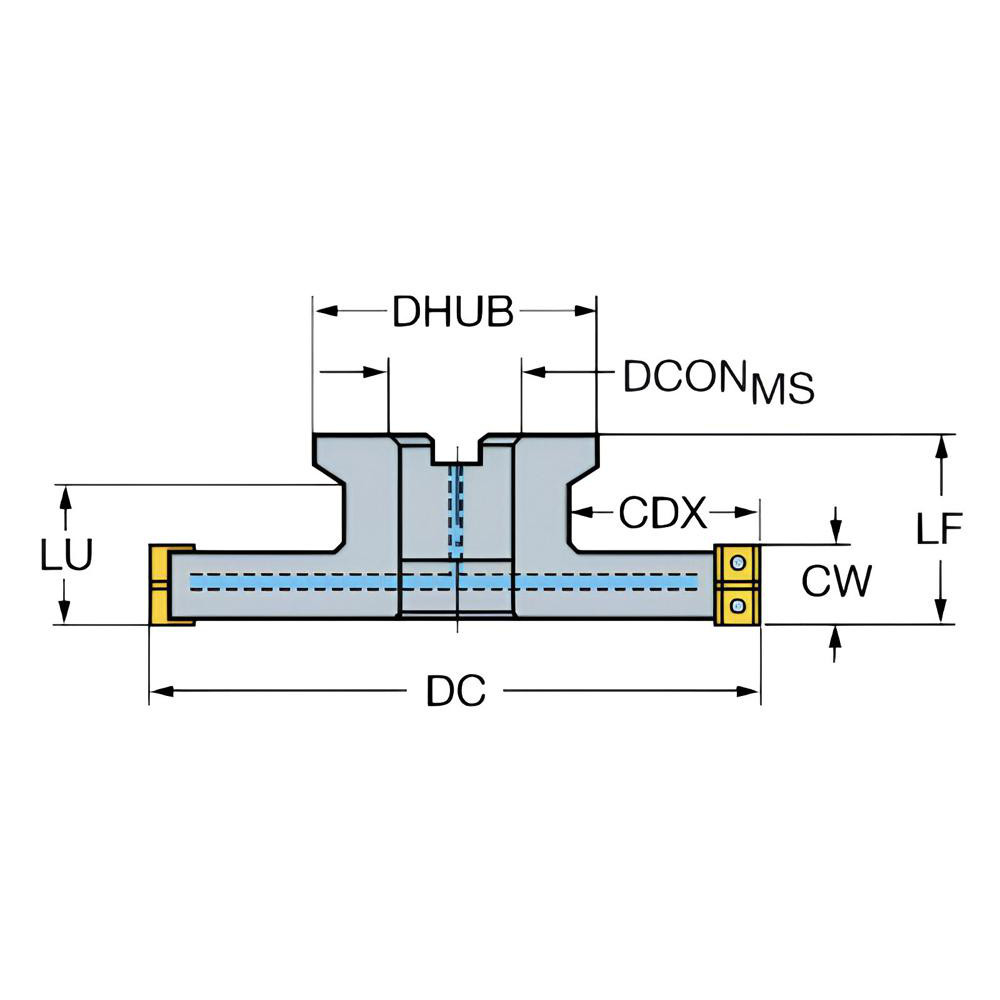

Screw, Uses 6 Inserts, CoroMill 331 -size 08 (N/R331.1A-08RE0.20-1.54) Inserts, 3 Tooth, Steel, Coolant Through
| Connection Type | Arbor |
|---|---|
| Cutting Width (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Maximum Depth of Cut (mm) | 20.00 |
| Hole Diameter (Mm) ( - 0 Decimals) | 27.00 |
| Hole Diameter (Decimal Inch) | 1.6300 |
| Cutter Diameter (Decimal Inch) | 3.1496 |
| Cutter Diameter (mm) | 80.00 |
| Shank Diameter (mm) | 27.00 |
| Shank Diameter (Decimal Inch) | 1.6299 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 6 |
| Compatible Insert Style | CoroMill 331 -size 08 (N/R331.1A-08RE0.20-1.54) |
| Compatible Insert Size Code | Size 08 |
| Tool Material | Steel |
| Series | CoroMill 331 |
| Toolholder Style | CoroMill 331 |
| Hub Diameter (Decimal Inch) | 2.7900 |
| Hub Diameter (mm) | 51.00 |
| Maximum RPM | 18100 |
| Tool Application | Milling |
| Minimum Cutting Width (Decimal Inch) | 0.3937 |
| Maximum Cutting Width (Decimal Inch) | 0.4724 |
| Maximum Cutting Width (mm) | 12.00 |
| UNSPSC Code | 23241629 |
| Maximum Body Diameter (mm) | 80.00 |
| Cutter Body Width (mm) | 10.00 |
| Weldon Flat | No |
| Manufacturers Catalog Number | R331.32C-080Q27EM |
| Number Of Teeth | 3 |
| Coolant Through | Yes |
| Complete Insert Compatibility | CoroMill 331 -size 08 (N/R331.1A-08RE0.20-1.54) |
| Overall Height (Decimal Inch) | 50.00 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 30850663 |
