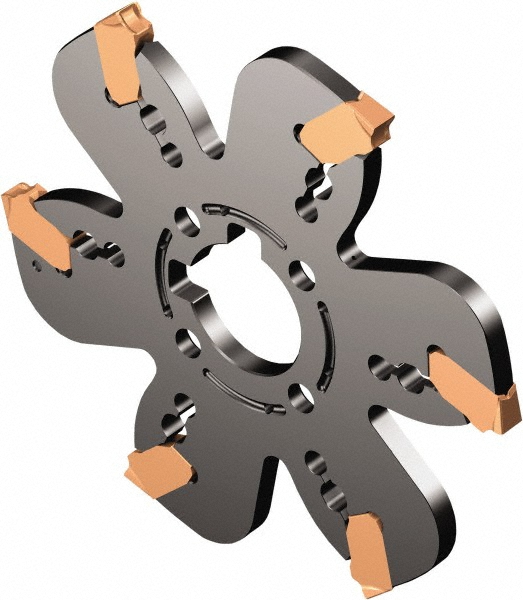

Screw, Uses 12 Inserts, RCKT Inserts, 12 Tooth, Steel, Coolant Through

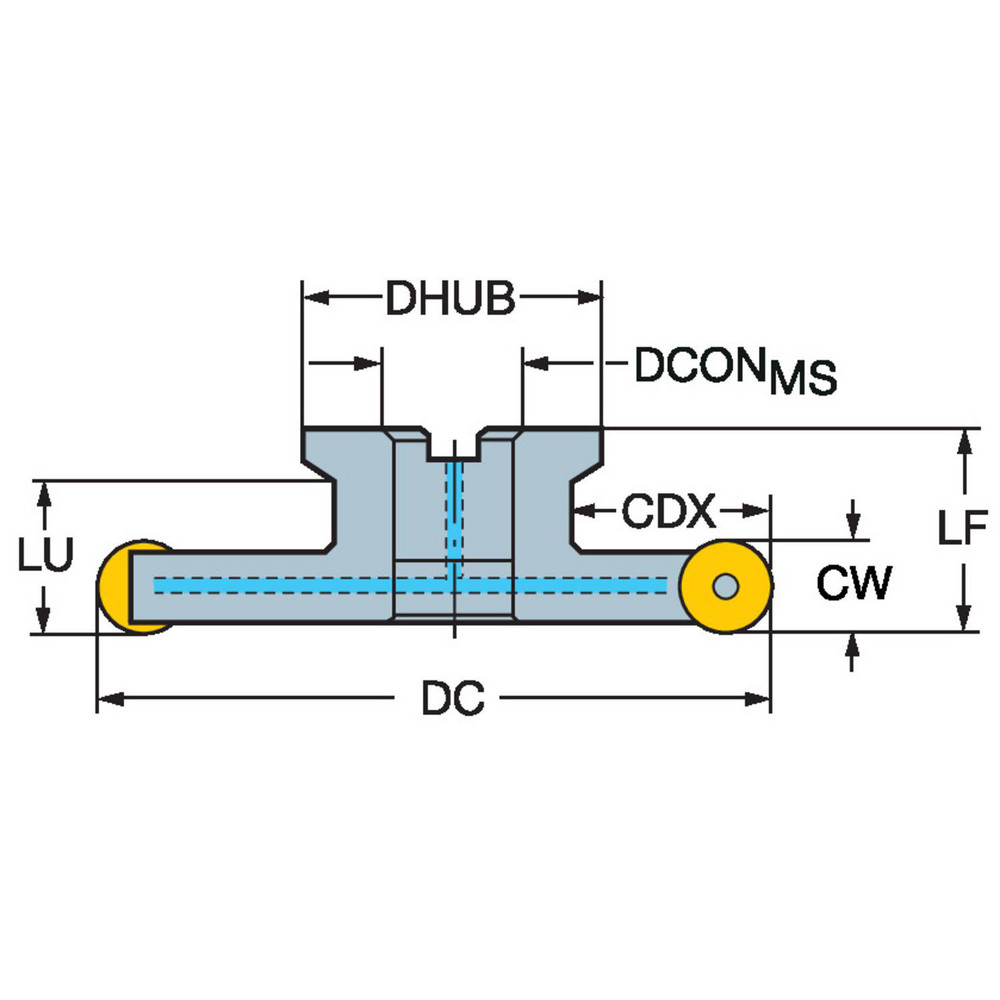

| Connection Type | Arbor |
|---|---|
| Cutting Width (mm) | 12.07 |
| Cutting Width (Inch) | 1/2 |
| Maximum Depth of Cut (Decimal Inch) | 1.5040 |
| Maximum Depth of Cut (mm) | 38.20 |
| Hole Diameter (Inch) | 1-1/2 |
| Hole Diameter (Mm) ( - 0 Decimals) | 38.10 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Cutter Diameter (Decimal Inch) | 6.0787 |
| Cutter Diameter (Inch) | 6-5/64 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 12 |
| Compatible Insert Style | RCKT |
| Compatible Insert Size Code | 130400 |
| Tool Material | Steel |
| Series | CoroMill 331 |
| Toolholder Style | CoroMill 331 |
| Hub Diameter (Decimal Inch) | 2.8740 |
| Hub Diameter (mm) | 73.00 |
| Maximum RPM | 12400 |
| Tool Application | Milling |
| UNSPSC Code | 23241629 |
| Maximum Body Diameter (Decimal Inch) | 6.0787 |
| Cutter Body Width (Decimal Inch) | 0.5000 |
| Weldon Flat | No |
| Manufacturers Catalog Number | R331.32C-154R38FMQ |
| Overall Height (Decimal Inch) | 2.0000 |
| Number Of Teeth | 12 |
| Coolant Through | Yes |
| Complete Insert Compatibility | RCKT 130400 |
| Country of Origin | Sweden |
| MSC Number | MSC# 30850770 |
