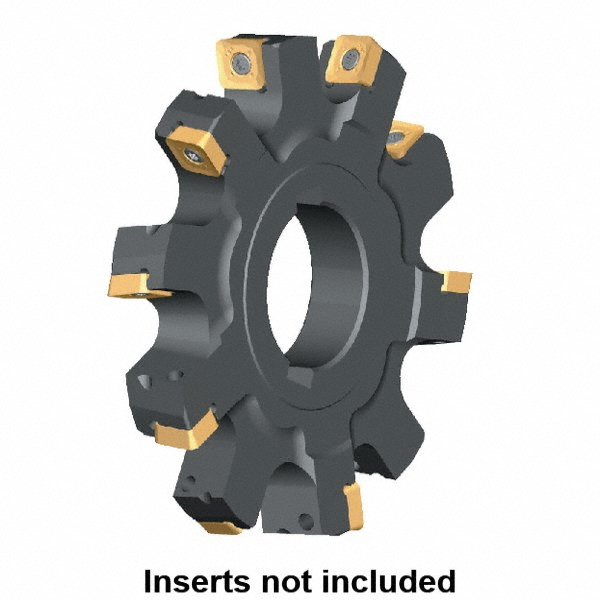

Screw, Uses 10 Inserts, CoroMill 331 -size 11 (N/R331.1A-11RE0.20-1.54) Inserts, 5 Tooth, Steel, Coolant Through
| Connection Type | Arbor |
|---|---|
| Cutting Width (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.6141 |
| Maximum Depth of Cut (mm) | 41.00 |
| Hole Diameter (Mm) ( - 0 Decimals) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Cutter Diameter (Decimal Inch) | 6.2992 |
| Cutter Diameter (mm) | 160.00 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 10 |
| Compatible Insert Style | CoroMill 331 -size 11 (N/R331.1A-11RE0.20-1.54) |
| Compatible Insert Size Code | Size 11 |
| Tool Material | Steel |
| Series | CoroMill 331 |
| Toolholder Style | CoroMill 331 |
| Hub Diameter (Decimal Inch) | 2.8740 |
| Hub Diameter (mm) | 73.00 |
| Maximum RPM | 10800 |
| Tool Application | Milling |
| Minimum Cutting Width (Decimal Inch) | 0.5906 |
| Maximum Cutting Width (Decimal Inch) | 0.6889 |
| Maximum Cutting Width (mm) | 17.50 |
| UNSPSC Code | 23241629 |
| Maximum Body Diameter (mm) | 160.00 |
| Cutter Body Width (mm) | 15.00 |
| Weldon Flat | No |
| Manufacturers Catalog Number | R331.32C-160Q40KM |
| Number Of Teeth | 5 |
| Coolant Through | Yes |
| Complete Insert Compatibility | CoroMill 331 -size 11 (N/R331.1A-11RE0.20-1.54) |
| Overall Height (Decimal Inch) | 50.00 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 30850713 |
