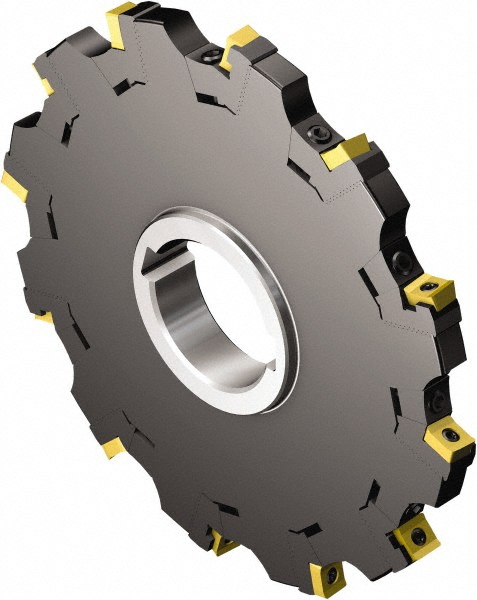

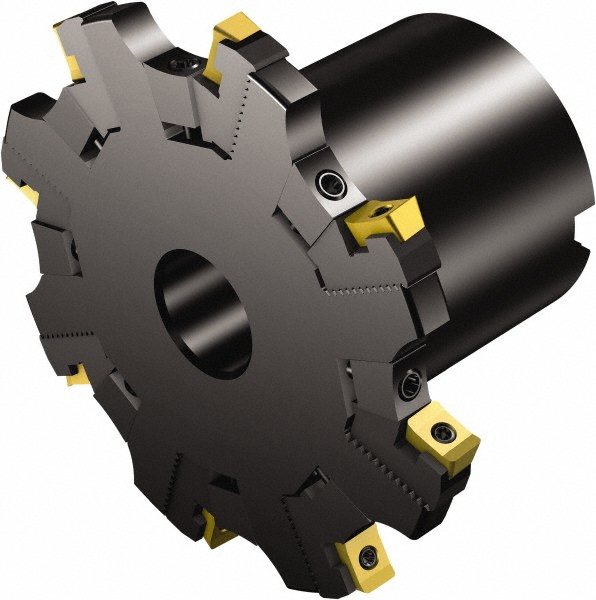

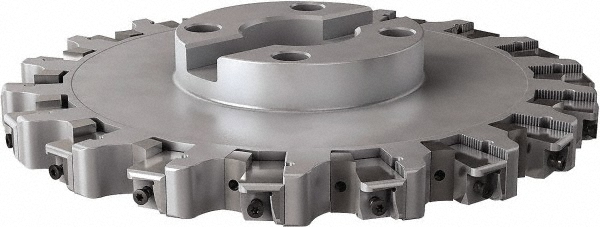

Screw, Uses 20 Inserts, CoroMill 331 -size 11 (N/R331.1A-11RE0.20-1.54) Inserts, 10 Tooth, Steel

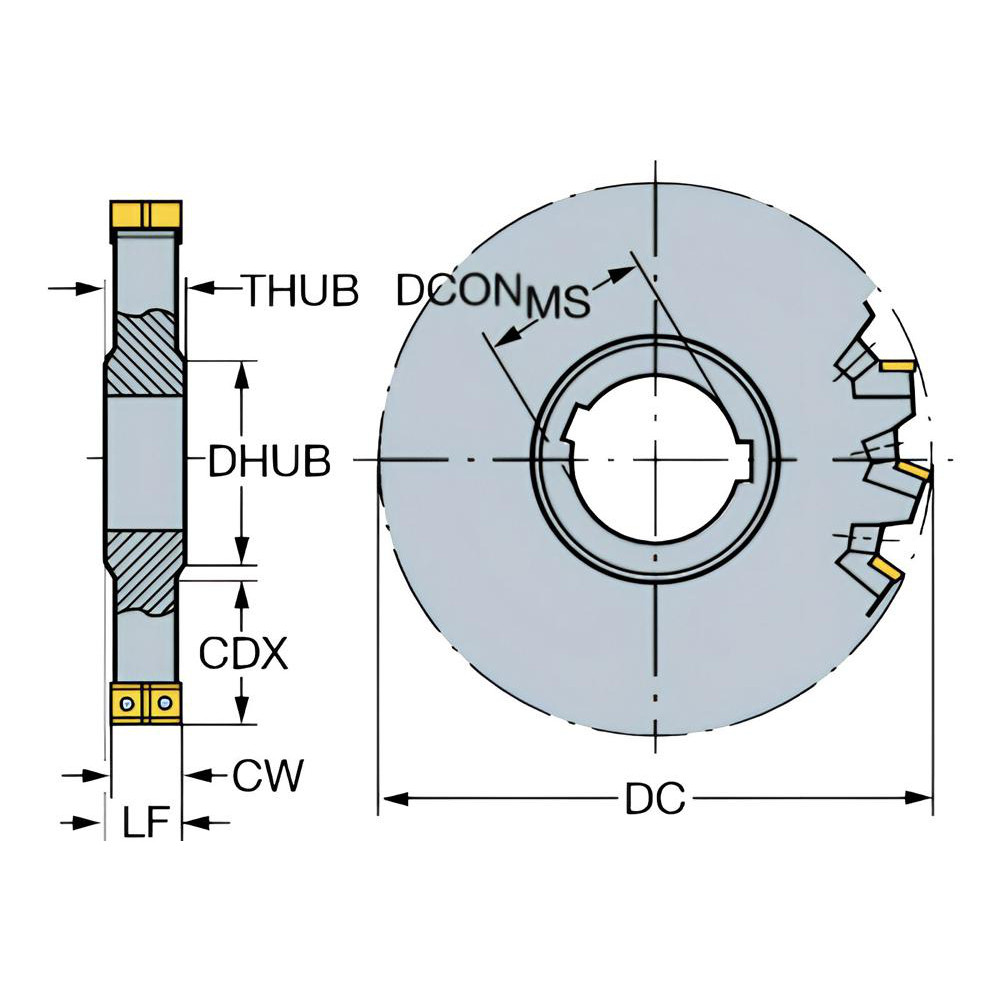

| Connection Type | Arbor |
|---|---|
| Cutting Width (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 4.3110 |
| Maximum Depth of Cut (mm) | 109.50 |
| Hole Diameter (Inch) | 2-1/2 |
| Hole Diameter (Mm) ( - 0 Decimals) | 63.50 |
| Hole Diameter (Decimal Inch) | 2.5000 |
| Cutter Diameter (Decimal Inch) | 12.0000 |
| Cutter Diameter (Inch) | 12 |
| Cutter Diameter (mm) | 304.80 |
| Shank Diameter (mm) | 63.50 |
| Shank Diameter (Inch) | 2-1/2 |
| Shank Diameter (Decimal Inch) | 2.5000 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 20 |
| Compatible Insert Style | CoroMill 331 -size 11 (N/R331.1A-11RE0.20-1.54) |
| Compatible Insert Size Code | Size 11 |
| Tool Material | Steel |
| Series | CoroMill 331 |
| Toolholder Style | CoroMill 331 |
| Modular Connection Size | 2.5 |
| Hub Diameter (Decimal Inch) | 3.3070 |
| Hub Diameter (mm) | 84.00 |
| Keyway Width (Decimal Inch) | 0.6250 |
| Maximum RPM | 7600 |
| Tool Application | Milling |
| Minimum Cutting Width (Decimal Inch) | 0.5906 |
| Maximum Cutting Width (Decimal Inch) | 0.6890 |
| Maximum Cutting Width (mm) | 17.50 |
| Lead Angle | 90 |
| UNSPSC Code | 23241629 |
| Maximum Body Diameter (Decimal Inch) | 12.0000 |
| Cutter Body Width (Decimal Inch) | 0.5906 |
| Weldon Flat | No |
| Manufacturers Catalog Number | N331.32-305T63KM0.591 |
| Overall Height (Decimal Inch) | 0.6595 |
| Number Of Teeth | 10 |
| Coolant Through | No |
| Complete Insert Compatibility | CoroMill 331 -size 11 (N/R331.1A-11RE0.20-1.54) |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 49523012 |
