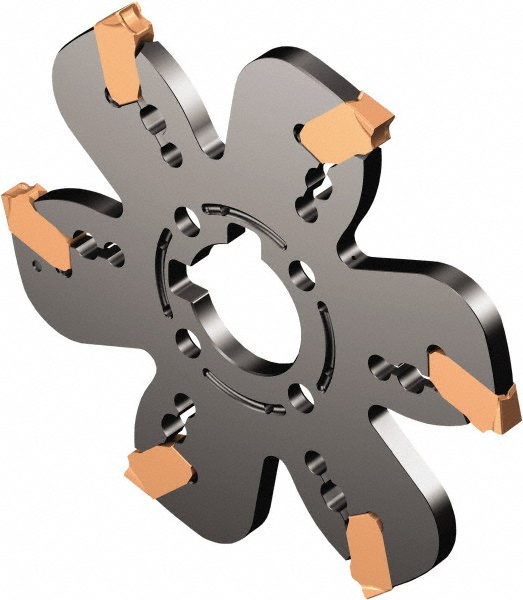

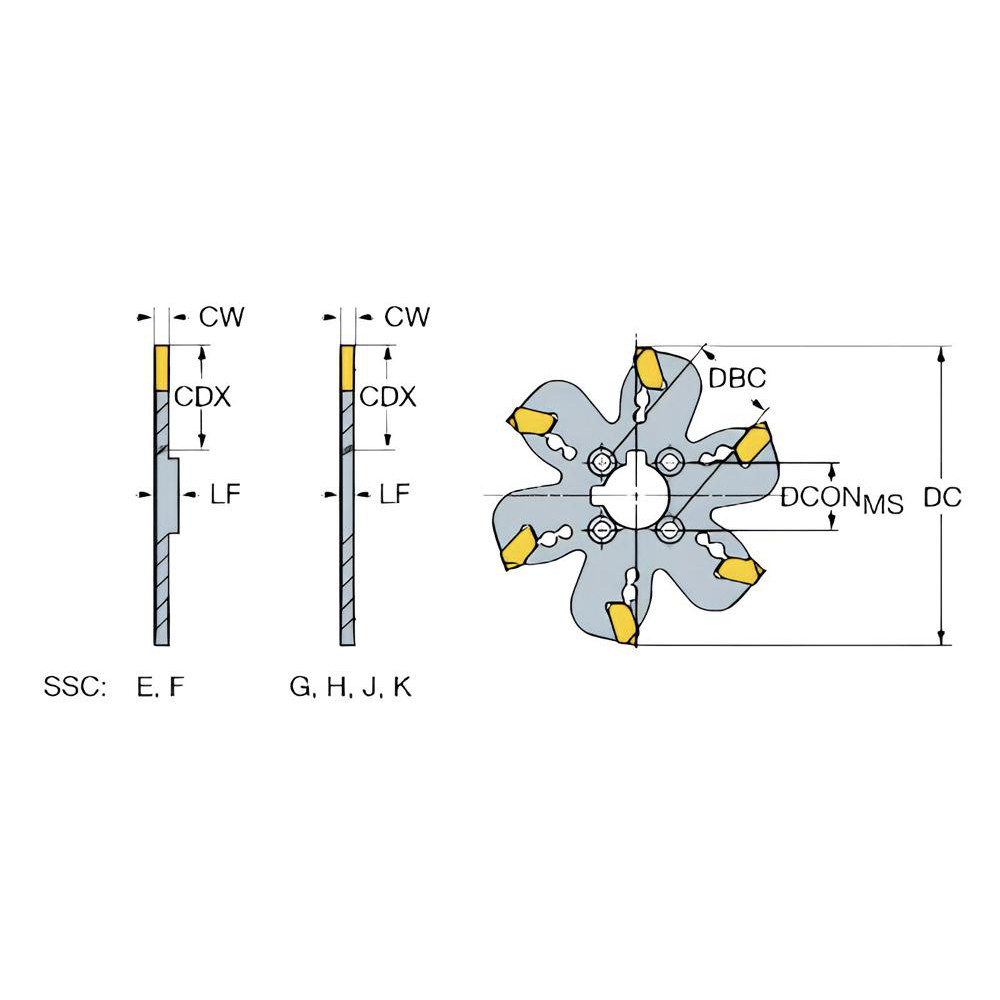

Clamp, Uses 5 Inserts, CoroMill QD -size G (QD-NG-0300-020E-PM) Inserts, 5 Tooth, Steel
| Connection Type | Arbor |
|---|---|
| Cutting Width (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.9449 |
| Maximum Depth of Cut (mm) | 24.00 |
| Hole Diameter (Mm) ( - 0 Decimals) | 10.00 |
| Hole Diameter (Decimal Inch) | 0.3937 |
| Cutter Diameter (Decimal Inch) | 3.1496 |
| Cutter Diameter (mm) | 80.00 |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp |
| Number Of Cutter Inserts | 5 |
| Compatible Insert Style | CoroMill QD -size G (QD-NG-0300-020E-PM) |
| Compatible Insert Size Code | 0300 |
| Tool Material | Steel |
| Series | CoroMill QD |
| Toolholder Style | CoroMill QD |
| Modular Connection Size | X10 |
| Maximum RPM | 6100 |
| Tool Application | Milling |
| UNSPSC Code | 23241629 |
| Maximum Body Diameter (mm) | 80.00 |
| Cutter Body Width (mm) | 3.00 |
| Weldon Flat | No |
| Manufacturers Catalog Number | QD-G-080X10-M |
| Overall Height (Decimal Inch) | 2.70 |
| Number Of Teeth | 5 |
| Coolant Through | No |
| Complete Insert Compatibility | CoroMill QD -size G (QD-NG-0300-020E-PM) |
| Country of Origin | Sweden |
| MSC Number | MSC# 49522949 |
