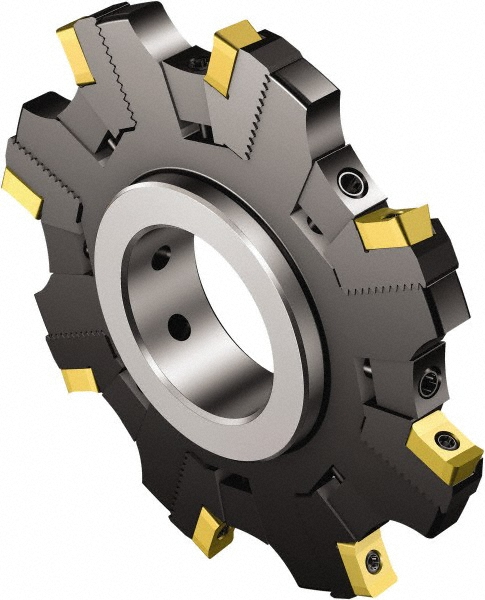

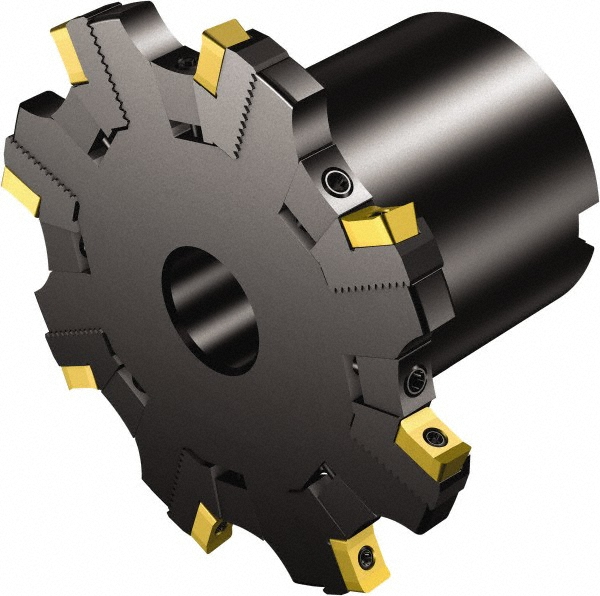

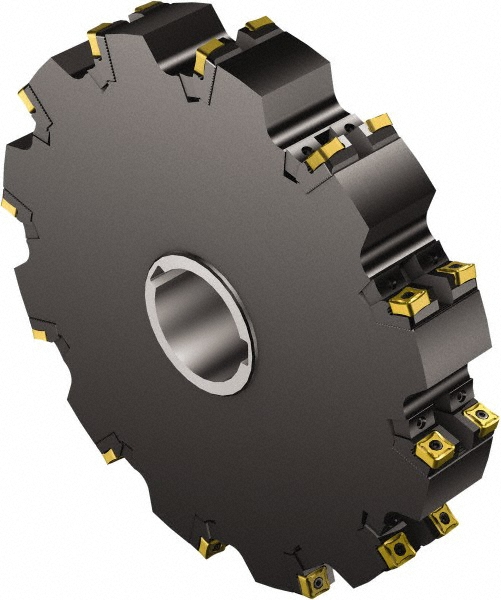

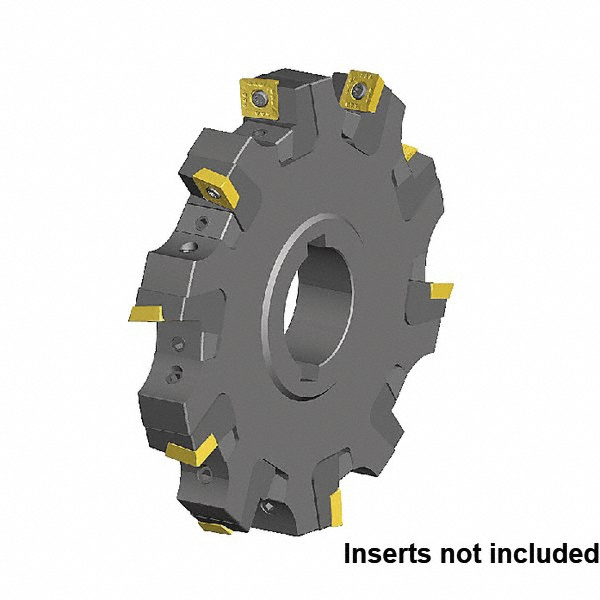

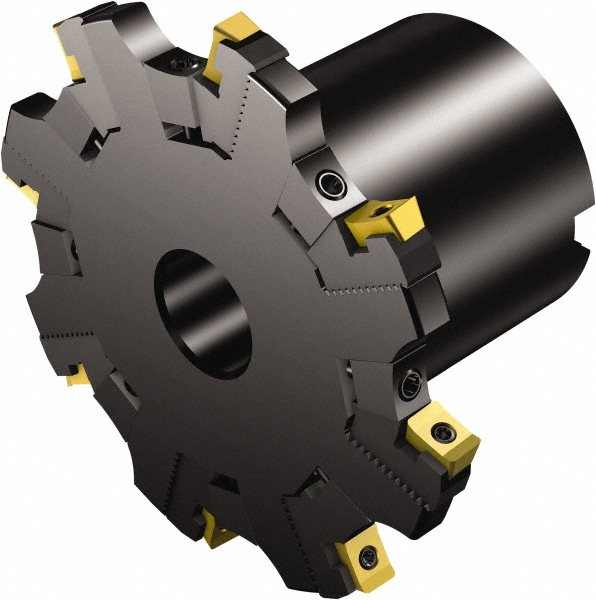

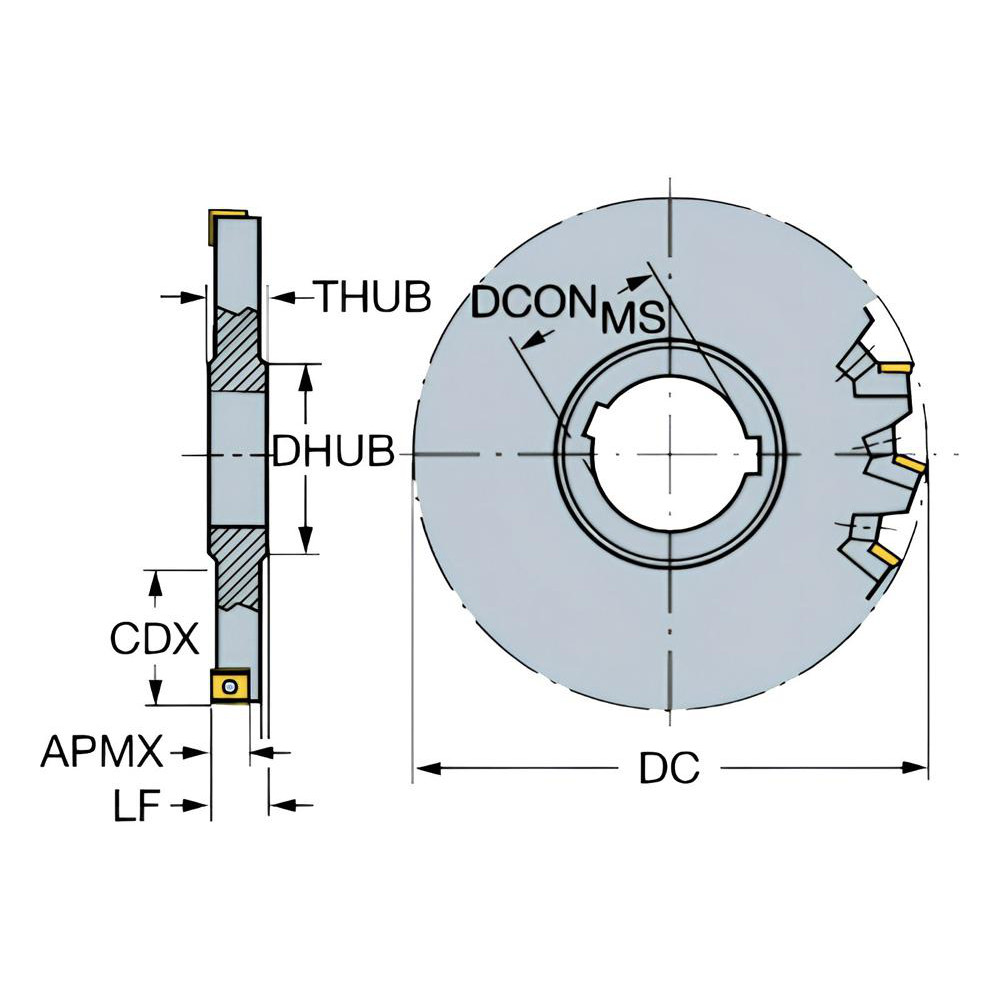

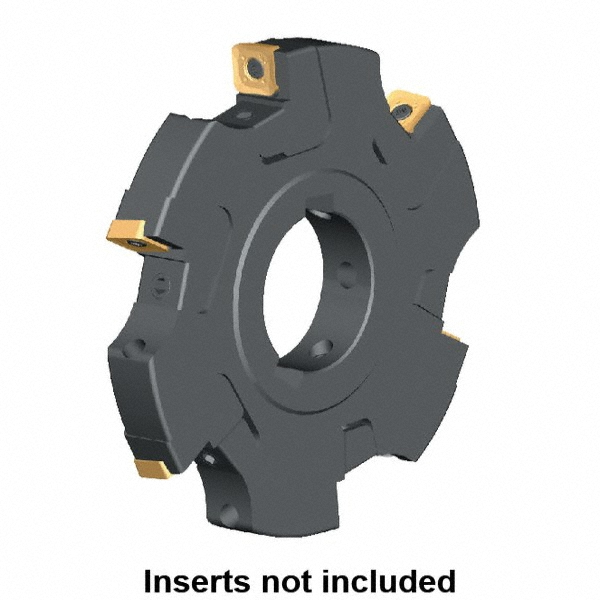

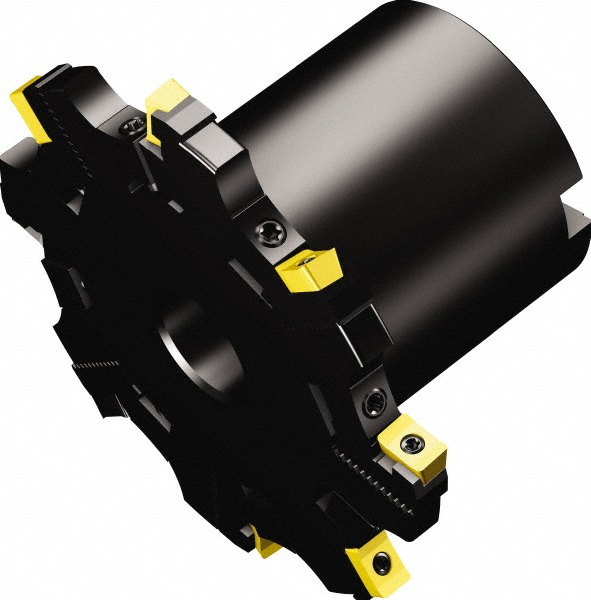

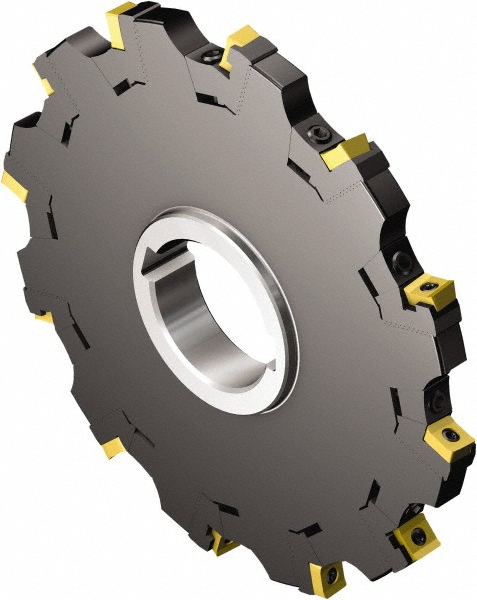

Screw, Uses 20 Inserts, CoroMill 331 -size 11 (N/L331.1A-11RE0.20-1.54) Inserts, 20 Tooth, Steel
| Connection Type | Arbor |
|---|---|
| Maximum Depth of Cut (mm) | 114.50 |
| Hole Diameter (Mm) ( - 0 Decimals) | 60.00 |
| Hole Diameter (Decimal Inch) | 2.3622 |
| Cutter Diameter (Decimal Inch) | 12.1654 |
| Cutter Diameter (mm) | 315.00 |
| Cutting Direction | Left Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 20 |
| Compatible Insert Style | CoroMill 331 -size 11 (N/L331.1A-11RE0.20-1.54) |
| Compatible Insert Size Code | Size 11 |
| Tool Material | Steel |
| Series | CoroMill 331 |
| Toolholder Style | CoroMill 331 |
| Modular Connection Size | 60 |
| Hub Diameter (Decimal Inch) | 3.3071 |
| Hub Diameter (mm) | 84.00 |
| Keyway Width (Decimal Inch) | 0.5512 |
| Maximum RPM | 7600 |
| Tool Application | Milling |
| Lead Angle | 90 |
| UNSPSC Code | 23241629 |
| Maximum Body Diameter (mm) | 315.00 |
| Weldon Flat | No |
| Manufacturers Catalog Number | L331.52-315S60NM |
| Number Of Teeth | 20 |
| Coolant Through | No |
| Complete Insert Compatibility | CoroMill 331 -size 11 (N/L331.1A-11RE0.20-1.54) |
| Overall Height (Decimal Inch) | 32.80 |
| Country of Origin | Sweden |
| MSC Number | MSC# 49541410 |
