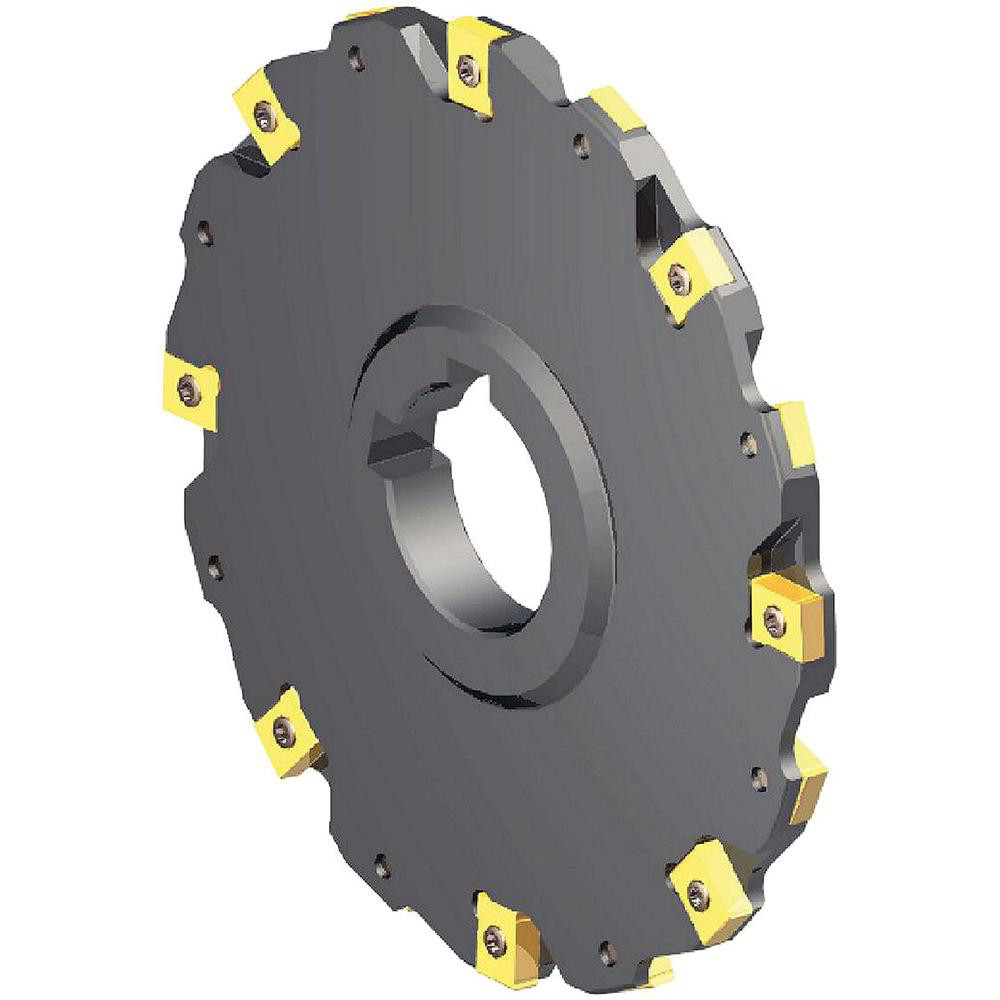

Clamp, Uses 10 Inserts, CoroMill QD -size F (QD-NF-0239-020E-PM) Inserts, 10 Tooth, Steel
| Connection Type | Arbor |
|---|---|

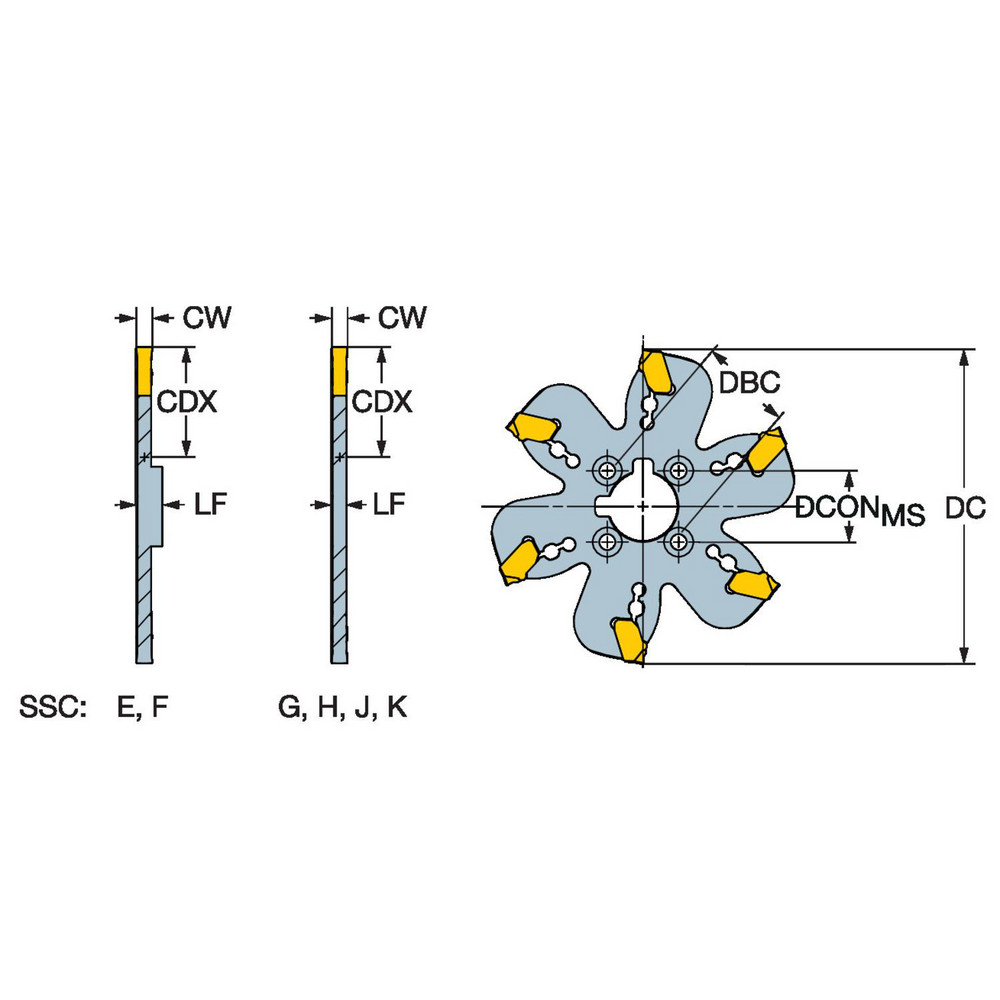

| Cutting Width (mm) | 2.39 |
| Cutting Width (Inch) | 3/32 |
| Maximum Depth of Cut (Decimal Inch) | 1.2598 |
| Maximum Depth of Cut (mm) | 32.00 |
| Hole Diameter (Inch) | 1-1/4 |
| Hole Diameter (Mm) ( - 0 Decimals) | 31.75 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Cutter Diameter (Decimal Inch) | 5.0000 |
| Cutter Diameter (Inch) | 5 |
| Cutter Diameter (mm) | 127.00 |
| Shank Diameter (mm) | 31.75 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp |
| Number Of Cutter Inserts | 10 |

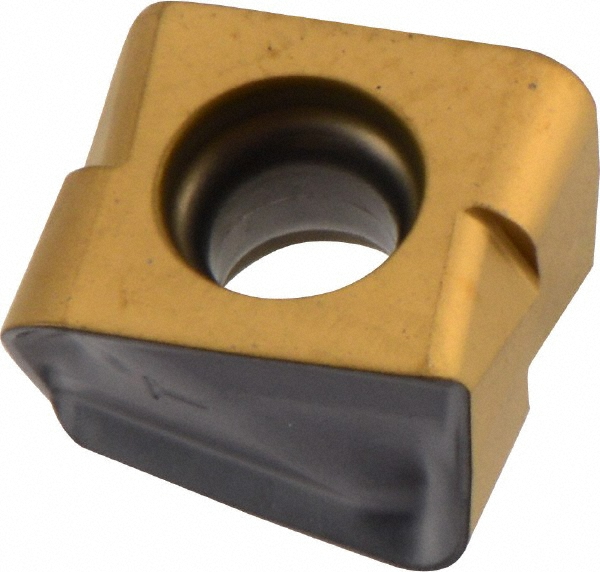

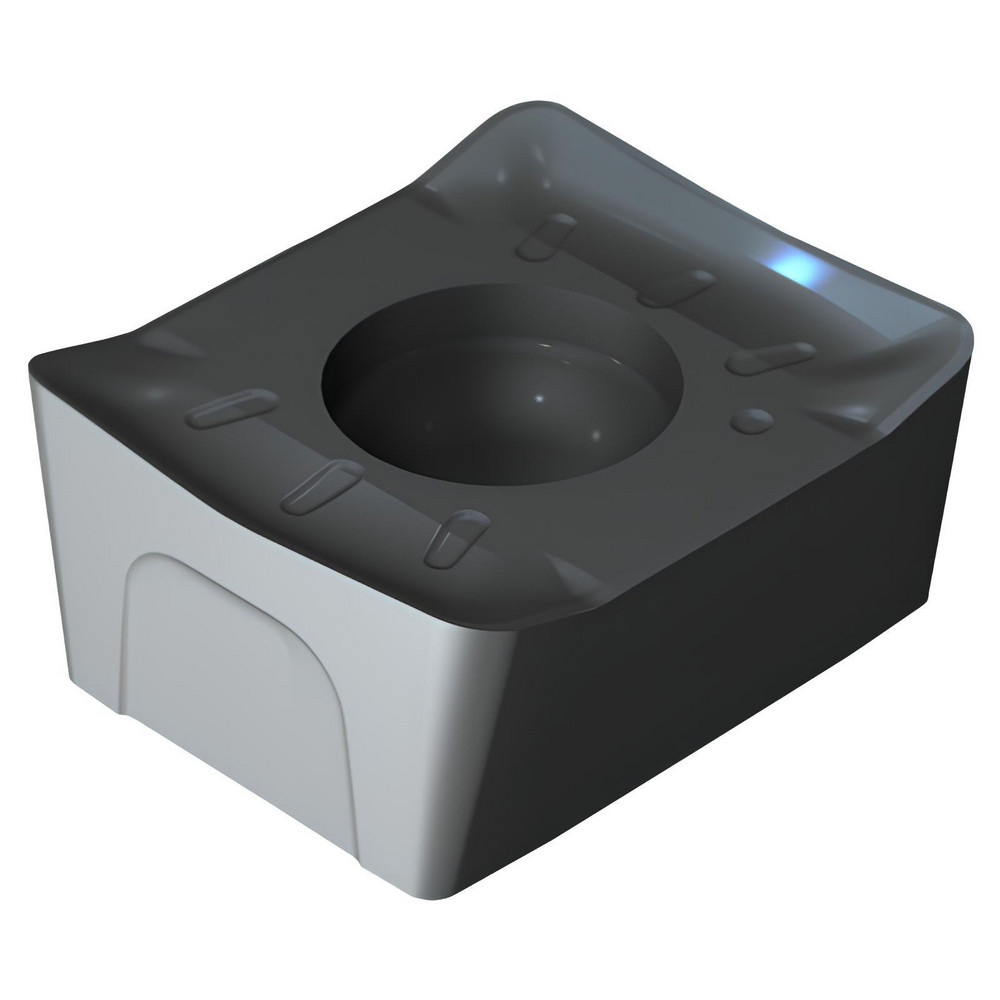

| Compatible Insert Style | CoroMill QD -size F (QD-NF-0239-020E-PM) |
| Compatible Insert Size Code | Size F |
| Tool Material | Steel |
| Series | CoroMill QD |
| Toolholder Style | CoroMill QD |
| Modular Connection Size | Y31 |
| Maximum RPM | 3900 |
| Tool Application | Milling |
| UNSPSC Code | 23241629 |
| Maximum Body Diameter (Decimal Inch) | 5.0000 |
| Cutter Body Width (Decimal Inch) | 0.0941 |
| Weldon Flat | No |
| Manufacturers Catalog Number | AQD-F-127Y31-M |
| Overall Height (Decimal Inch) | 2.19 |
| Number Of Teeth | 10 |
| Coolant Through | No |
| Complete Insert Compatibility | CoroMill QD -size F (QD-NF-0239-020E-PM) |
| Country of Origin | VARIOUS |
| MSC Number | MSC# 49686777 |
