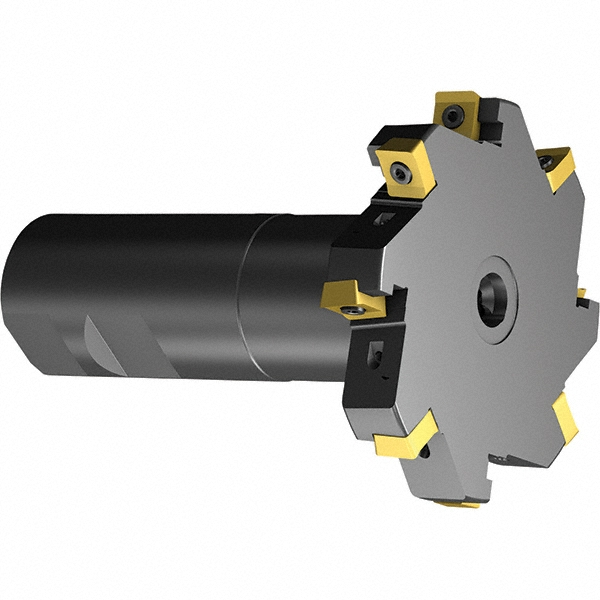

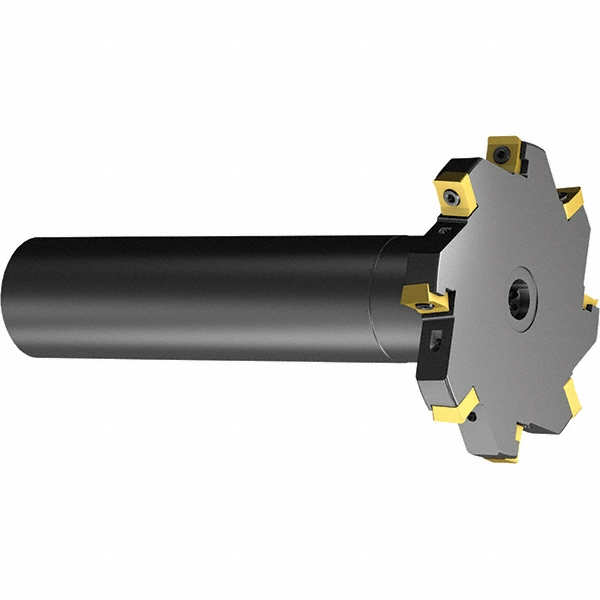

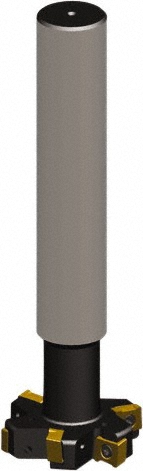

Screw, Uses 4 Inserts, CoroMill 331 -size 05 (N/R331.1A-05RE0.20-1.54) Inserts, 2 Tooth, Steel, Coolant Through
| Connection Type | Weldon |
|---|---|
| Cutting Width (mm) | 9.52 |
| Cutting Width (Inch) | 3/8 |
| Maximum Depth of Cut (Decimal Inch) | 0.4090 |
| Maximum Depth of Cut (mm) | 10.38 |
| Hole Diameter (Inch) | 1 |
| Hole Diameter (Mm) ( - 0 Decimals) | 25.40 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Cutter Diameter (Decimal Inch) | 1.5000 |
| Cutter Diameter (Inch) | 1-1/2 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 4 |
| Compatible Insert Style | CoroMill 331 -size 05 (N/R331.1A-05RE0.20-1.54) |
| Compatible Insert Size Code | Size 05 |
| Tool Material | Steel |
| Series | CoroMill 331 |
| Toolholder Style | CoroMill 331 |
| Maximum RPM | 23500 |
| Tool Application | Milling |
| UNSPSC Code | 23241629 |
| Maximum Body Diameter (Decimal Inch) | 1.5000 |
| Cutter Body Width (Decimal Inch) | 0.3750 |
| Weldon Flat | Yes |
| Manufacturers Catalog Number | R331.35C-038M25EMA06 |
| Overall Height (Decimal Inch) | 4.1400 |
| Number Of Teeth | 2 |
| Coolant Through | Yes |
| Complete Insert Compatibility | CoroMill 331 -size 05 (N/R331.1A-05RE0.20-1.54) |
| Country of Origin | Sweden |
| MSC Number | MSC# 30850499 |
