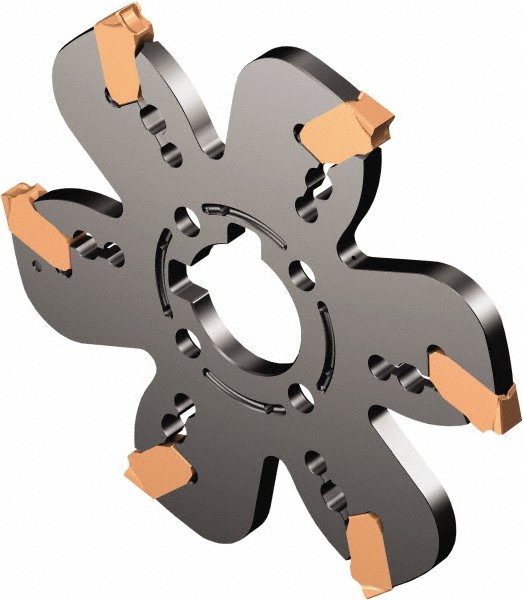

Clamp, Uses 6 Inserts, CoroMill QD -size H (QD-NH-0400-025E-PM) Inserts, 6 Tooth, Steel, Coolant Through

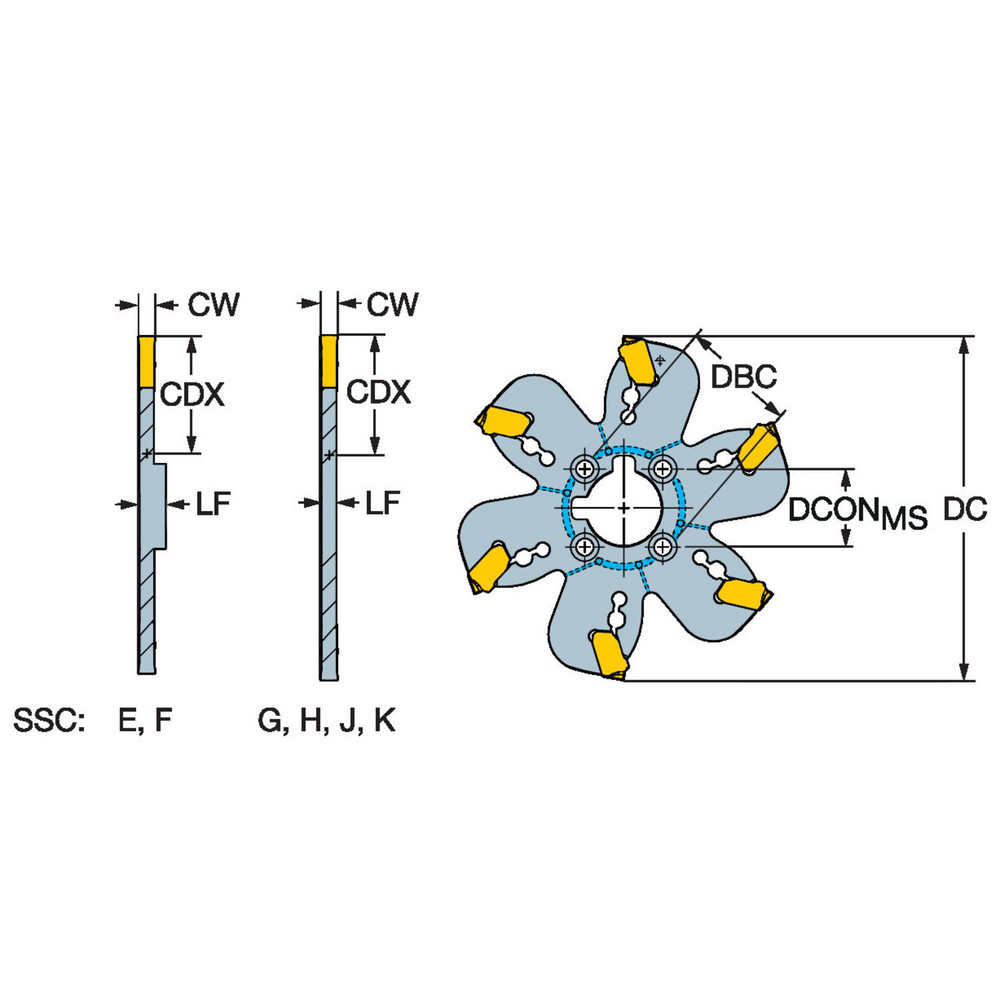

| Connection Type | Arbor |
|---|---|
| Cutting Width (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.1811 |
| Maximum Depth of Cut (mm) | 30.00 |
| Hole Diameter (Mm) ( - 0 Decimals) | 22.00 |
| Hole Diameter (Decimal Inch) | 0.8661 |
| Cutter Diameter (Decimal Inch) | 3.9370 |
| Cutter Diameter (mm) | 100.00 |
| Shank Diameter (mm) | 22.00 |
| Shank Diameter (Decimal Inch) | 0.8661 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp |
| Number Of Cutter Inserts | 6 |
| Compatible Insert Style | CoroMill QD -size H (QD-NH-0400-025E-PM) |
| Compatible Insert Size Code | 0400 |
| Tool Material | Steel |
| Series | CoroMill QD |
| Toolholder Style | CoroMill QD |
| Modular Connection Size | X22 |
| Maximum RPM | 4400 |
| Tool Application | Milling |
| UNSPSC Code | 23241629 |
| Maximum Body Diameter (mm) | 100.00 |
| Cutter Body Width (mm) | 4.00 |
| Weldon Flat | No |
| Manufacturers Catalog Number | QD-HC100X22-M |
| Overall Height (Decimal Inch) | 3.65 |
| Number Of Teeth | 6 |
| Coolant Through | Yes |
| Complete Insert Compatibility | CoroMill QD -size H (QD-NH-0400-025E-PM) |
| Country of Origin | Sweden |
| MSC Number | MSC# 49522881 |
