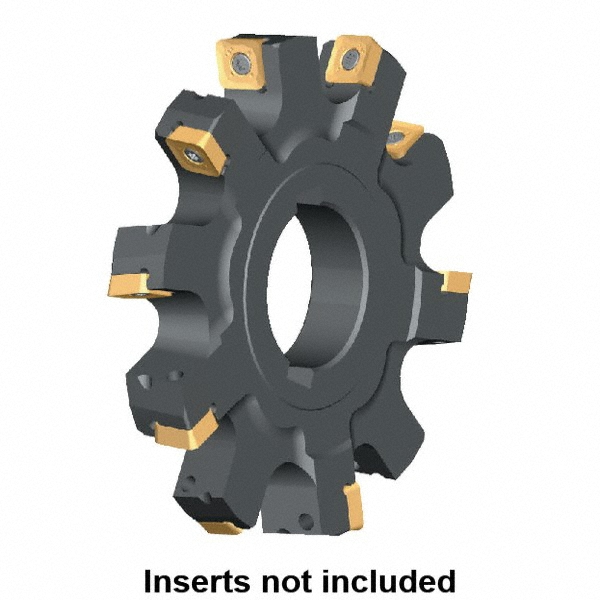

Clamp, Uses 18 Inserts, CoroMill QD -size J (QD-NJ-0500-030E-PM) Inserts, 18 Tooth, Steel
| Connection Type | Arbor |
|---|---|
| Cutting Width (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 3.3465 |
| Maximum Depth of Cut (mm) | 85.00 |
| Hole Diameter (Mm) ( - 0 Decimals) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Cutter Diameter (Decimal Inch) | 9.8425 |
| Cutter Diameter (mm) | 250.00 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp |
| Number Of Cutter Inserts | 18 |
| Compatible Insert Style | CoroMill QD -size J (QD-NJ-0500-030E-PM) |
| Compatible Insert Size Code | 0500 |
| Tool Material | Steel |
| Series | CoroMill QD |
| Toolholder Style | CoroMill QD |
| Modular Connection Size | X40 |
| Maximum RPM | 2400 |
| Tool Application | Milling |
| UNSPSC Code | 23241629 |
| Maximum Body Diameter (mm) | 250.00 |
| Cutter Body Width (mm) | 5.00 |
| Weldon Flat | No |
| Manufacturers Catalog Number | QD-J-250X40-M |
| Overall Height (Decimal Inch) | 4.65 |
| Number Of Teeth | 18 |
| Coolant Through | No |
| Complete Insert Compatibility | CoroMill QD -size J (QD-NJ-0500-030E-PM) |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 49522857 |
