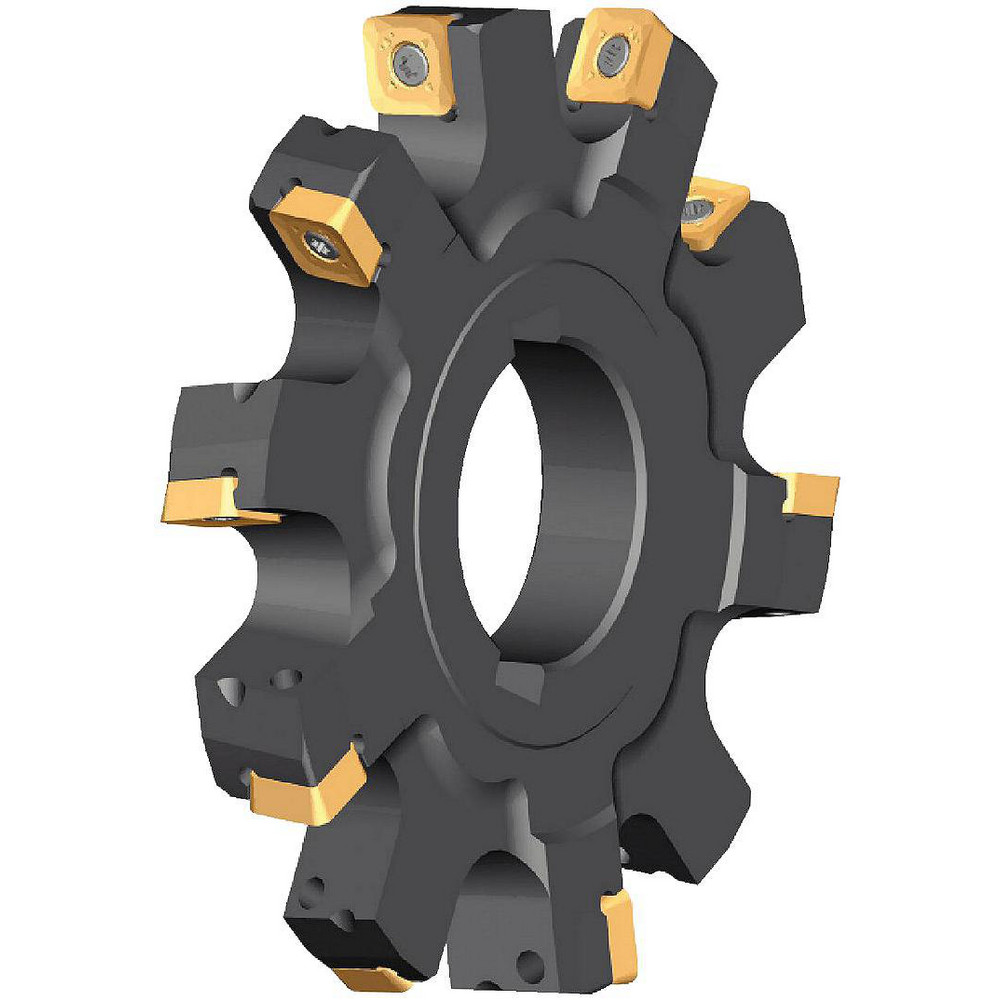

Screw, Uses 12 Inserts, CoroMill 331 -size 05 (N/R331.1A-05RE0.20-1.54) Inserts, 6 Tooth, Steel, Coolant Through
| Connection Type | Arbor |
|---|---|
| Cutting Width (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.4650 |
| Maximum Depth of Cut (mm) | 37.21 |
| Hole Diameter (Inch) | 1-1/2 |
| Hole Diameter (Mm) ( - 0 Decimals) | 38.10 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Cutter Diameter (Decimal Inch) | 6.0000 |
| Cutter Diameter (Inch) | 6 |
| Cutter Diameter (mm) | 152.40 |
| Shank Diameter (mm) | 38.10 |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 12 |
| Compatible Insert Style | CoroMill 331 -size 05 (N/R331.1A-05RE0.20-1.54) |
| Compatible Insert Size Code | Size 05 |
| Tool Material | Steel |
| Series | CoroMill 331 |
| Toolholder Style | CoroMill 331 |
| Hub Diameter (Decimal Inch) | 2.8740 |
| Hub Diameter (mm) | 71.00 |
| Maximum RPM | 10200 |
| Tool Application | Milling |
| Minimum Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Cutting Width (Decimal Inch) | 0.3937 |
| Maximum Cutting Width (mm) | 10.00 |
| UNSPSC Code | 23241629 |
| Maximum Body Diameter (Decimal Inch) | 6.0000 |
| Cutter Body Width (Decimal Inch) | 0.3150 |
| Weldon Flat | No |
| Manufacturers Catalog Number | R331.32C-152R38DM |
| Overall Height (Decimal Inch) | 2.0000 |
| Number Of Teeth | 6 |
| Coolant Through | Yes |
| Complete Insert Compatibility | CoroMill 331 -size 05 (N/R331.1A-05RE0.20-1.54) |
| Country of Origin | Sweden |
| MSC Number | MSC# 30850481 |
