Uses (2) 490R-08T308 Inserts, Through Coolant, 85.09 mm OAL

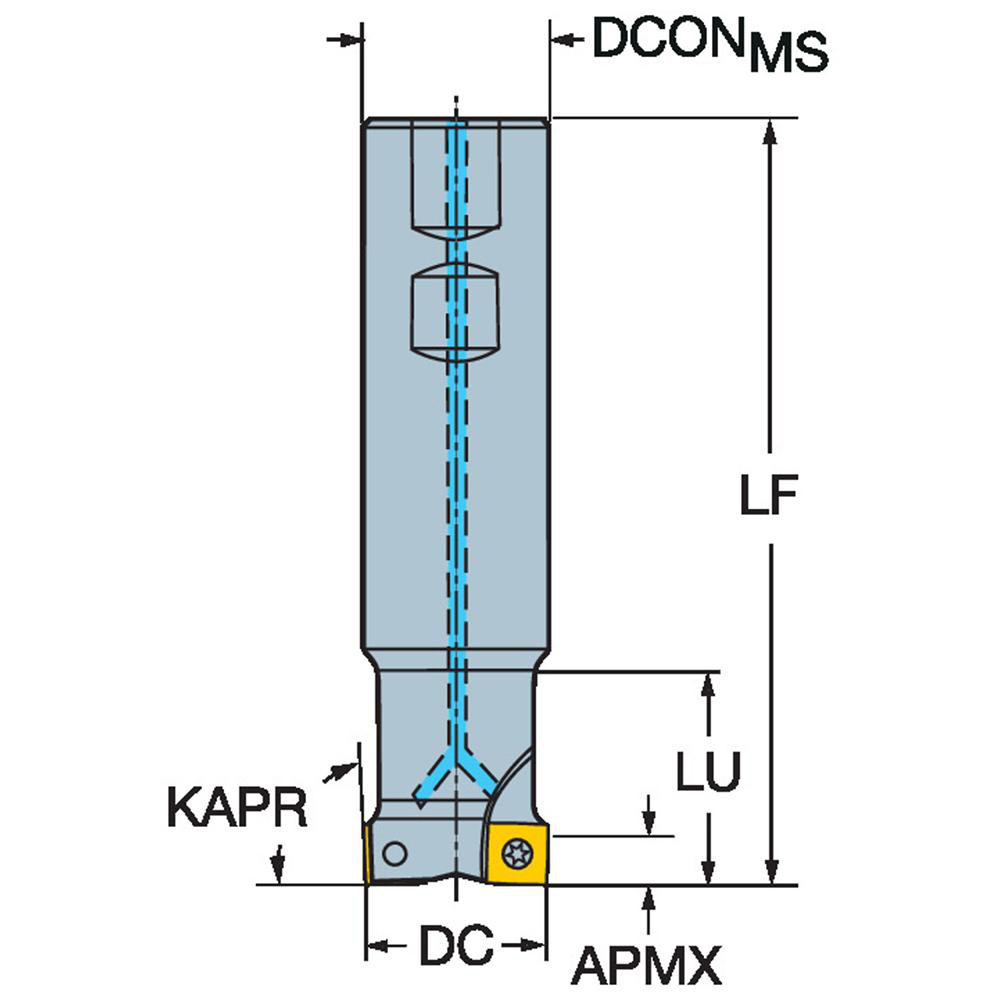

| Cutting Diameter | 3/4 |
|---|---|
| Overall Length (Decimal Inch) | 3.3500 |
| Overall Length (mm) | 85.09 |
| Maximum Depth of Cut (mm) | 5.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2165 |
| Cutter Style | CoroMill 490 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Insert Holding Method | Screw |
| Tool Material | Steel |
| Series | CoroMill 490 |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.3300 |
| Head Length (Decimal Inch) | 1.02 |
| Head Length (mm) | 25.91 |
| Maximum RPM | 50600 |

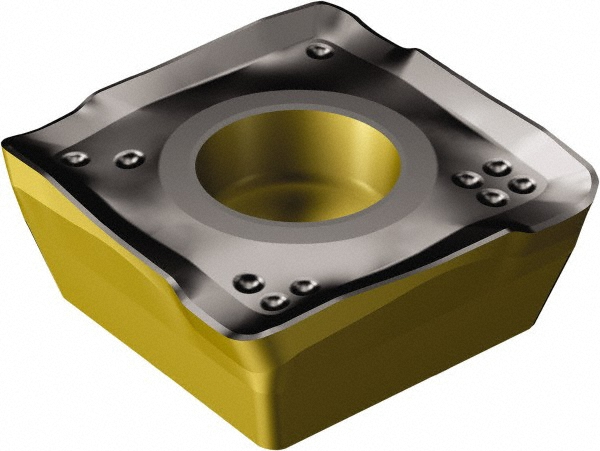

| Insert Compatibility | 490R-08T308 |
| UNSPSC Code | 27112803 |
| ISO Number | A490-019M19-08L |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 52084159 |
