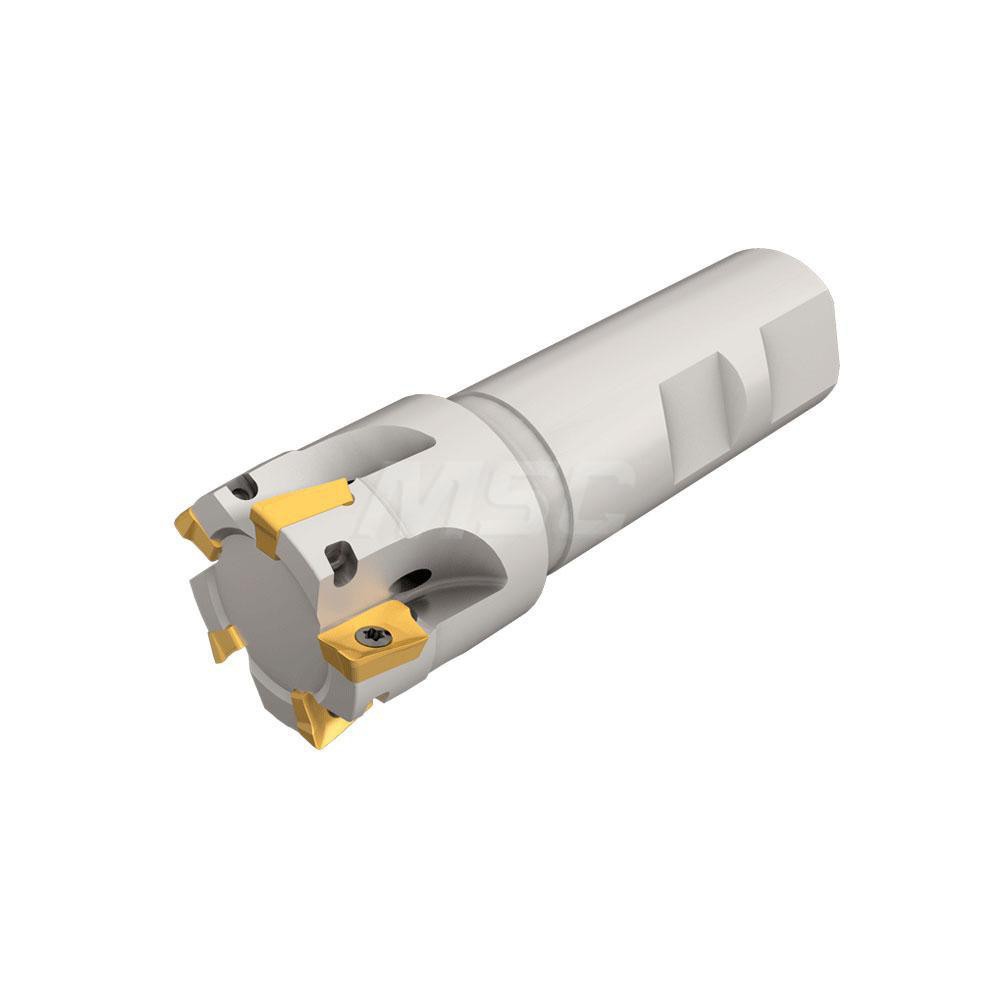

Uses (3) R390-11.. Inserts, Through Coolant, 3-3/4" OAL

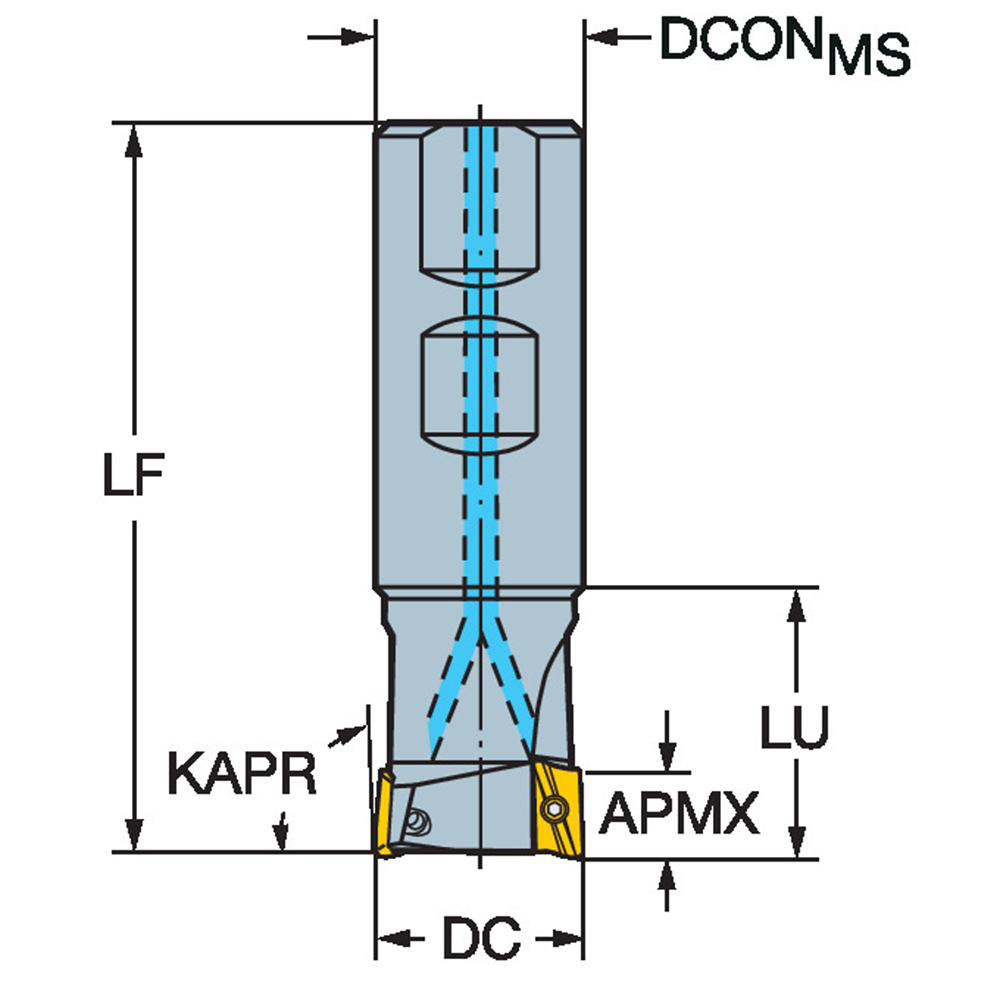

| Cutting Diameter | 1 |
|---|---|
| Overall Length (Decimal Inch) | 3.7510 |
| Overall Length (Inch) | 3-3/4 |
| Maximum Depth of Cut (mm) | 10.01 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Cutter Style | CoroMill 390 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |

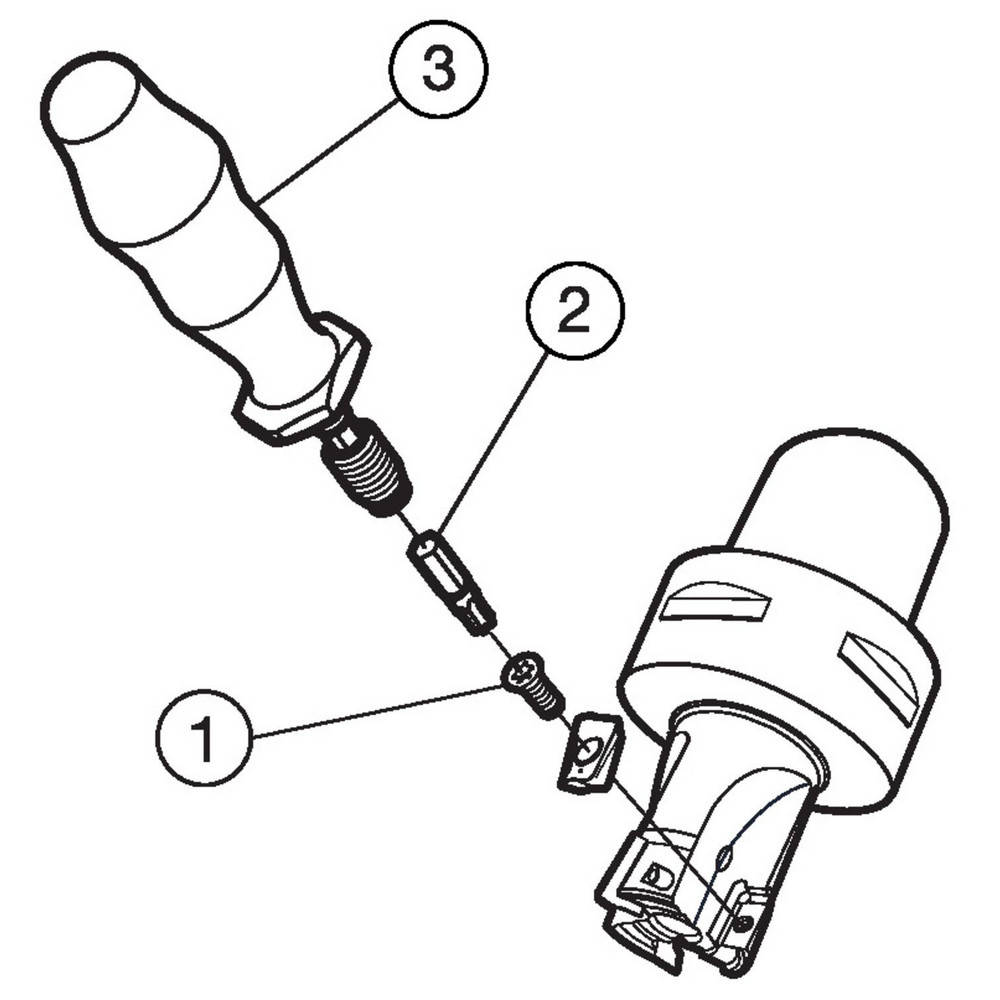

| Insert Holding Method | Screw |
| Tool Material | Steel |
| Series | CoroMill 390 |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.5010 |
| Head Length (Inch) | 1-1/4 |
| Head Length (Decimal Inch) | 1.25 |
| Maximum RPM | 36100 |
| Tool Application | Ramping |

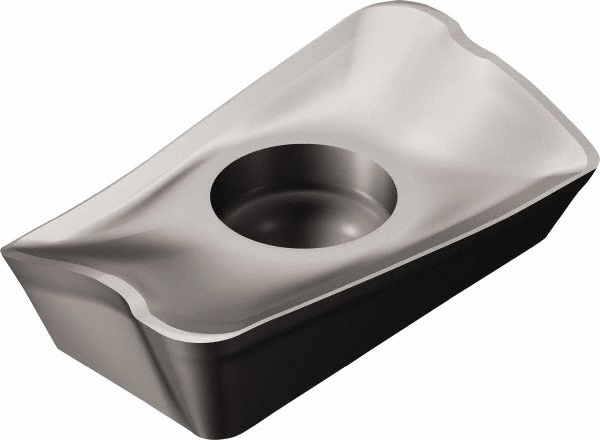

| Insert Compatibility | R390-11.. |
| UNSPSC Code | 27112803 |
| ISO Number | RA390-025M25-11M |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 45301637 |
