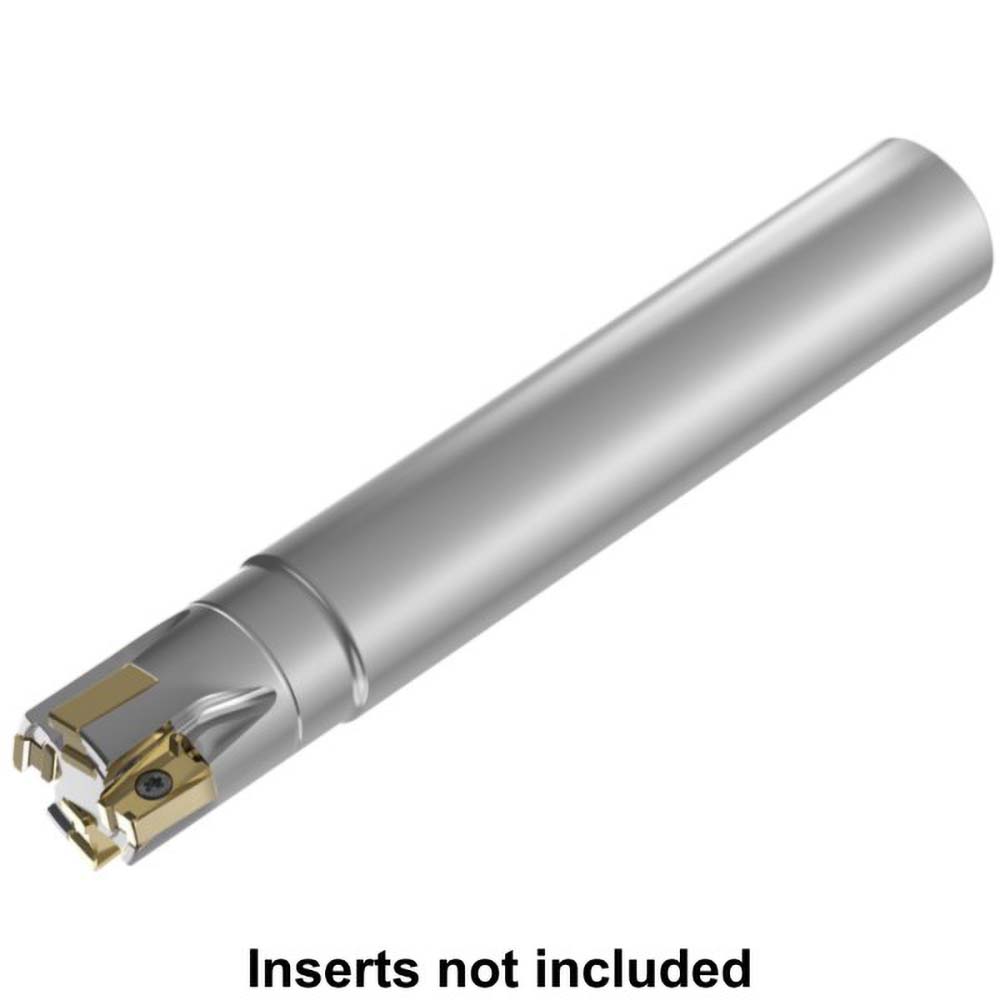

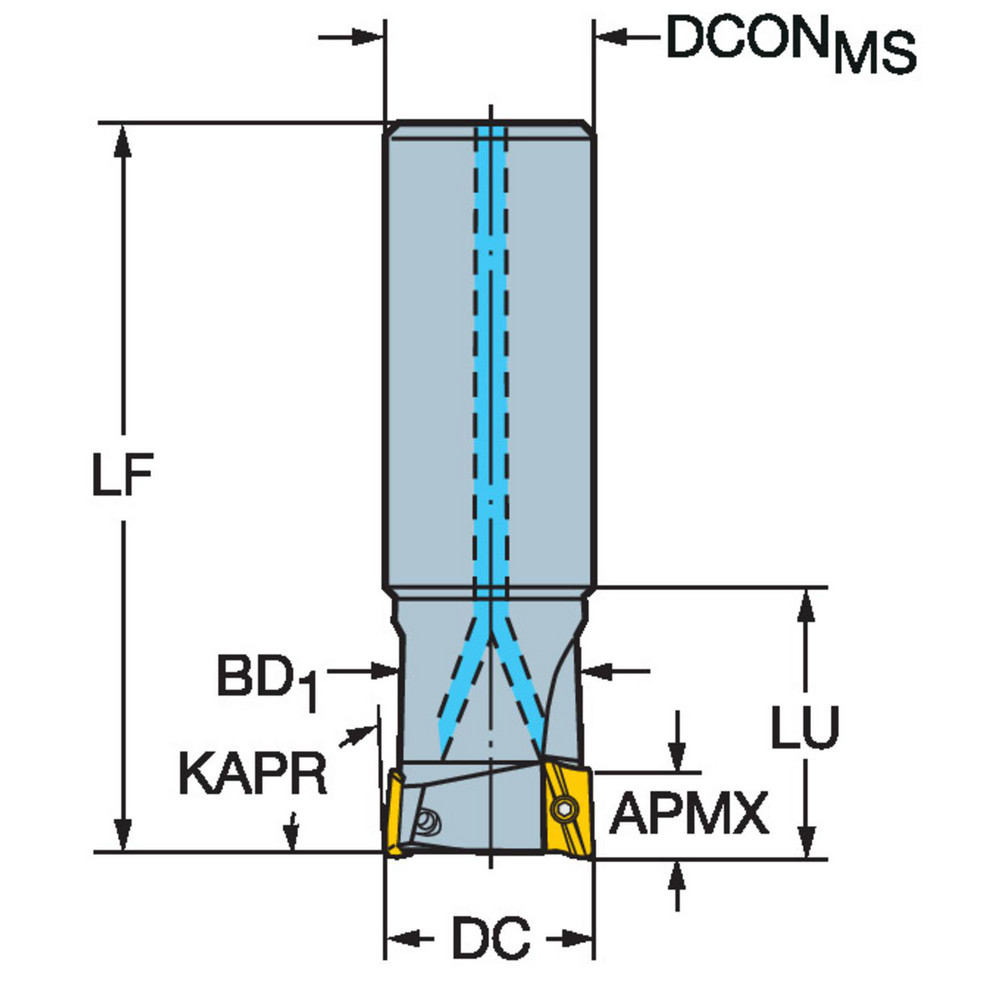

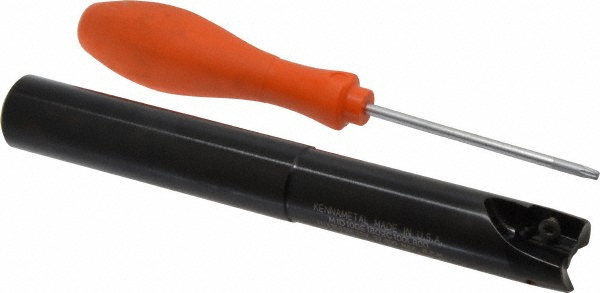

Uses (3) R390-11.. Inserts, Through Coolant, 8" OAL
| Cutting Diameter | 1 |
|---|---|
| Overall Length (Decimal Inch) | 8.0000 |
| Overall Length (Inch) | 8 |
| Maximum Depth of Cut (mm) | 10.01 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Cutter Style | CoroMill 390 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Insert Holding Method | Screw |
| Tool Material | Steel |
| Series | CoroMill 390 |
| Lead Angle | 90 |
| Shank Length (Inch) | 5-7/8 |
| Shank Length (Decimal Inch) | 5.8750 |
| Head Length (Inch) | 2-1/8 |
| Head Length (Decimal Inch) | 2.125 |
| Maximum RPM | 12100 |
| Tool Application | Ramping |

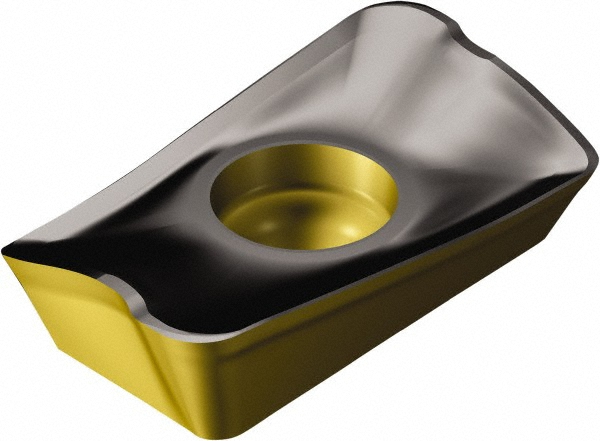

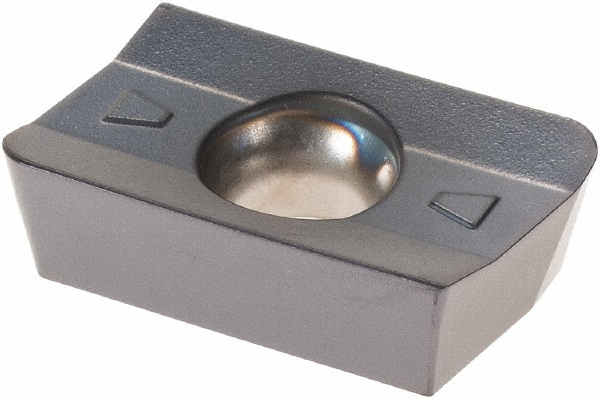

| Insert Compatibility | R390-11.. |
| UNSPSC Code | 27112803 |
| ISO Number | RA390-025O25L-11M |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 66813254 |
