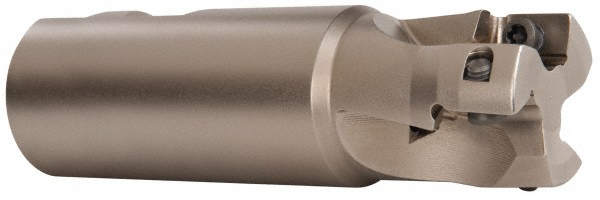

Uses (3) R390-17.. Inserts, Through Coolant, 4" OAL

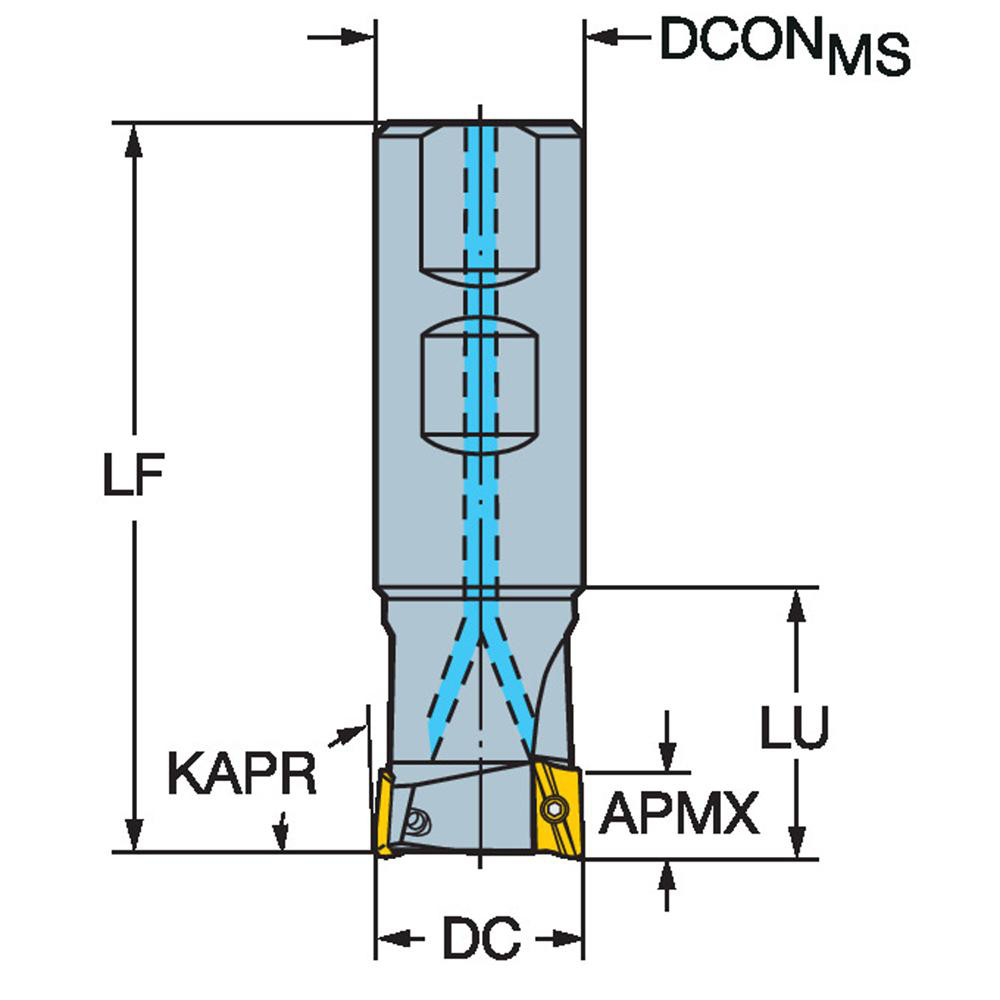

| Cutting Diameter | 1-1/4 |
|---|---|
| Overall Length (Decimal Inch) | 4.0010 |
| Overall Length (Inch) | 4 |
| Maximum Depth of Cut (mm) | 15.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.6180 |
| Cutter Style | CoroMill 390 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |

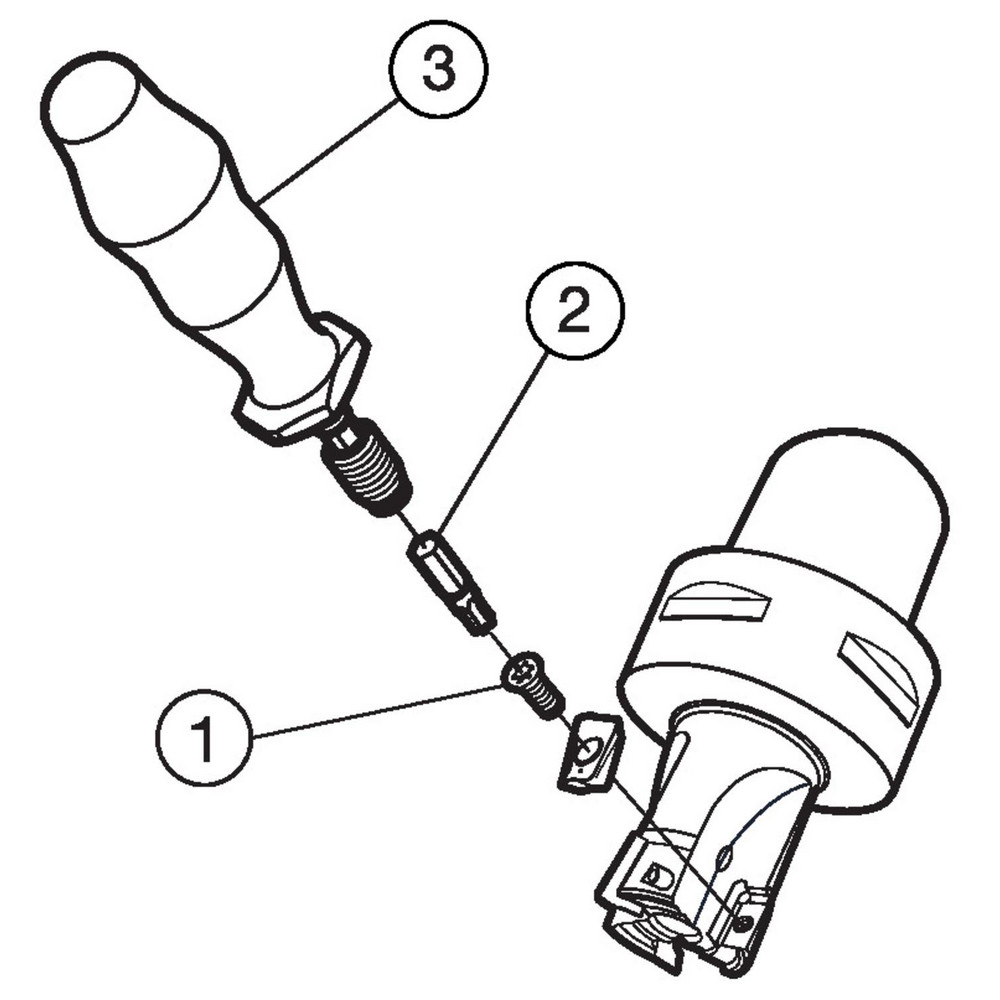

| Insert Holding Method | Screw |
| Tool Material | Steel |
| Series | CoroMill 390 |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.4210 |
| Head Length (Decimal Inch) | 1.58 |
| Head Length (mm) | 40.13 |
| Maximum RPM | 25700 |
| Tool Application | Ramping |
| Insert Compatibility | R390-17.. |
| UNSPSC Code | 27112803 |
| ISO Number | RA390-032M32-17M |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 54965421 |
