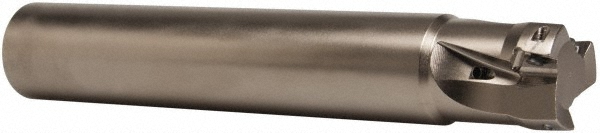

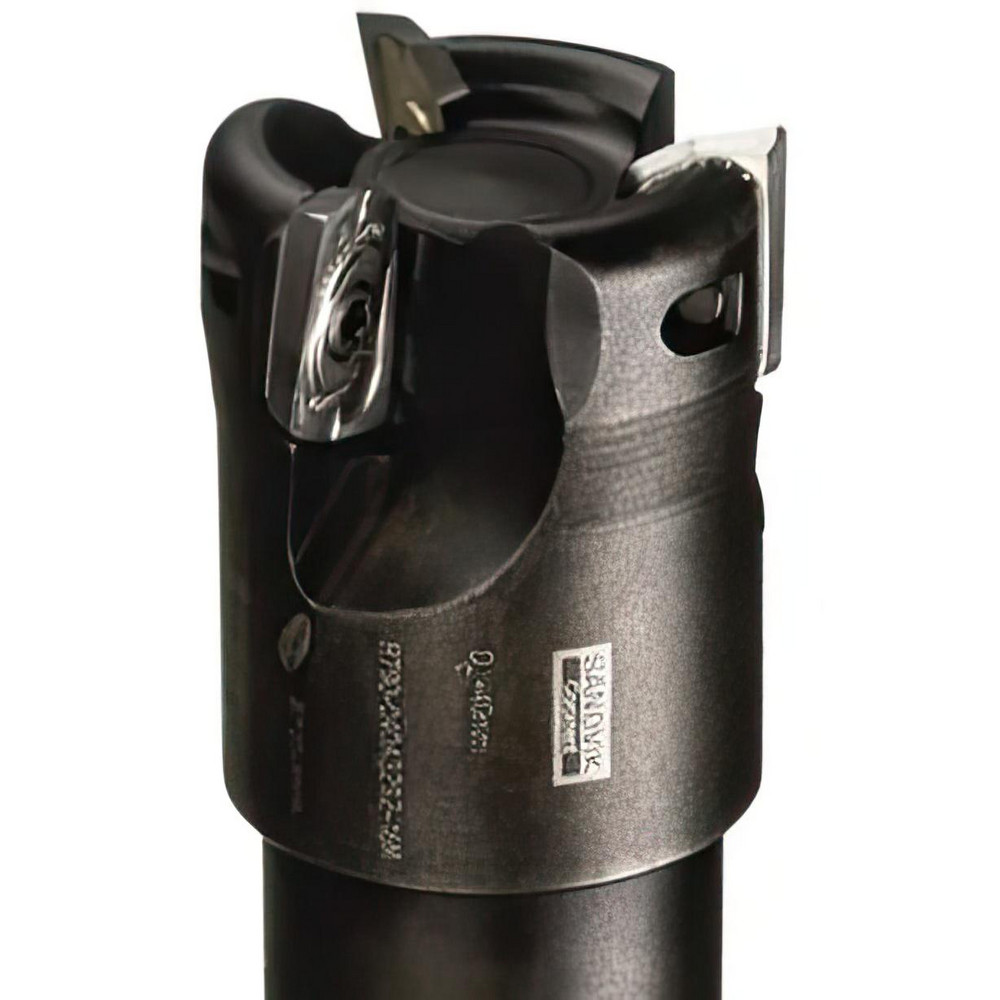

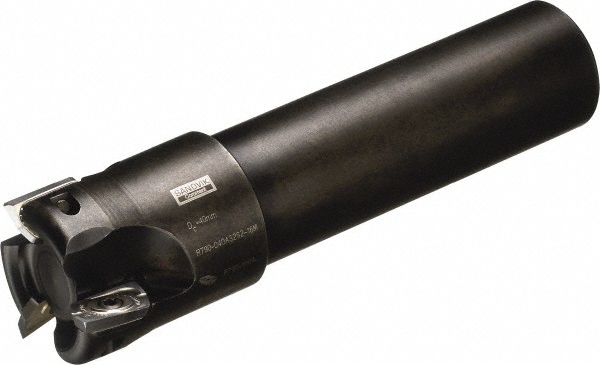

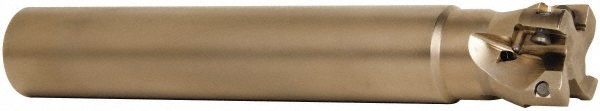

Uses (3) R790-160405H-NM;R790-160405PH-NL;R790-160405PH-NM;R790-160408PH-NL;R790-160408PH-NM;R790-160408PH-PL;R790-160416H-NM;R790-160416PH-NL;R790-160416PH-NM;R790-160416PH-PL;R790-160420H-NM;R790-160420PH-NL;R790-160420PH-NM;R790-160420PH-PL;R790-160424H-NM Inserts, Through Coolant, 5-1/4" OAL
| Cutting Diameter | 1-1/2 |
|---|---|
| Overall Length (Decimal Inch) | 5.2500 |
| Overall Length (Inch) | 5-1/4 |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Cutter Style | RA790-038O32S1-16M |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Insert Holding Method | Screw |
| Tool Material | Steel |
| Series | CoroMill 790 |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 3.8720 |
| Head Length (Decimal Inch) | 1.378 |
| Maximum RPM | 43900 |
| Insert Compatibility | R790-160424H-NM; R790-160416PH-NM; R790-160416PH-NL; R790-160408PH-PL; R790-160416H-NM; R790-160416PH-PL; R790-160405H-NM; R790-160405PH-NL; R790-160420PH-PL; R790-160405PH-NM; R790-160408PH-NM; R790-160408PH-NL; R790-160420PH-NL; R790-160420H-NM; R790-160420PH-NM |
| UNSPSC Code | 27112803 |
| ISO Number | RA790-038O32S1-16M |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 42151829 |
