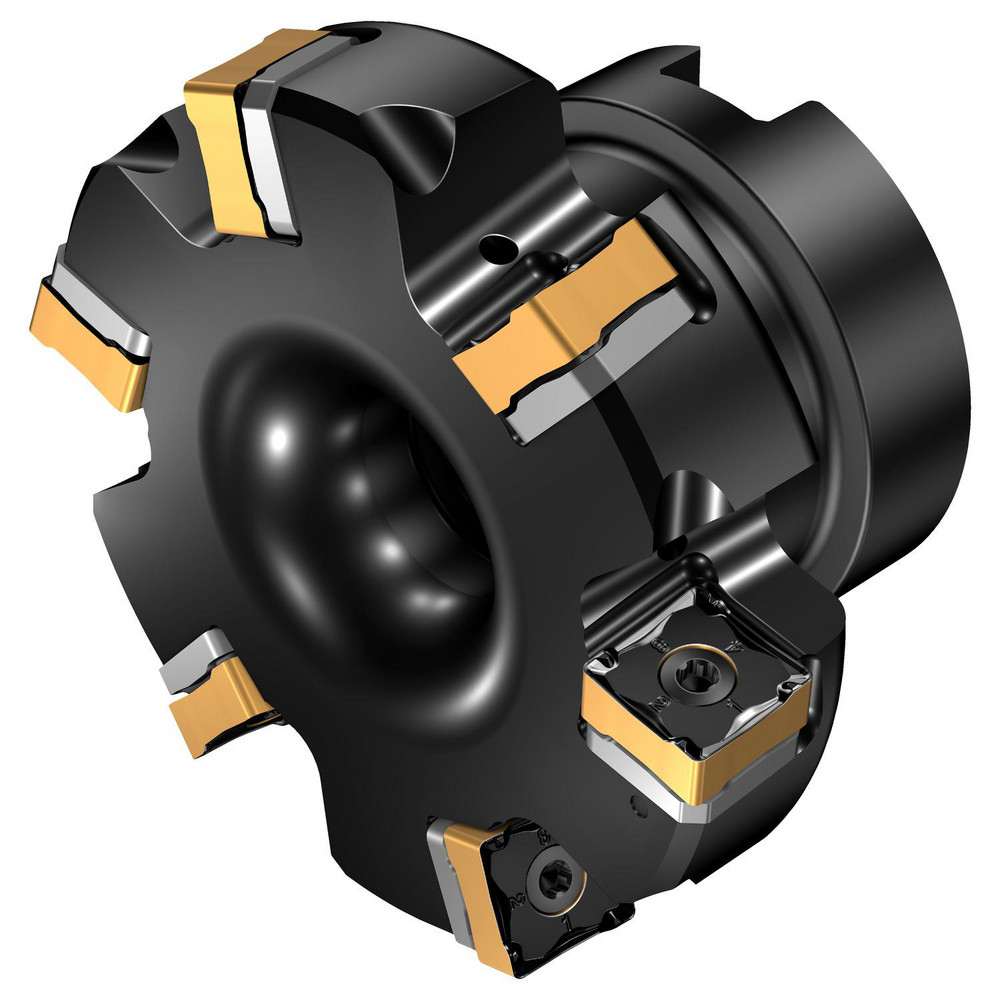

Uses 10, MF80 -1305 Inserts, Through Coolant, Series CoroMill®
| Minimum Cutting Diameter (Decimal Inch) | 3.9370 |
|---|---|
| Minimum Cutting Diameter (mm) | 100.00 |
| Maximum Cutting Diameter (Decimal Inch) | 3.9370 |
| Maximum Cutting Diameter (mm) | 100.00 |
| Maximum Depth of Cut (mm) | 9.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3543 |
| Compatible Insert Size Code | MF80 -1305 |
| Cutter Style | MF80-R…Qxx |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw Clamping |
| Series | CoroMill |
| Pitch Type | Extra Close |
| Tool Application | Facing; Milling; Shouldering |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | MF80-R100Q32-13H |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 10 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 83054056 |
