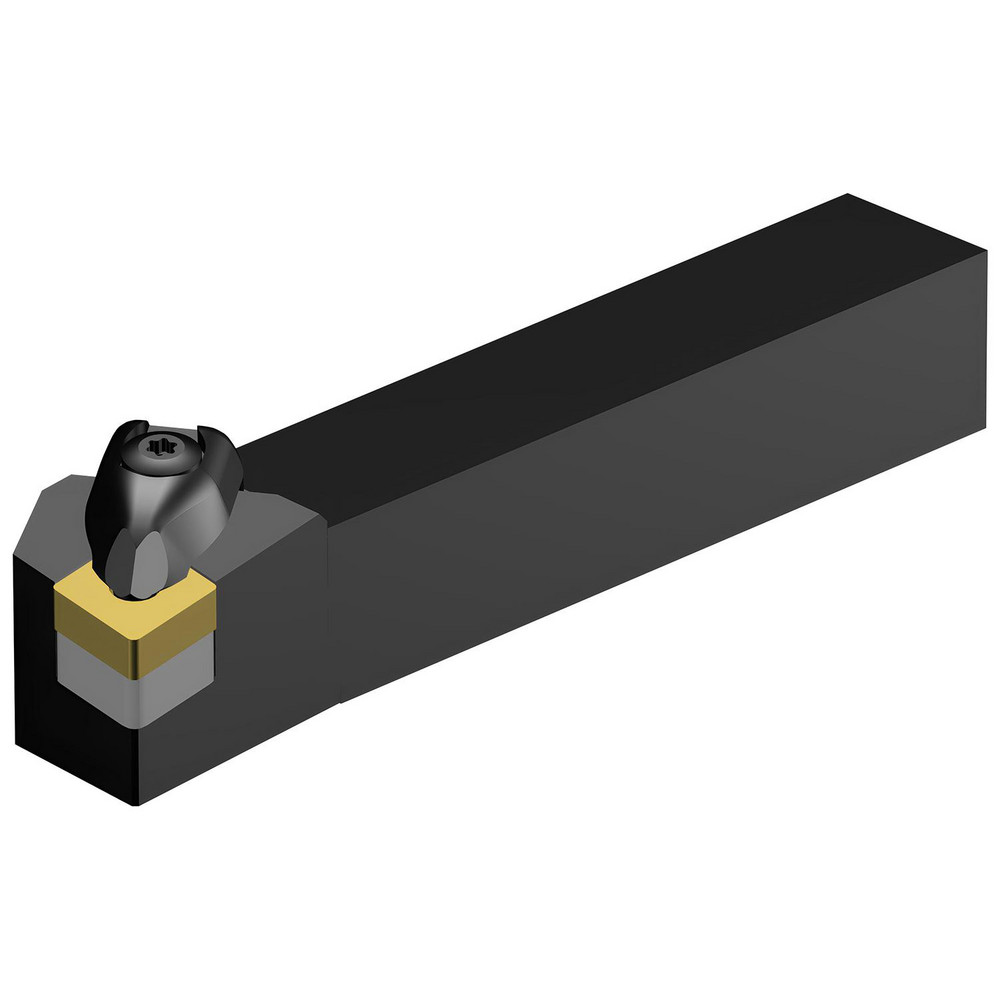

20.00 x 20.00 mm Shank, 125.00 mm OAL
| Toolholder Style | DCLN |
|---|---|
| Hand of Holder | Right Hand |
| Insert Compatibility | CNMG 12 04 08 |
| Insert Holding Method | Wedge |

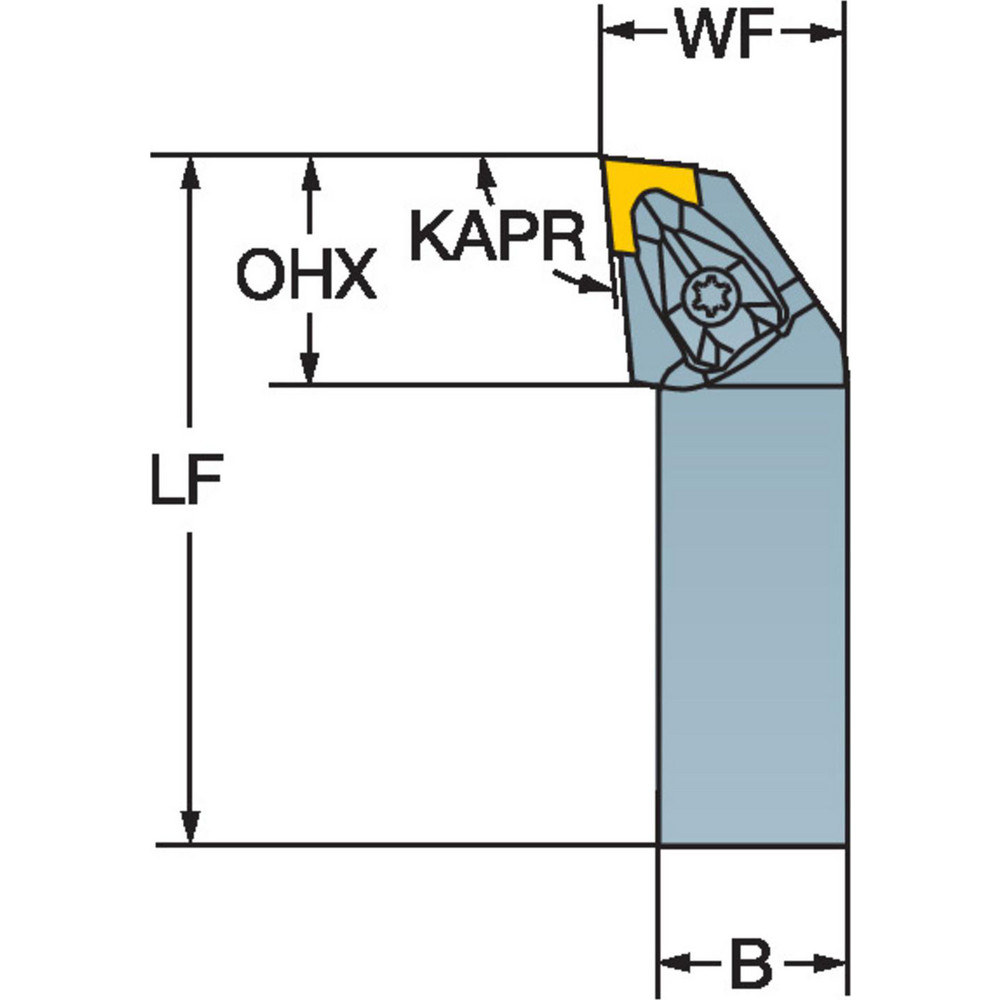

| Overall Length (Decimal Inch) | 4.9213 |
| Shank Width (mm) | 20.00 |

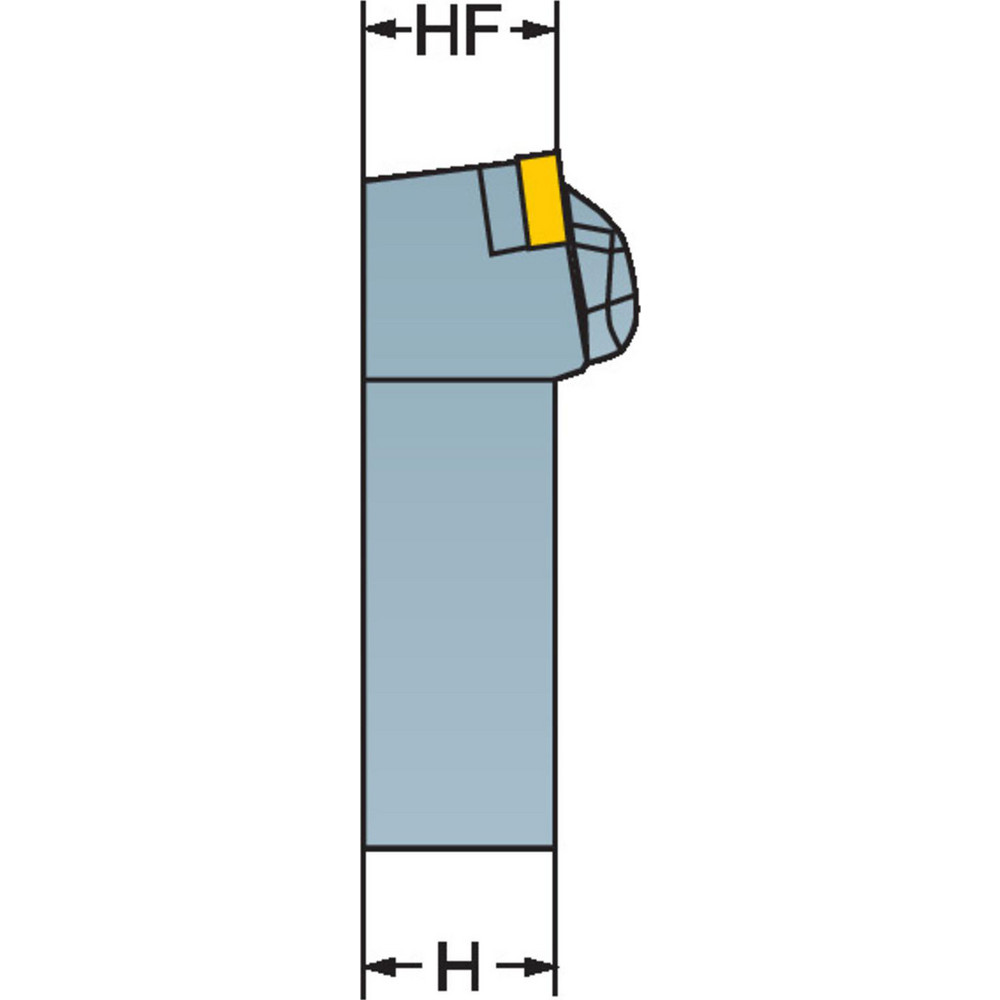

| Shank Height (mm) | 20.00 |
| Rake | Negative |

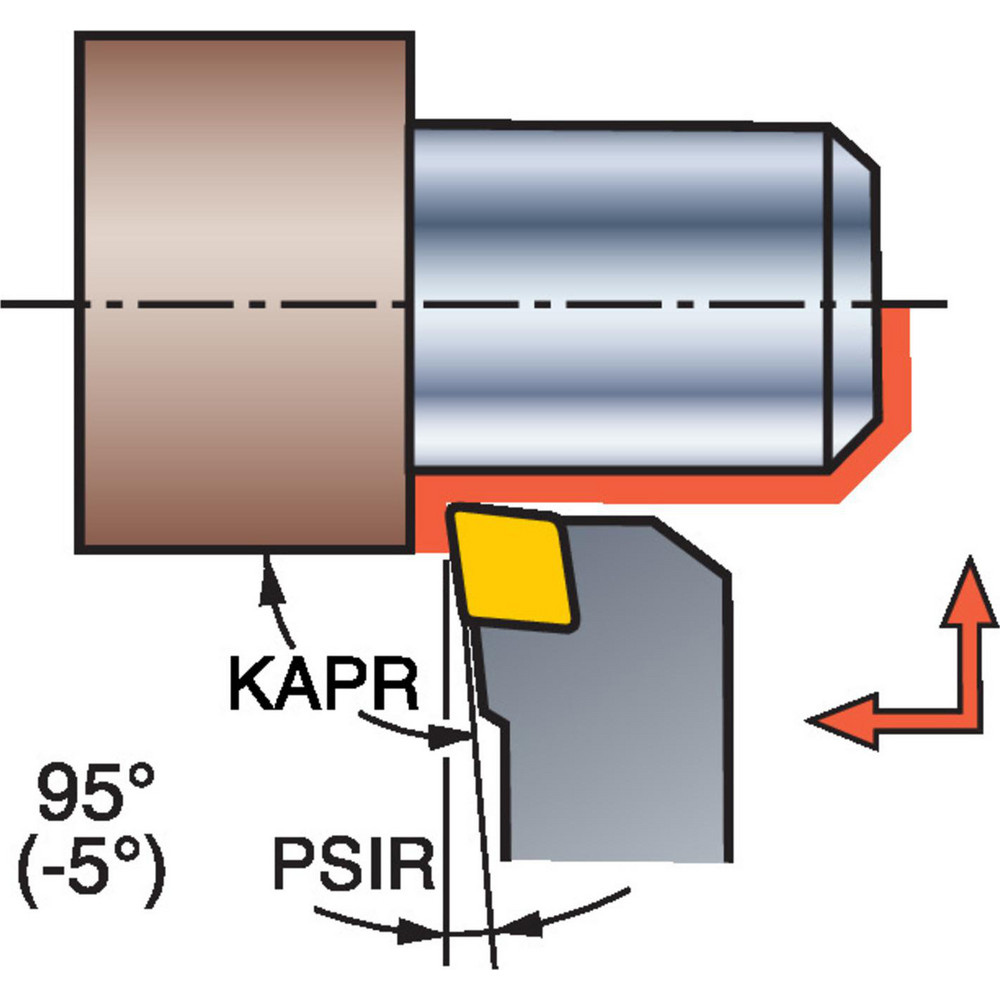

| Rake Angle | -6 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 0.7874 |
| Shank Height (Decimal Inch) | 0.7874 |
| Series | T-Max P |
| Head Length (Decimal Inch) | 1.2598 |
| Head Length (mm) | 32.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9843 |
| Back of Bar to Cutting Edge (mm) | 25.00 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| Country of Origin | Sweden |
| MSC Number | MSC# 49443583 |
