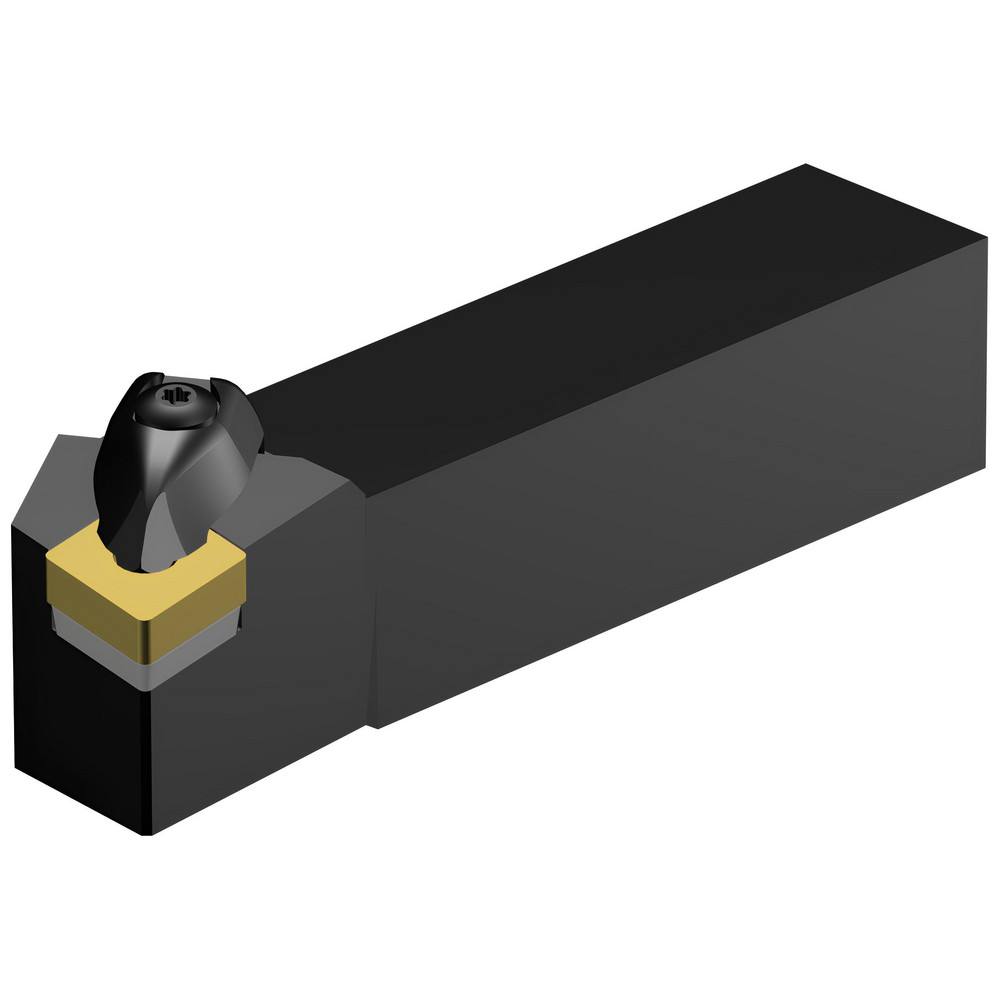

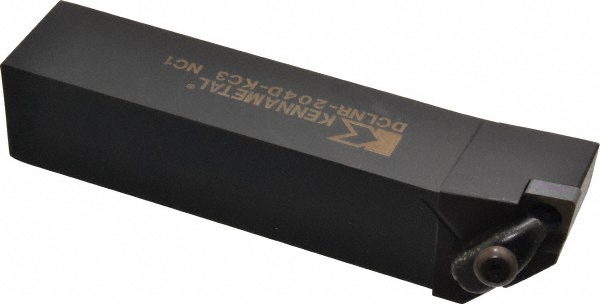

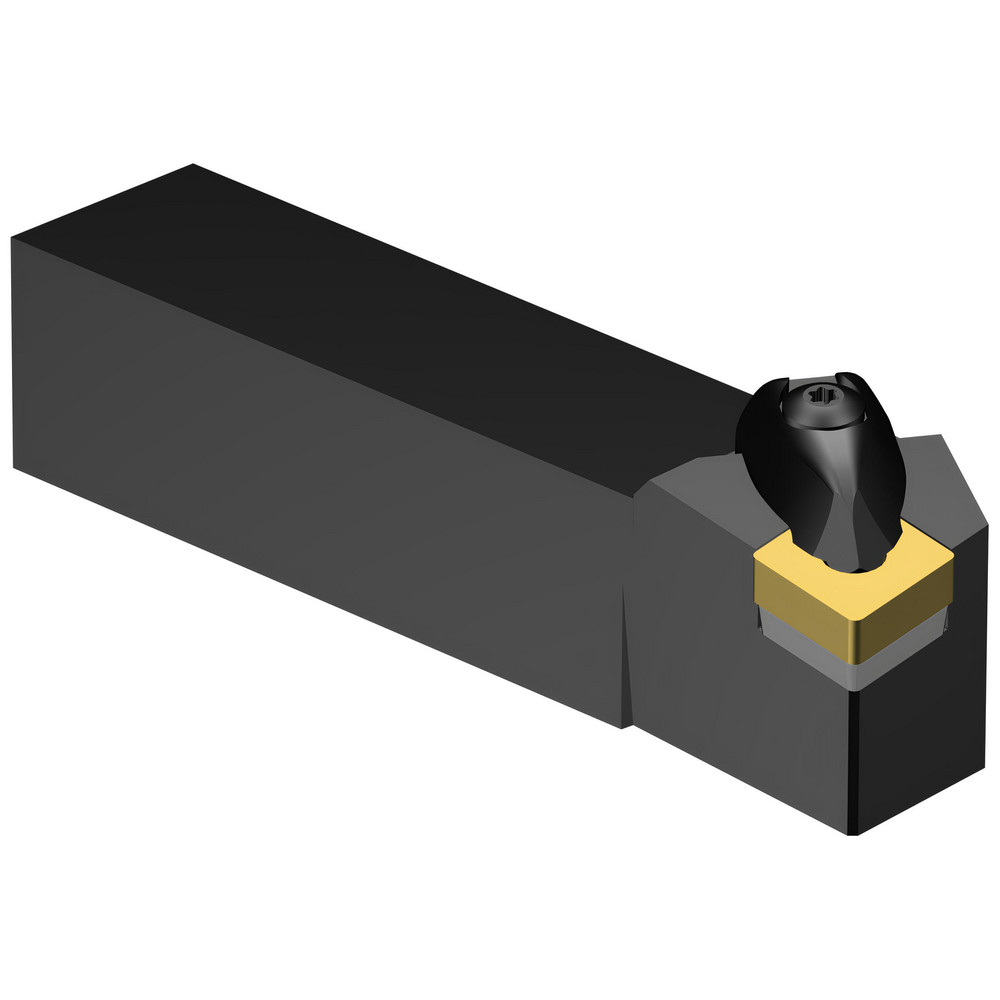

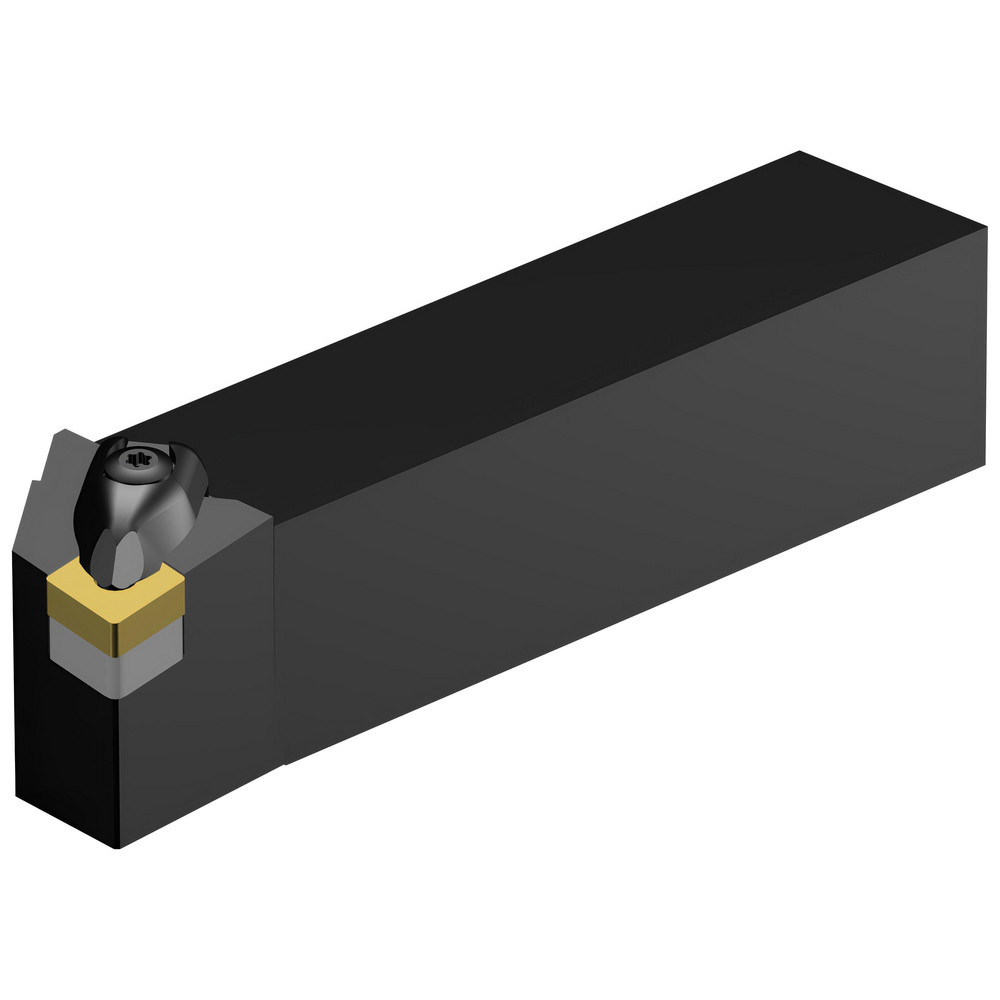

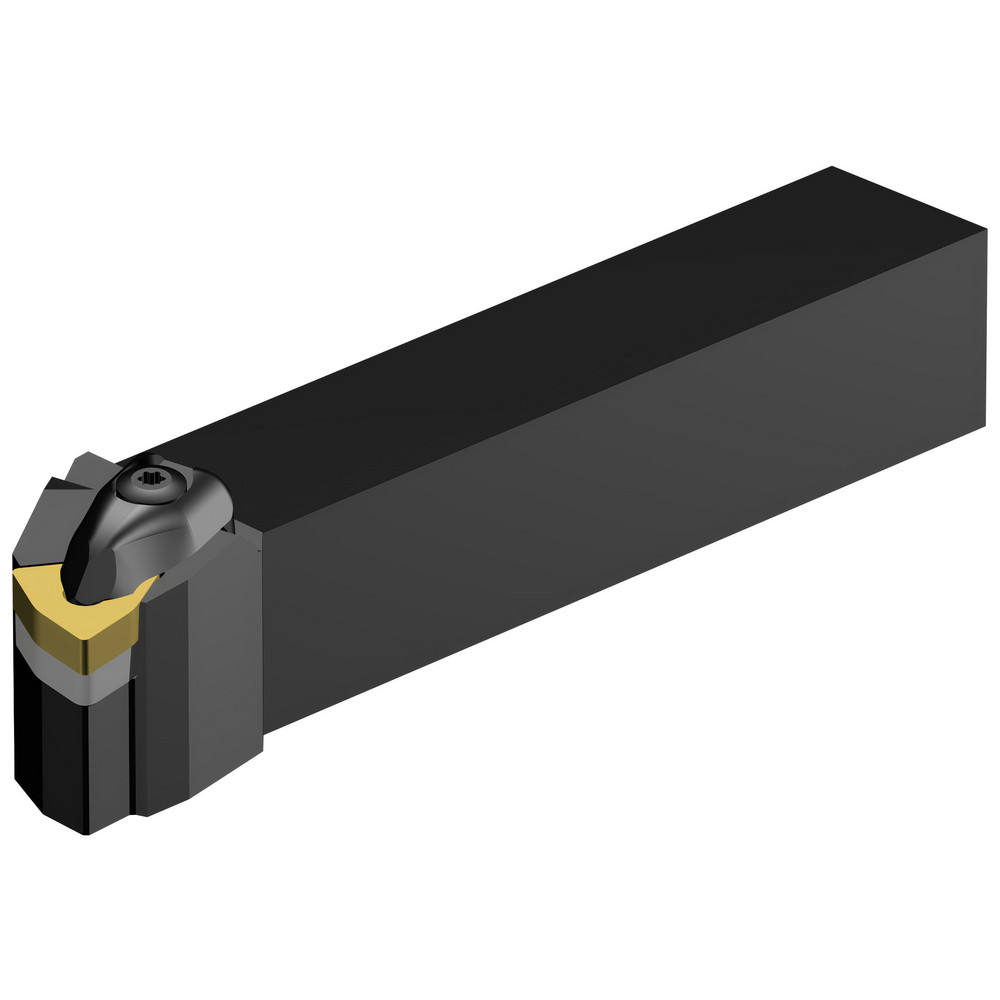

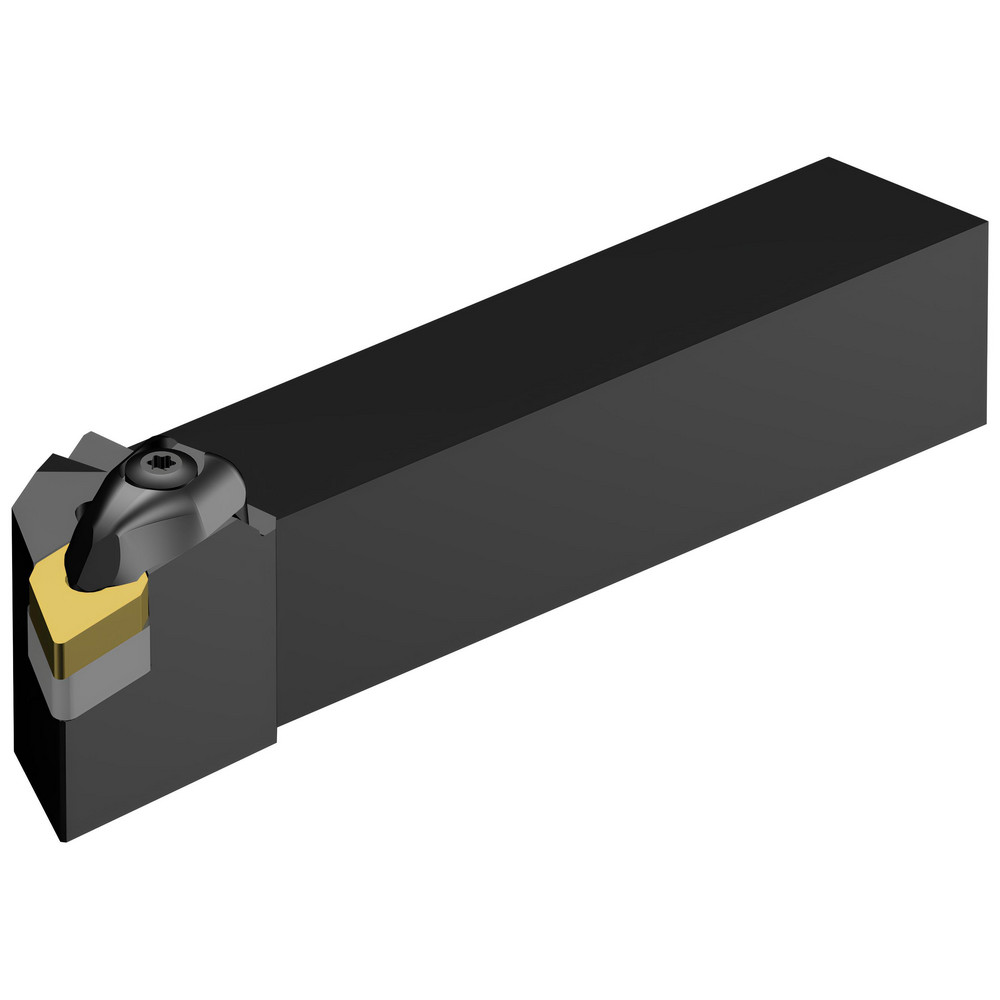

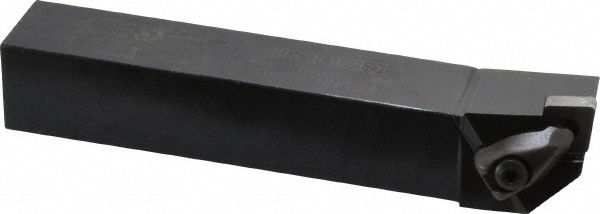

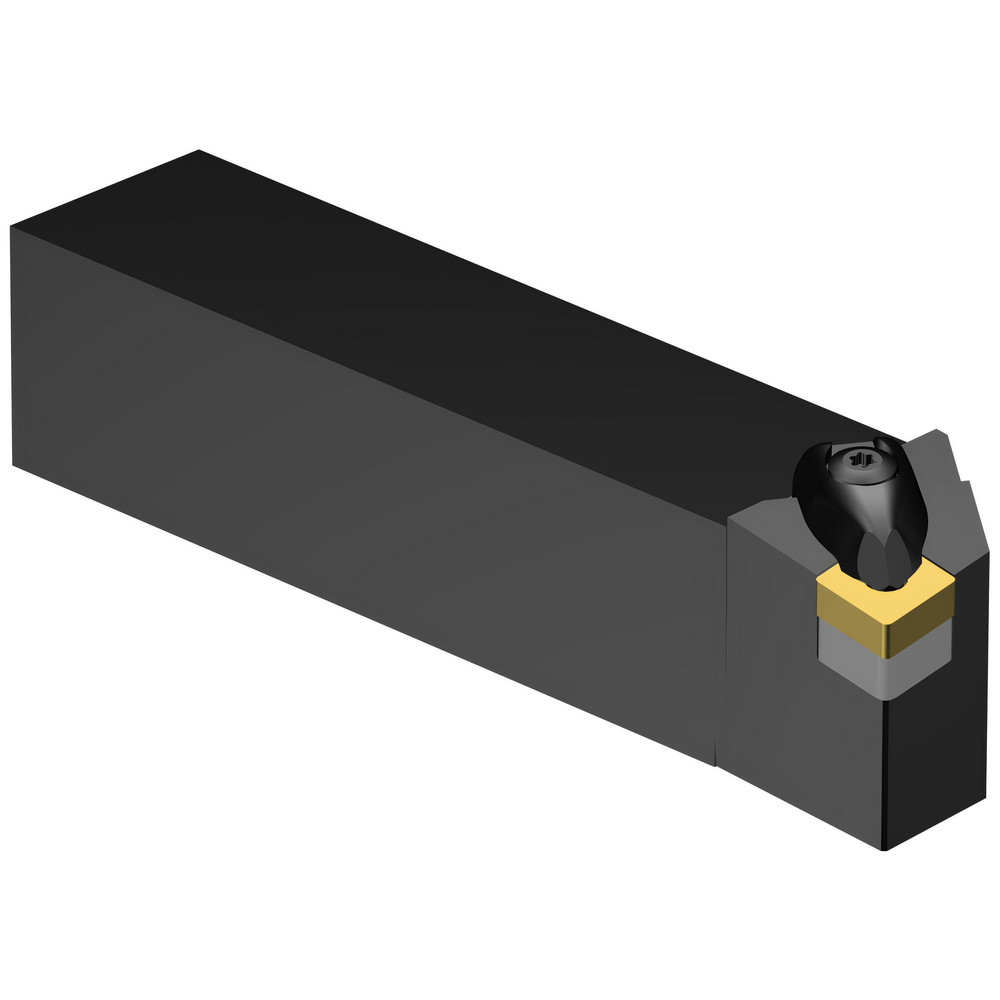

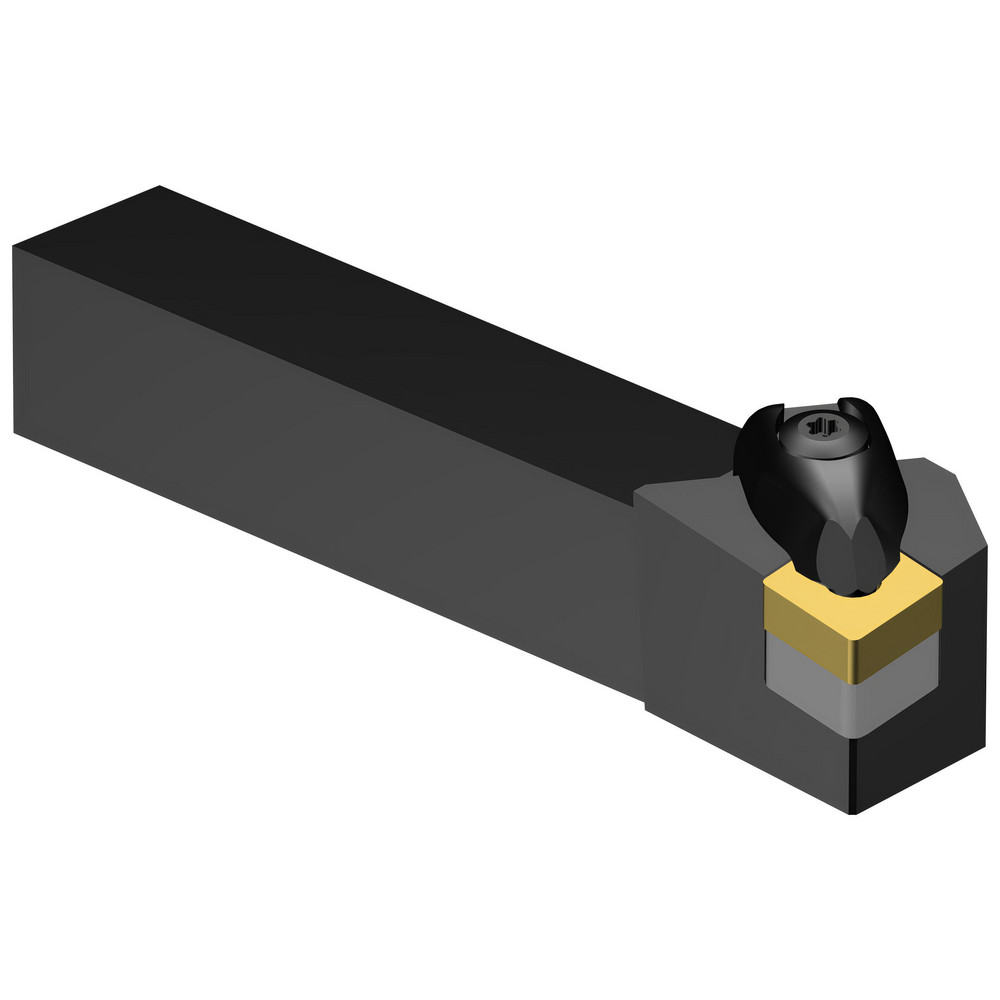

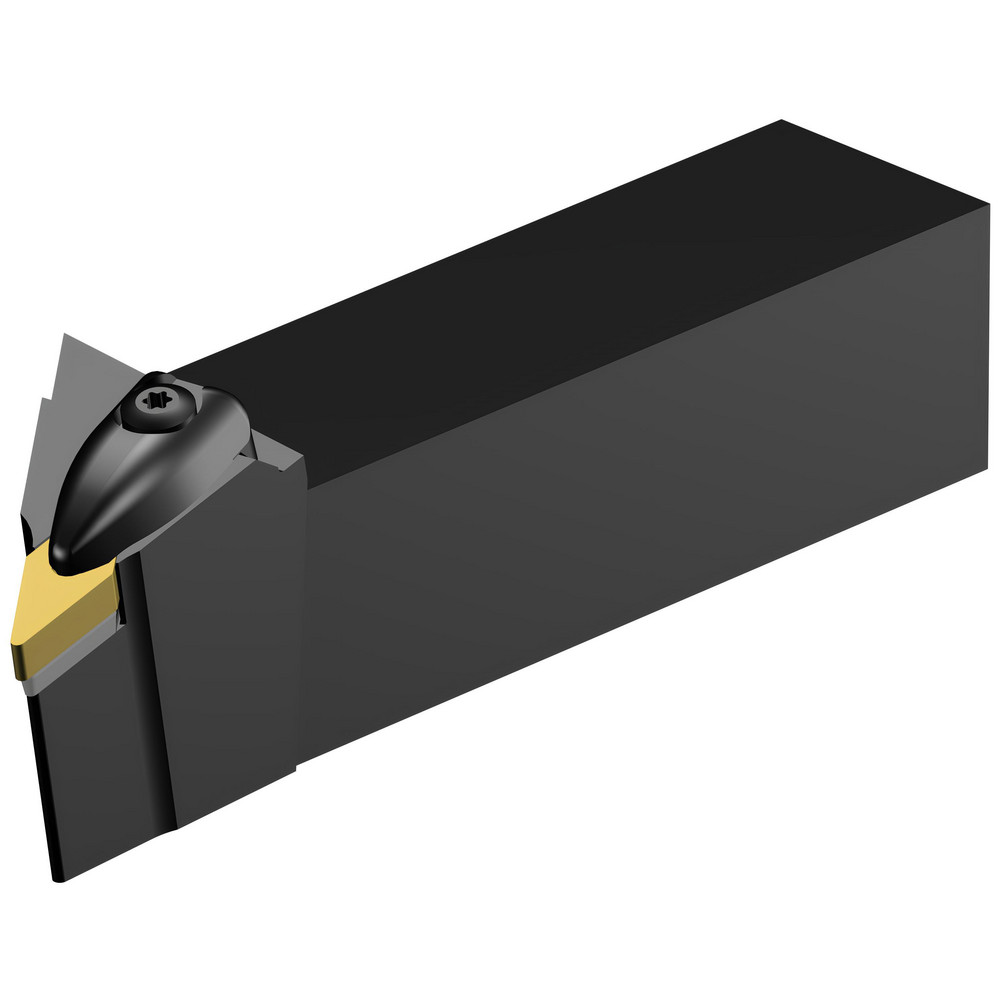

1-1/4 x 1-1/4" Shank, 6" OAL
| Toolholder Style | DCLN |
|---|---|
| Hand of Holder | Right Hand |

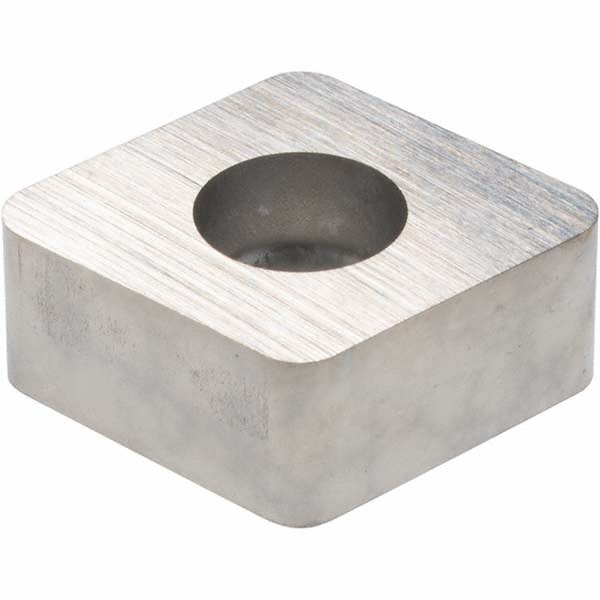

| Insert Compatibility | CNMG 19 06 12 |

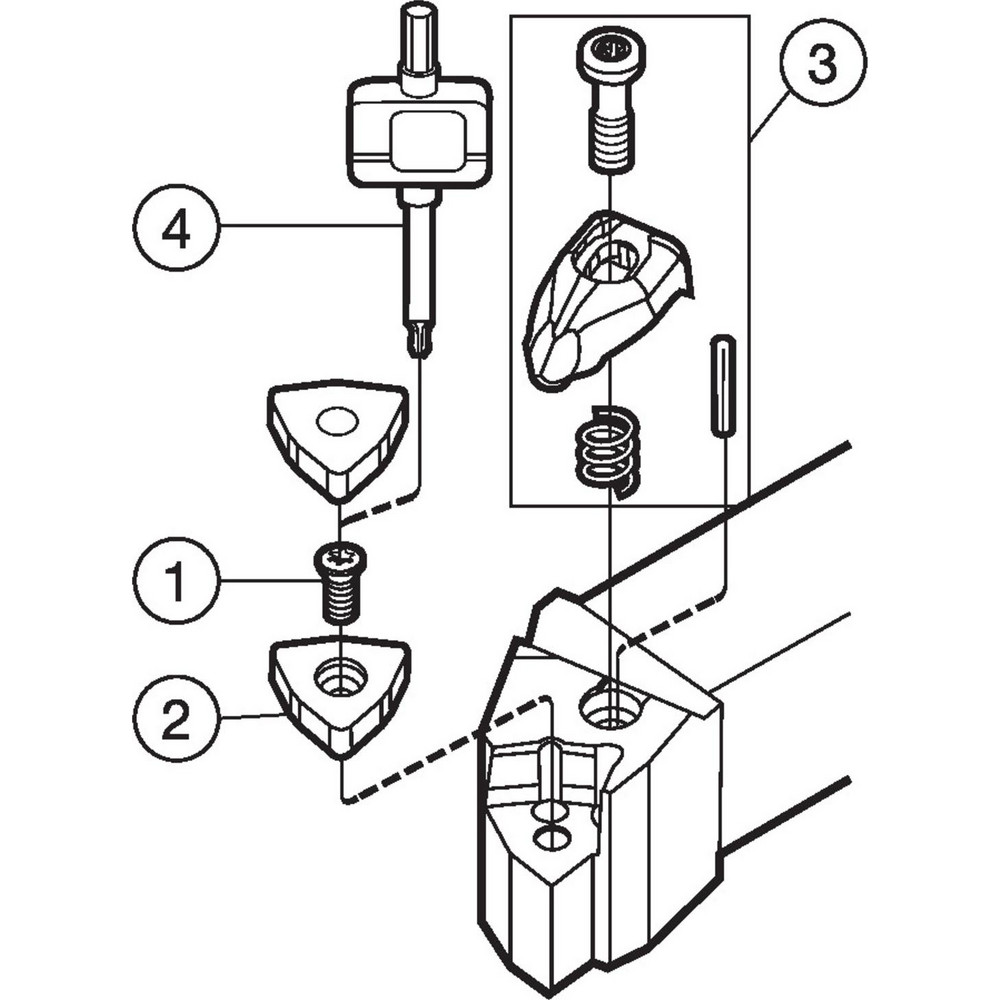

| Insert Holding Method | Wedge |

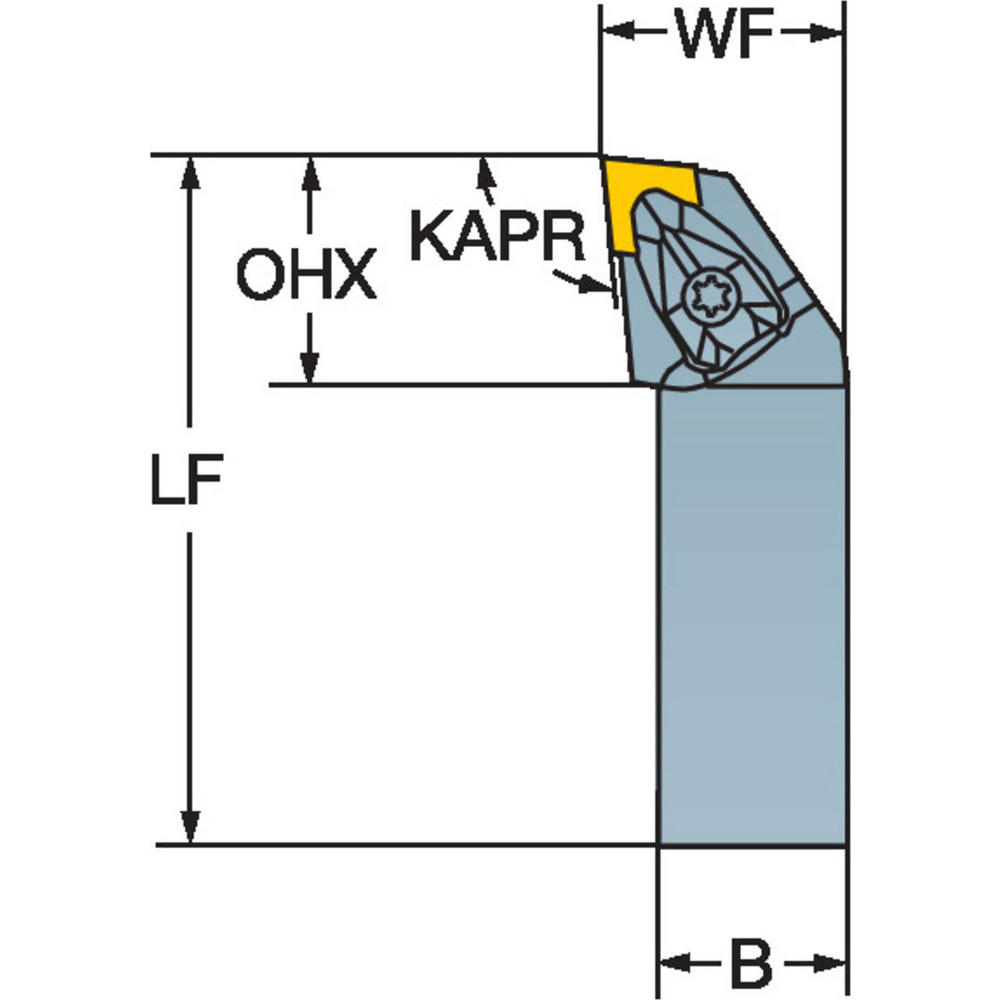

| Shank Width (Inch) | 1-1/4 |

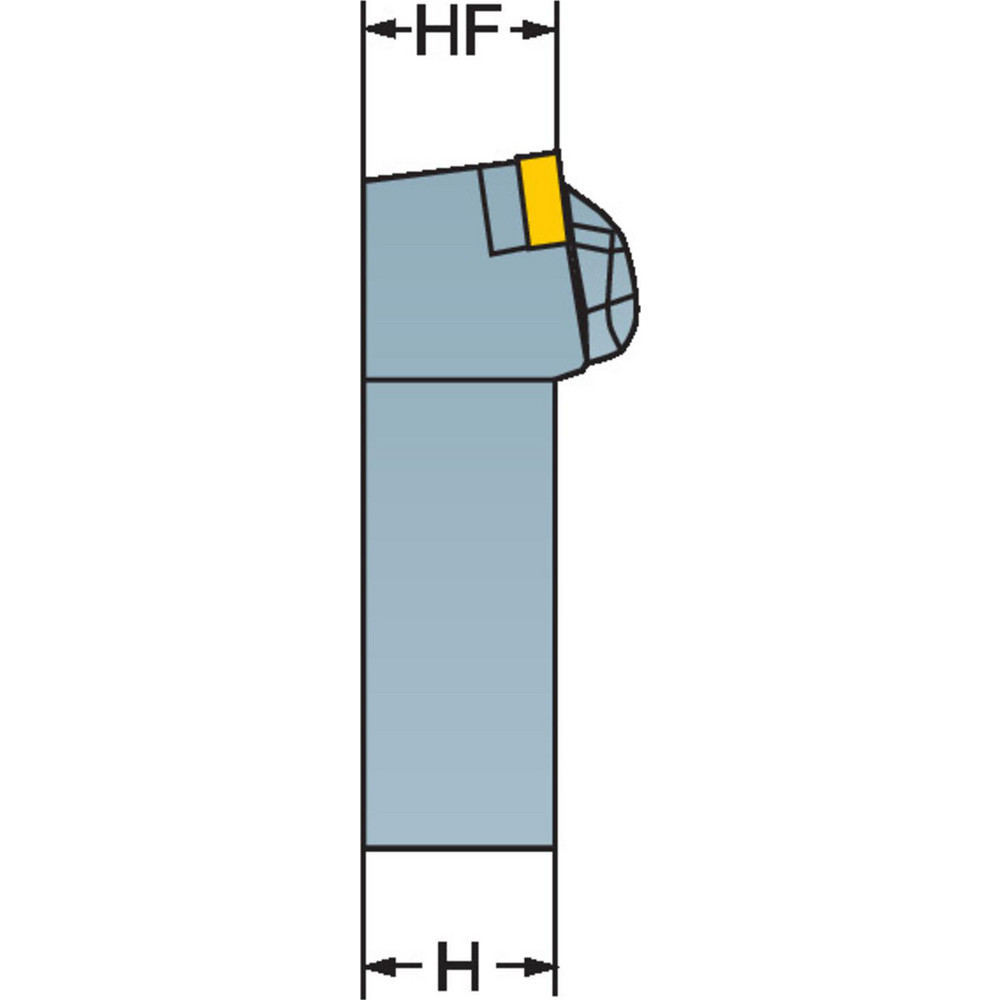

| Shank Height (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 6.0000 |
| Rake | Negative |
| Rake Angle | -6 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 1.2500 |
| Shank Height (Decimal Inch) | 1.2500 |
| Series | T-Max P |
| Overall Length (Inch) | 6 |
| Head Length (Decimal Inch) | 1.7000 |
| Back of Bar to Cutting Edge (Inch) | 1-1/2 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5000 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| Country of Origin | Sweden |
| MSC Number | MSC# 49446461 |
