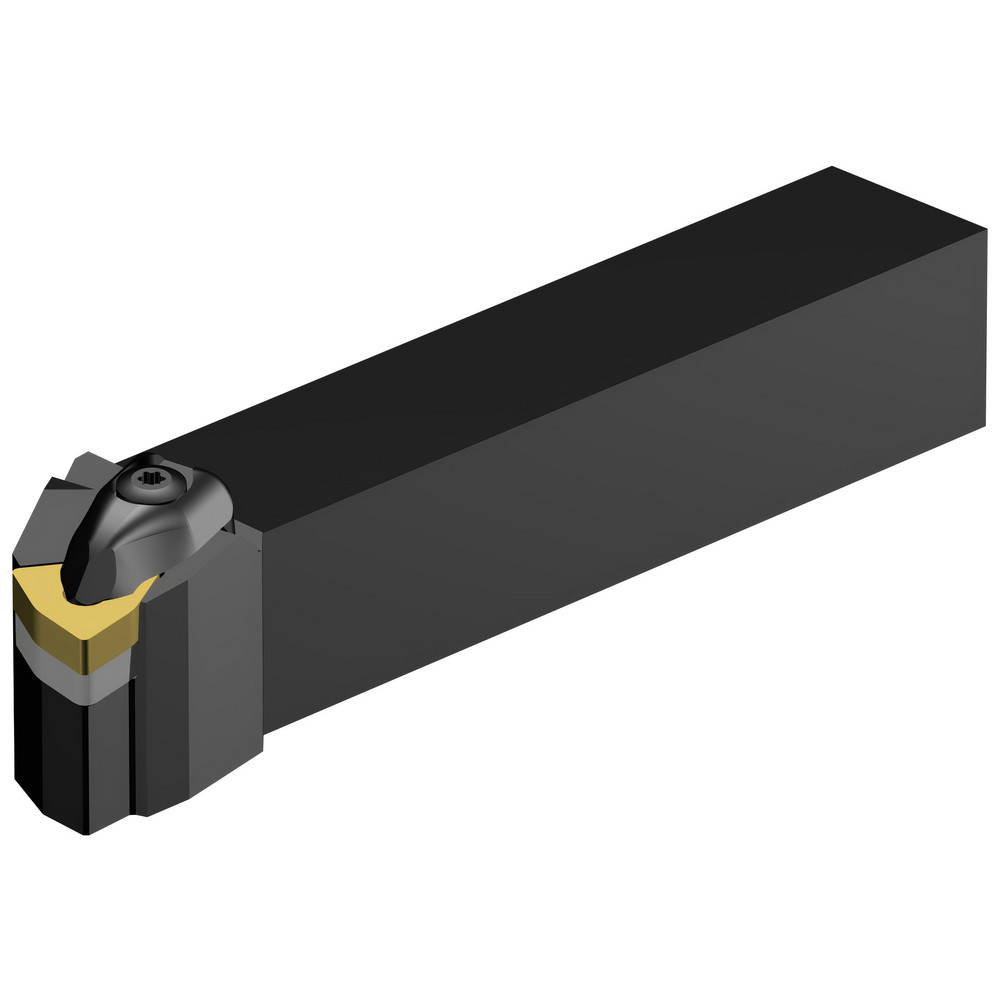

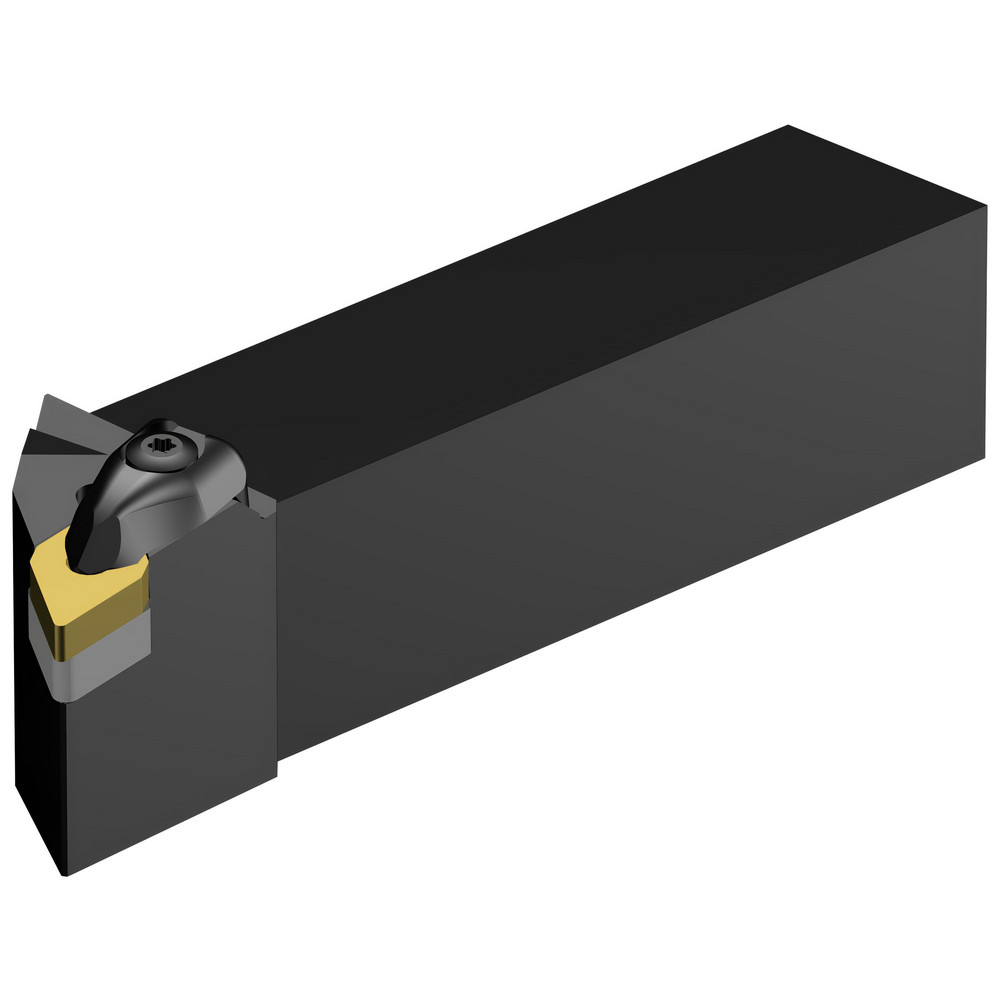

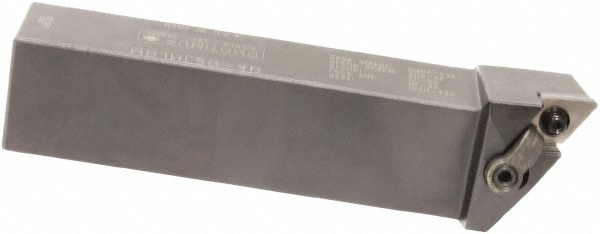

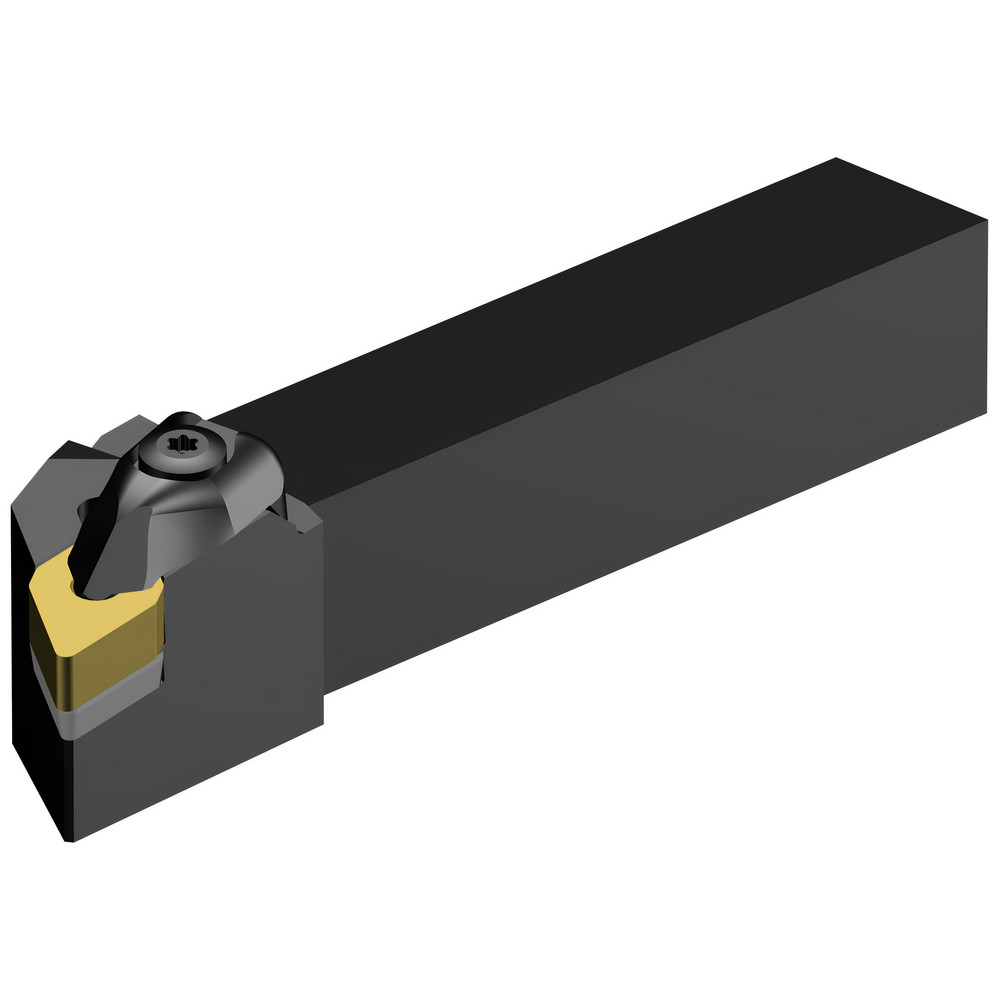

1 x 1" Shank, 5" OAL

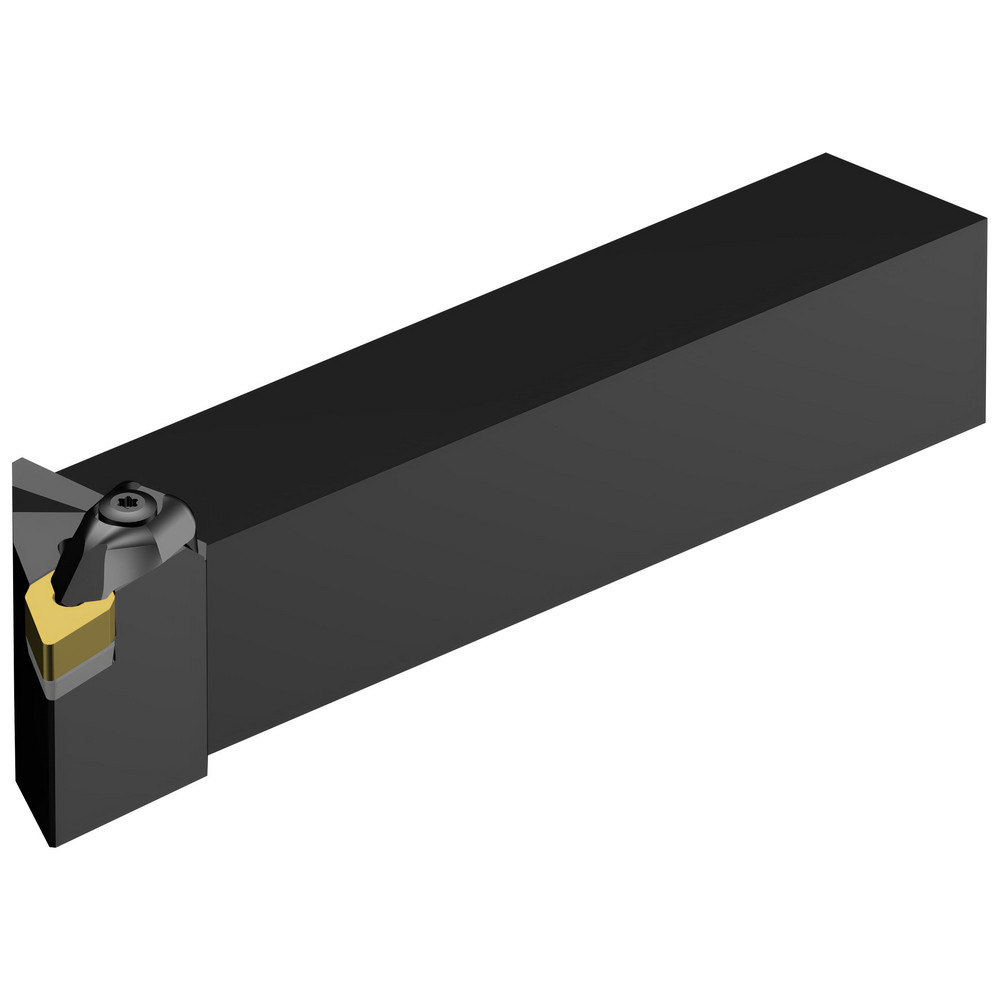

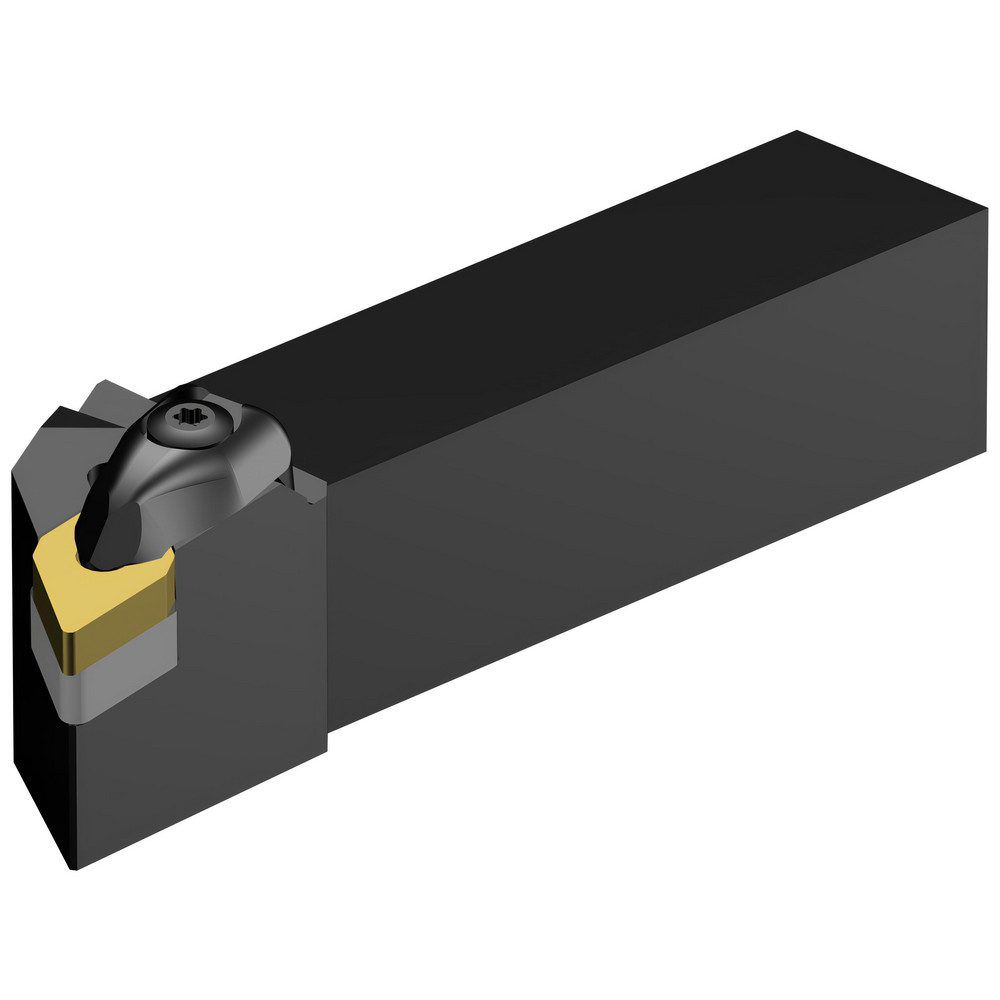

| Toolholder Style | DDJNL |
|---|---|
| Hand of Holder | Left Hand |
| Insert Compatibility | DNMG 432 |

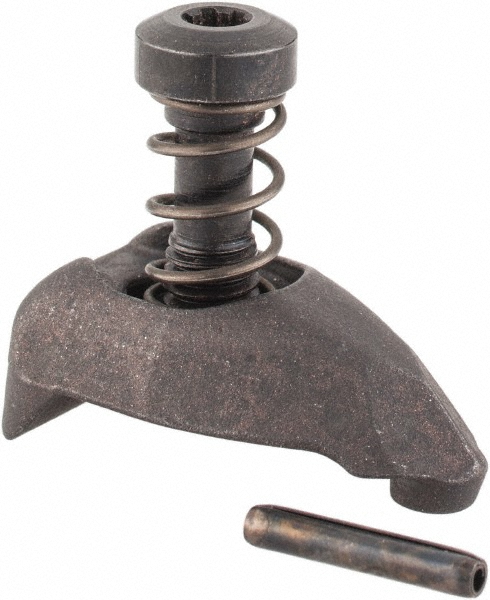

| Insert Holding Method | Wedge |
| Shank Width (Inch) | 1 |
| Shank Height (Inch) | 1 |
| Overall Length (Decimal Inch) | 5.0000 |
| Shank Width (mm) | 25.40 |
| Shank Height (mm) | 25.40 |
| Rake | Negative |
| Rake Angle | -6 |
| Multi-use Tool | Yes |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | T-Max® P |
| Overall Length (Inch) | 5 |
| Cutting Tool Application | Facing |
| Head Length (Decimal Inch) | 1.5500 |
| Head Length (mm) | 39.37 |
| Back of Bar to Cutting Edge (Inch) | 5 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.0000 |
| Back of Bar to Cutting Edge (mm) | 127.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Width (Inch) | 1/2 |
| Insert Width (Decimal Inch) | 0.5000 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 56923881 |
