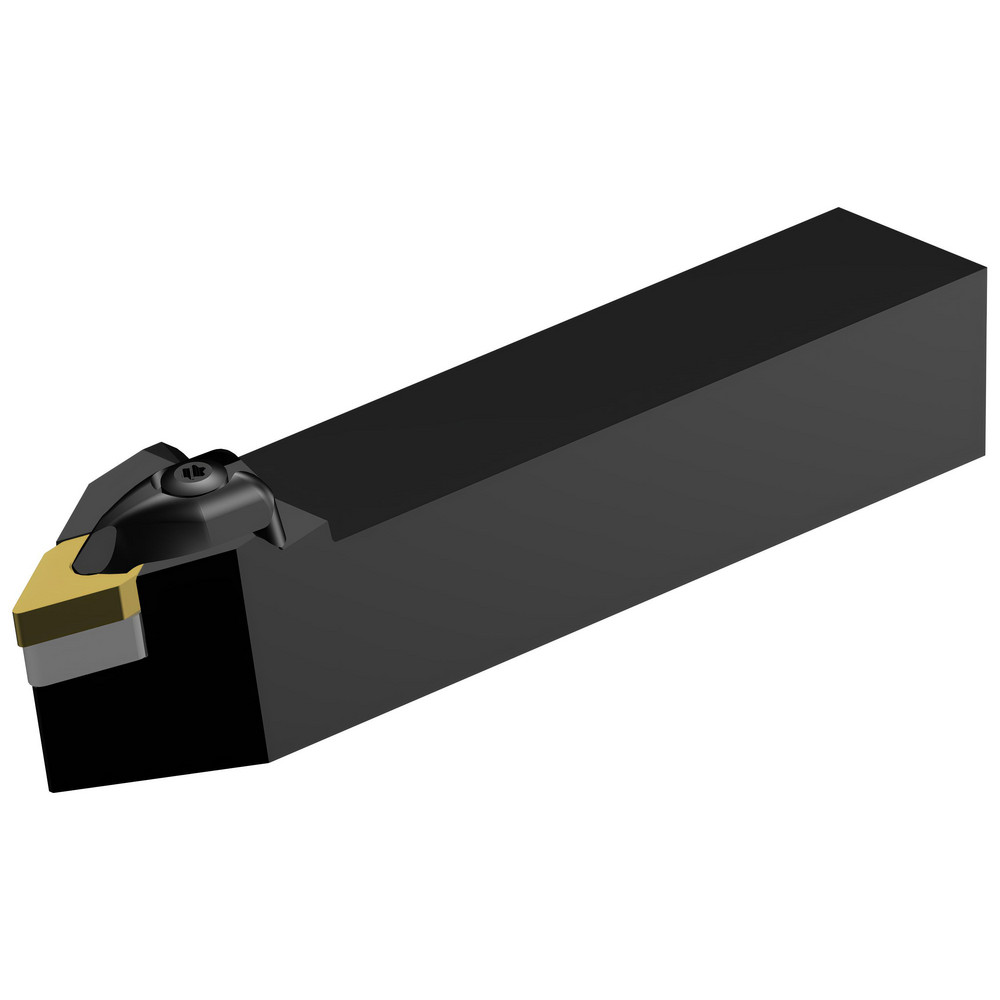

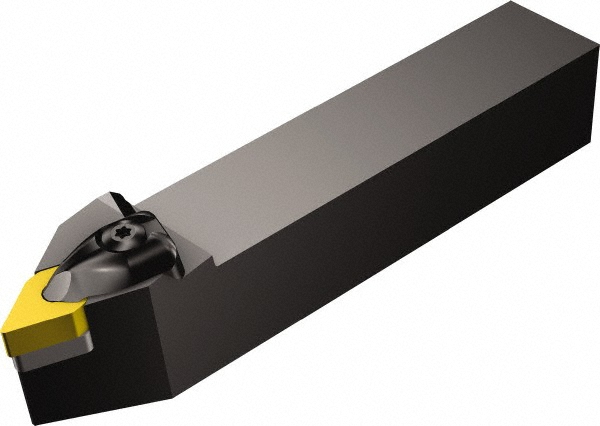

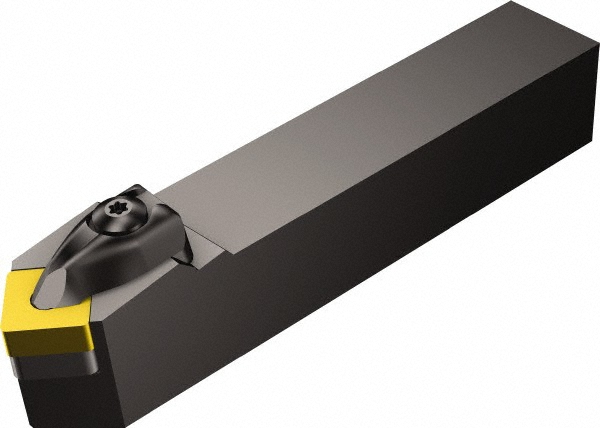

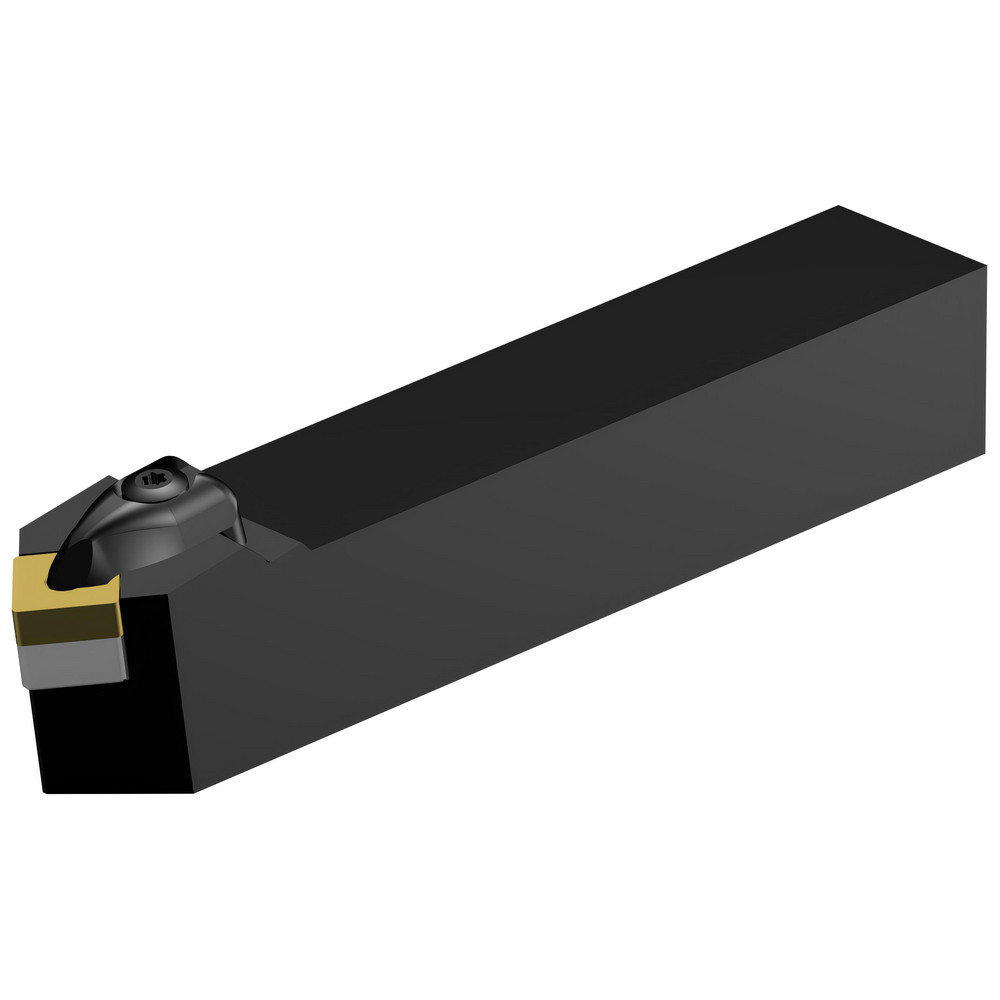

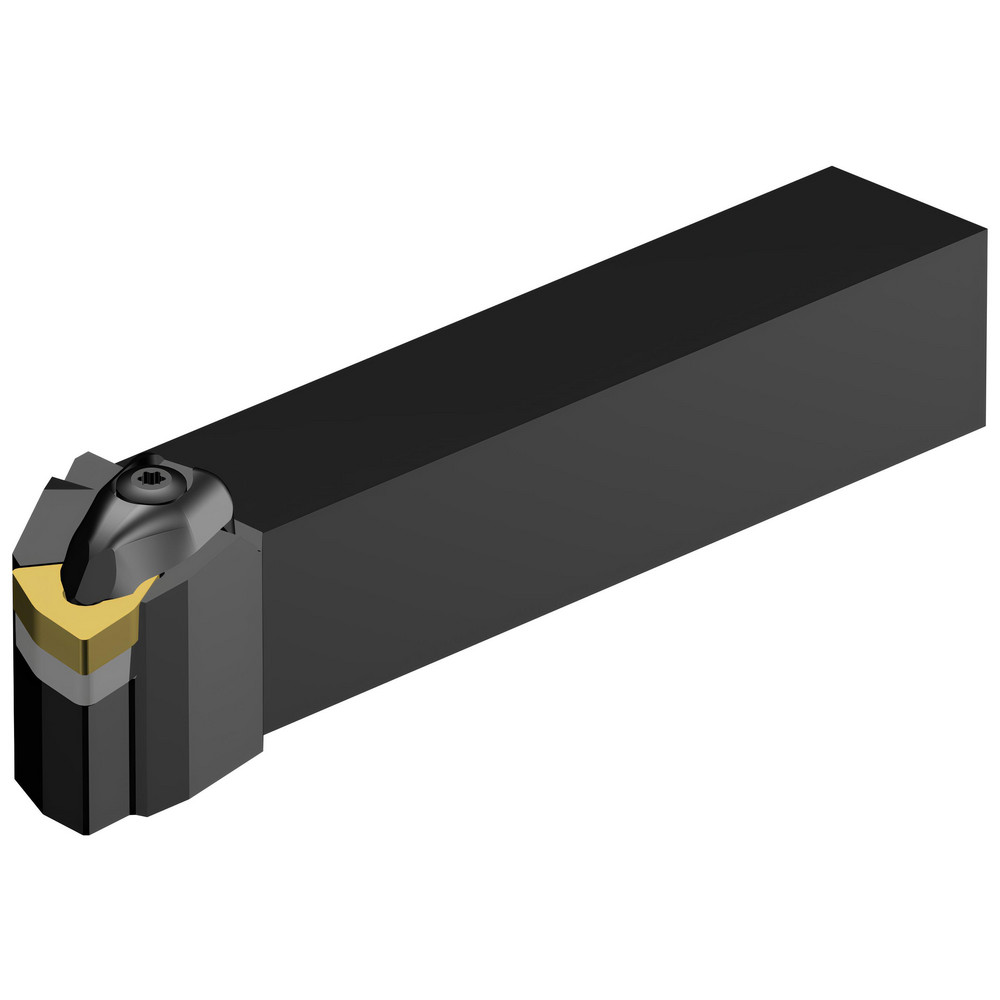

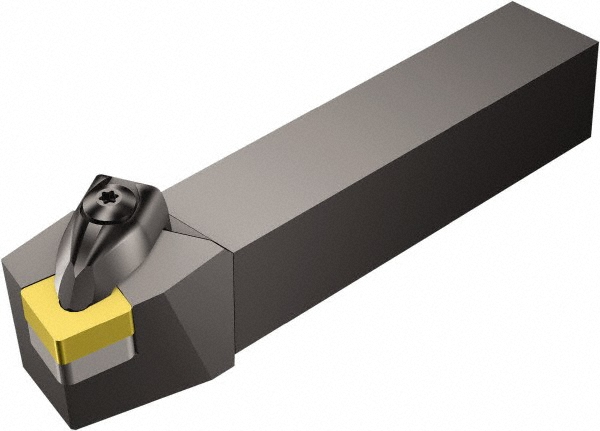

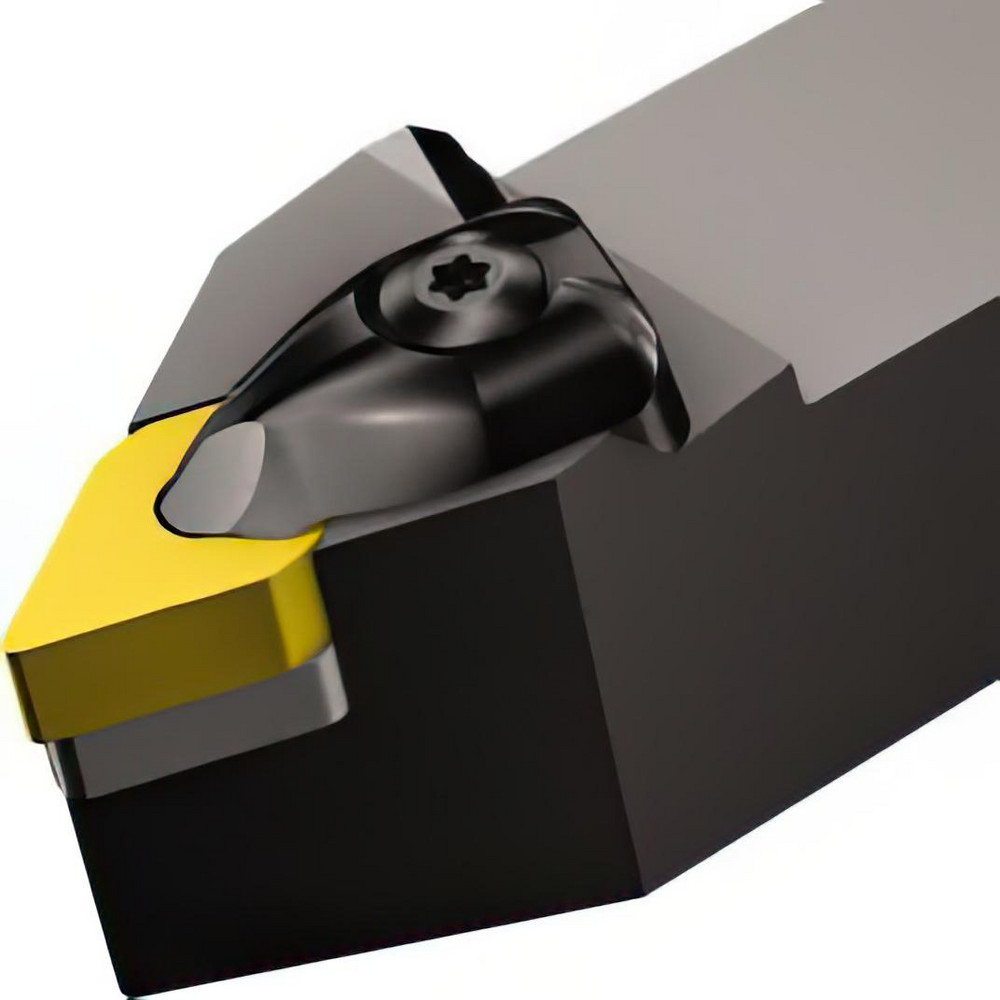

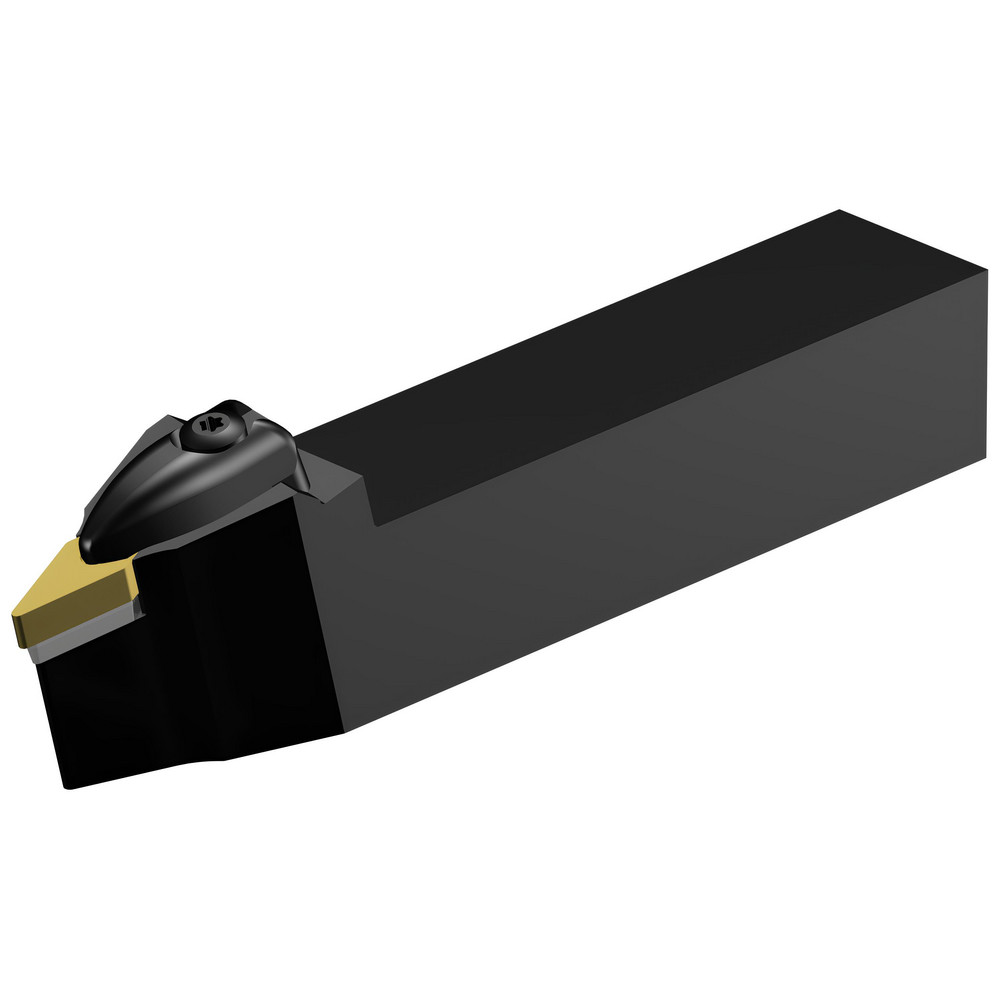

40.00 x 40.00 mm Shank, 250.00 mm OAL
| Toolholder Style | DDNNN |
|---|---|
| Hand of Holder | Neutral |

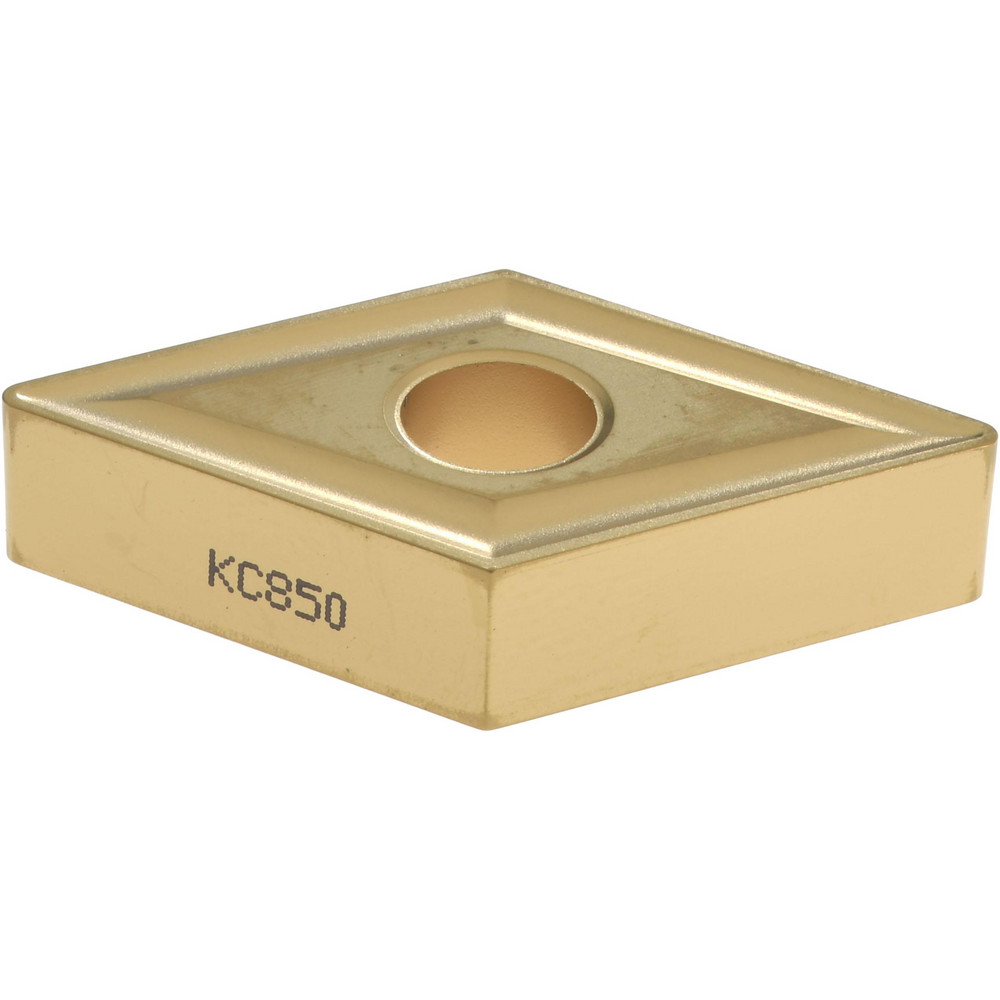

| Insert Compatibility | DNMG 15 06 08; DNMG 442 |
| Insert Holding Method | Wedge |
| Overall Length (Decimal Inch) | 9.8425 |
| Shank Width (mm) | 40.00 |
| Shank Height (mm) | 40.00 |
| Rake | Negative |
| Shank Width (Decimal Inch) | 1.5748 |
| Shank Height (Decimal Inch) | 1.5748 |
| Series | T-Max P |
| Head Length (Decimal Inch) | 1.6063 |
| Head Length (mm) | 40.80 |
| Back of Bar to Cutting Edge (Decimal Inch) | 9.8425 |
| Back of Bar to Cutting Edge (mm) | 250.00 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| Country of Origin | India |
| MSC Number | MSC# 49650997 |
