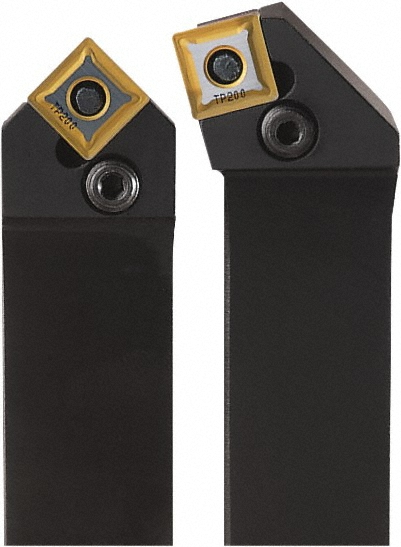

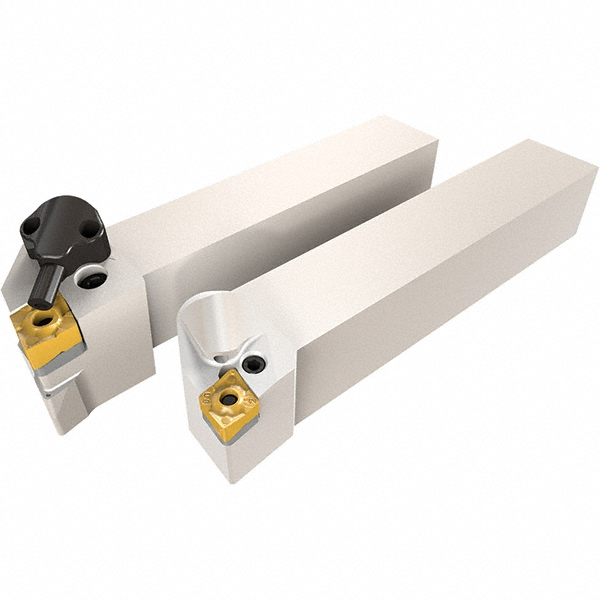

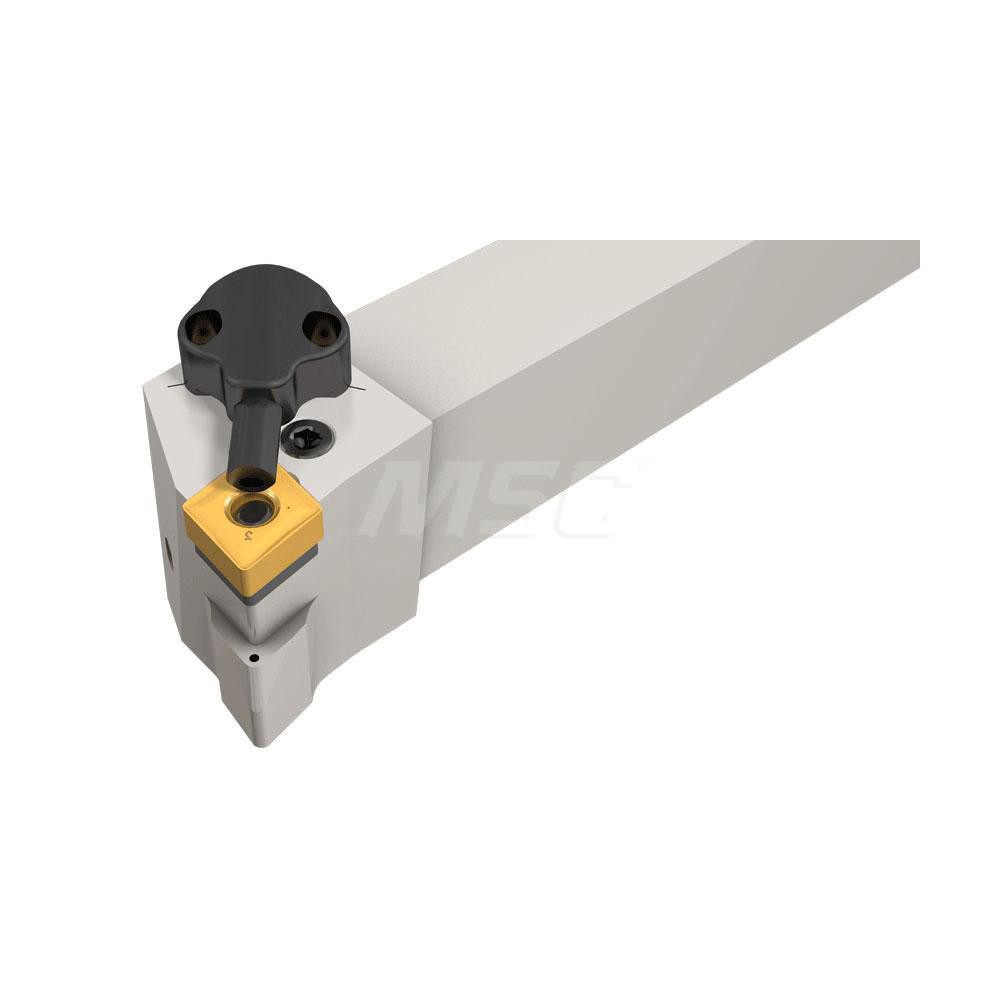

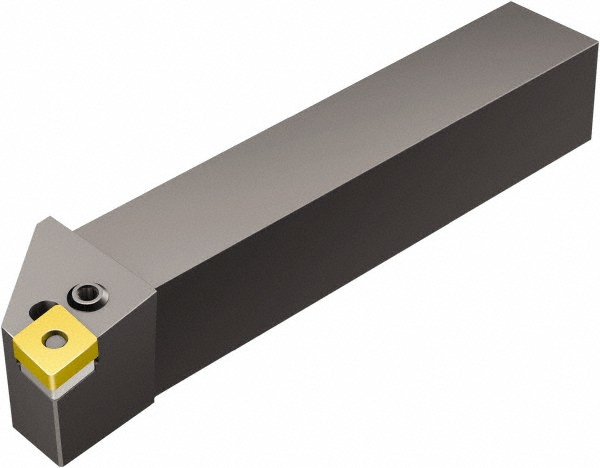

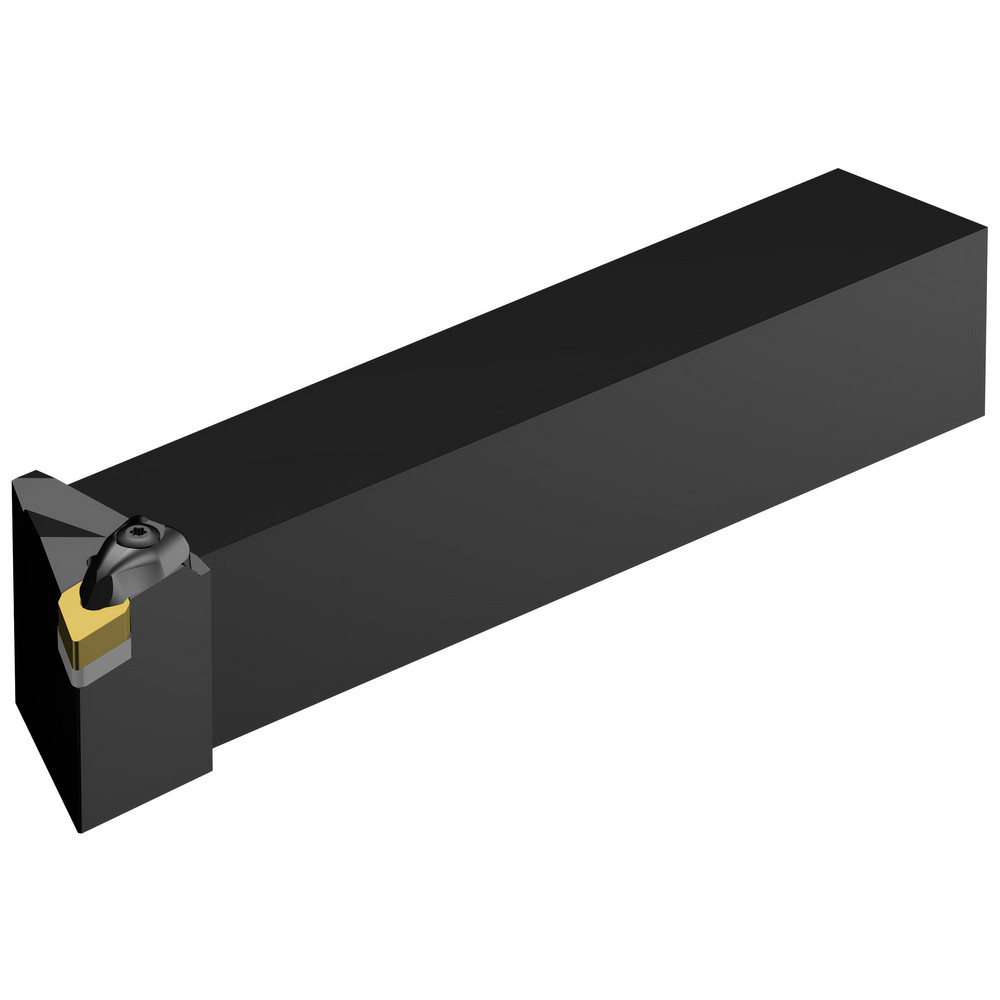

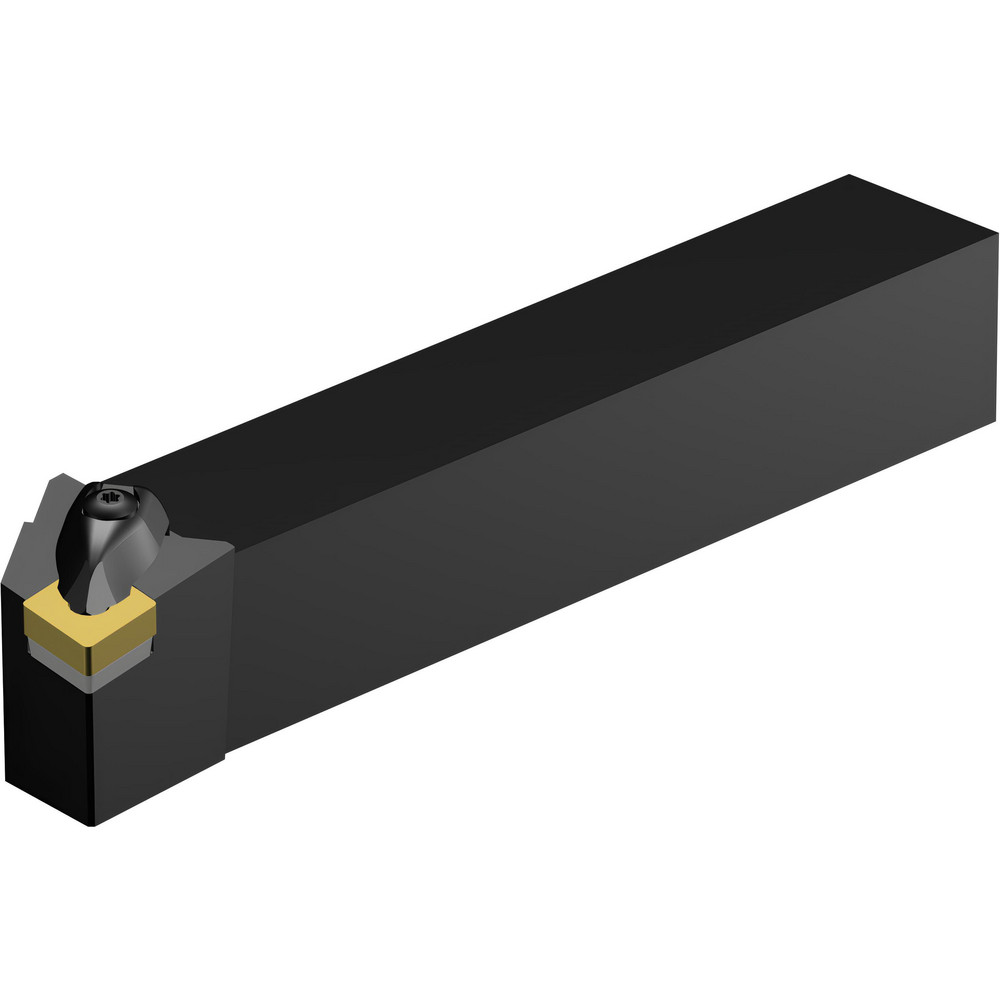

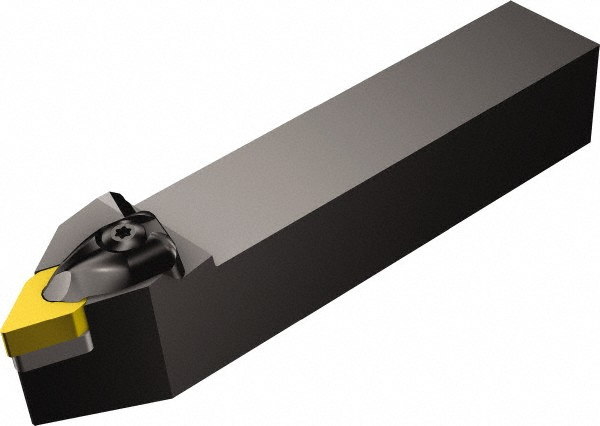

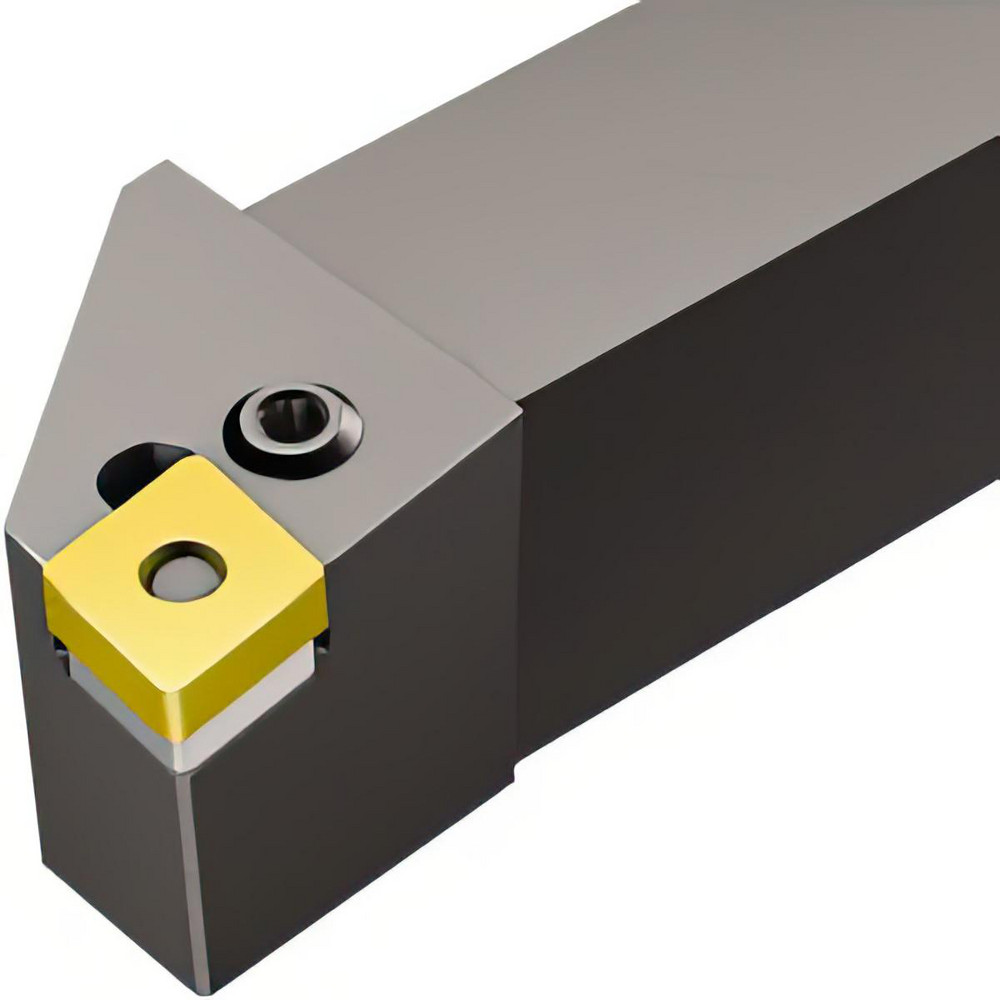

40.00 x 40.00 mm Shank, 250.00 mm OAL
| Toolholder Style | PCLN |
|---|---|
| Hand of Holder | Left Hand |
| Insert Compatibility | CNMG 19 06 12 |
| Insert Holding Method | Lever |
| Overall Length (Decimal Inch) | 9.8425 |
| Shank Width (mm) | 40.00 |
| Shank Height (mm) | 40.00 |
| Rake | Negative |
| Rake Angle | -6 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 1.5748 |
| Shank Height (Decimal Inch) | 1.5748 |
| Series | T-Max P |
| Head Length (Decimal Inch) | 1.4921 |
| Head Length (mm) | 37.90 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.9685 |
| Back of Bar to Cutting Edge (mm) | 50.00 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| Country of Origin | India |
| MSC Number | MSC# 49448145 |
