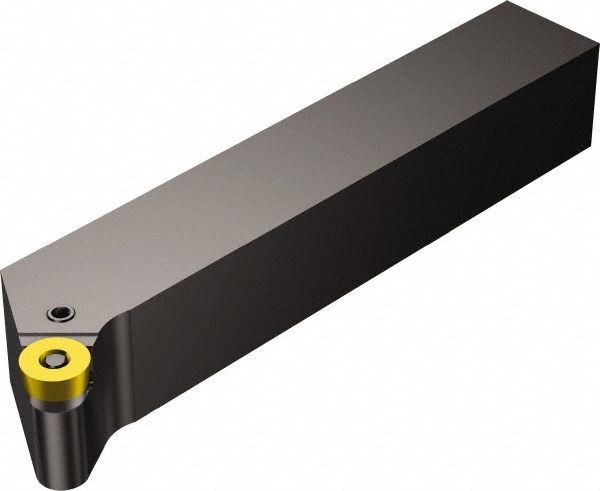

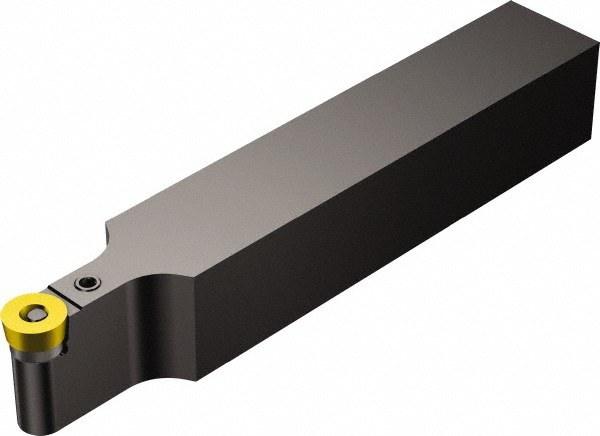

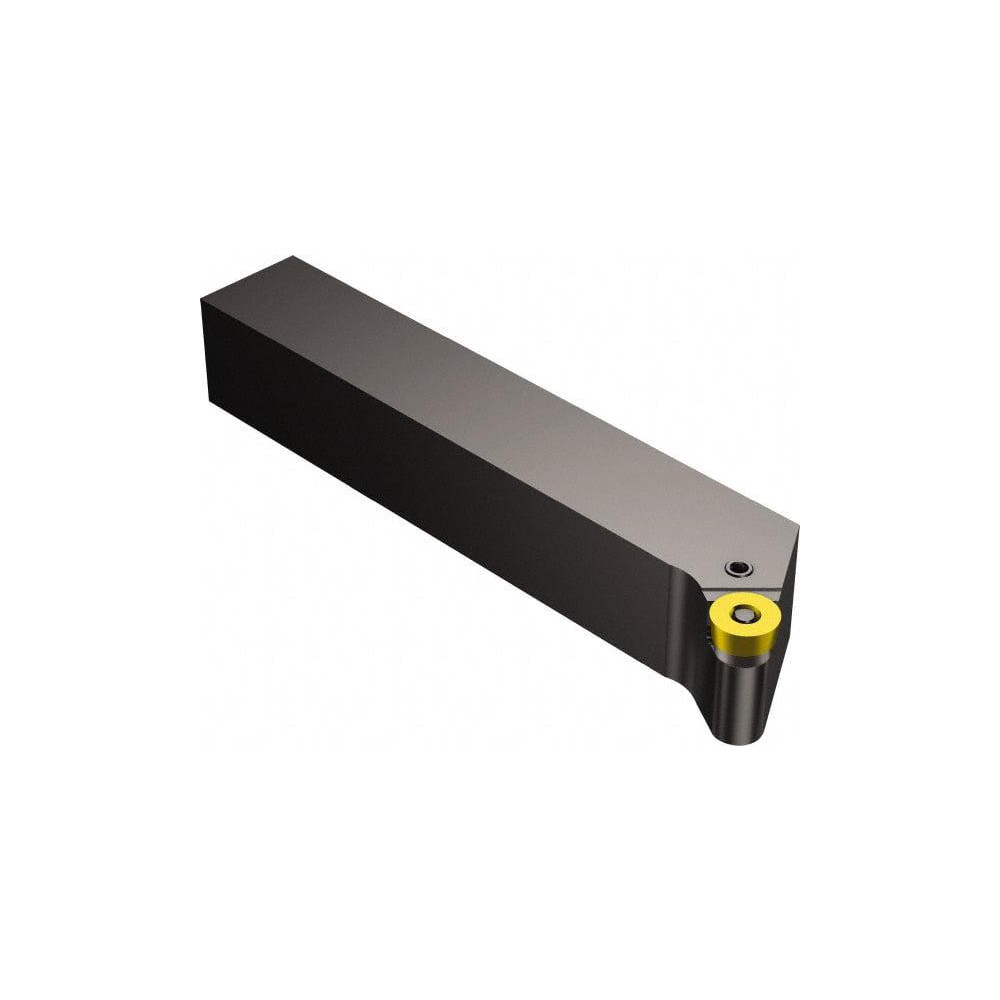

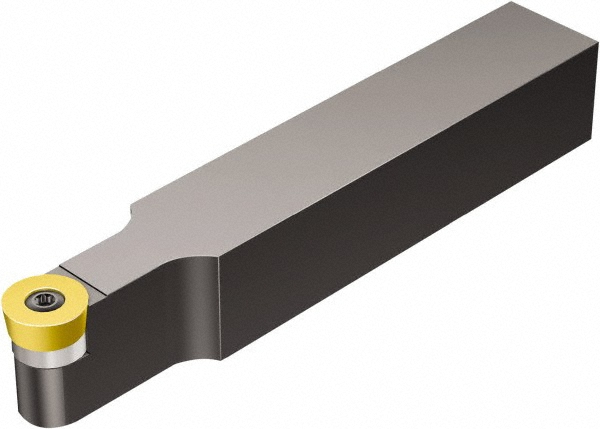

25.00 x 25.00 mm Shank, 150.00 mm OAL
| Toolholder Style | PRGC |
|---|---|
| Hand of Holder | Right Hand |
| Insert Compatibility | RCMX 12 04 00 |
| Insert Holding Method | Lever |
| Overall Length (Decimal Inch) | 5.9055 |

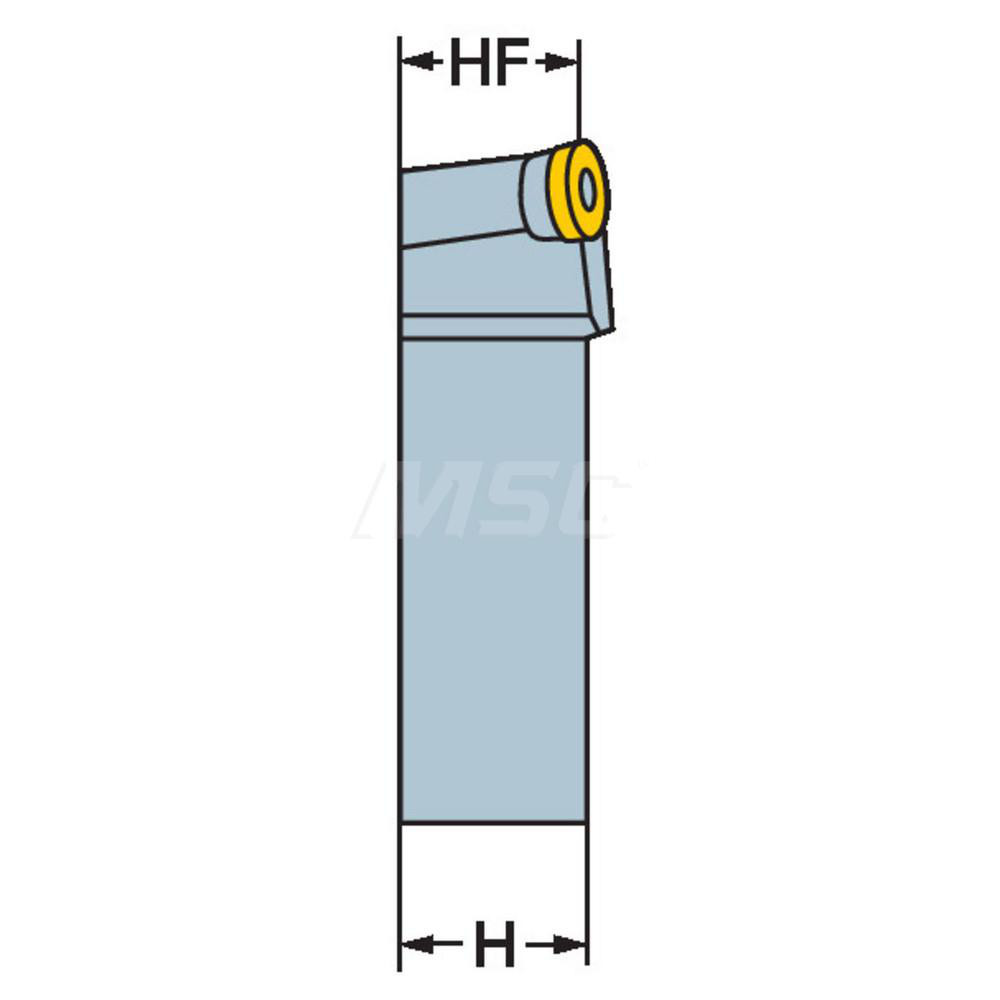

| Shank Width (mm) | 25.00 |
| Shank Height (mm) | 25.00 |
| Rake | Neutral |
| Rake Angle | 0 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (Decimal Inch) | 0.9843 |
| Series | T-Max P |

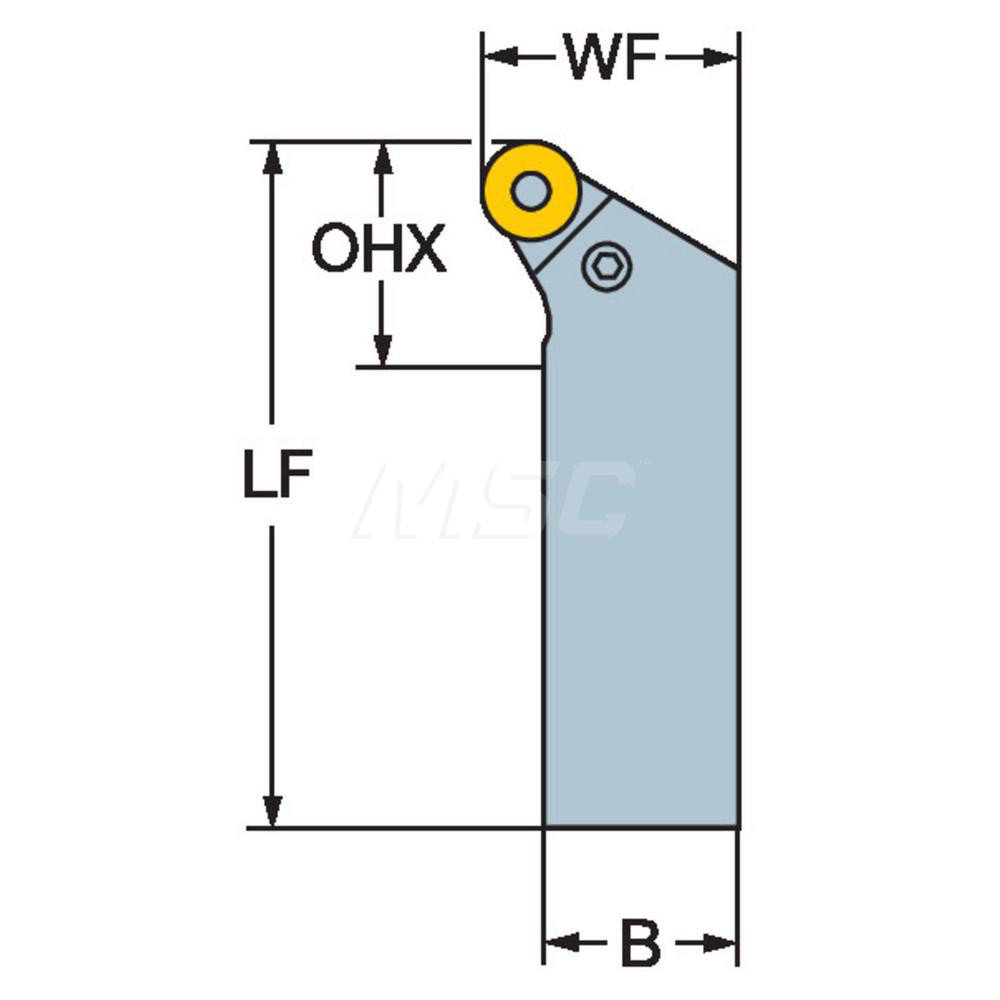

| Head Length (Decimal Inch) | 1.0709 |
| Head Length (mm) | 27.20 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2598 |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| Country of Origin | Sweden |
| MSC Number | MSC# 49439524 |
