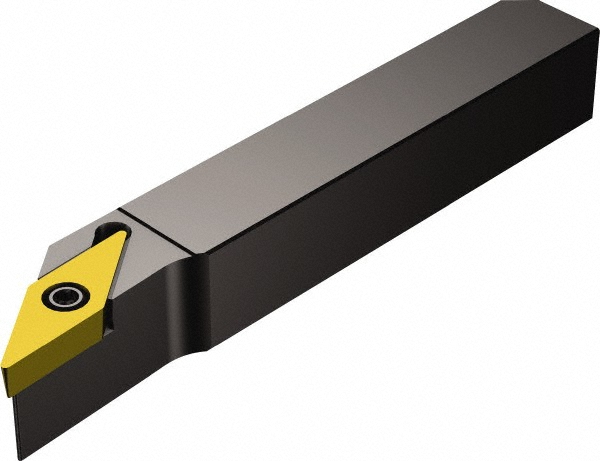

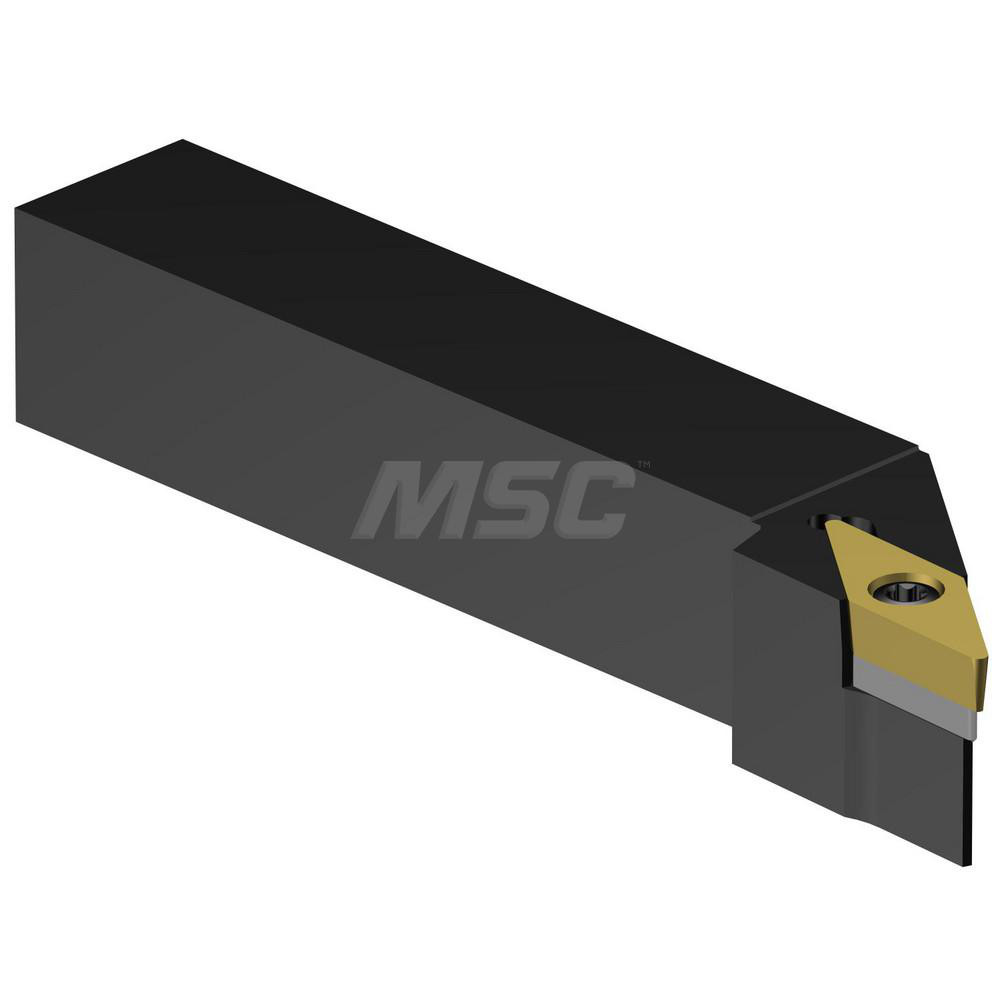

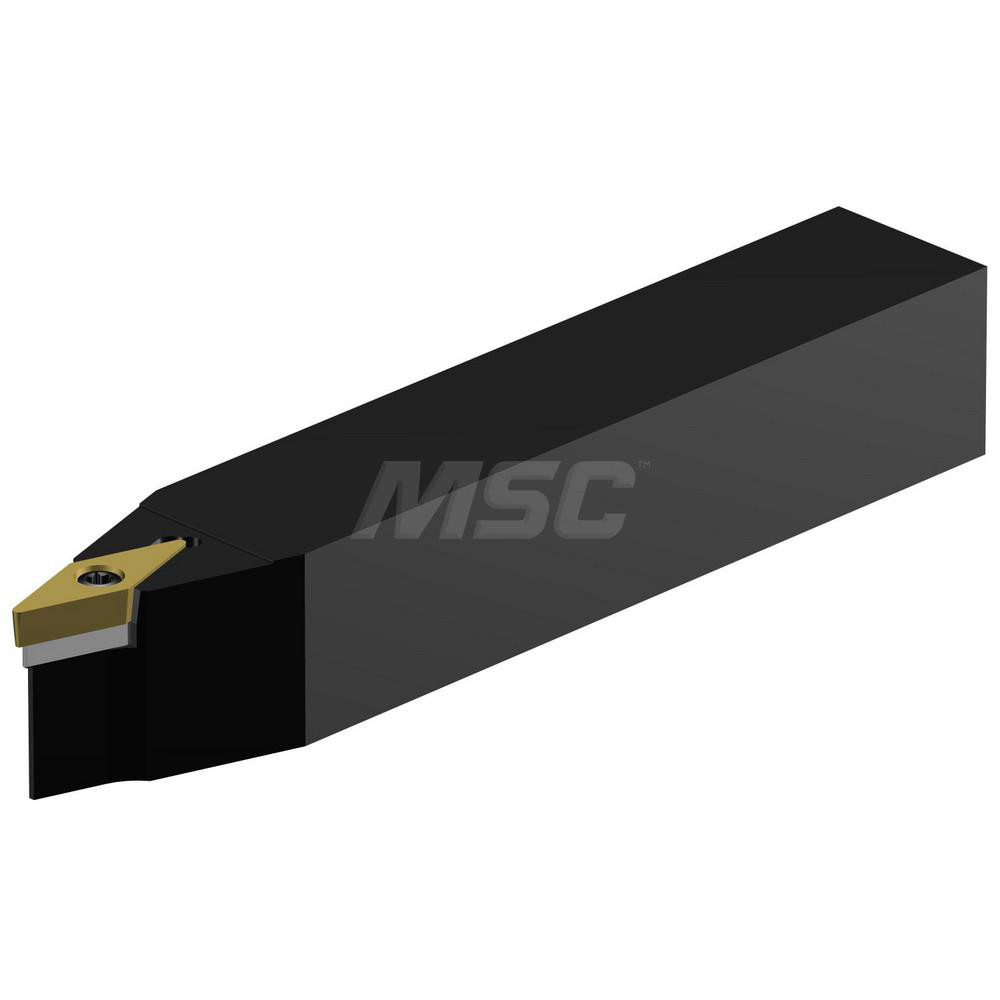

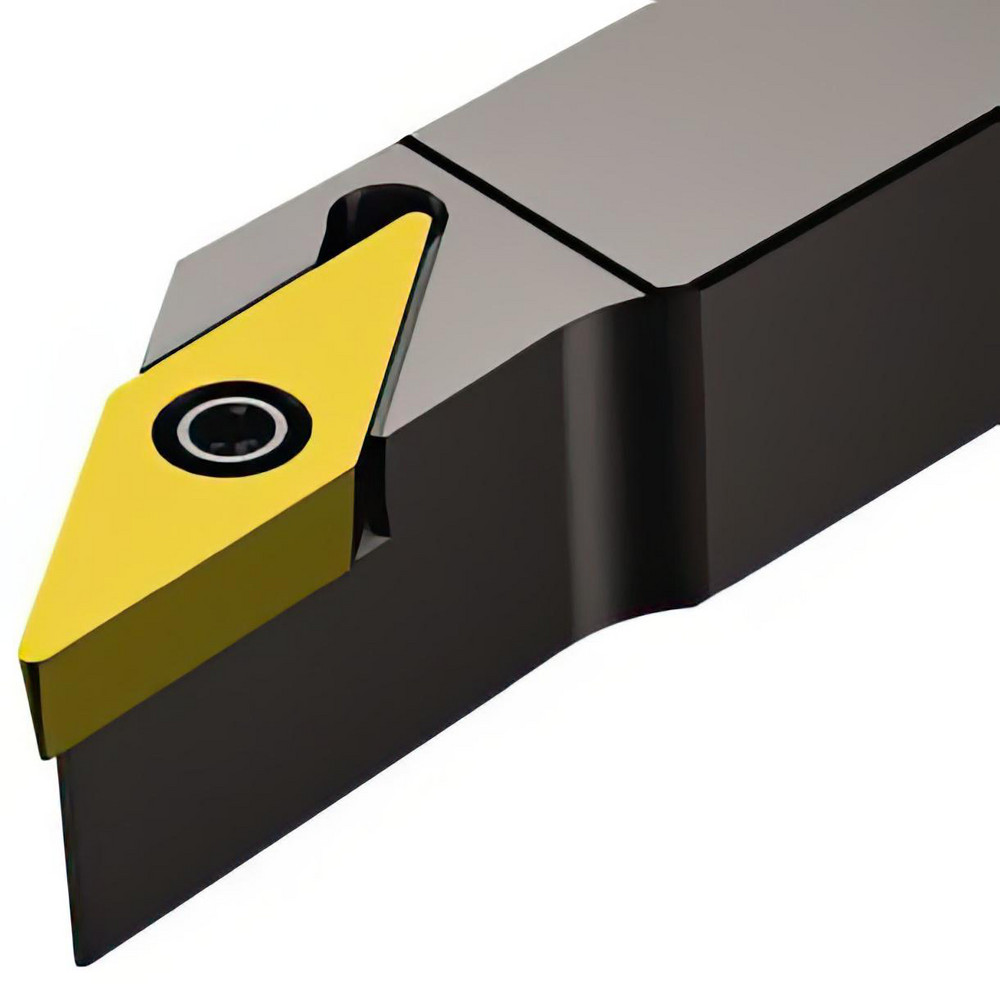

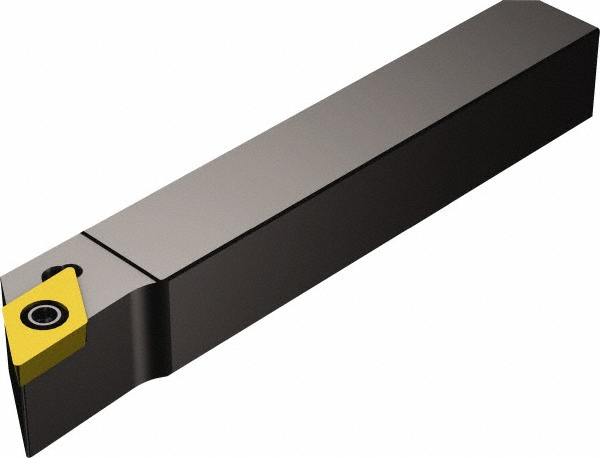

16.00 x 16.00 mm Shank, 70.00 mm OAL
| Toolholder Style | QS-SVJB |
|---|---|
| Hand of Holder | Right Hand |
| Insert Compatibility | VBMT 16 04 08 |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 2.7559 |
| Shank Width (mm) | 16.00 |
| Shank Height (mm) | 16.00 |
| Rake | Neutral |
| Rake Angle | 0 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 0.6299 |
| Shank Height (Decimal Inch) | 0.6299 |
| Series | CoroTurn 107 |
| Head Length (Decimal Inch) | 1.5748 |
| Head Length (mm) | 40.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6299 |
| Back of Bar to Cutting Edge (mm) | 16.00 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| Country of Origin | India |
| MSC Number | MSC# 33291808 |
