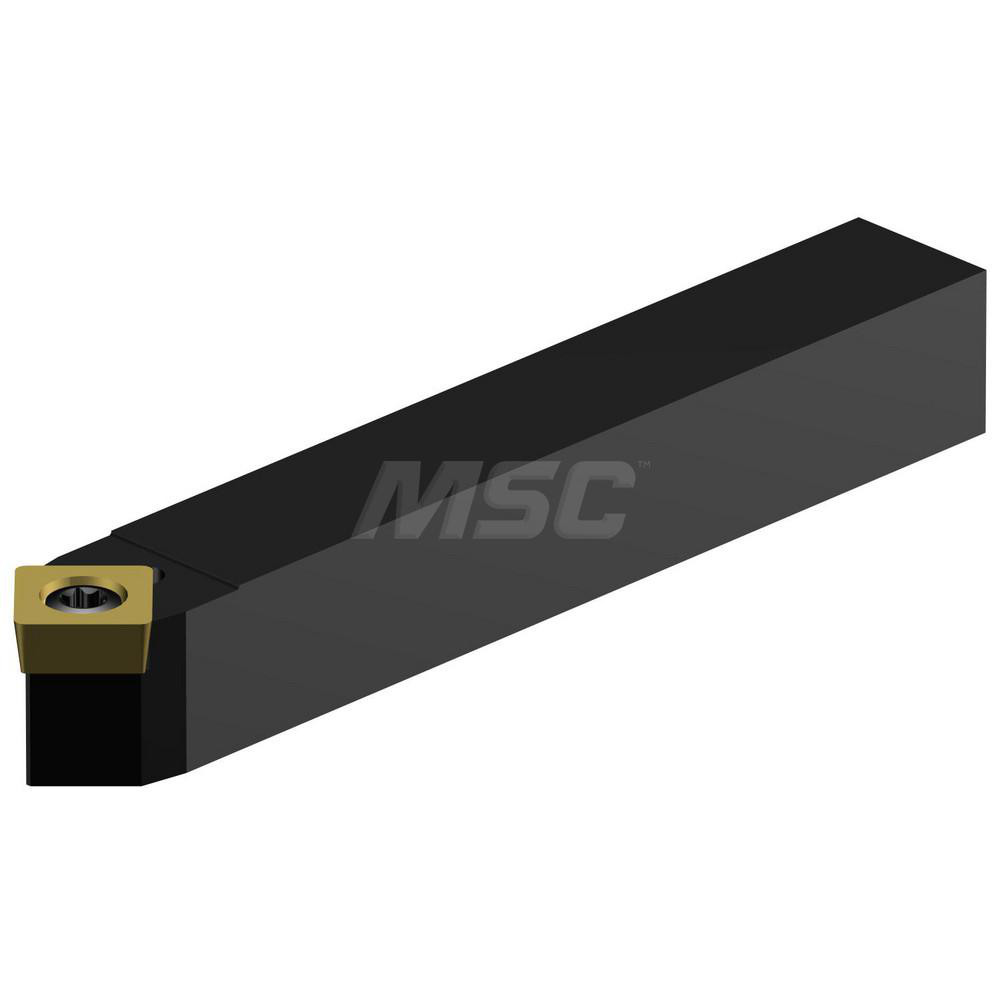

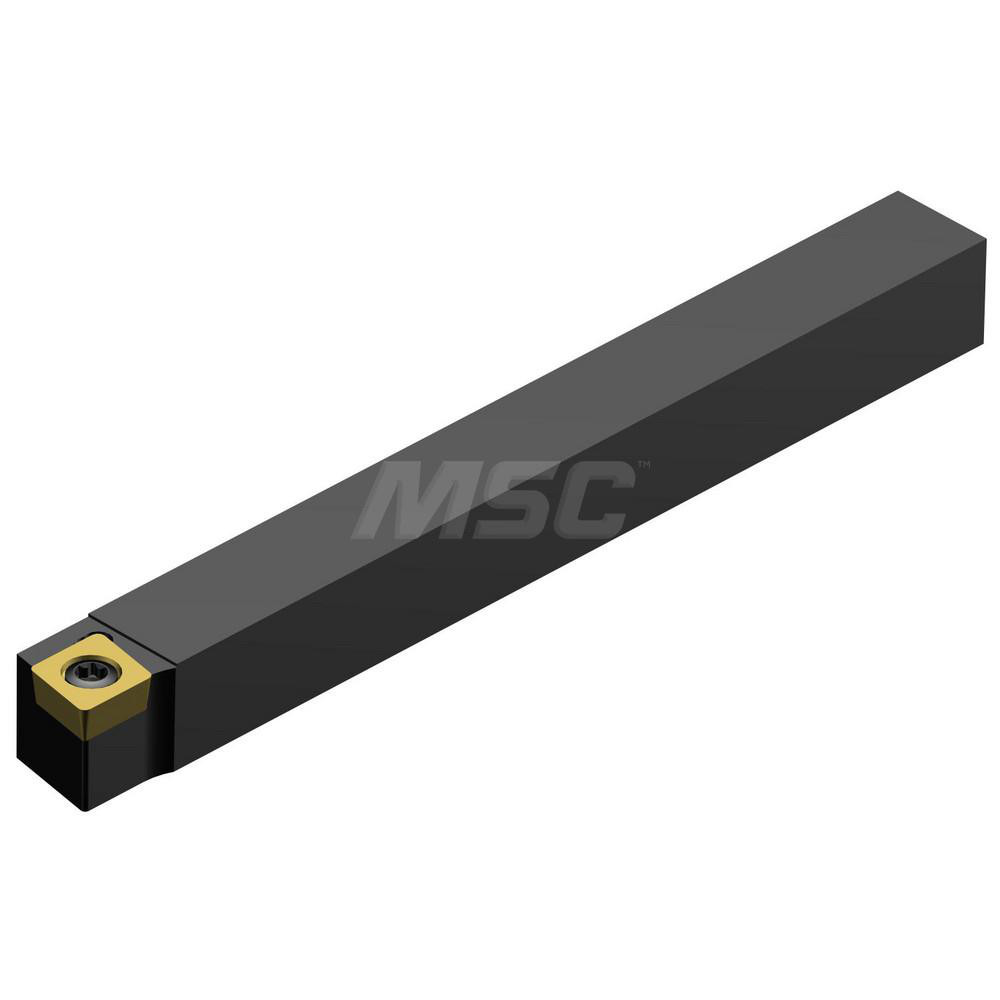

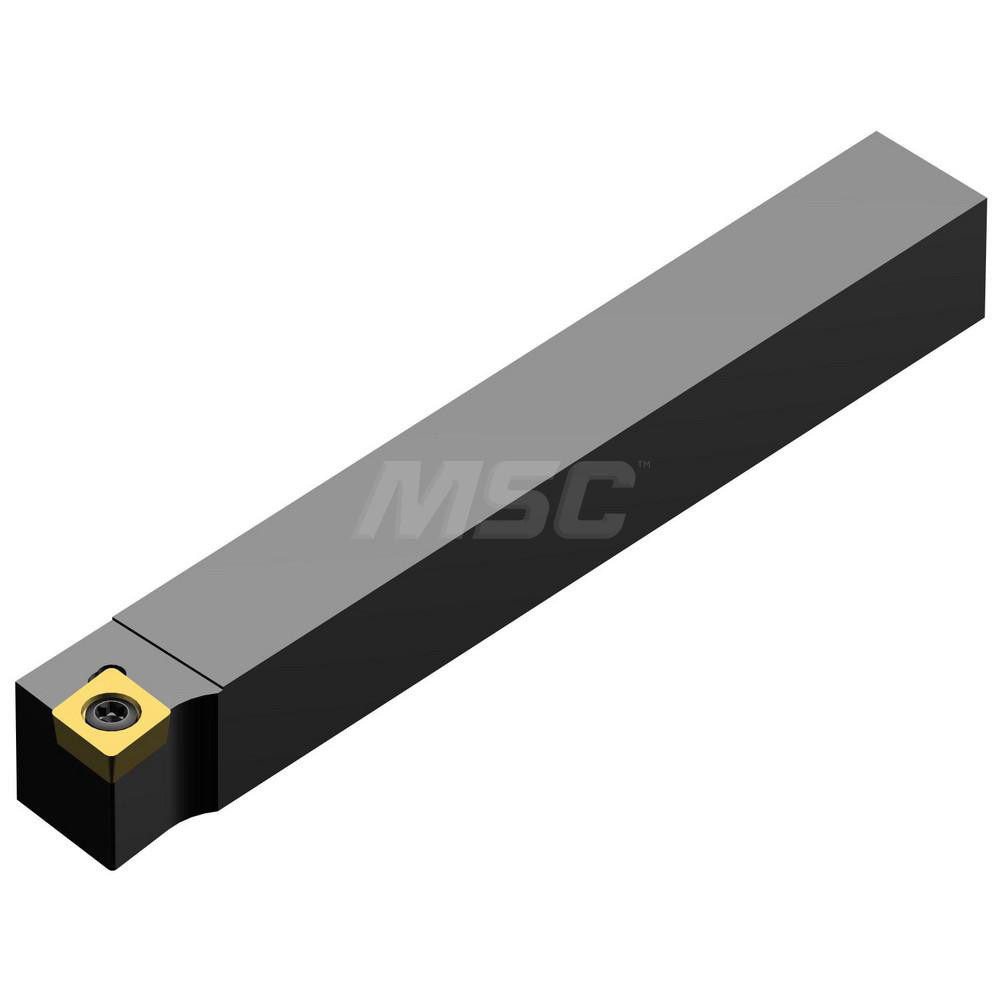

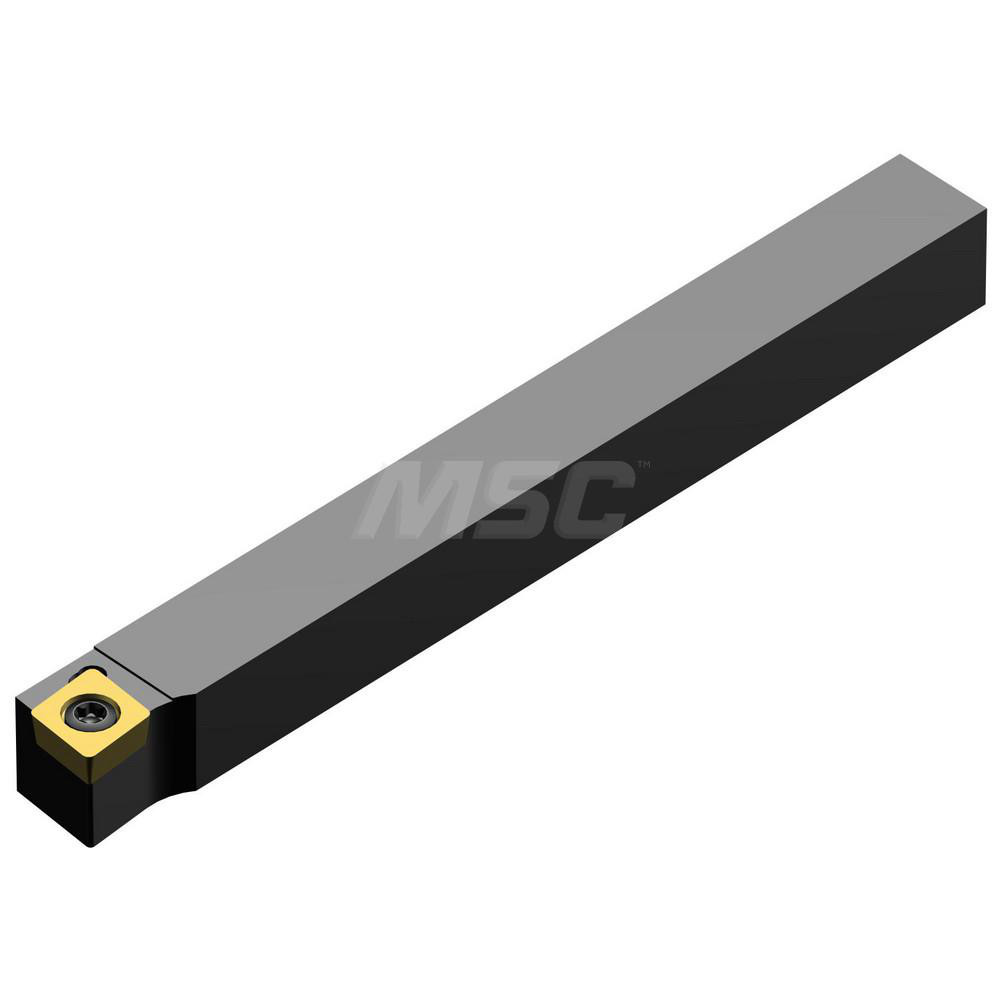

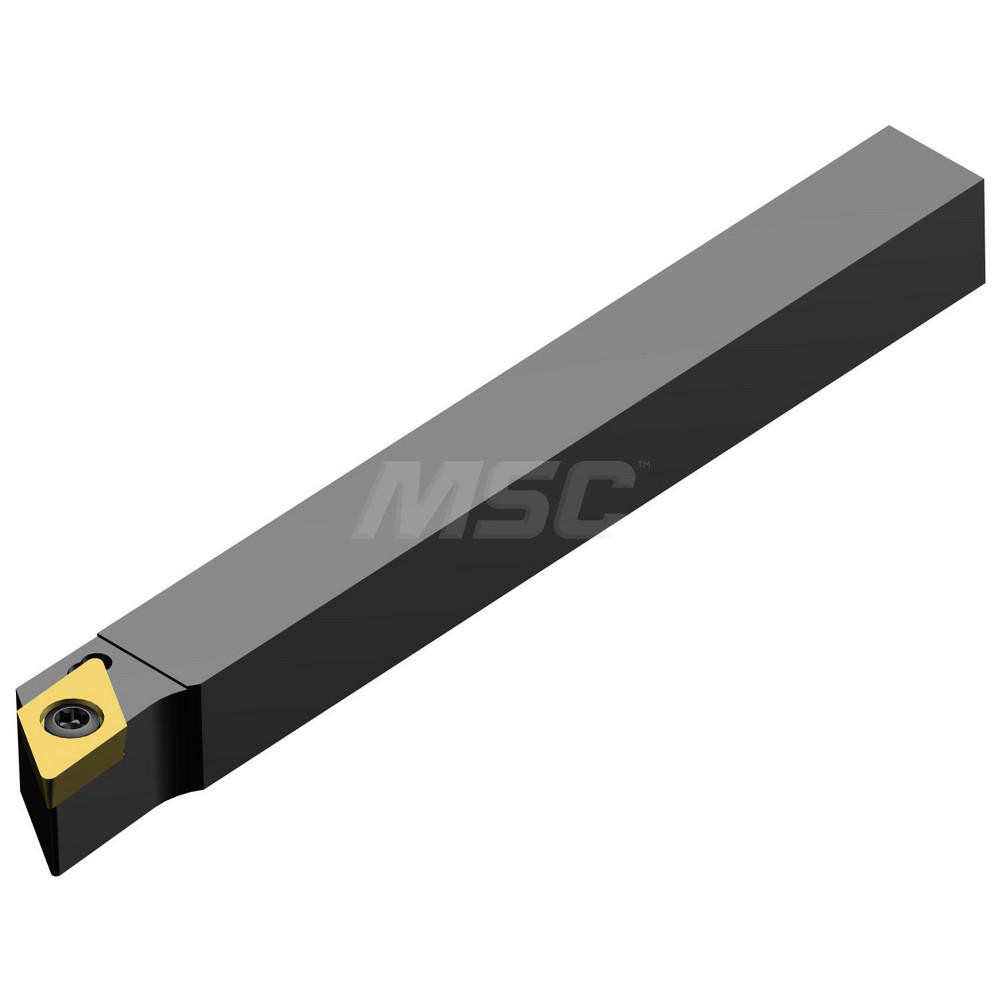

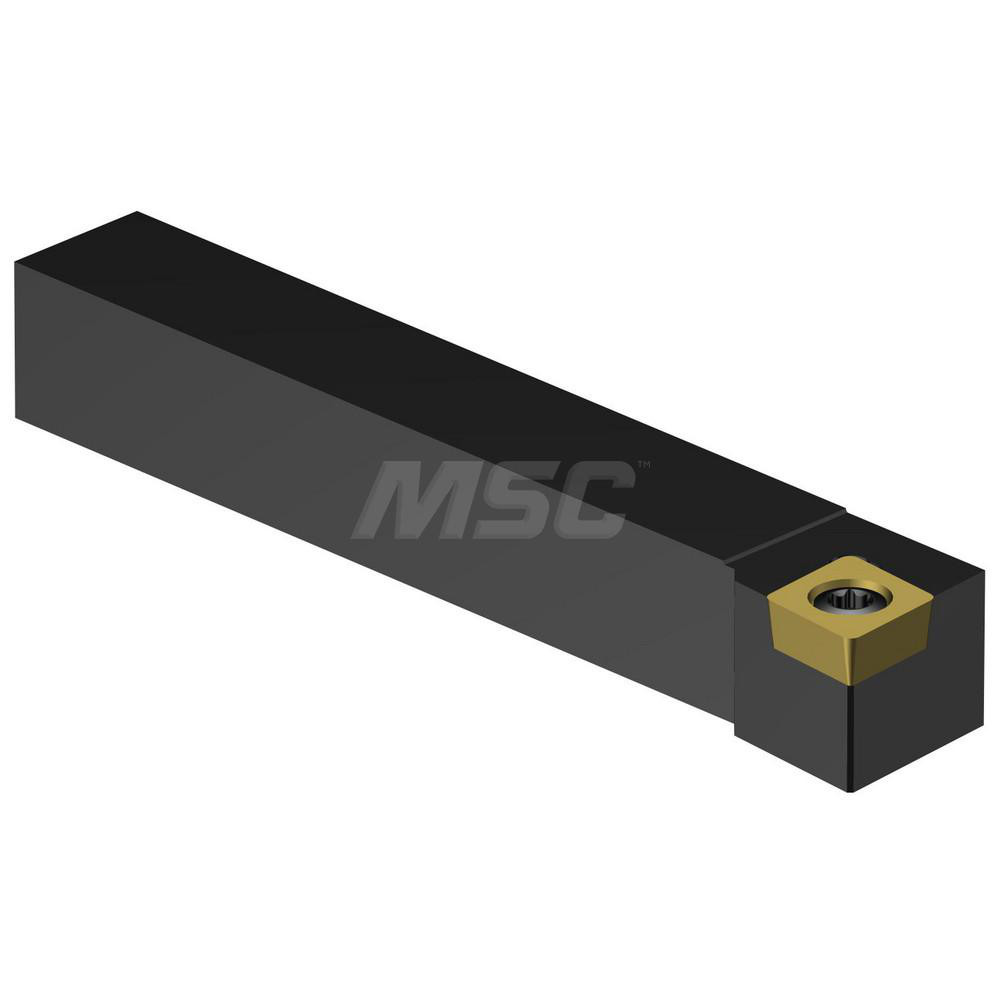

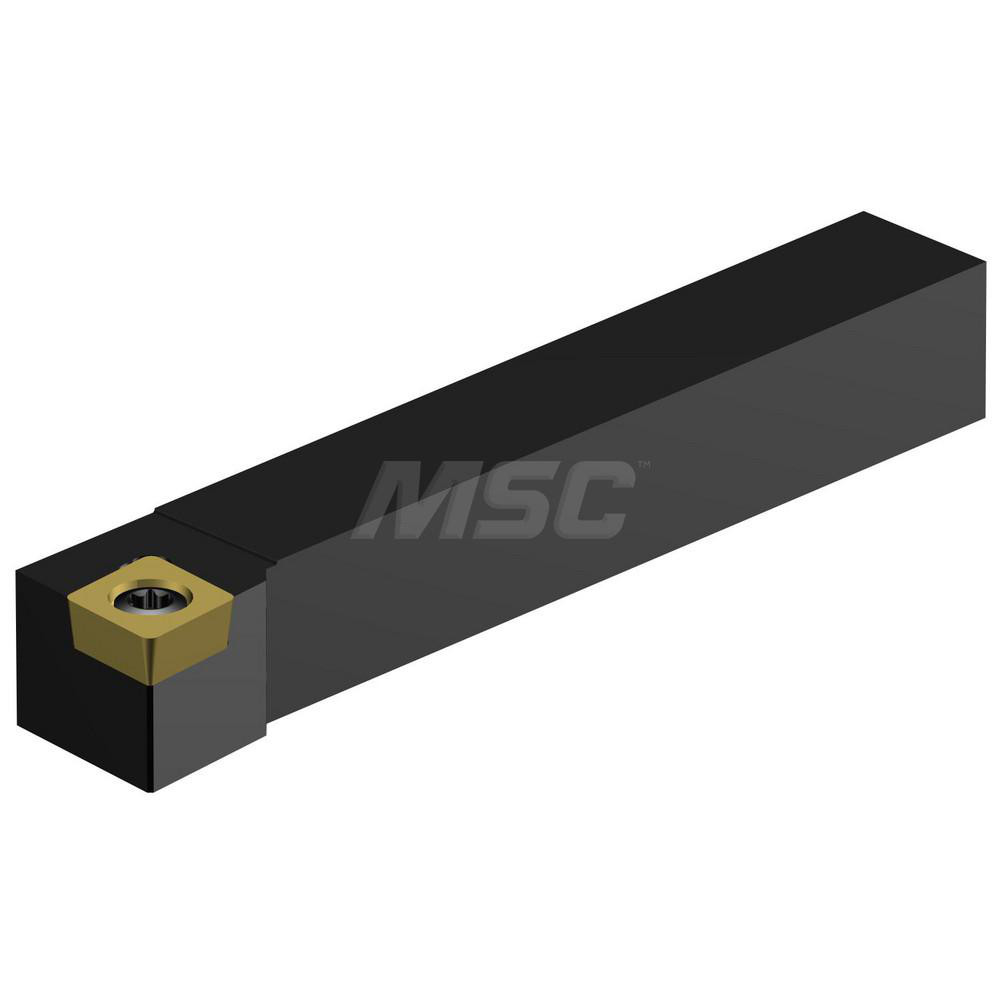

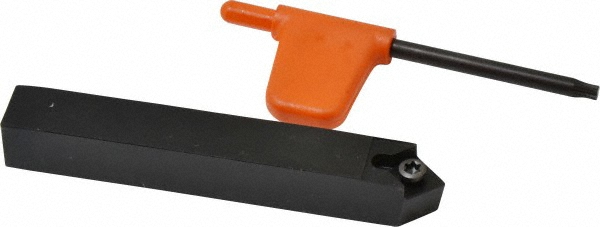

1/2 x 1/2" Shank, 3-1/2" OAL
| Toolholder Style | SCLCR |
|---|---|
| Hand of Holder | Right Hand |
| Insert Compatibility | CCMT 32.52 |
| Insert Holding Method | Screw |

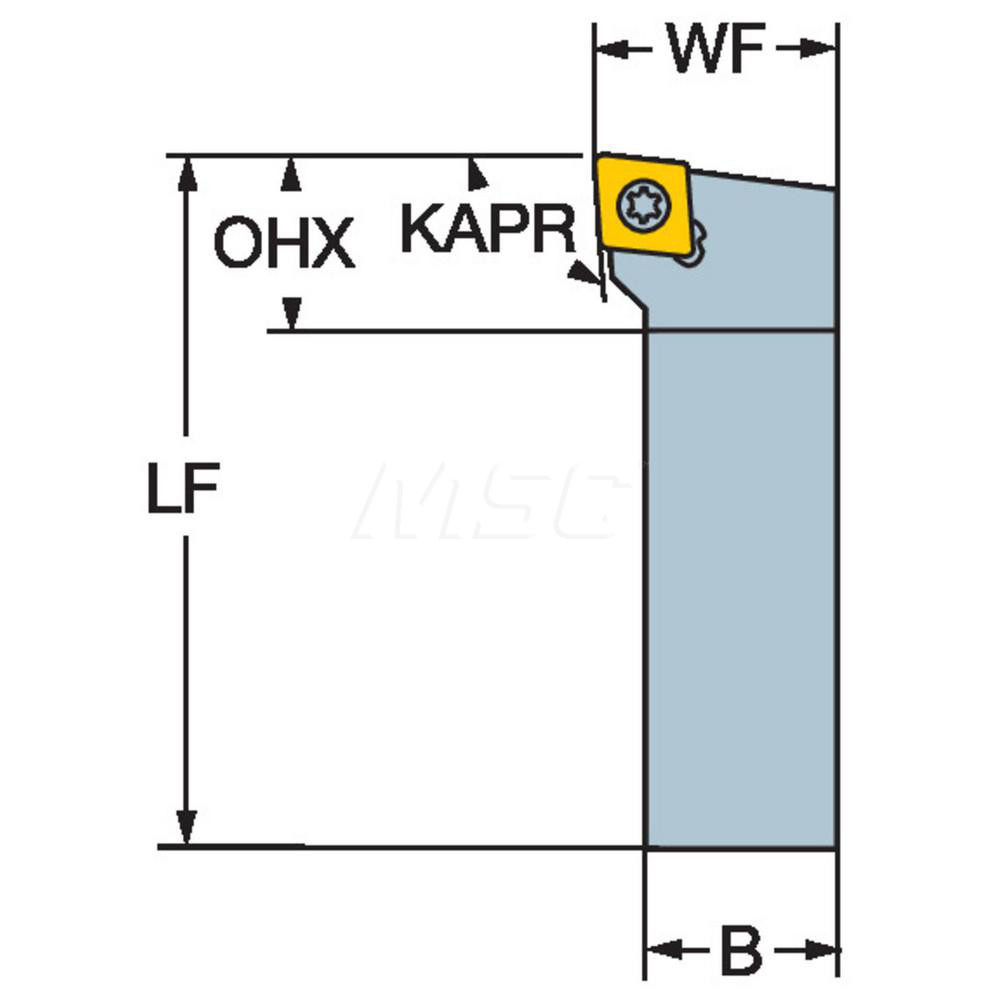

| Shank Width (Inch) | 1/2 |
| Shank Height (Inch) | 1/2 |
| Overall Length (Decimal Inch) | 3.5000 |
| Shank Width (mm) | 12.70 |
| Shank Height (mm) | 12.70 |
| Rake | Neutral |
| Rake Angle | 0 |
| Multi-use Tool | Yes |
| Shank Width (Decimal Inch) | 0.5000 |
| Shank Height (Decimal Inch) | 0.5000 |
| Series | CoroTurn® 107 |
| Overall Length (Inch) | 3-1/2 |

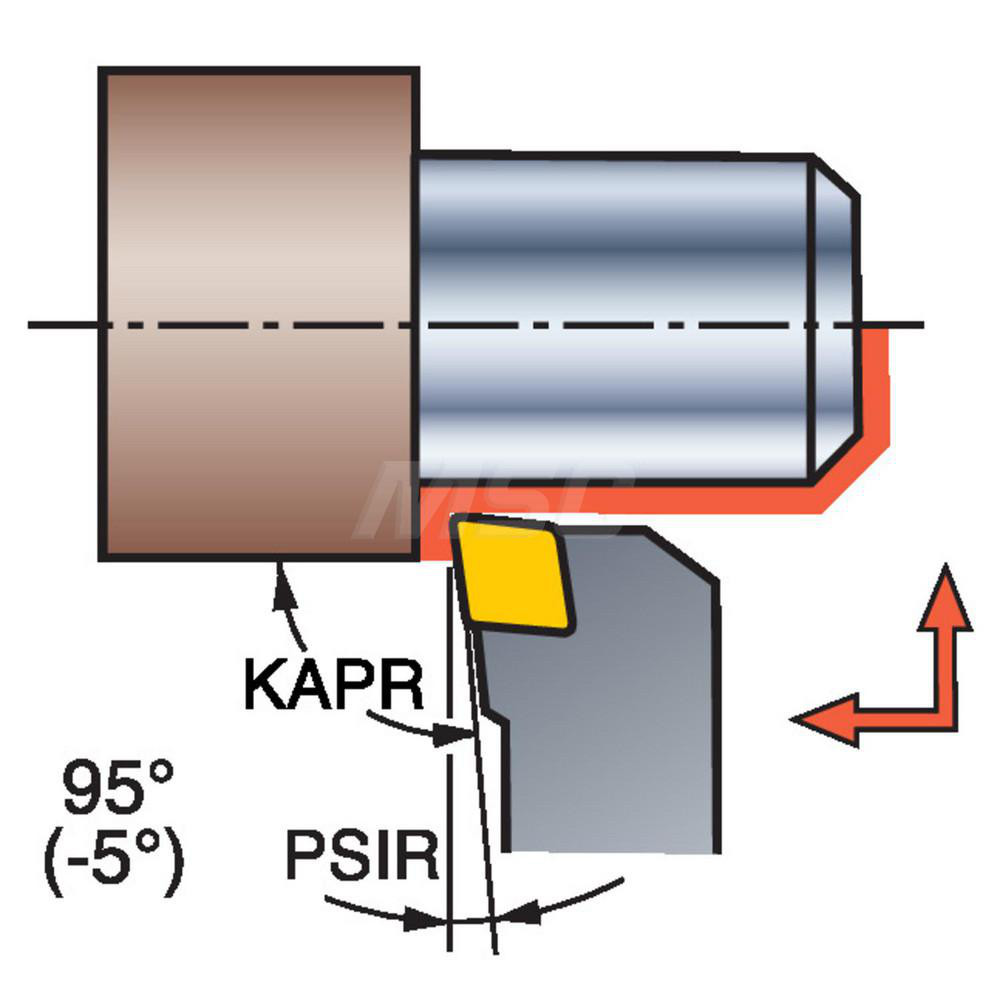

| Cutting Tool Application | Facing |
| Head Length (Decimal Inch) | 0.6299 |
| Head Length (mm) | 16.00 |
| Back of Bar to Cutting Edge (Inch) | 3-1/2 |
| Back of Bar to Cutting Edge (Decimal Inch) | 3.5000 |
| Back of Bar to Cutting Edge (mm) | 88.90 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Width (Inch) | 3/8 |
| Insert Width (Decimal Inch) | 0.3750 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| Country of Origin | India |
| undefined | undefined |
| MSC Number | MSC# 92020700 |
