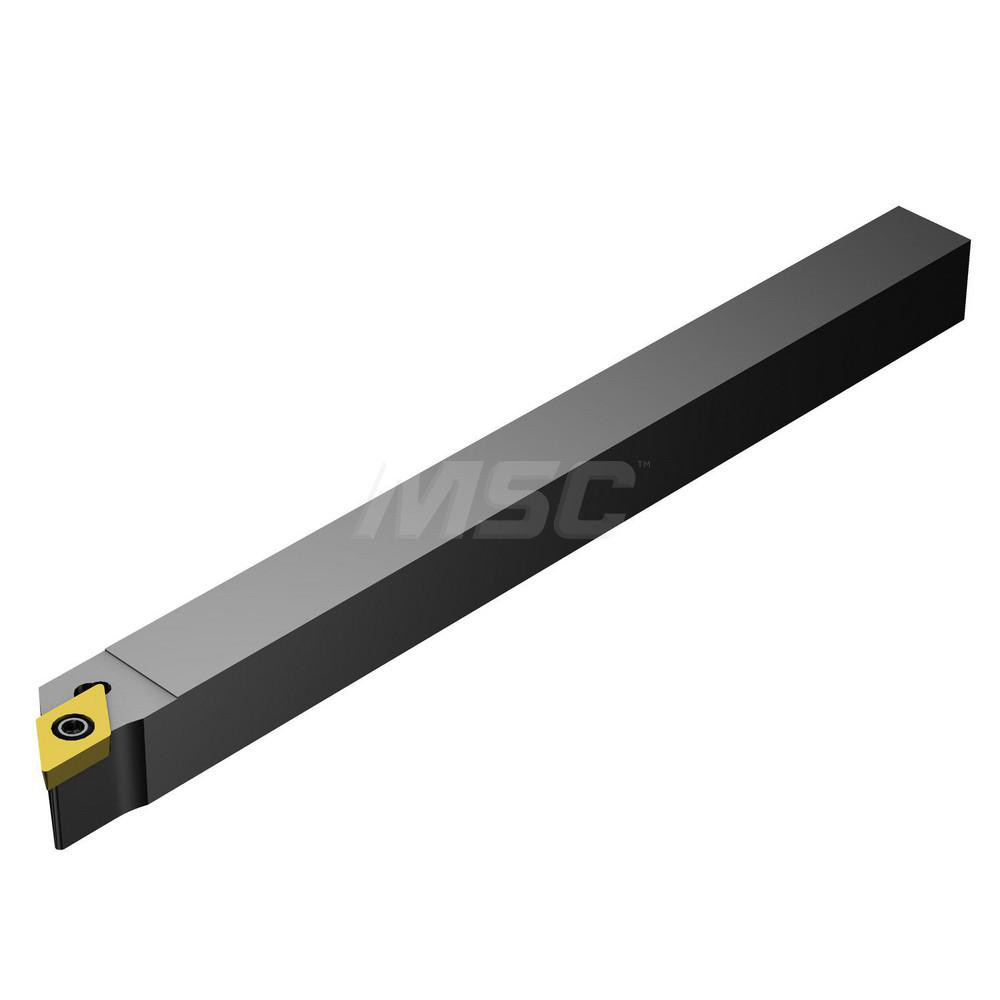

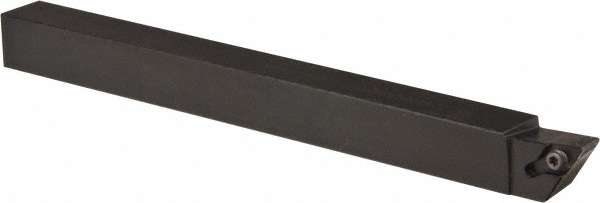

16.00 x 16.00 mm Shank, 100.00 mm OAL
| Toolholder Style | SDJC |
|---|---|
| Hand of Holder | Right Hand |
| Insert Compatibility | DCMT 11 T3 08 |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 3.9370 |
| Shank Width (mm) | 16.00 |
| Shank Height (mm) | 16.00 |
| Rake | Neutral |
| Rake Angle | 0 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 0.6299 |
| Shank Height (Decimal Inch) | 0.6299 |
| Series | CoroTurn 107 |

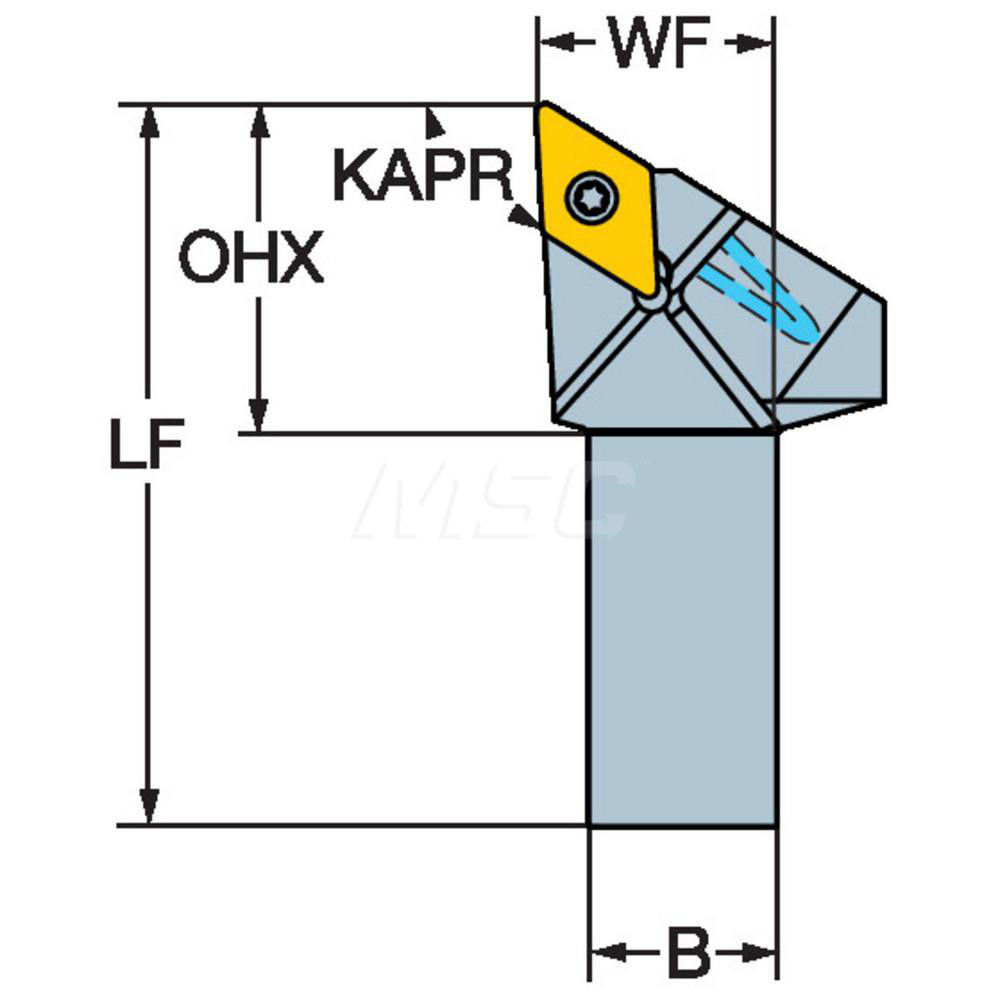

| Head Length (Decimal Inch) | 1.1024 |
| Head Length (mm) | 28.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7874 |
| Back of Bar to Cutting Edge (mm) | 20.00 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| Country of Origin | Sweden |
| MSC Number | MSC# 49441934 |
