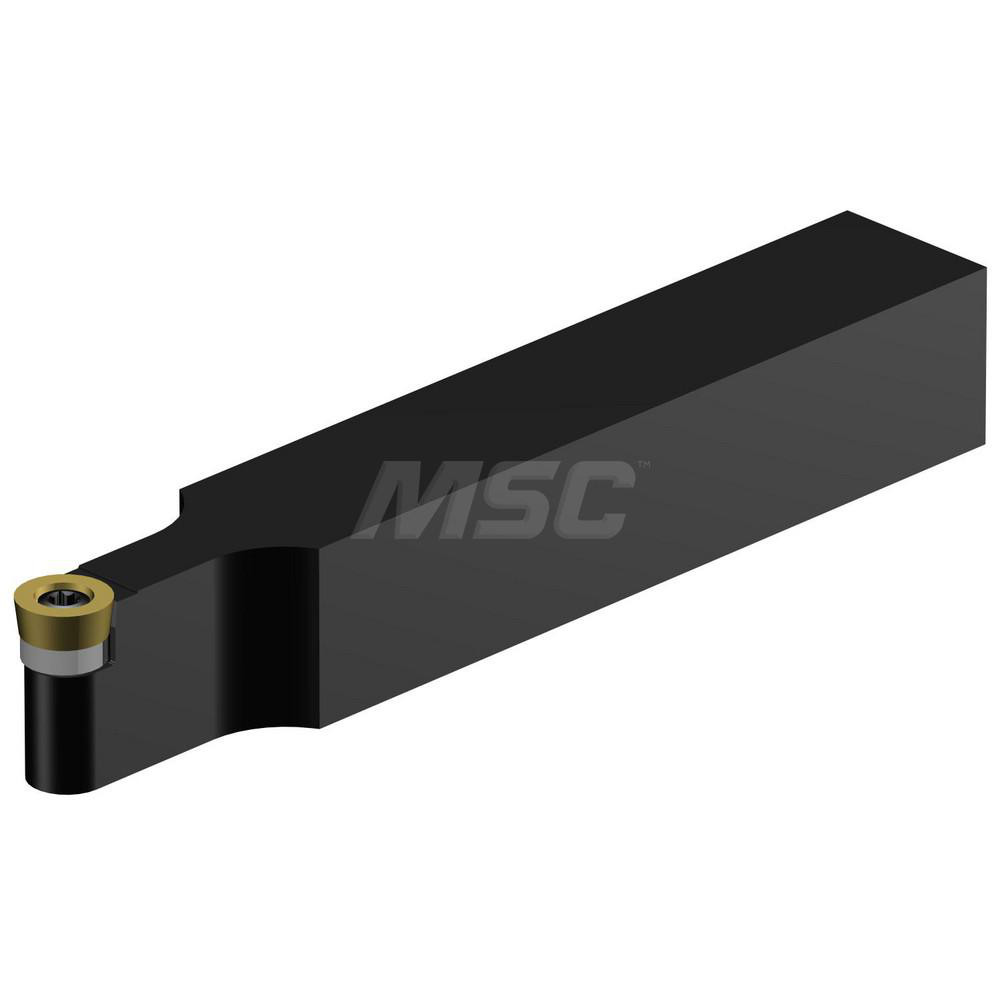

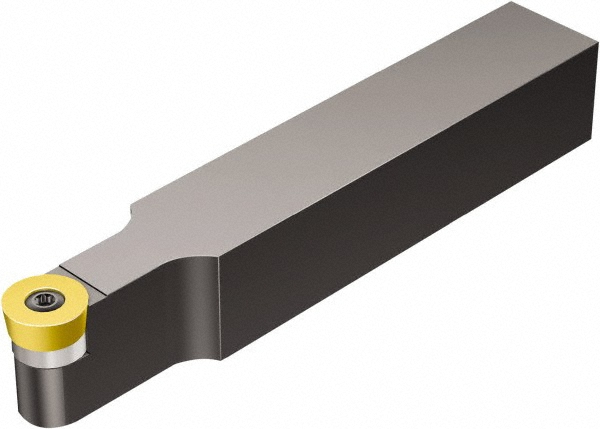

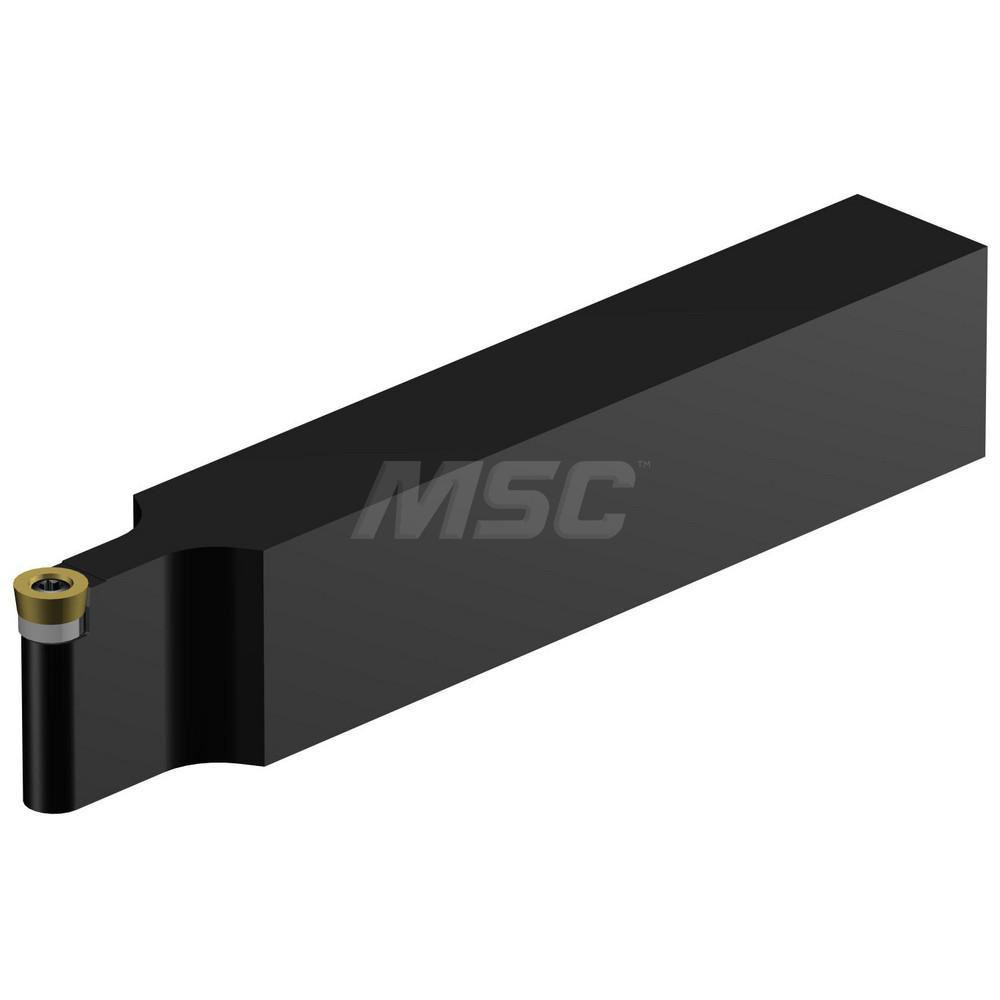

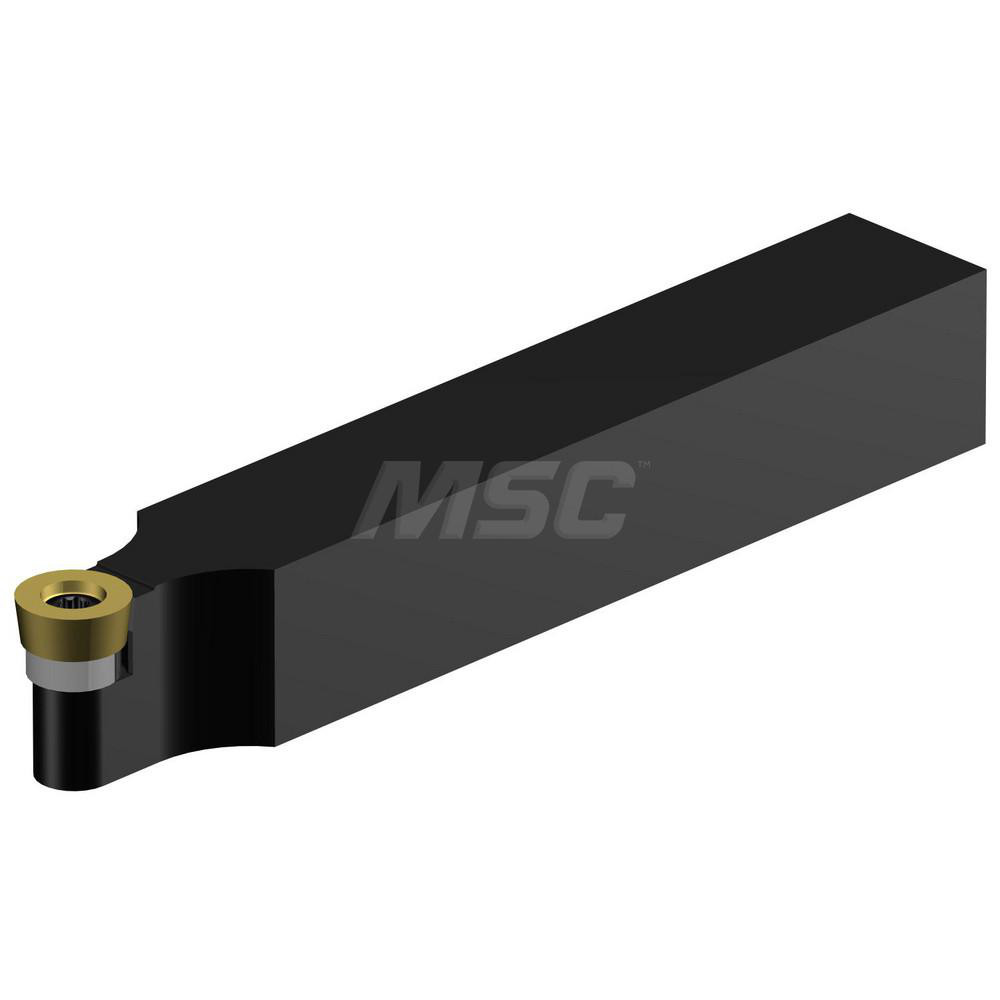

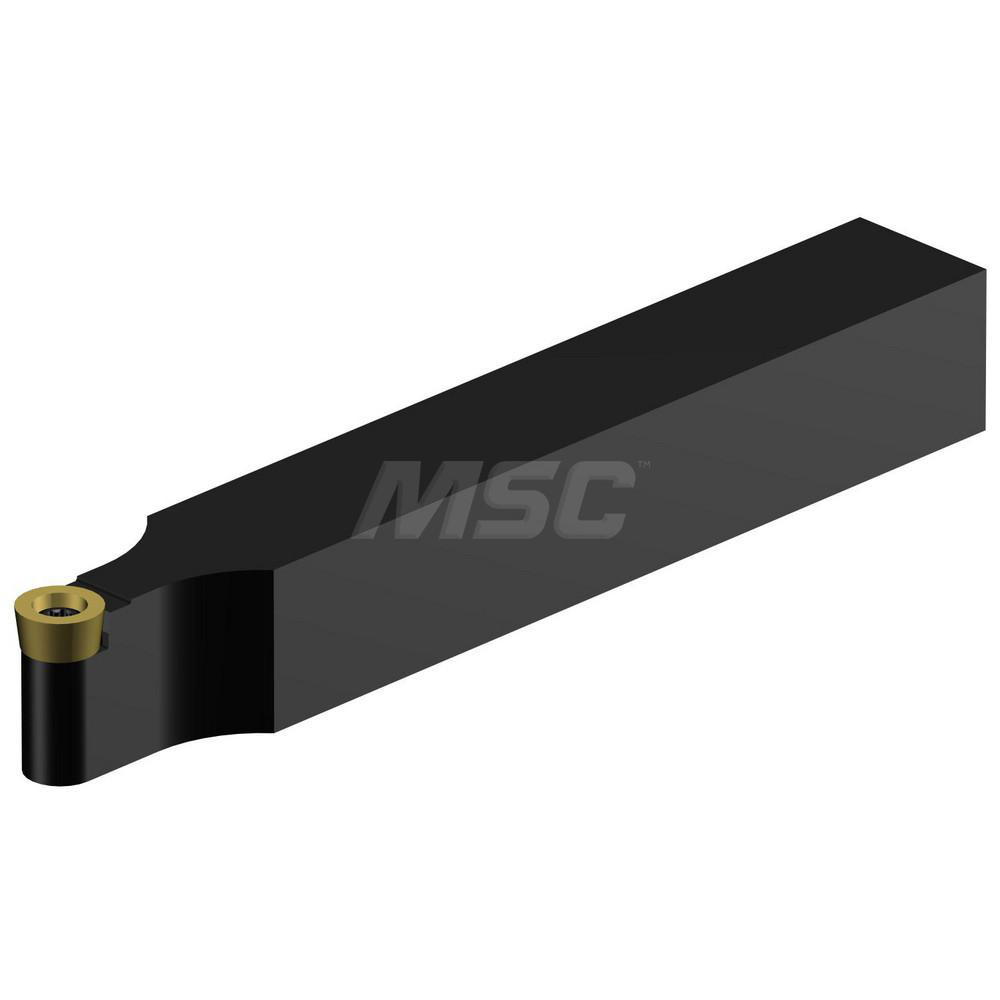

20.00 x 20.00 mm Shank, 125.00 mm OAL
| Toolholder Style | SRDC |
|---|---|
| Hand of Holder | Neutral |

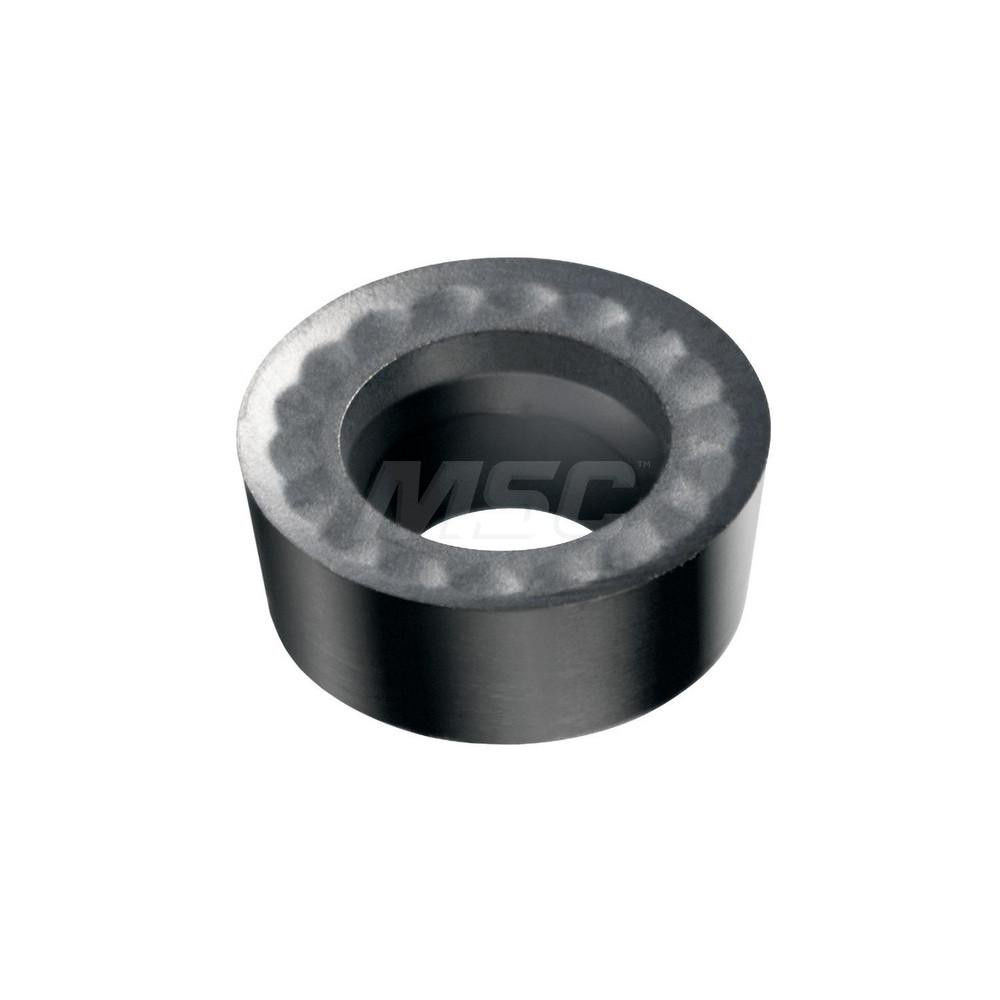

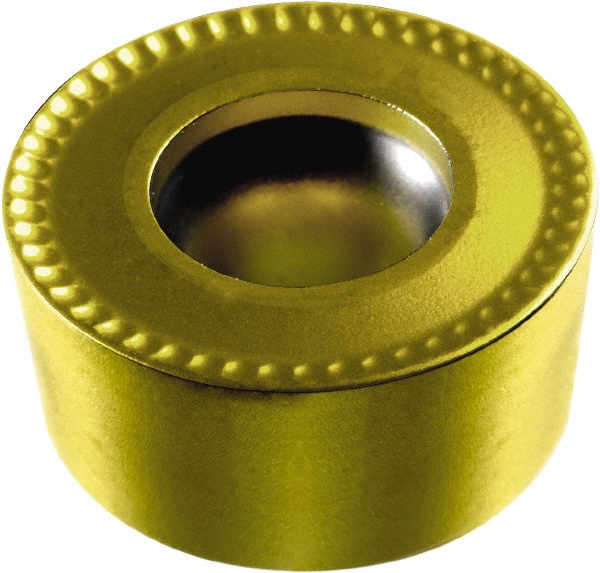

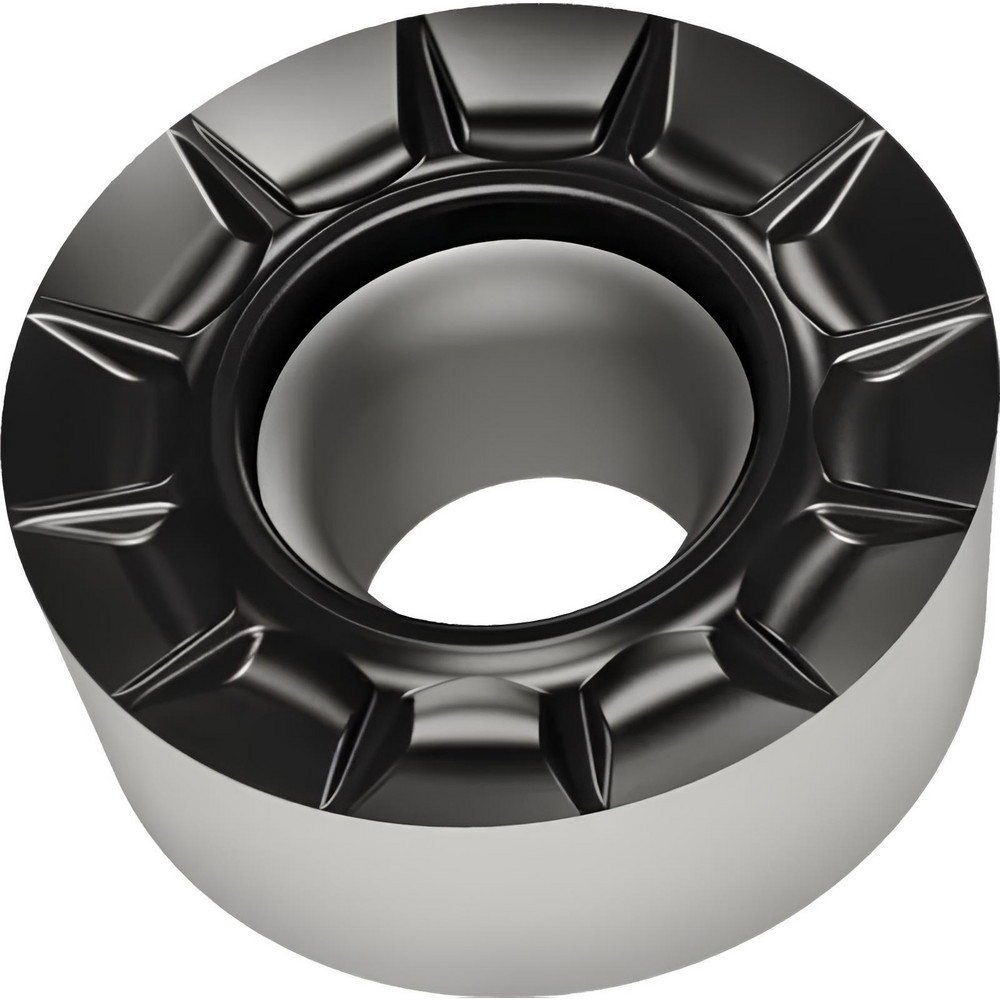

| Insert Compatibility | RCMT 10 T3 M0 |

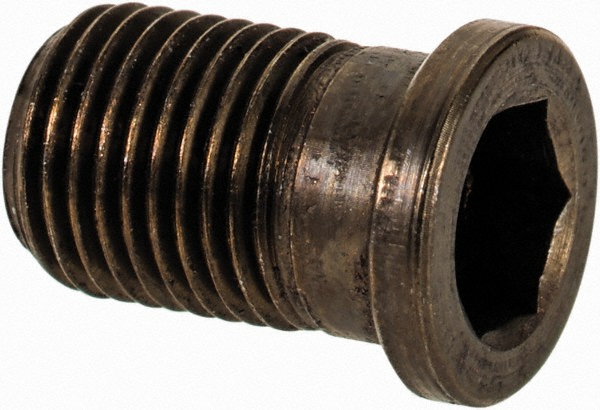

| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 4.9213 |
| Shank Width (mm) | 20.00 |
| Shank Height (mm) | 20.00 |
| Rake | Neutral |
| Rake Angle | 0 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 0.7874 |
| Shank Height (Decimal Inch) | 0.7874 |
| Series | CoroTurn 107 |

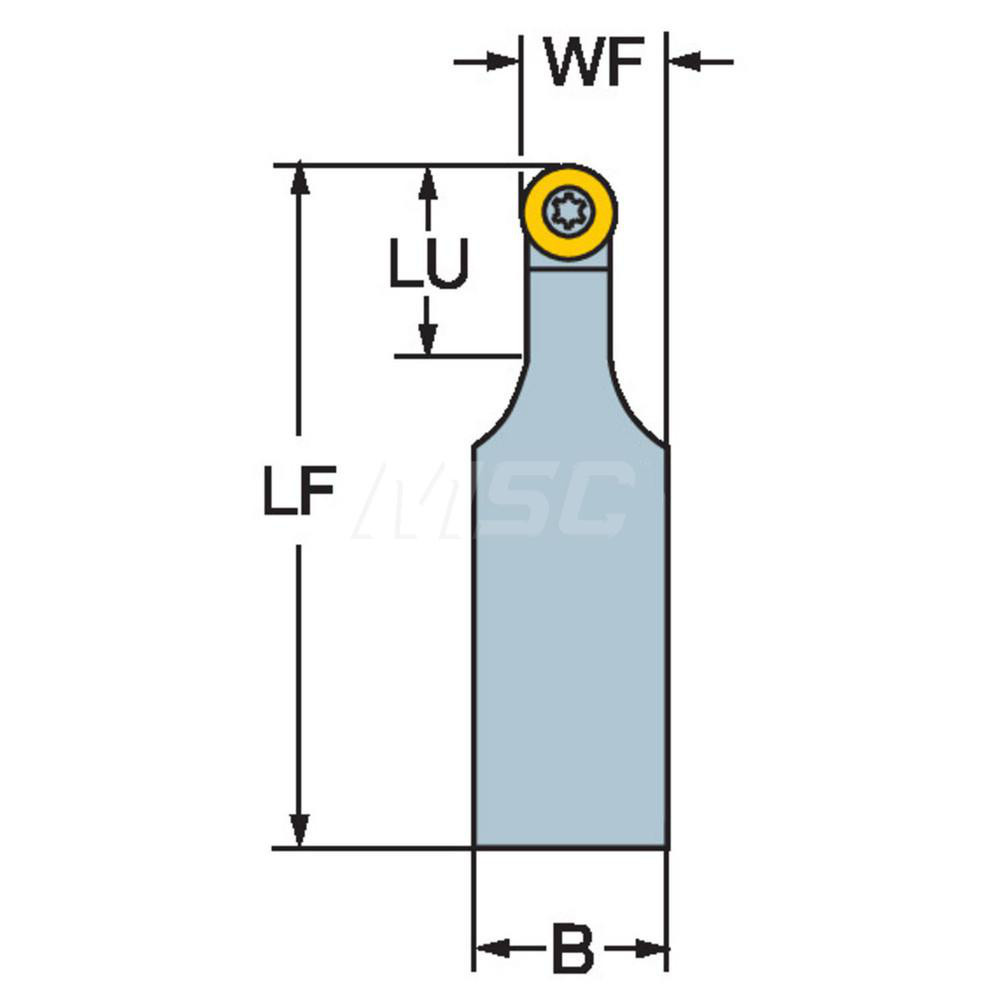

| Head Length (Decimal Inch) | 0.9843 |
| Head Length (mm) | 25.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5906 |
| Back of Bar to Cutting Edge (mm) | 15.00 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| Country of Origin | Sweden |
| MSC Number | MSC# 35495597 |
