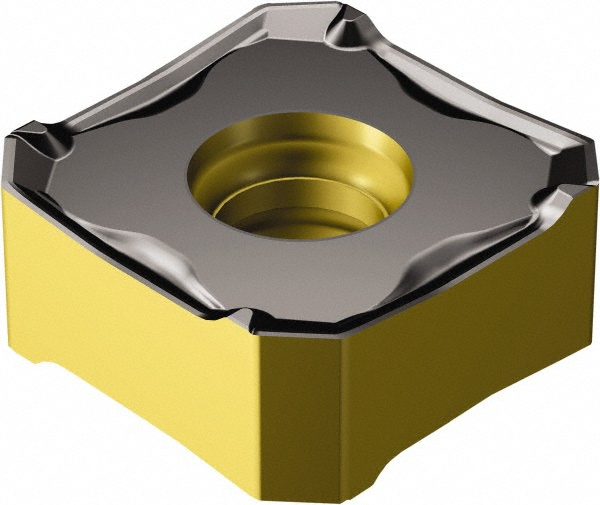

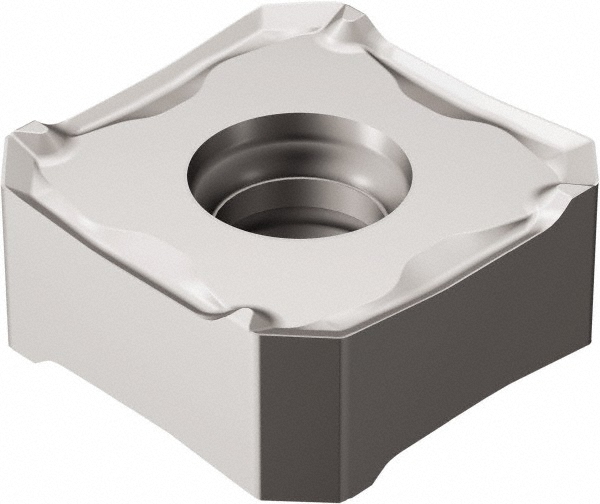

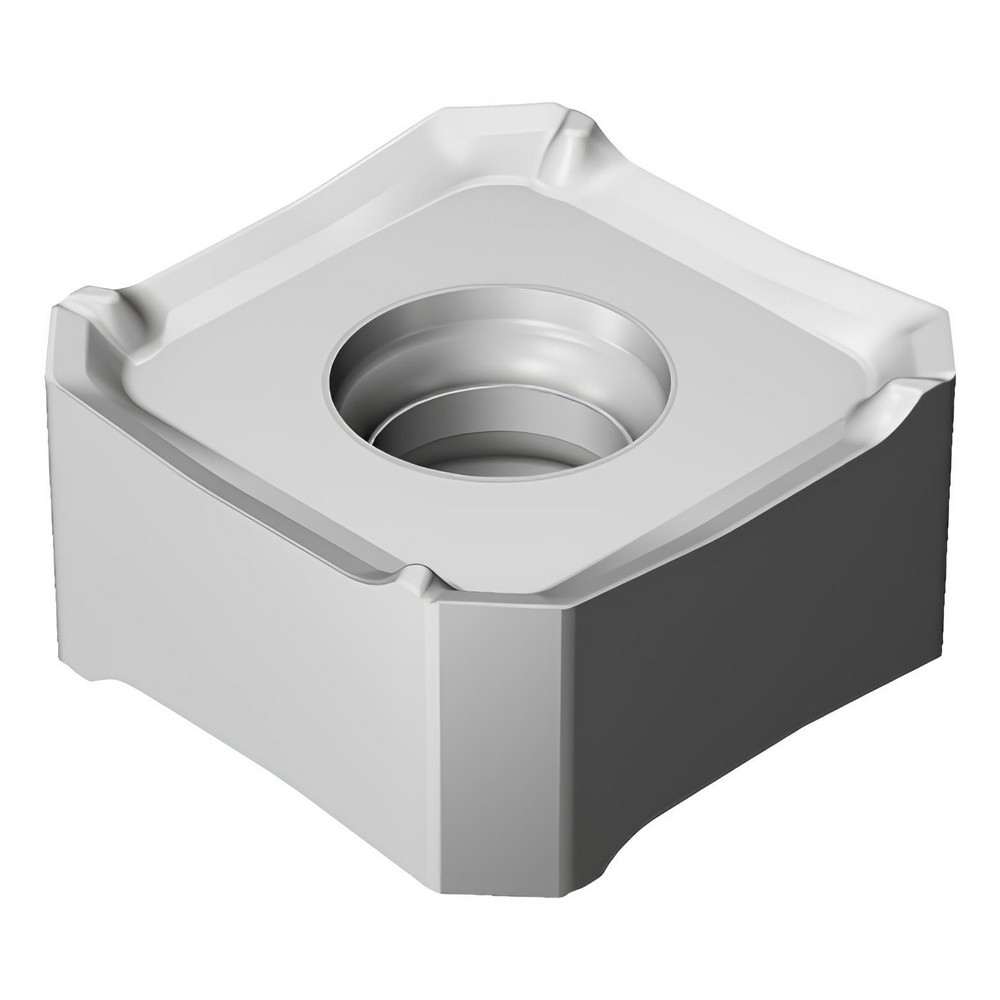

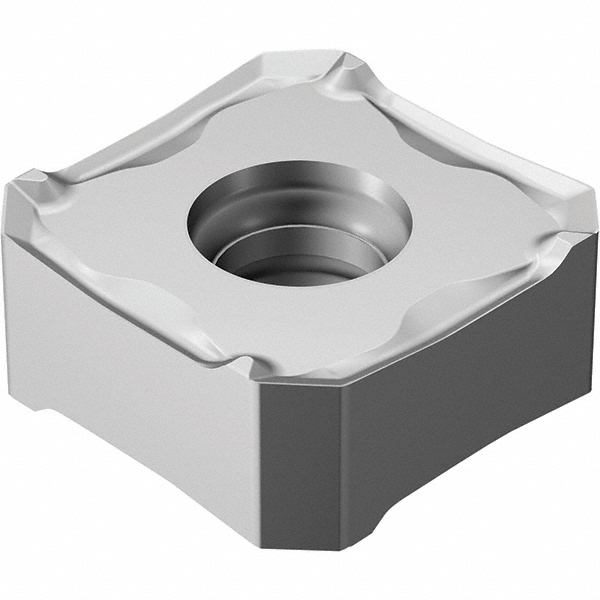

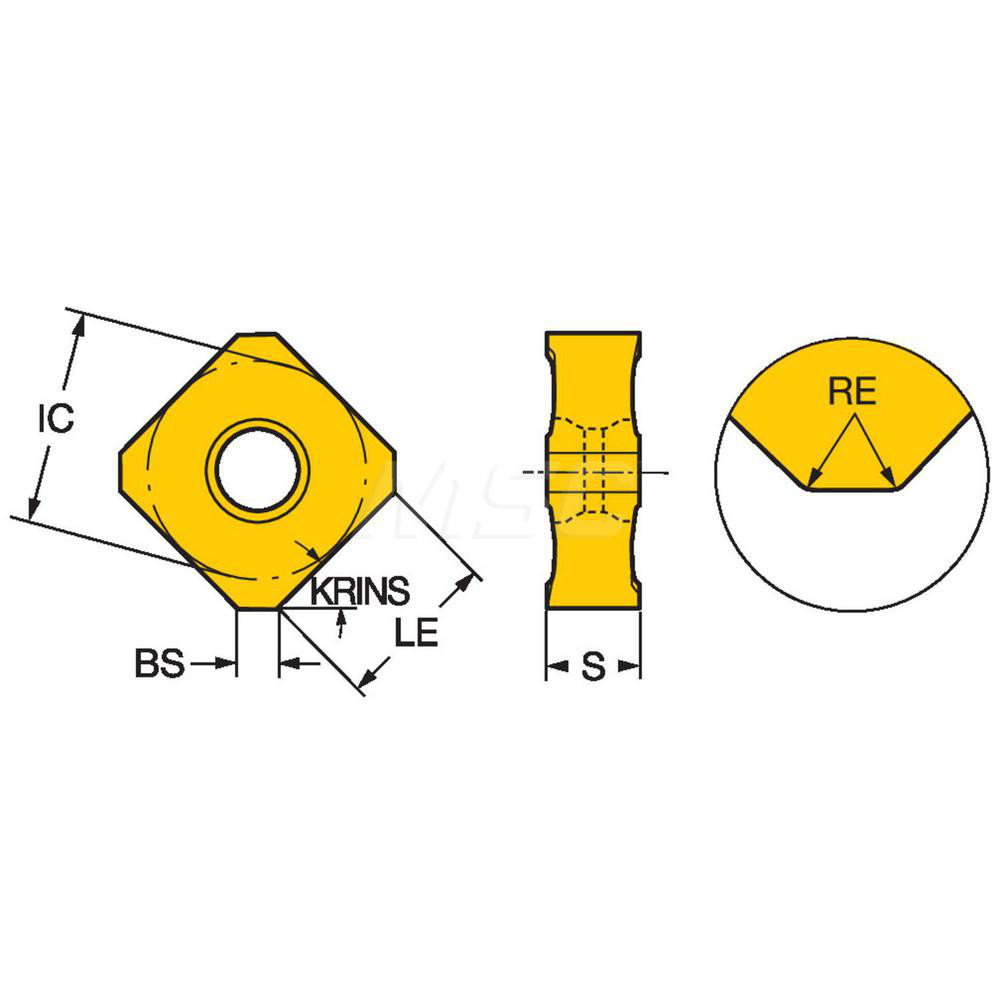

TiCN, Al2O3 & TiN Finish, 5.05 mm Thick
| Insert Style | 345 |
|---|---|
| Insert Size | 13 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | 4340 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1988 |
| Thickness (mm) | 5.05 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Relief Angle | 0.00 |
| Insert Size Code | 1305 |
| Material Grade | K40; M40; P40 |
| Inscribed Circle (Decimal Inch) | 0.5118 |
| Inscribed Circle (mm) | 13.00 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 to 0.6000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Series | 345 |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.1890 |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Ansi Code | 345R-1305M-PM 4340 |
| Iso Code | 345R-1305M-PM 4340 |
| Standards | ISO; ANSI |
| Rake Angle | 24 |
| Cutting Edge Style | Corner Rounded |
| Manufacturers Catalog Number | 345R-1305M-PM 4340 |
| Cutter Series Compatibility | 345 |
| Chip Breaker | PM |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5118 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5118 |
| Country of Origin | Sweden |
| MSC Number | MSC# 94032802 |
