TiAlN Finish, 3.07 mm Thick
| Insert Style | 415 |
|---|---|
| Insert Size | 07 |
| Insert Material | Cermet |
| Insert Shape | Square |
| Manufacturer Grade | S30T |
| Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (mm) | 2.00 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1209 |
| Thickness (mm) | 3.07 |
| Coating/Finish | TiAlN |
| Insert Size Code | 070320 |
| Material Grade | M25; S25 |

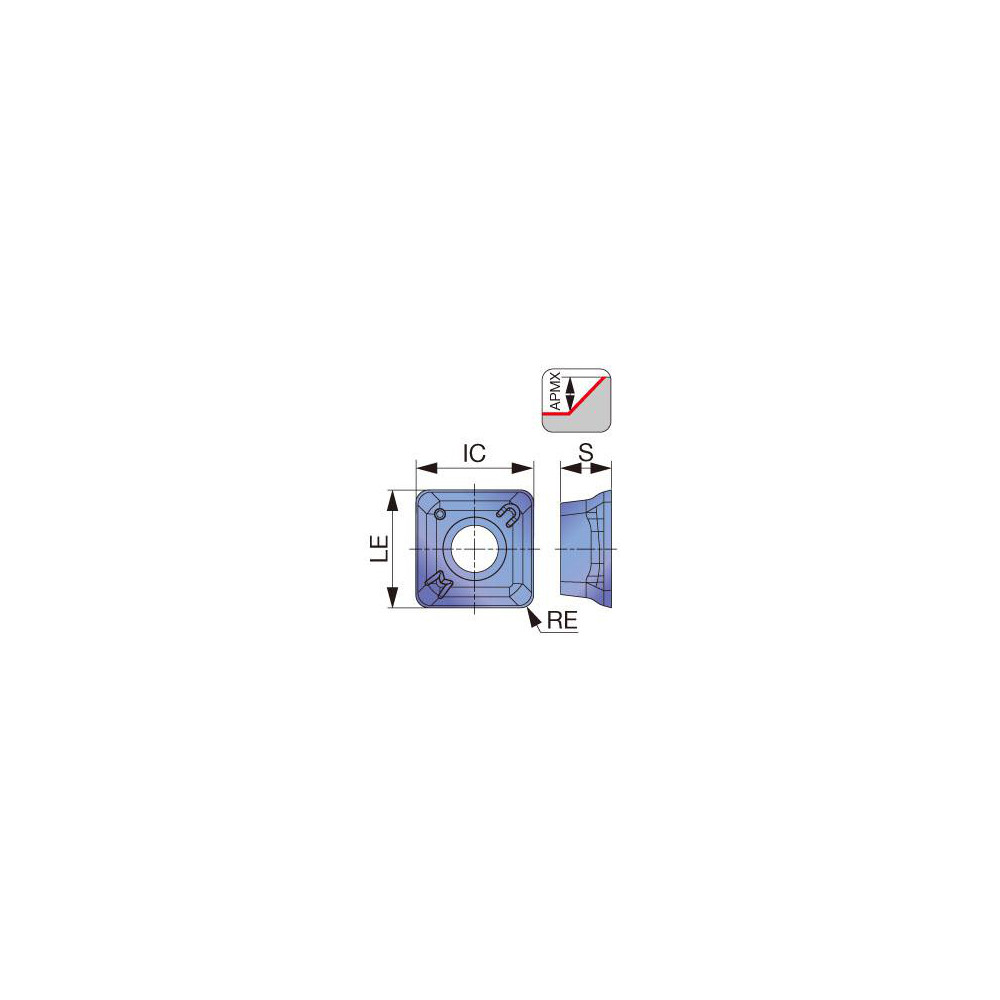

| Inscribed Circle (Decimal Inch) | 0.2756 |
| Inscribed Circle (mm) | 7.00 |
| Thickness Range (Decimal Inch) | 0.1000 to 0.1250 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Length Range (Decimal Inch) | 0.0000 to 0.3200 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.0472 |
| Maximum Depth of Cut (mm) | 1.20 |
| Series | 415 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Ansi Code | 415N-07 03 20M-M30 S30T |
| Iso Code | 415N-07 03 20M-M30 S30T |
| Standards | ISO; ANSI |
| Rake Angle | 20 |
| Cutting Edge Style | Corner Rounded |
| Manufacturers Catalog Number | 415N-07 03 20M-M30 S30T |
| Cutter Series Compatibility | 415 |
| Chip Breaker | M30 |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.2756 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.2756 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 11447430 |
