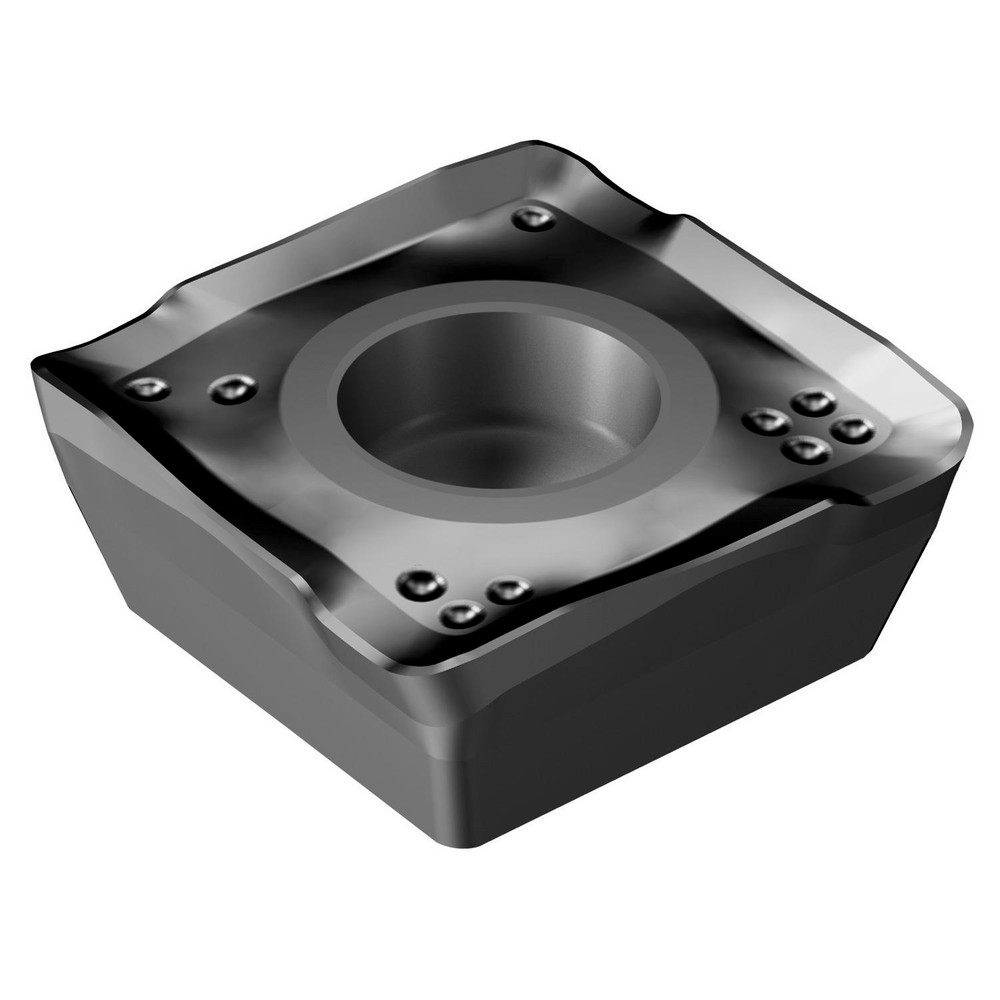

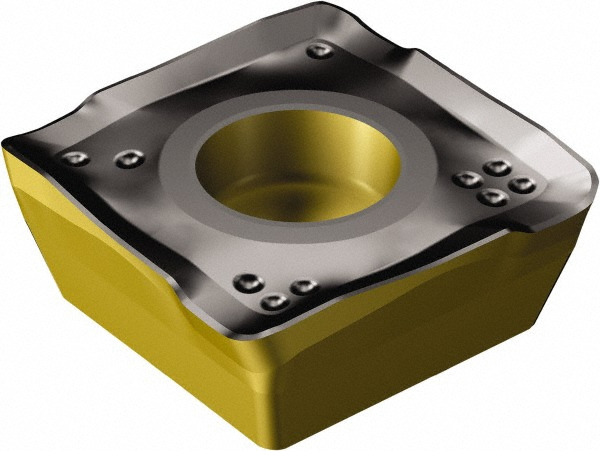

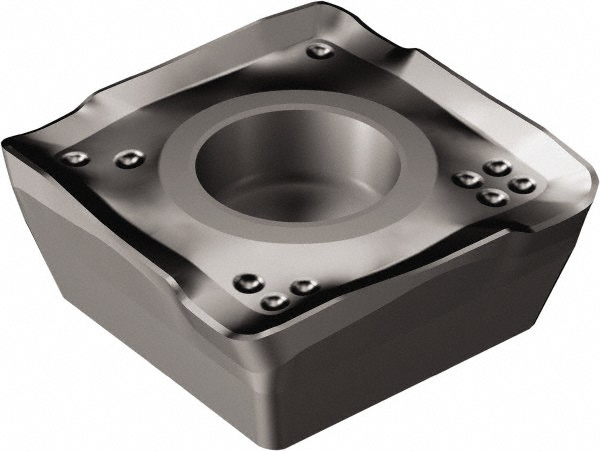

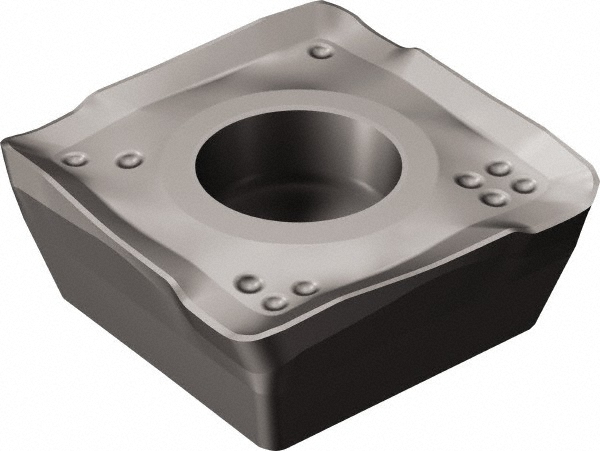

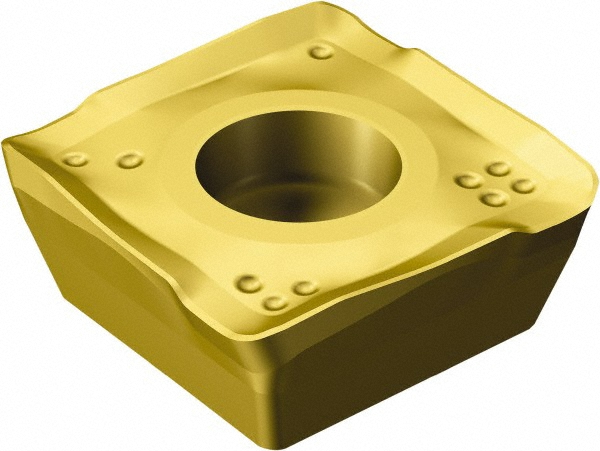

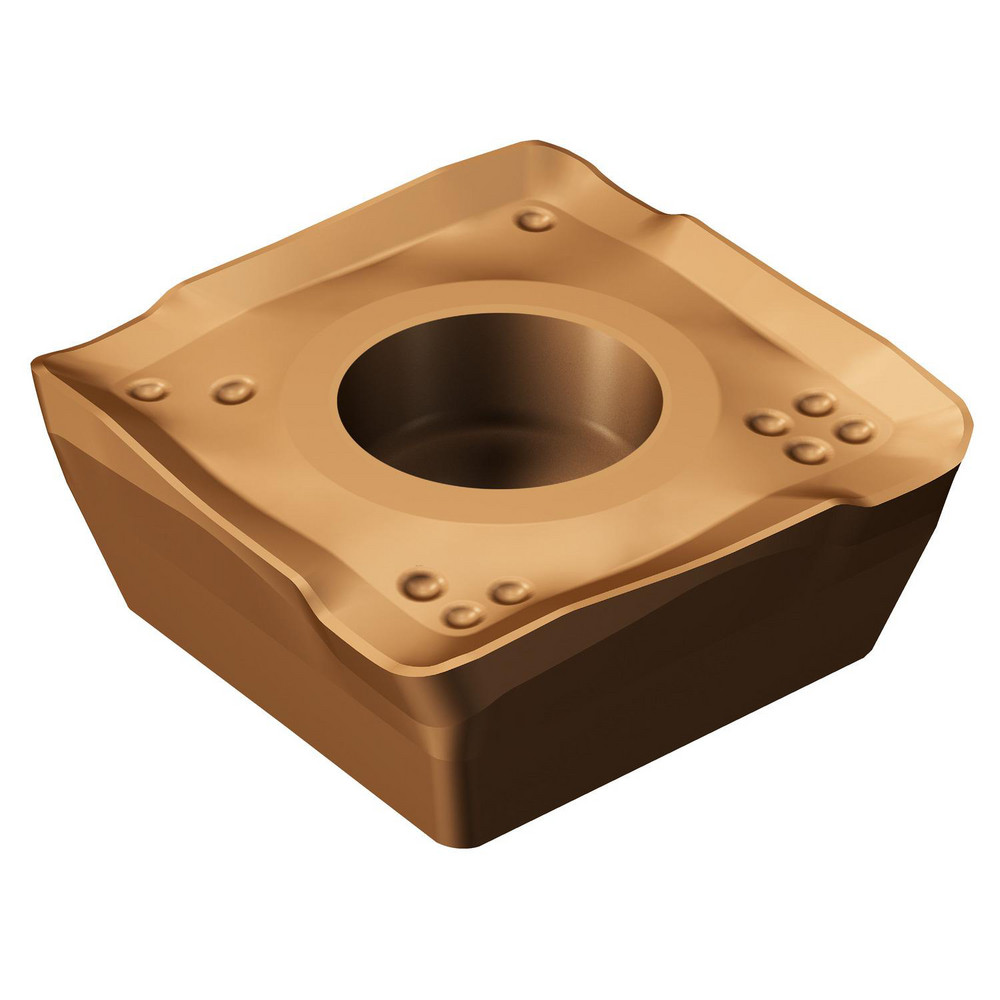

TiCN, Al2O3 & TiN Finish, 3.30 mm Thick
| Insert Style | 490 |
|---|---|
| Insert Size | 08 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | 4330 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1299 |
| Thickness (mm) | 3.30 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Insert Size Code | 08T308 |
| Material Grade | K30; M30; P30 |

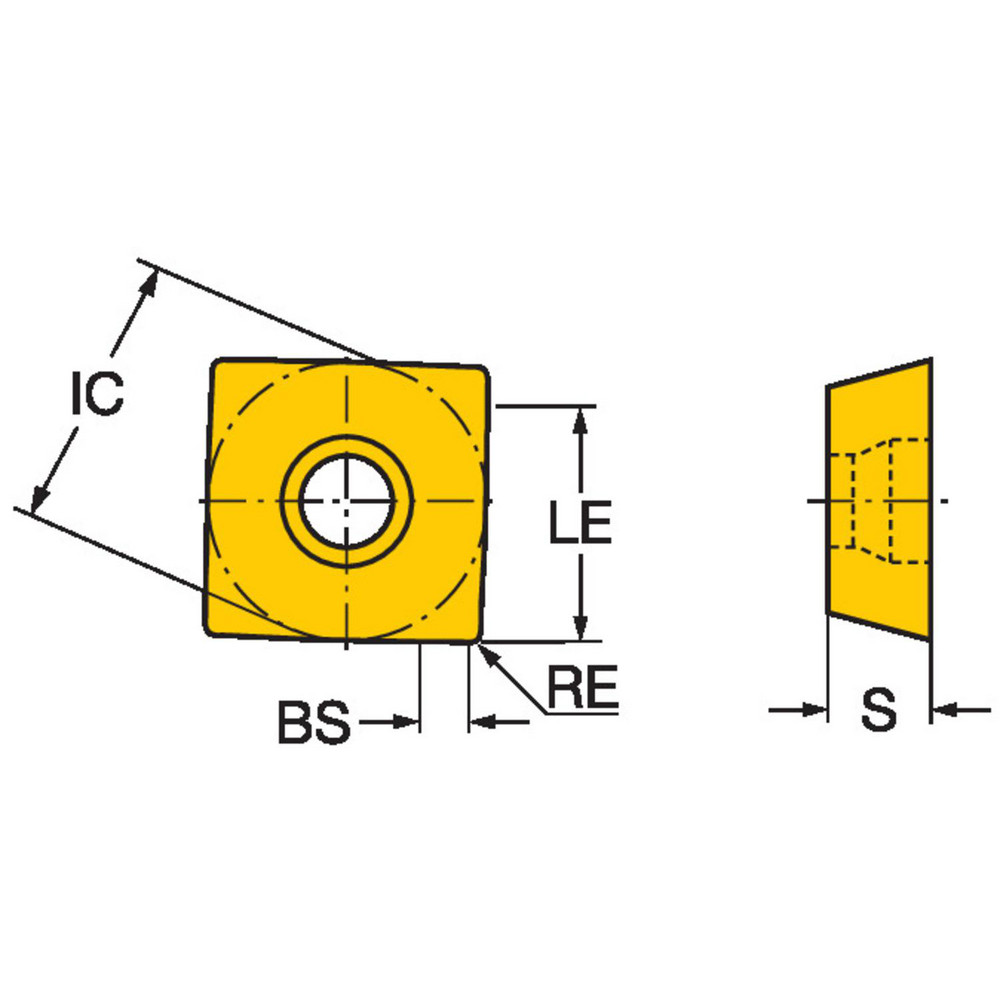

| Inscribed Circle (Decimal Inch) | 0.3346 |
| Inscribed Circle (mm) | 8.50 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.3000 to 0.3500 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2165 |
| Series | 490 |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Ansi Code | 490R-08T308M-PM 4330 |
| Iso Code | 490R-08T308M-PM 4330 |
| Standards | ISO; ANSI |
| Rake Angle | 26 |
| Cutting Edge Style | Corner Rounded |
| Manufacturers Catalog Number | 490R-08T308M-PM 4330 |
| Cutter Series Compatibility | 490 |
| Chip Breaker | PM |
| UNSPSC Code | 23291601 |
| Material Application | Cast Iron; Steel |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.3346 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3346 |
| Country of Origin | India |
| undefined | undefined |
| MSC Number | MSC# 57965931 |
