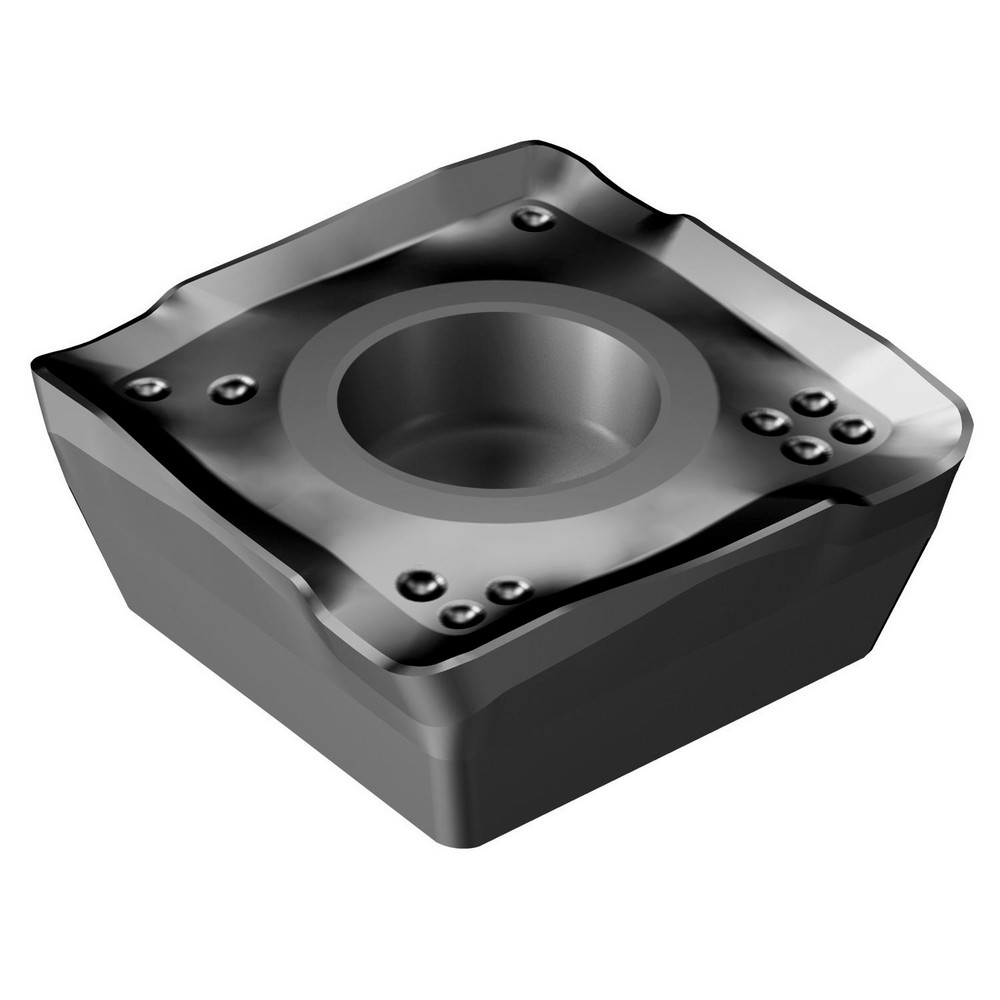

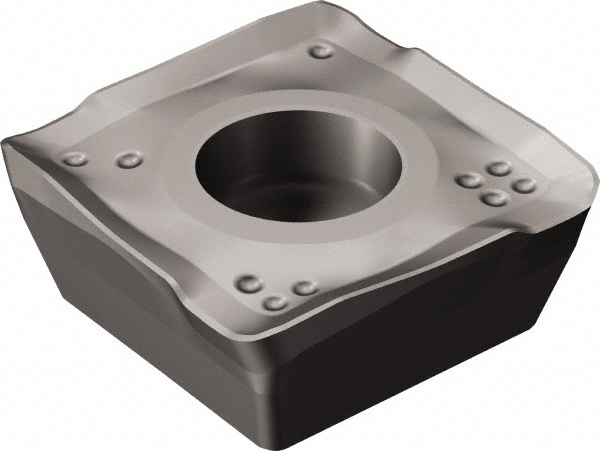

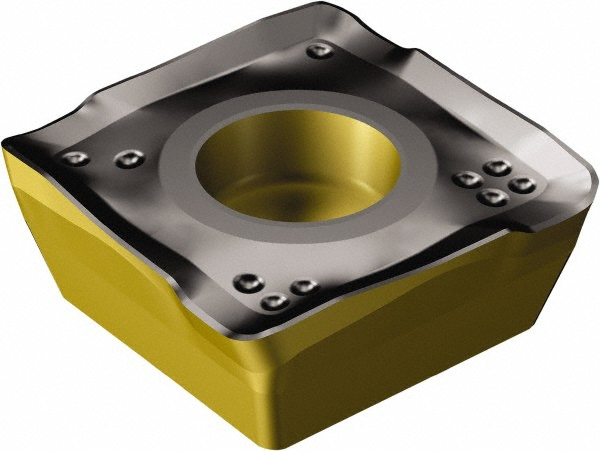

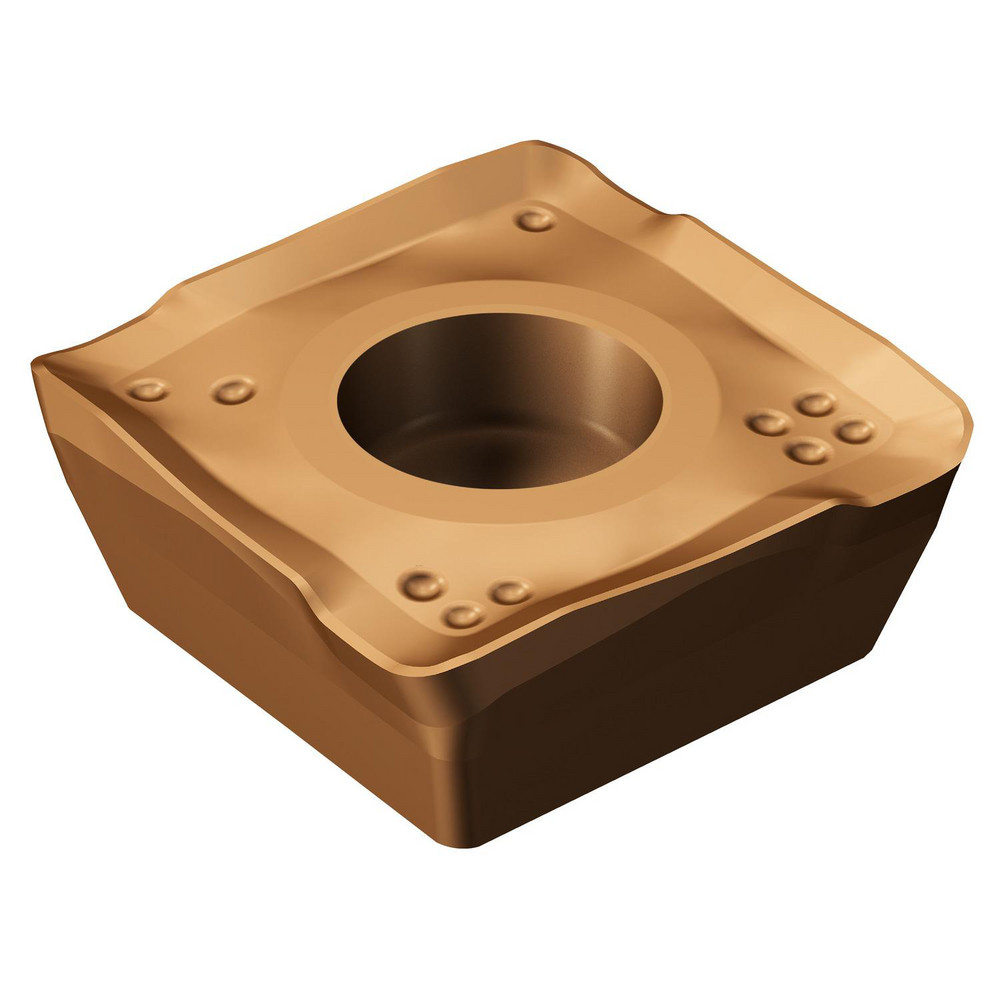

TiAlN Finish, 3.90 mm Thick
| Insert Style | 490 |
|---|---|
| Insert Size | 14 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | S30T |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1535 |
| Thickness (mm) | 3.90 |
| Coating/Finish | TiAlN |
| Insert Size Code | 140408 |
| Material Grade | M25; S25 |

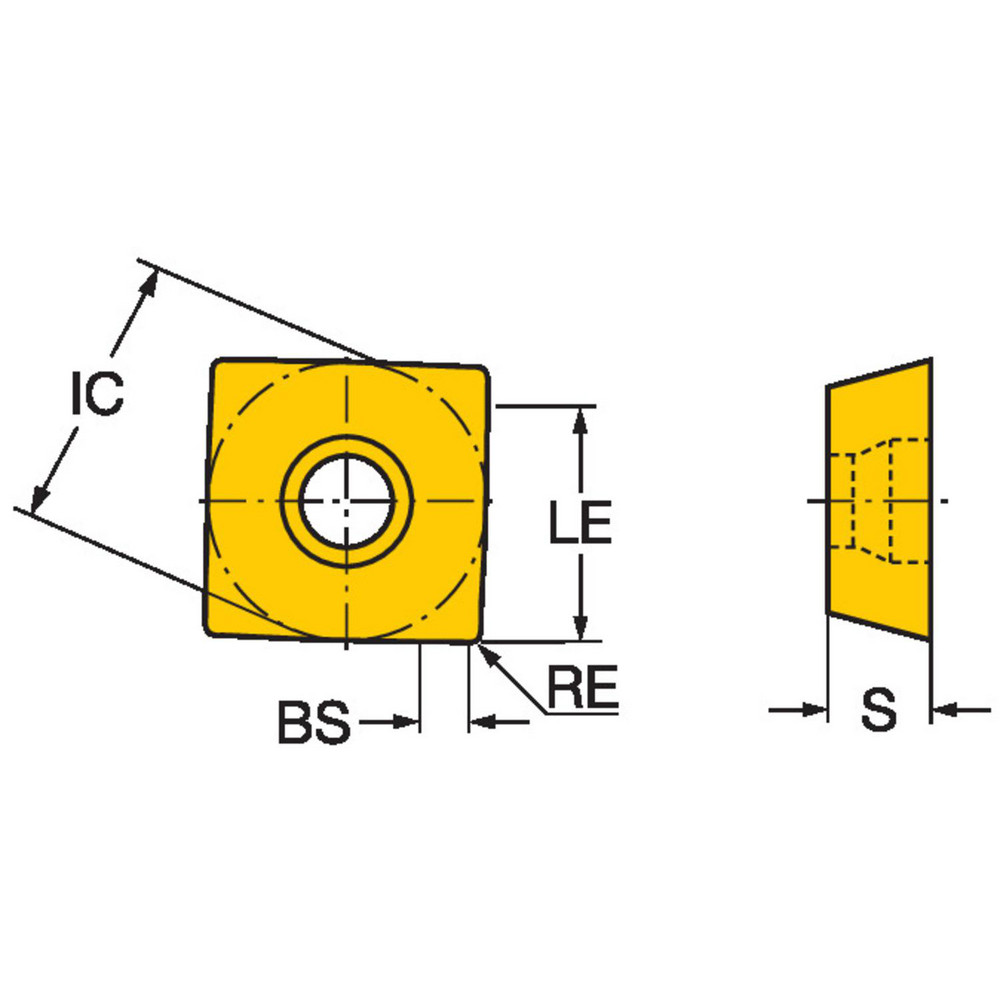

| Inscribed Circle (Decimal Inch) | 0.5433 |
| Inscribed Circle (mm) | 13.80 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 to 0.6000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 10.00 |
| Series | 490 |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.16 |
| Hole Diameter (Decimal Inch) | 0.1614 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Ansi Code | 490R-140408E-ML S30T |
| Iso Code | 490R-140408E-ML S30T |
| Standards | ISO; ANSI |
| Rake Angle | 26 |
| Cutting Edge Style | Corner Rounded |
| Manufacturers Catalog Number | 490R-140408E-ML S30T |
| Cutter Series Compatibility | 490 |
| Chip Breaker | ML |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Length (mm) | 10.30 |
| Width (Decimal Inch - 4 Decimals) | 0.5433 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5433 |
| Country of Origin | Sweden |
| MSC Number | MSC# 52062098 |
