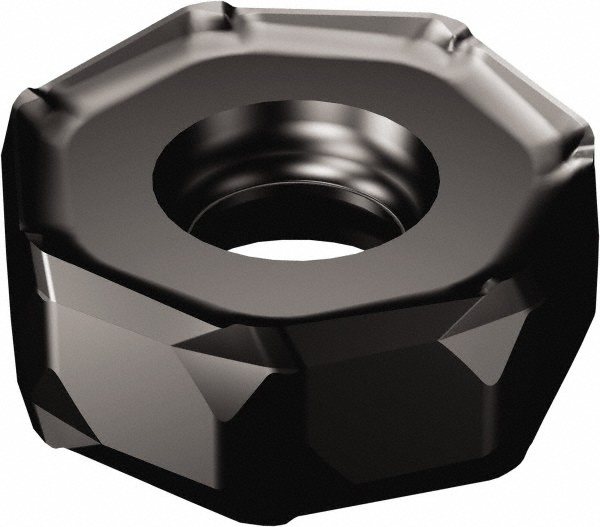

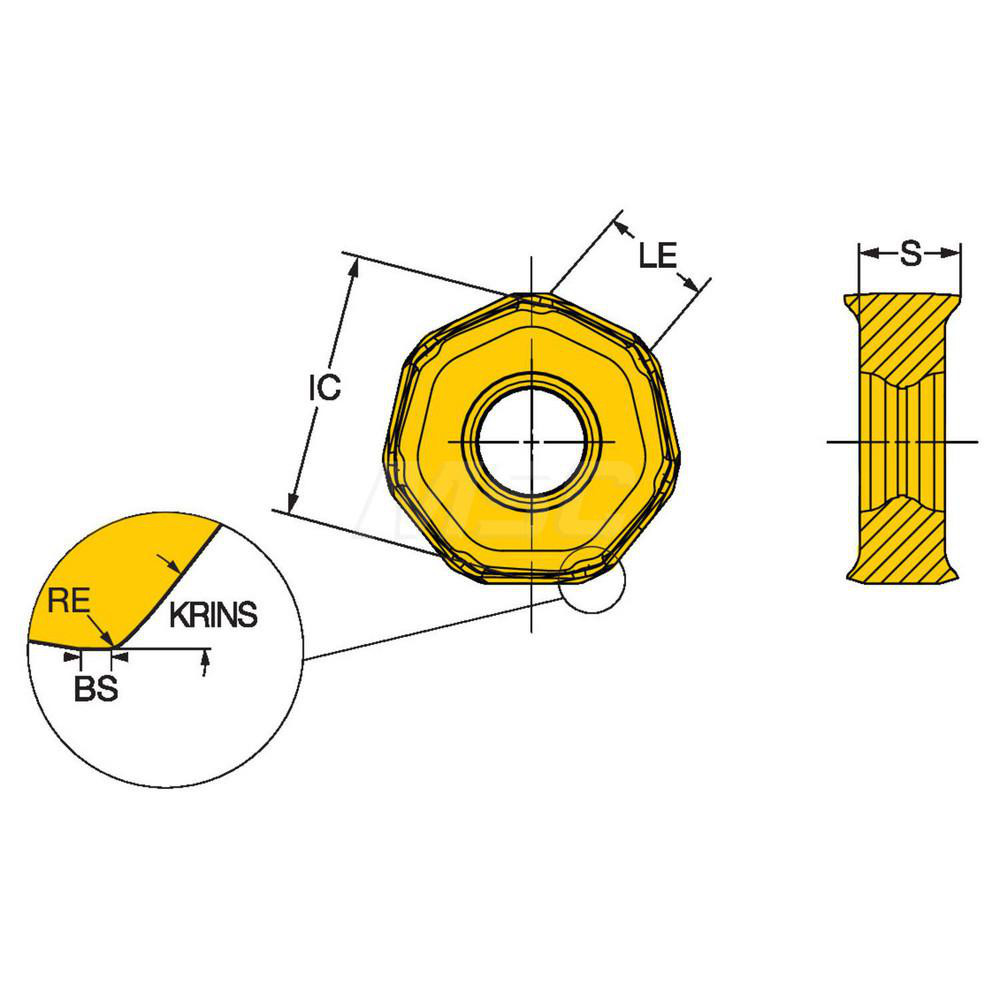

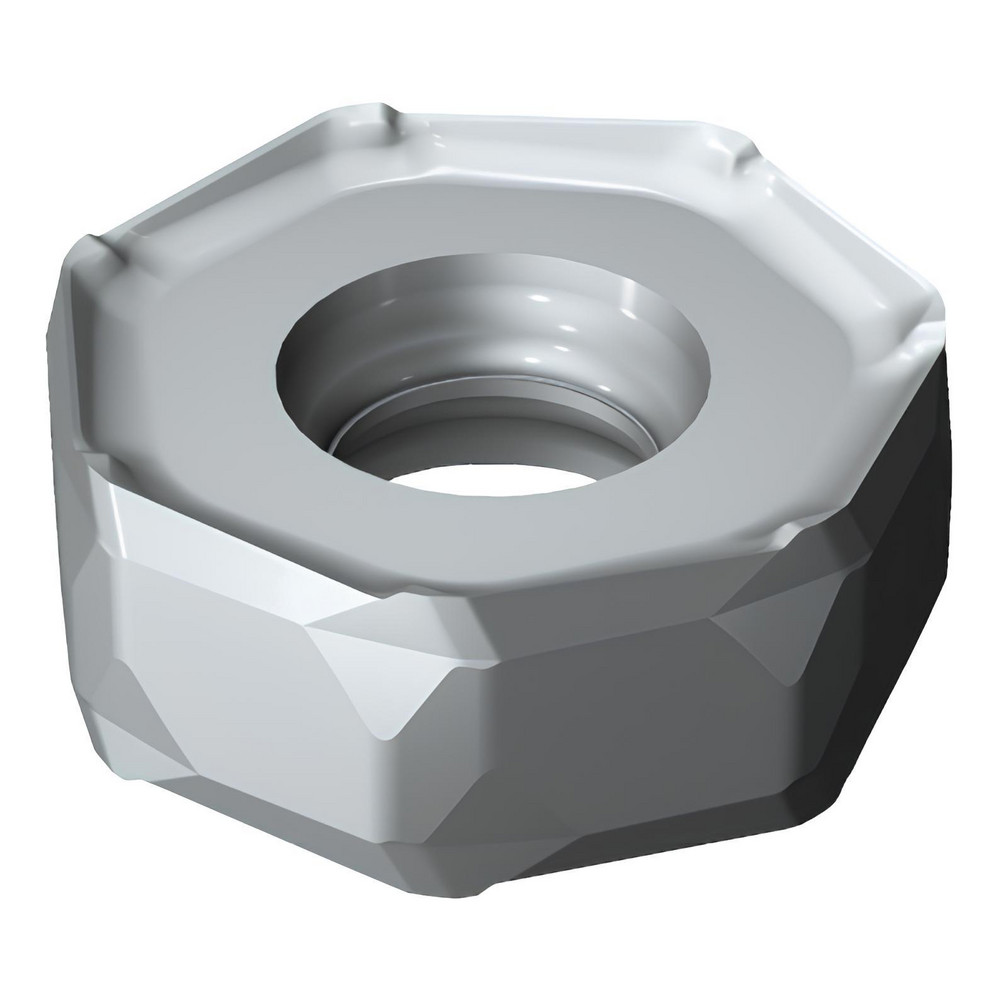

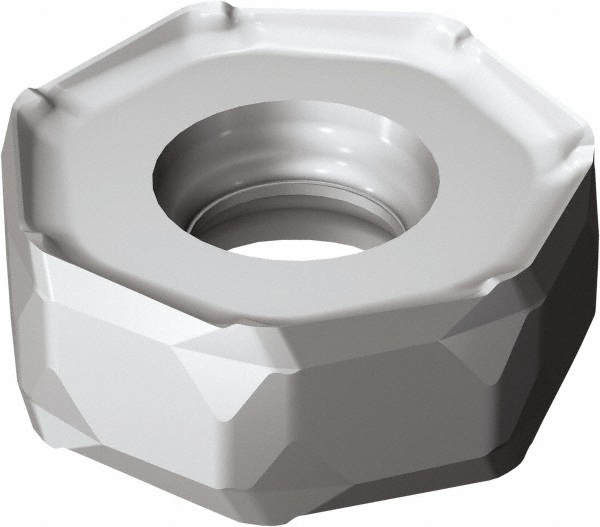

TiCN, Al2O3 & TiN Finish, 9.00 mm Thick
| Insert Style | 745 |
|---|---|
| Insert Size | 21 |
| Insert Material | Solid Carbide |
| Insert Shape | Heptagon |
| Manufacturer Grade | 4230 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Number Of Cutting Edges | 14 |
| Thickness (Decimal Inch - 4 Decimals) | 0.3543 |
| Thickness (mm) | 9.00 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Relief Angle | 0.00 |
| Insert Size Code | 2109 |
| Inscribed Circle (Decimal Inch) | 0.8268 |
| Inscribed Circle (mm) | 21.00 |
| Thickness Range (Decimal Inch) | 0.3500 to 0.5000 |
| Inscribed Circle Range (Decimal Inch) | 0.7000 to 1.0000 |
| Length Range (Decimal Inch) | 0.7000 to 0.9000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1772 |
| Series | 745 |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.3268 |
| Rake | Negative |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Ansi Code | 745R-2109E-M31 4230 |
| Iso Code | 745R-2109E-M31 4230 |
| Standards | ISO; ANSI |
| Rake Angle | 44 |
| Cutting Edge Style | Corner Rounded |
| Manufacturers Catalog Number | 745R-2109E-M31 4230 |
| Cutter Series Compatibility | 745 |
| Chip Breaker | M31 |
| UNSPSC Code | 23291601 |
| Material Application | Cast Iron; Steel |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 128.57 |
| Width (Decimal Inch - 4 Decimals) | 0.8268 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.8268 |
| Country of Origin | Sweden |
| MSC Number | MSC# 32583676 |
