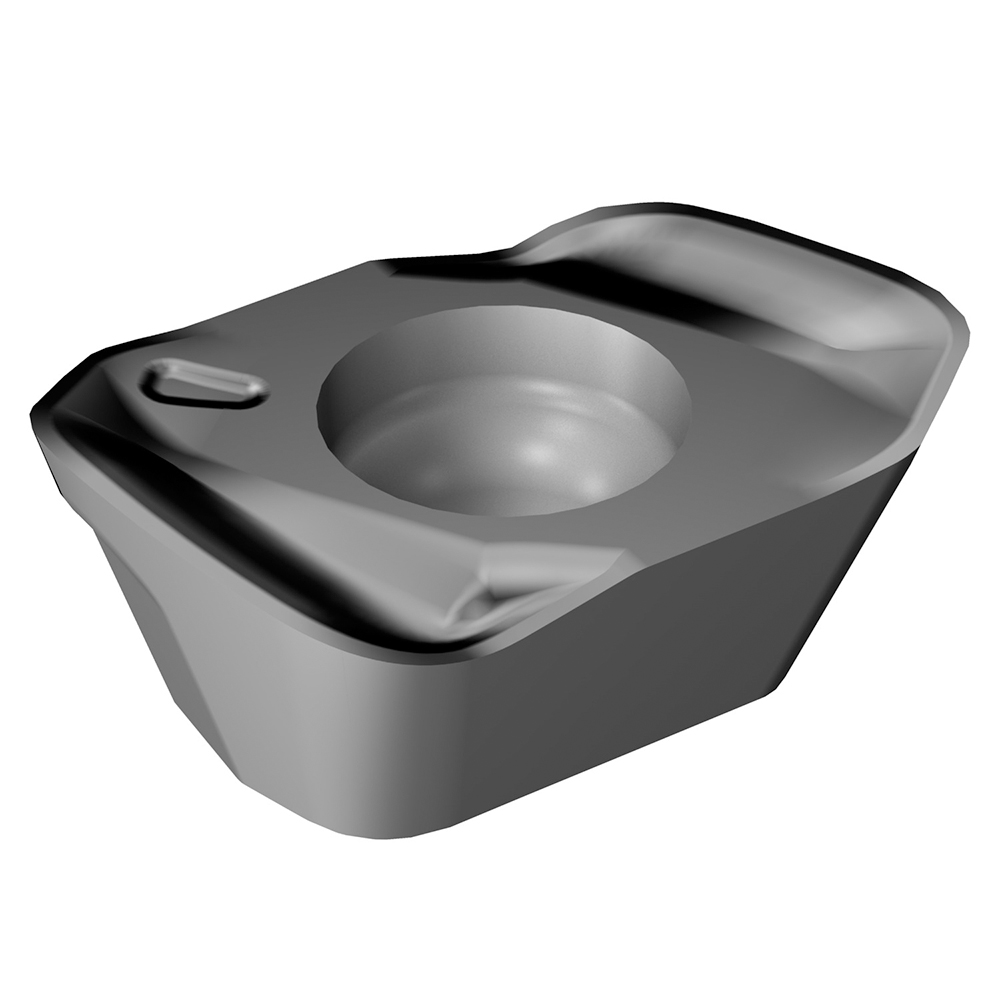

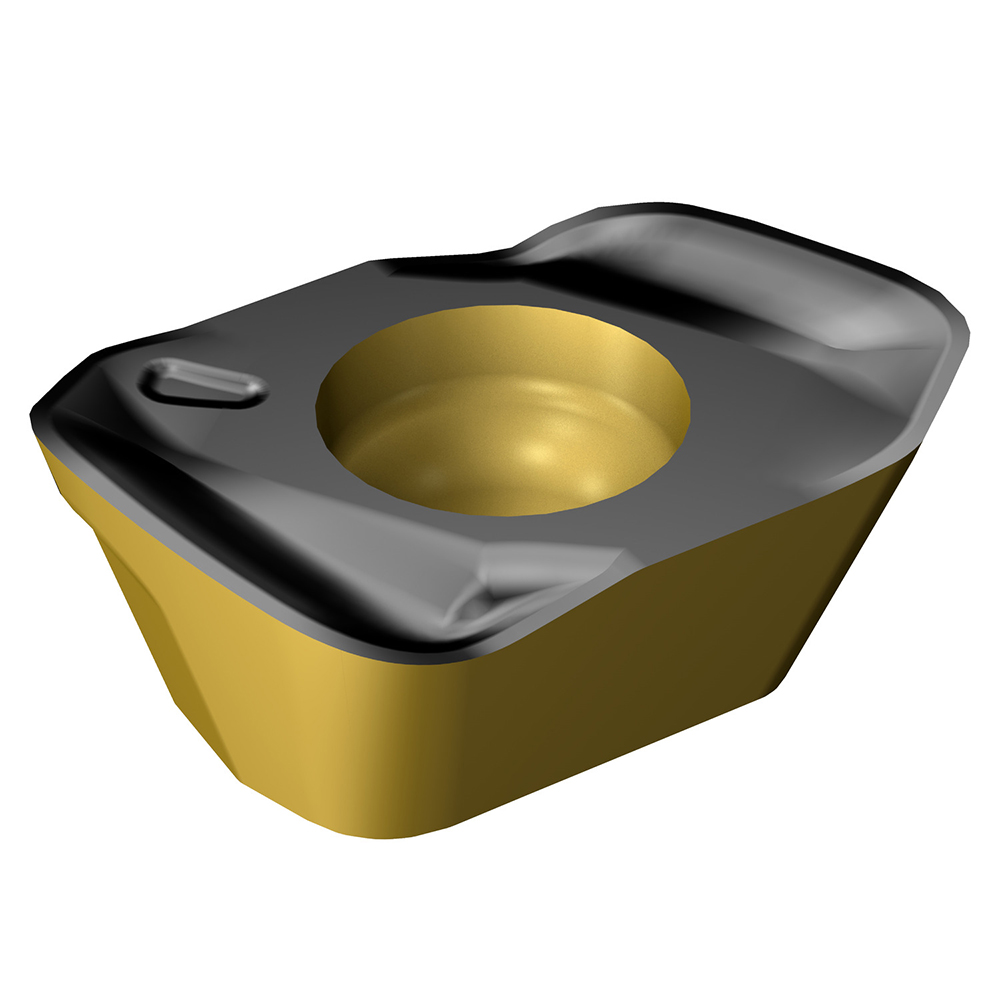

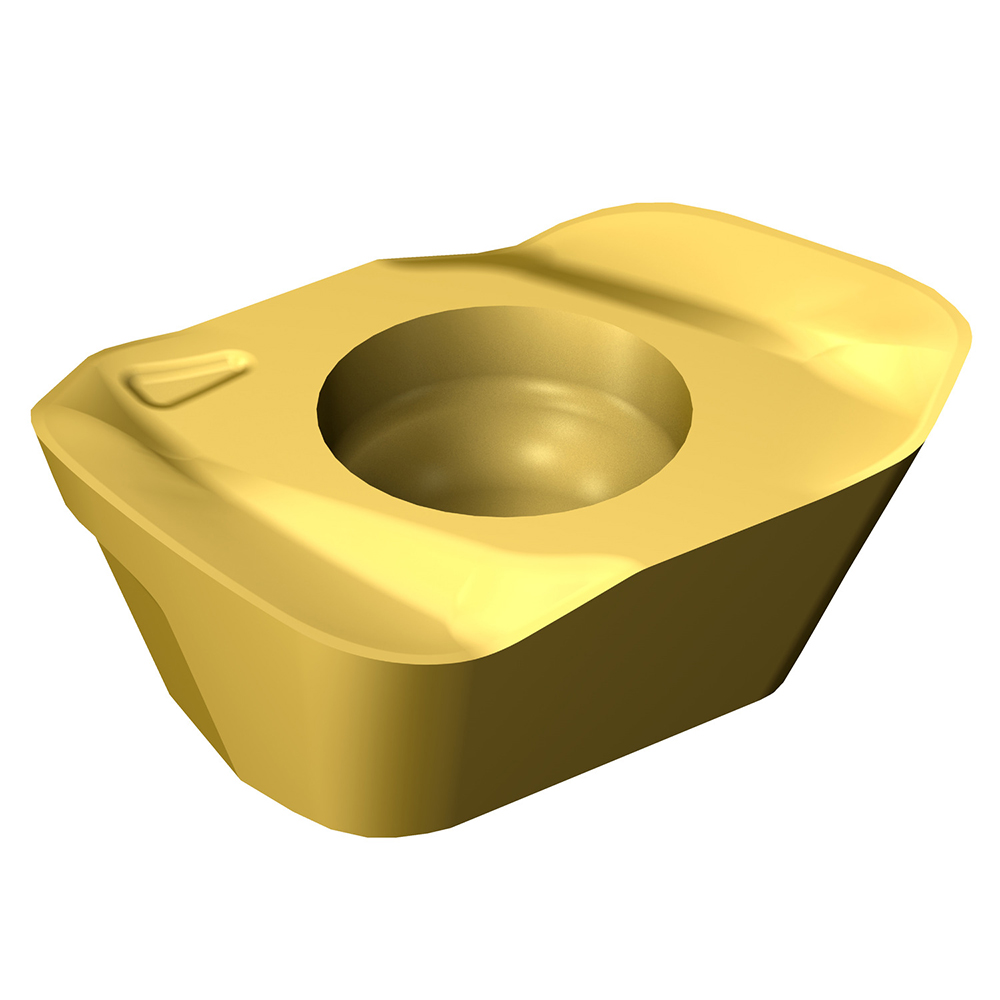

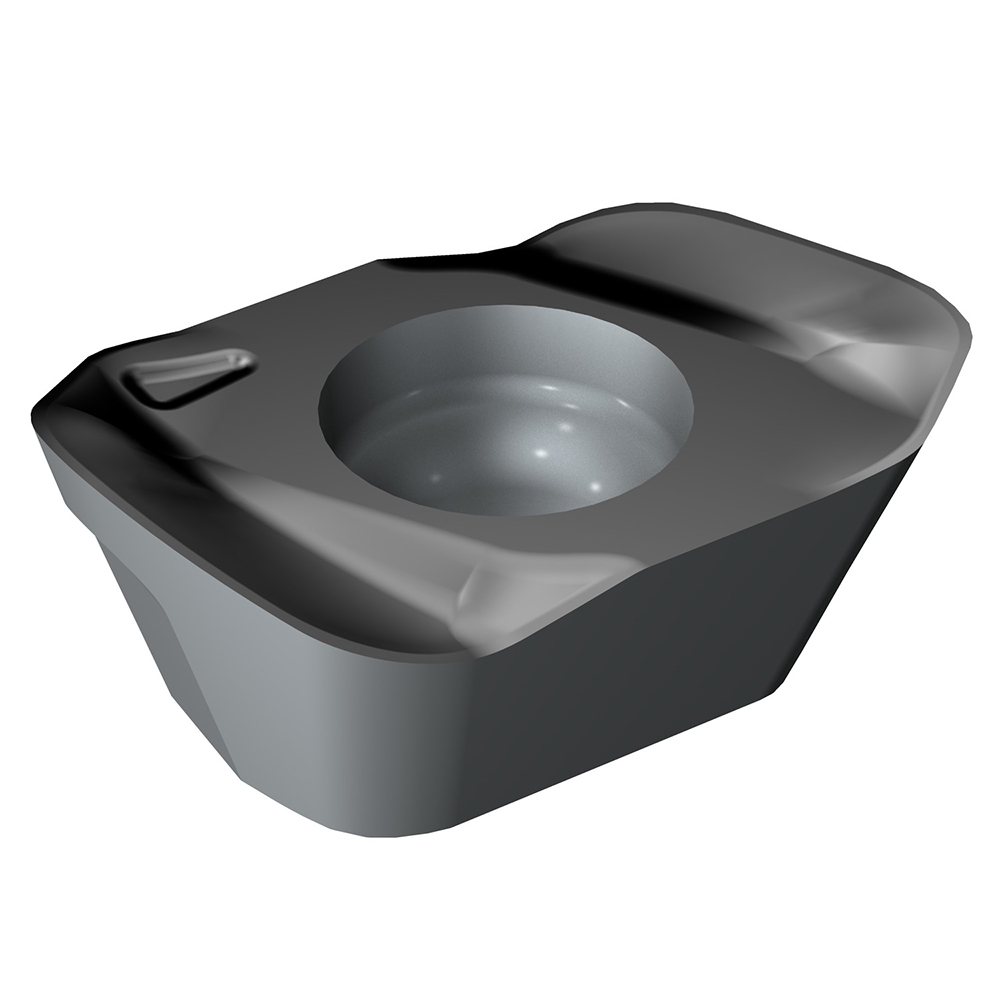

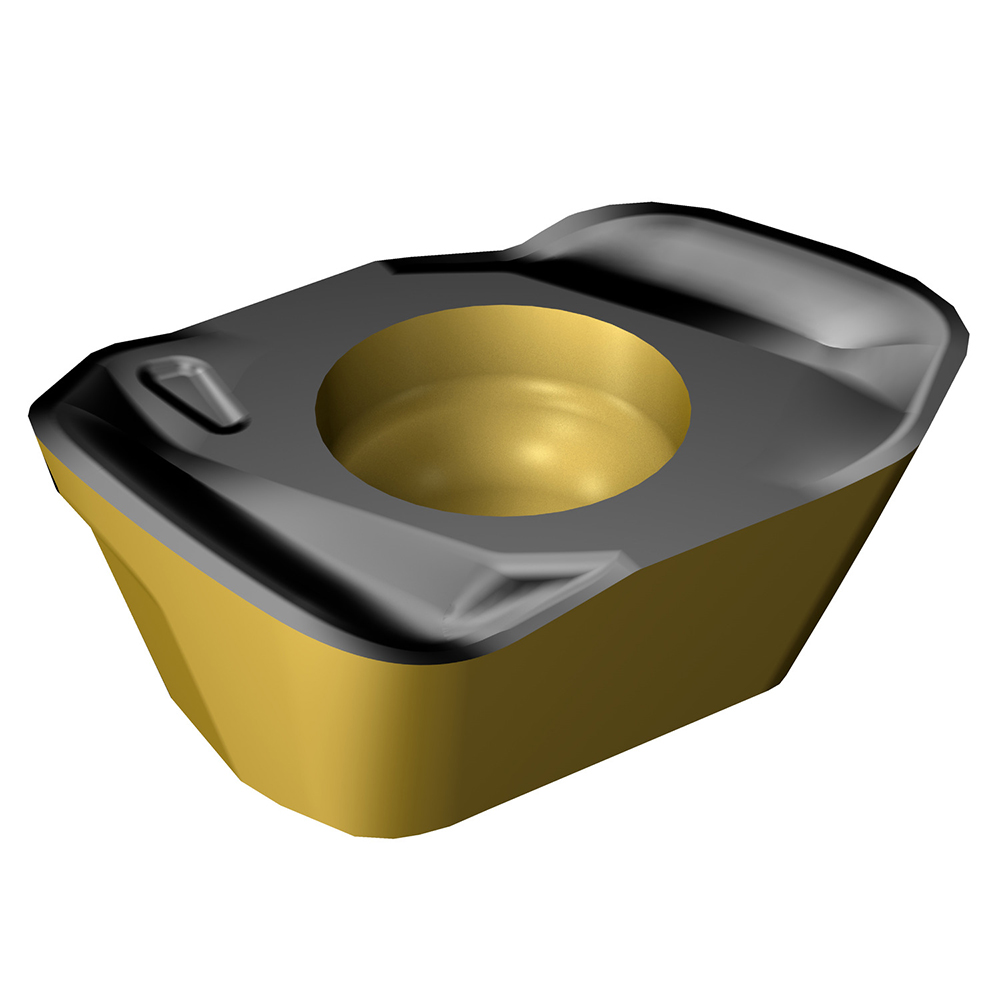

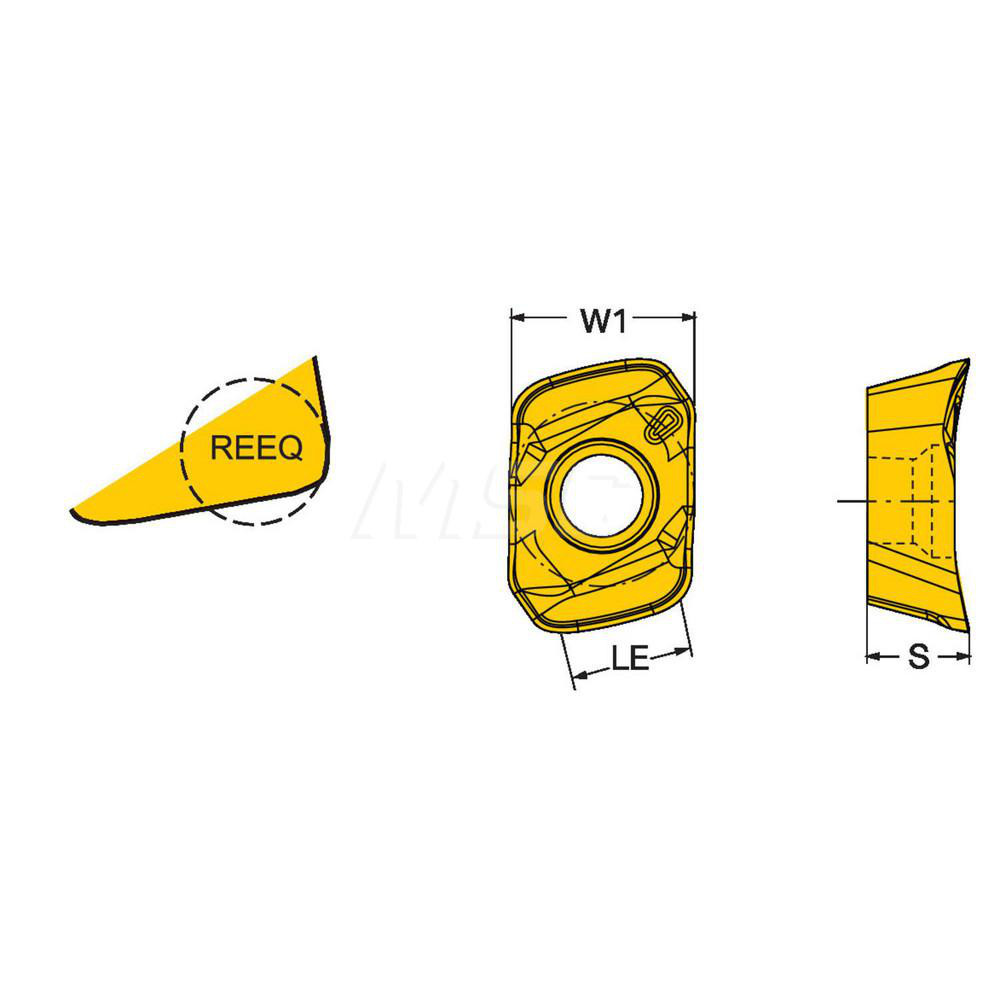

TiCN, Al2O3 & TiN Finish, 0.1587" Thick, 0.3346" Wide
| Insert Style | MH20 |
|---|---|
| Insert Size | 08 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | 4340 |
| Corner Radius (Decimal Inch) | 0.0827 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1587 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Insert Size Code | 080425 |
| Material Grade | K40; M40; P40 |
| Inscribed Circle (Decimal Inch) | 0.3346 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Inscribed Circle Range (Decimal Inch) | 0.3000 to 0.3500 |
| Length Range (Decimal Inch) | 0.0000 to 0.3200 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0472 |
| Series | MH20 |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.1339 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Ansi Code | MH20-080425M-M20 4340 |
| Iso Code | MH20-080425M-M20 4340 |
| Standards | ISO; ANSI |
| Rake Angle | 13 |
| Cutting Edge Style | Corner Rounded |
| Manufacturers Catalog Number | MH20-080425M-M20 4340 |
| Cutter Series Compatibility | MH20 |
| Chip Breaker | M20 |
| UNSPSC Code | 23242105 |
| Material Application | Stainless Steel; Steel |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 105 |
| Width (Decimal Inch - 4 Decimals) | 0.3346 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.2323 |
| Country of Origin | UNITED STATES |
