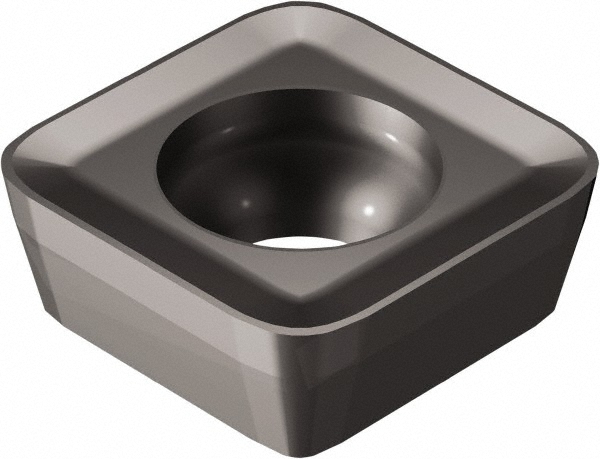

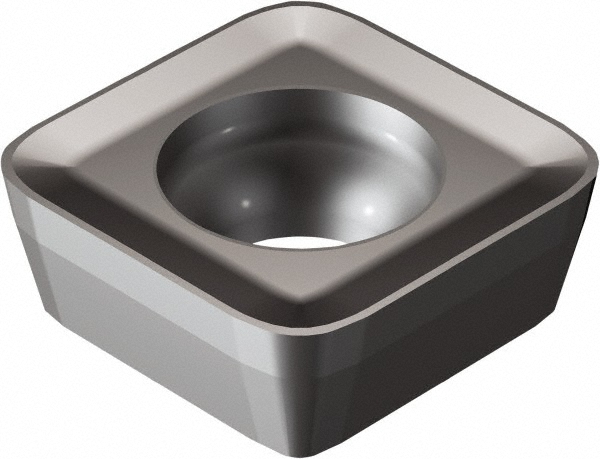

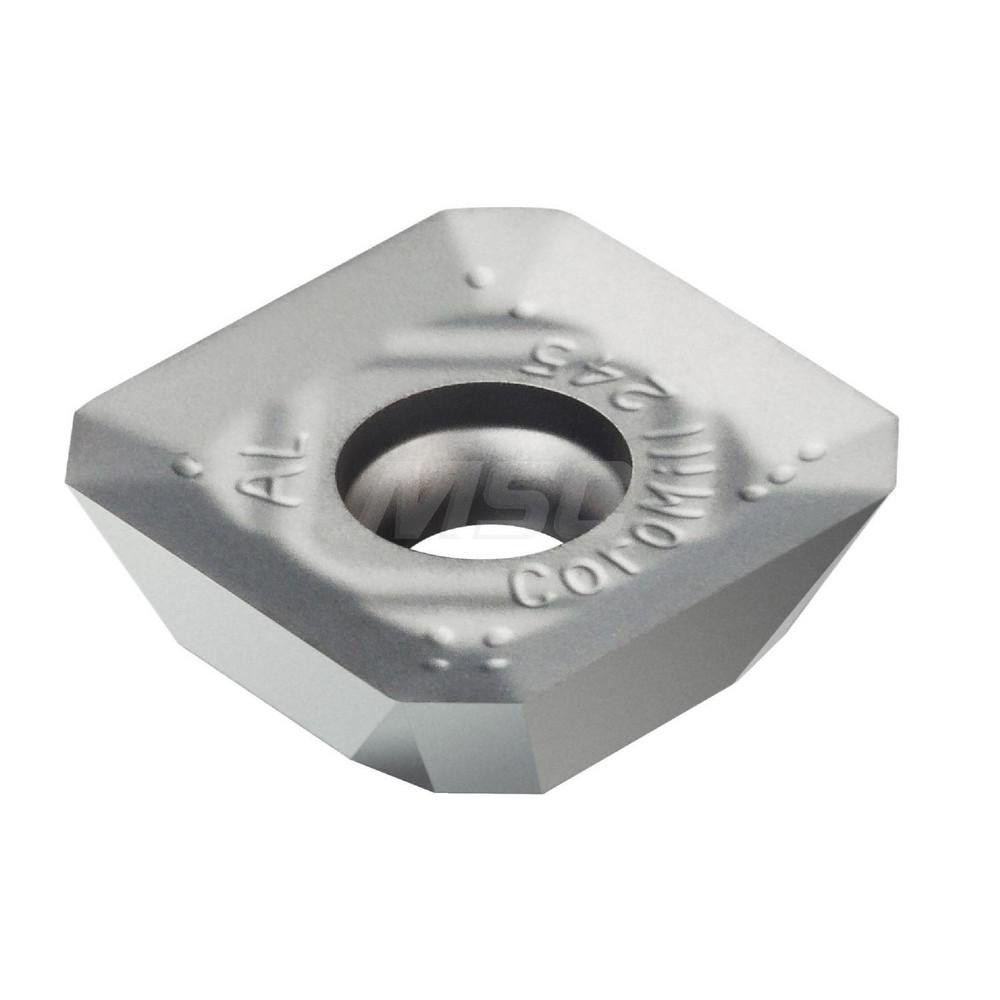

TiAlN Finish, 4.50 mm Thick
| Insert Style | R210 |
|---|---|
| Insert Size | 09 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | S30T |
| Corner Radius (Decimal Inch) | 0.0551 |
| Corner Radius (mm) | 1.40 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1772 |
| Thickness (mm) | 4.50 |
| Coating/Finish | TiAlN |
| Insert Size Code | 090414 |
| Material Grade | M25; S25 |

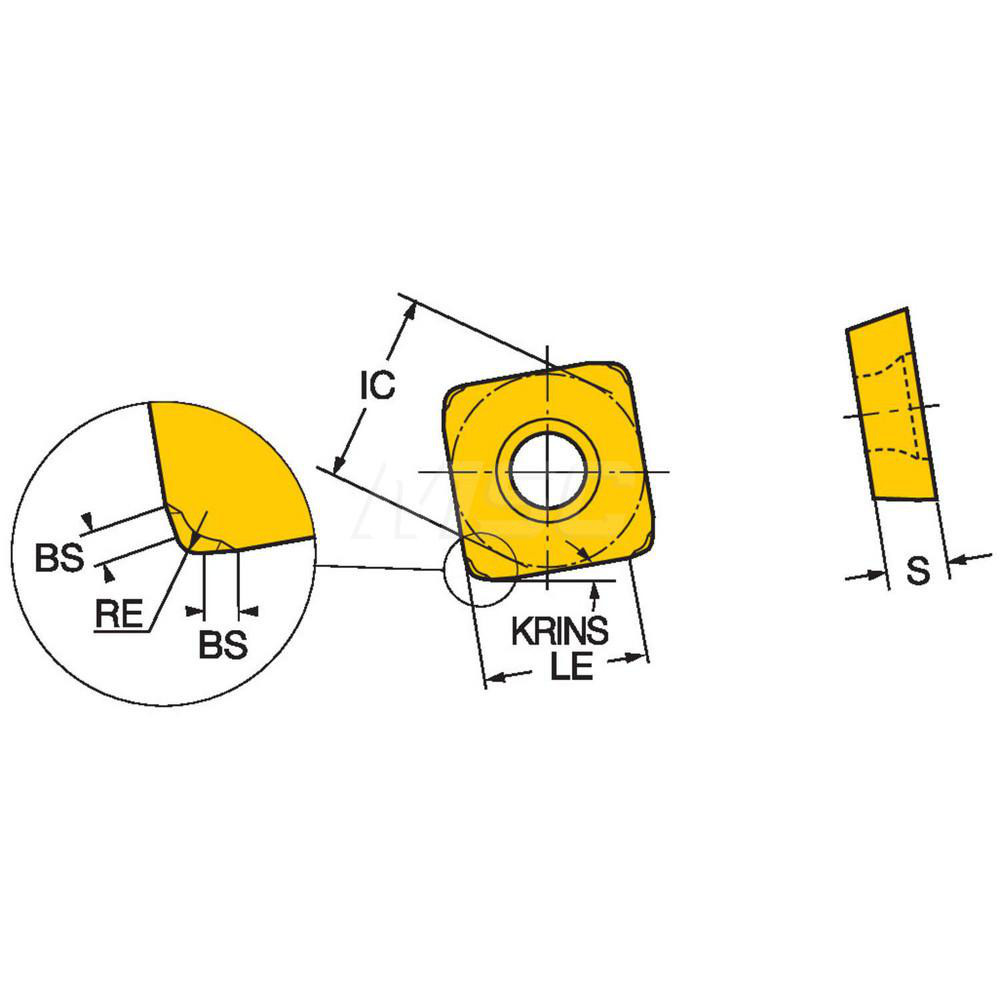

| Inscribed Circle (Decimal Inch) | 0.3740 |
| Inscribed Circle (mm) | 9.50 |
| Thickness Range (Decimal Inch) | 0.1750 to 0.1850 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.0472 |
| Maximum Depth of Cut (mm) | 1.00 |
| Series | R210 |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.17 |
| Hole Diameter (Decimal Inch) | 0.1654 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Ansi Code | R210-09 04 14E-PM S30T |
| Iso Code | R210-09 04 14E-PM S30T |
| Standards | ISO; ANSI |
| Rake Angle | 10 |
| Cutting Edge Style | Corner Rounded |
| Manufacturers Catalog Number | R210-09 04 14E-PM S30T |
| Cutter Series Compatibility | R210 |
| Chip Breaker | PM |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Length (mm) | 5.77 |
| Width (Decimal Inch - 4 Decimals) | 0.3740 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3740 |
| Country of Origin | Japan |
