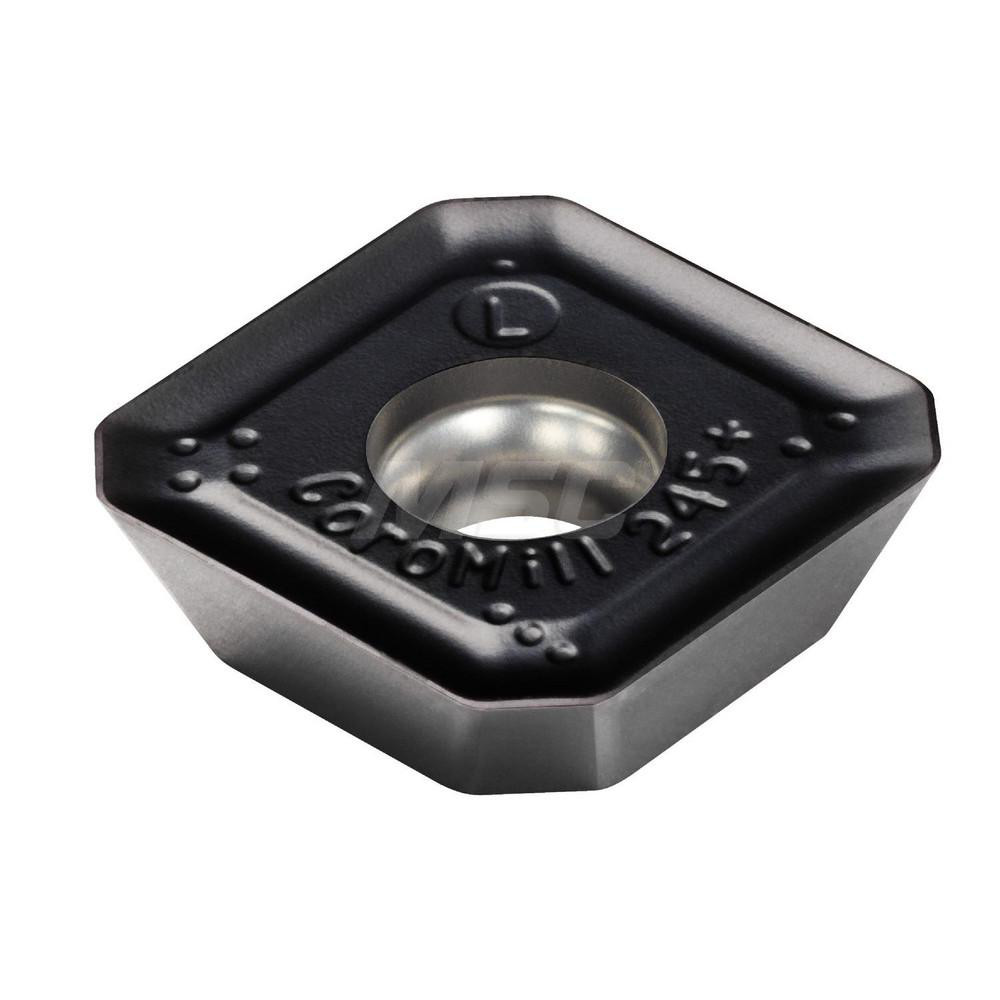

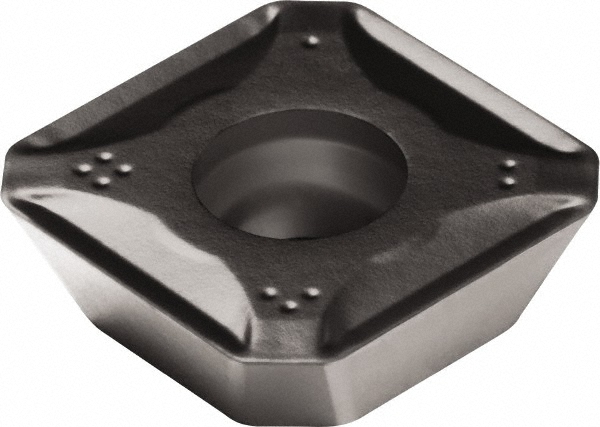

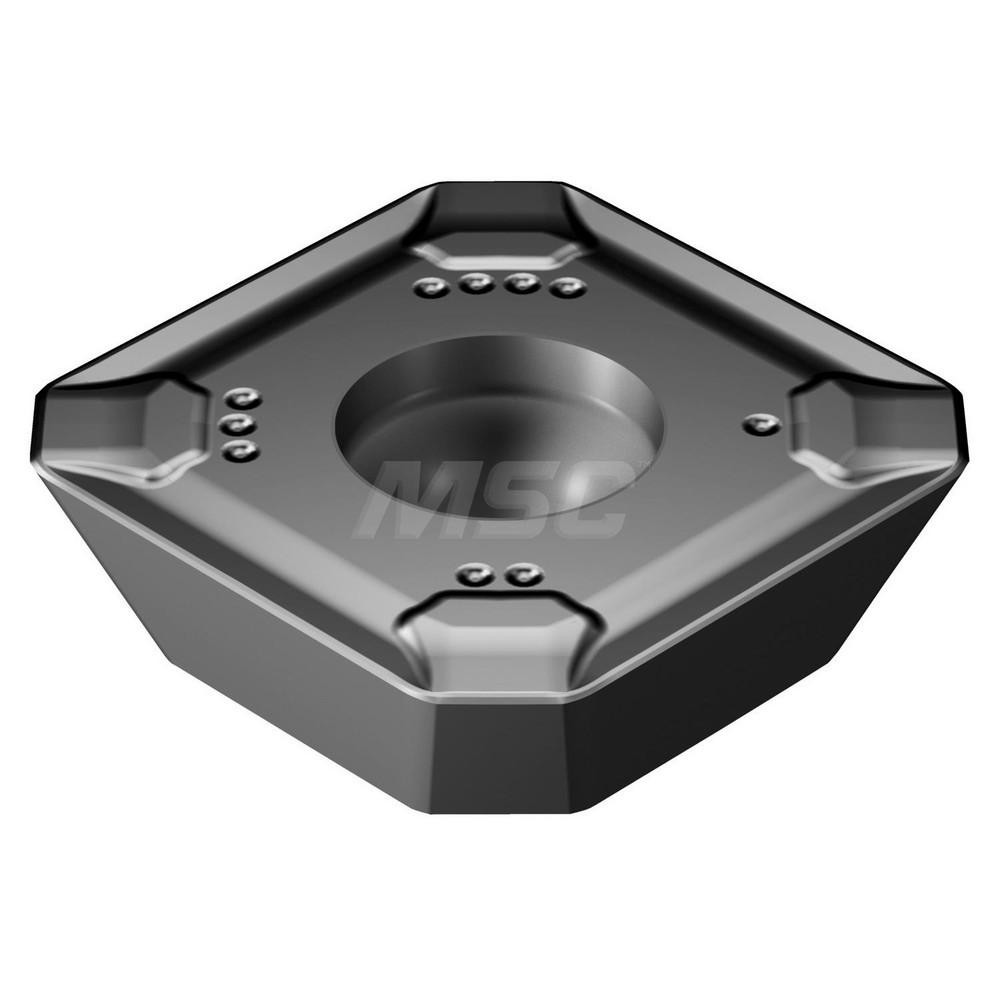

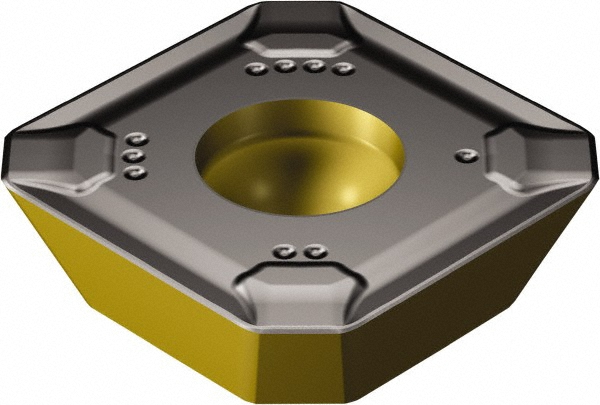

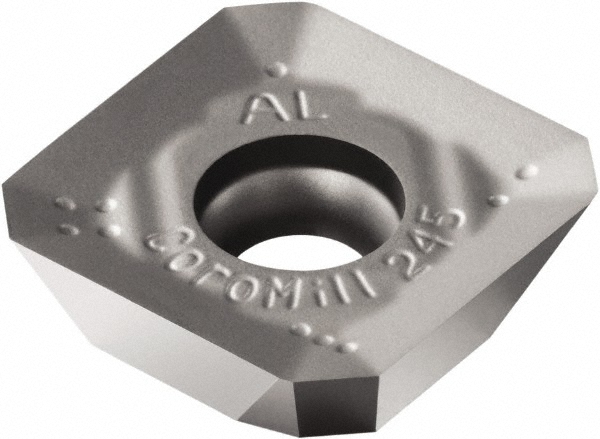

AlTiCrN Finish, 3.97 mm Thick
| Insert Style | R245 |
|---|---|
| Insert Size | 12 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | 1130 |
| Corner Radius (Decimal Inch) | 0.0591 |
| Corner Radius (mm) | 1.50 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1563 |
| Thickness (mm) | 3.97 |
| Coating/Finish | AlTiCrN |
| Insert Size Code | 12T3 |
| Material Grade | M15; N15; P30 |
| Thickness (Inch) | 5/32 |

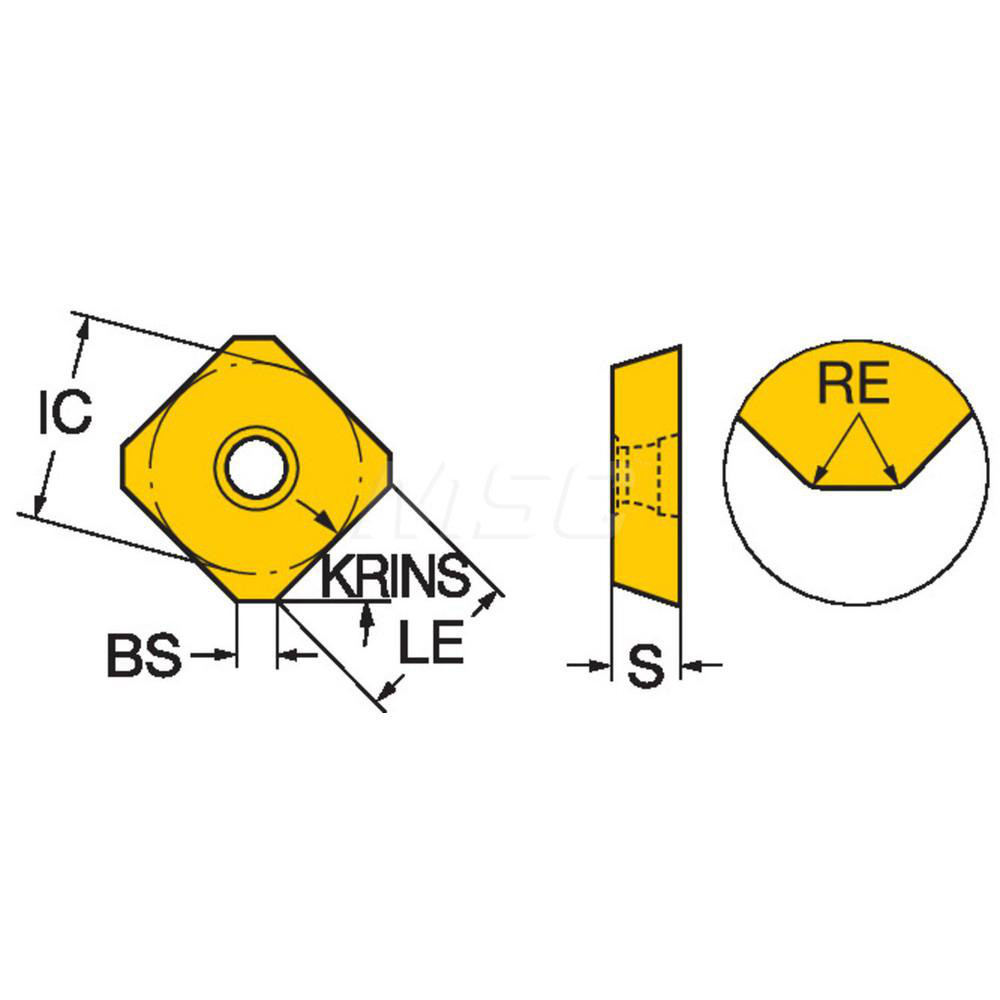

| Inscribed Circle (Decimal Inch) | 0.5276 |
| Inscribed Circle (mm) | 13.40 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 to 0.6000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2559 |
| Series | R245 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1614 |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; M; N |
| Ansi Code | R245-12 T3 E-ML 1130 |
| Iso Code | R245-12 T3 E-ML 1130 |
| Standards | ISO; ANSI |
| Rake Angle | 20 |
| Cutting Edge Style | Corner Rounded |
| Manufacturers Catalog Number | R245-12 T3 E-ML 1130 |
| Cutter Series Compatibility | R245 |
| Chip Breaker | ML |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal; Hard Material; Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5276 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5276 |
| Country of Origin | UNITED STATES |
